DYRABREST 24V DC 800N Side Mount Roll-Up Garage Door Opener Instruction Manual

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your DYRABREST 24V DC 800N Side Mount Roll-Up Garage Door Opener. Please read this manual thoroughly before installation and use to ensure safe and efficient operation of the product. Keep this manual for future reference.

2. Informazioni sulla sicurezza

AVVERTIMENTO: La mancata osservanza di queste istruzioni di sicurezza può provocare gravi lesioni o danni alla proprietà.

• Assicurarsi che tutti i collegamenti elettrici siano eseguiti da un elettricista qualificato e siano conformi alle normative locali.
• Scollegare l'alimentazione prima di eseguire qualsiasi manutenzione o riparazione.
• Keep hands and clothing clear of the door and opener mechanism during operation.
• Do not allow children to operate the garage door opener or play near the door.
• Ispezionare regolarmente il sistema della porta del garage per verificare la presenza di segni di usura o danni.
• The opener is designed for roll-up metal garage doors only. Do not use with other door types.
• This product does not include an infrared sensor. Ensure the area is clear before operating the door.
• In caso di mancanza di correntetage, use the manual override feature to operate the door.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti nella confezione:

• 24V DC Side Mount Roll-Up Garage Door Opener Unit
• 2 Remote Transmitters
• Mounting Hardware (U-bolt, saddle gasket, bracket, fixing plate, spring washer, nuts)
• Cavo di alimentazione
• Manuale di istruzioni (questo documento)

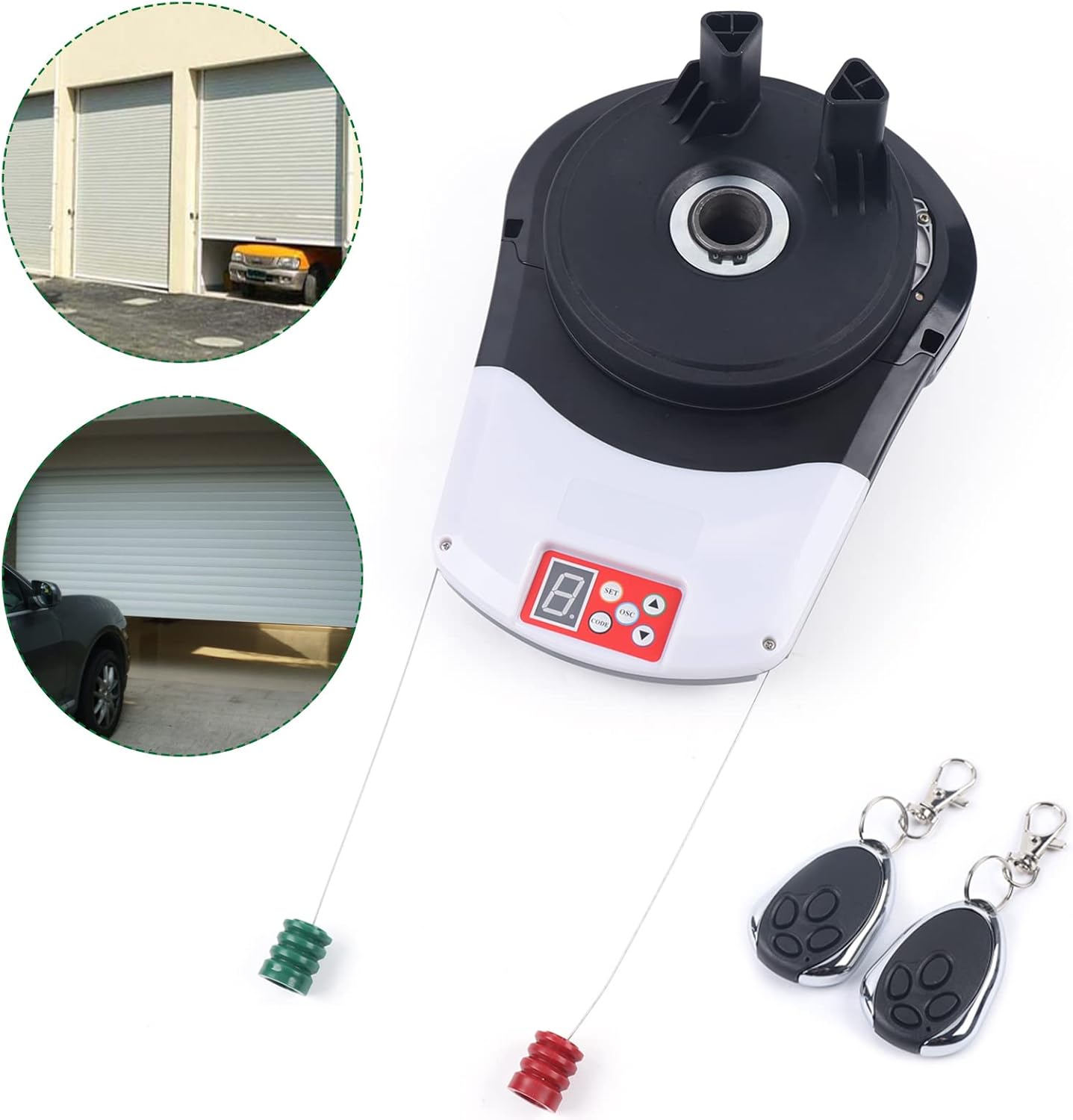

Image: Main components of the DYRABREST garage door opener, including the motor unit and two remote controls.

4. Specifiche

Image: Visual representation of the opener's key specifications, including pulling force, maximum door area, height, and noise level.

5. Requisiti di installazione

Before proceeding with installation, ensure your garage door and installation environment meet the following criteria:

• Tipo di porta: Compatible only with roll-up metal garage doors or rolling shutter garage doors. Not suitable for flap garage doors or duplicate garage doors.
• Clearance (Inside Bracket): The distance between the edge of the door curtain and the inside of the bracket must be at least 85mm.
• Clearance (Outside Bracket): The distance between the edge of the door curtain and the outside of the bracket must be at least 135mm.
• Dimensioni della porta: The door must be within the motor's bearing capacity (Max. 242 Sq.Ft / 22.5 m² area, Max. 14.8 Ft / 4.5 m height).
• Alimentazione elettrica: Ensure a stable 110V AC 50Hz power supply is available.
• Lunghezza dell'albero: The central shaft length should be sufficient for mounting, typically around 11.81 inches (30 cm).

Image: Diagram showing the required central shaft length for installation and the safety feature where the door reverses upon obstruction.

6. Configurazione e installazione

This section outlines the general steps for installing your garage door opener. Professional installation is recommended.

1. Prepara la porta: Ensure the roll-up door operates smoothly manually. Lubricate moving parts if necessary.
2. Montare l'apribottiglie:
   • Attach the mounting bracket to the wall or ceiling structure near the door's shaft.
   • Secure the opener unit to the door's central shaft. The unit is designed for easy mounting directly to most standard roll-up shafts.
   • Use the U-bolt, saddle gasket, fixing plate, spring washer, and nuts to firmly secure the opener.
3. Collegamento elettrico: Connect the opener to a 110V AC power outlet. Ensure the power is off during connection.
4. Regolazione del finecorsa: Adjust the limit switches to set the desired open and close positions of the door. Refer to the specific instructions on the control panel for precise adjustment.
5. Programmazione remota: Program the remote transmitters to the opener unit.

Image: Step-by-step diagram illustrating the installation process, from attaching the opener to the rolling door to securing the bracket.

Immagine: dettagliata view of the opener's control panel, power plug, and included remote controls, showing the compact design.

7. Istruzioni per l'uso

Metodi di controllo 7.1

The opener can be operated using three methods:

• Telecomando: Use the handheld transmitters to open or close the door from a distance of up to 164 feet (50 meters). Press the designated button for two seconds to activate.
• Wall-Mounted Switch (Panel Control): Operate the door directly from the control panel on the opener unit.
• Controllo manuale: In case of power failure, pull the manual release cord (red and green cords) to disengage the motor and operate the door manually.

Image: Illustration of the three ways to control the garage door opener: manual pull, remote, and direct panel buttons.

7.2 Automatic Shutdown Mode

The opener features an automatic shutdown mode for convenience and energy saving. You can program the auto-shutdown or select a delayed shutdown time. This feature is particularly useful for installations in narrow spaces above the garage.

Image: Diagram detailing the automatic shutdown mode options and the compact dimensions of the opener unit, suitable for tight installations.

7.3 Protezione di sicurezza

The opener is equipped with built-in safety features:

• Rilevamento degli ostacoli: Se la porta incontra un ostacolo durante la chiusura, inverte automaticamente il movimento per evitare danni o lesioni.
• Protezione da sovraccarico termico: Prevents motor burnout during extended or heavy use.

8. Manutenzione

Una manutenzione regolare garantisce la longevità e il funzionamento sicuro dell'apriporta del garage.

• Ispezione mensile: Check the door's balance and movement. Ensure all mounting hardware is secure.
• Lubrificazione: Lubricate the door's moving parts (rollers, hinges, springs) annually with a garage door lubricant. Do not lubricate the opener unit itself unless specified.
• Batterie remote: Replace remote control batteries as needed.
• Pulizia: Mantenere l'unità di apertura pulita e libera da polvere e detriti.

9. Risoluzione Dei Problemi

10. Garanzia e supporto

For warranty information or technical support, please refer to the purchase documentation or contact DYRABREST customer service. Keep your proof of purchase for warranty claims.

Produttore: KOUGER

11. Applicazioni

This garage door opener is suitable for various roll-up door applications, including:

• Residential Garages
• Commercial Rolling Shutters
• Industrial Partitions
• Fienili
• Magazzini
• Negozi

Immagine: Examples of suitable applications for the roll-up door opener, including garages, stores, barns, and warehouses.
