DSD TECH SH-UR01A USB Relay Controller User Manual

1. Introduzione

The DSD TECH SH-UR01A is a 1-channel USB Relay Controller designed for controlling switches via a personal computer or laptop. This device utilizes a Silicon Labs CP2102N serial chip, which creates a virtual serial port on your computer, allowing you to send commands for relay operation. It features an OMRON G5V-1 relay, suitable for various switching applications.

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your SH-UR01A USB Relay Controller.

2. Prodotto finitoview

The SH-UR01A USB Relay Controller is a compact device that connects to your computer via a standard USB Type-A male connector. It features a single relay channel with screw terminals for connecting external circuits.

Figura 2.1: Component Diagram of SH-UR01A. This image highlights the 5V DC Relay, Normal Open (NO), Common (COM), Normal Close (NC) terminals, and the USB Type A Male connector.

2.1 Caratteristiche principali

• USB Relay Control: Enables switching operations directly from your PC or laptop.
• Silicon Labs CP2102N Serial Chip: Provides a virtual serial port interface for command-based control.
• OMRON G5V-1 Relay: Rated load of 0.5A at 125 VAC; 1A at 24 VDC. Maximum switching voltage of 125 VAC, 60 VDC.
• Ampia compatibilità: Supports Windows 7, 8, 10, and various Linux OS and Mac OS.

Figura 2.2: Various angles of the SH-UR01A USB Relay Controller, showcasing il suo design compatto.

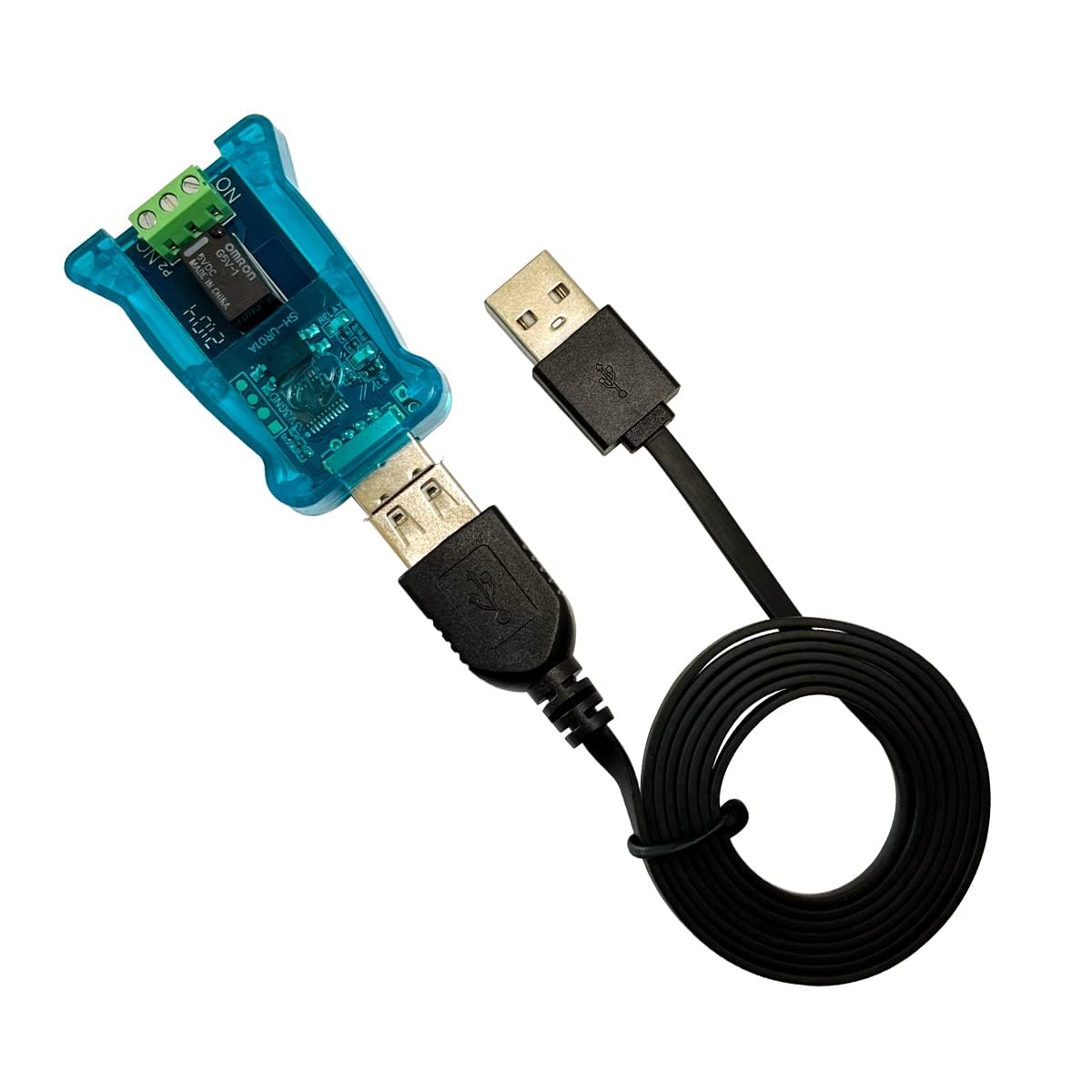

Figura 2.3: The SH-UR01A connected to a USB cable, illustrating its typical connection method.

3. Istruzioni per l'installazione

3.1 Installazione del driver

Before using the SH-UR01A, you must install the appropriate driver for the Silicon Labs CP2102N serial chip. This is typically required only for the first use. Once installed, a virtual serial port will appear on your computer, enabling communication with the device.

1. Scarica il driver: Obtain the latest Silicon Labs CP2102N driver from the official DSD TECH website or Silicon Labs websito.
2. Installa il driver: Follow the on-screen instructions to install the driver on your operating system.
3. Connetti dispositivo: Plug the SH-UR01A USB Relay Controller into an available USB port on your computer.
4. Verifica installazione: Check your computer's Device Manager (Windows) or equivalent system information (macOS/Linux) to confirm that the virtual serial port (e.g., COM port on Windows, /dev/ttyUSBx on Linux) is recognized.

3.2 Compatibilità del sistema

The SH-UR01A USB Relay Controller is compatible with the following operating systems:

• Finestre 7
• Finestre 8
• Finestre 10
• Various Linux OS (e.g., Ubuntu)
• Sistema operativo Mac

Figura 3.1: The SH-UR01A connected to a laptop, demonstrating a typical setup.

4. Istruzioni per l'uso

The SH-UR01A is controlled by sending specific AT commands to its virtual serial port. You can use any serial terminal program (e.g., PuTTY, Realterm, Tera Term) or custom software to send these commands.

4.1 Impostazioni della porta seriale

The default UART settings for communication are:

• Baud Rate: 9600
• Bit di stop: 1
• Parità: Nessuno
• Bit di dati: 8

4.2 Elenco dei comandi AT

Use the following commands to control the relay:

Figura 4.1: AT Command List for SH-UR01A.

4.3 Esample: Python Demo Code

The following Python code snippet demonstrates how to communicate with the SH-UR01A using the pyserial library. This example shows how to open the serial port, send commands to turn the relay off and on, and then close the port.

Figura 4.2: Python Demo Code for SH-UR01A.

#This demo code is issued by DSD Tech Team exclusively for the SH-UR01A USB Relay
import serial
import time
import serial.tools.list_ports

ports_list = list(serial.tools.list_ports.comports())

if len(ports_list)<=0:
    print("no serial port")
else:
    print("serial port as follow:")
    for comport in ports_list:
        print(list(comport)[0],list(comport)[1])

ser=serial.Serial('COM101',9600,timeout=0.5) # please modify your uart port name such as COM10

if ser.is_open:
    print("open sucess")
    print(ser.name)
else:
    print("open failed")

mylen = ser.write('AT+CH1=0') # Relay Off
time.sleep( 3 )

mylen = ser.write('AT+CH1=1') # Relay ON

ser.close()
print("serial close")

Nota: Sostituire 'COM101' with the actual serial port name assigned to your SH-UR01A device (e.g., COM3, /dev/ttyUSB0).

5. Manutenzione

The DSD TECH SH-UR01A USB Relay Controller is designed for durability and requires minimal maintenance. To ensure optimal performance and longevity:

• Mantenere asciutto: Evitare di esporre il dispositivo a umidità o liquidi.
• Pulisci delicatamente: If cleaning is necessary, use a dry, soft cloth. Do not use harsh chemicals or abrasive materials.
• Maneggiare con cura: Evitare di far cadere o sottoporre il dispositivo a forti impatti.
• Conservazione corretta: Quando non in uso, conservare il dispositivo in un luogo fresco e asciutto, lontano dalla luce solare diretta.

6. Risoluzione Dei Problemi

If you encounter issues with your SH-UR01A USB Relay Controller, refer to the following common problems and solutions:

• Dispositivo non riconosciuto:
  - Ensure the USB cable is securely connected.
  - Verify that the Silicon Labs CP2102N driver is correctly installed. Check Device Manager (Windows) or system information (macOS/Linux) for any driver errors or unrecognized devices.
  - Try connecting to a different USB port or another computer to rule out port or system-specific issues.
• Relay Not Responding to Commands:
  - Confirm that the correct virtual serial port (e.g., COM port number) is selected in your terminal program or software.
  - Check that the serial port settings (Baud Rate: 9600, Stop Bits: 1, Parity: None, Data Bits: 8) match the device's default settings.
  - Ensure the AT commands are sent correctly, including the exact syntax (e.g., AT+CH1=1). Some terminal programs may require specific settings for sending commands (e.g., appending carriage return/line feed).
  - Test communication with the simple AT command; if it responds with "OK", the communication link is established.
• Intermittent Connection or Errors:
  - USB cable quality can affect communication. Try a different USB cable.
  - Ensure there are no other applications or processes using the same serial port simultaneously.
  - Electrical noise or interference can affect serial communication. Keep the device away from strong electromagnetic fields.
• Relay Clicking but Not Switching External Device:
  - Verify the wiring of your external device to the relay terminals (NO, COM, NC).
  - Ensure the external device's voltage and current requirements do not exceed the OMRON G5V-1 relay's rated load (0.5A at 125 VAC; 1A at 24 VDC). Overloading can damage the relay.

If these steps do not resolve the issue, please contact DSD TECH customer support for further assistance.
