1. Introduzione
This manual provides detailed instructions for the proper installation, adjustment, and maintenance of your Tein Street Advance Z Coilovers, Model GSB48-91SS2, designed for the Acura TSX (2004-2008). Adhering to these guidelines will ensure optimal performance and longevity of your suspension system. Please read this manual thoroughly before beginning any work.
2. Informazioni importanti sulla sicurezza
WARNING: Improper installation or adjustment of suspension components can lead to serious injury or death. If you are not confident in your mechanical abilities, seek assistance from a qualified professional.
- Utilizzare sempre dispositivi di sicurezza adeguati, tra cui protezioni per gli occhi e guanti.
- Ensure the vehicle is securely supported on jack stands on a level surface before working underneath it. Never rely solely on a jack.
- Do not modify any components of the coilover system.
- Verificare che tutti gli elementi di fissaggio siano serrati secondo i valori di coppia specificati dal produttore.
- After installation, perform a wheel alignment to prevent premature tire wear and ensure safe vehicle handling.
3. Prodotto finitoview
The Tein Street Advance Z Coilovers are designed to provide enhanced handling and adjustable ride height for your Acura TSX. Key features include:

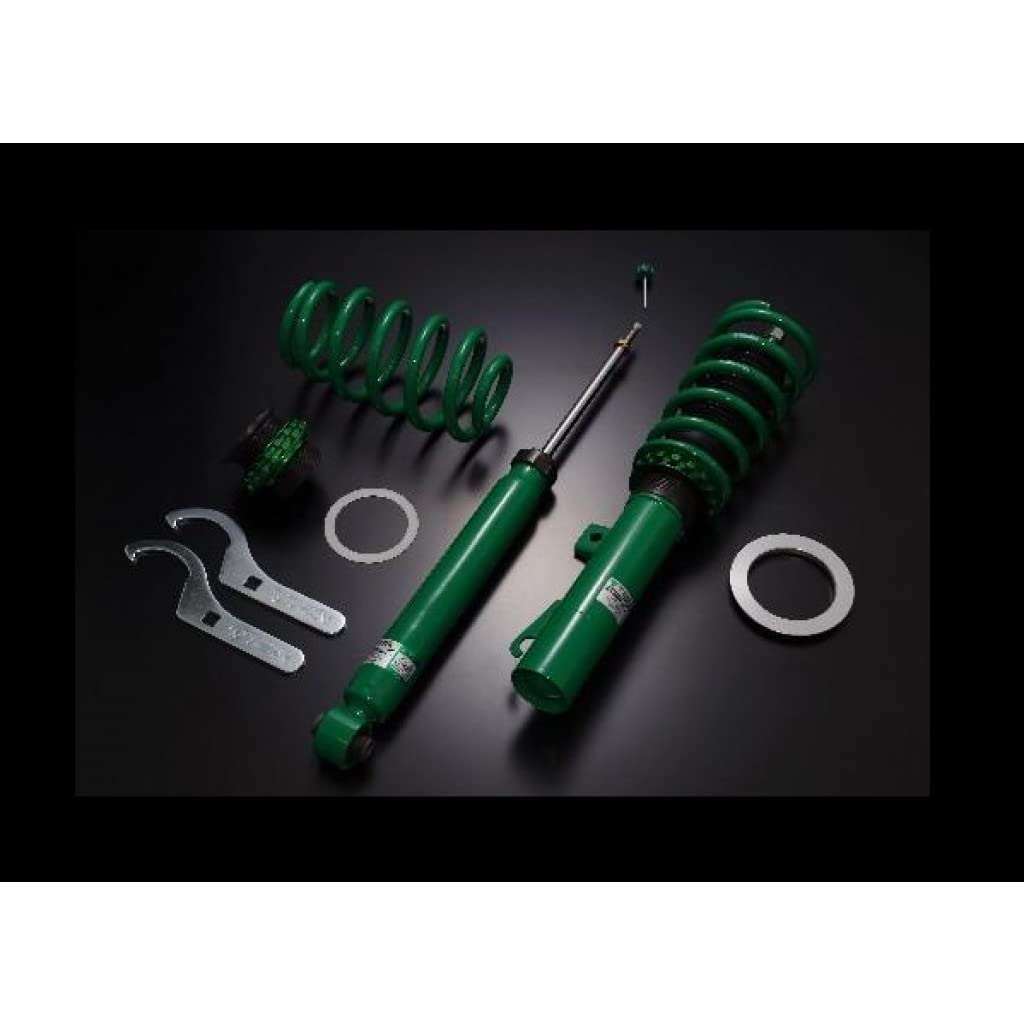

This image displays the complete set of Tein Street Advance Z Coilovers, including two fully assembled coilover units (springs on dampers), two separate green springs, two silver adjustment wrenches, and several silver washers, all laid out on a dark background.
- Costruzione in acciaio: Design durevole e robusto per prestazioni durature.
- Twin Tube Internal Construction: Provides a comfortable ride with reliable dampcaratteristiche.
- 16-way DampRegolazione: Allows for precise tuning of ride comfort and handling response.
- Ride Height Adjustable: Customize your vehicle's stance via the spring seat.
- Factory Sealed: Ensures product integrity and quality upon delivery.
4. Guida all'installazione
4.1 Lista di controllo pre-installazione
- Verificare che tutti i componenti siano presenti e integri.
- Ensure the vehicle is the correct make, model, and year (Acura TSX 2004-2008).
- Review the vehicle's service manual for specific torque specifications and removal procedures for OEM suspension.
4.2 Strumenti necessari
- Vehicle lift or jack and jack stands
- Set di chiavi a bussola e chiavi inglesi (metriche)
- Chiave dinamometrica
- Spring compressor (if required for OEM strut removal)
- Olio penetrante
- Anti-seize lubricant
- Adjustment wrenches (included with coilovers)
4.3 Fasi di installazione (generali)
- Preparare il veicolo: Lift the vehicle and secure it on jack stands. Remove wheels.
- Remove OEM Suspension: Disconnect brake lines, ABS sensors, and sway bar links from the existing strut assembly. Unbolt the top hat from the chassis and the lower mount from the knuckle. Carefully remove the OEM strut.
- Install Tein Coilovers: Install the new Tein coilover assembly. Ensure proper orientation. Secure the top hat to the chassis and the lower mount to the knuckle. Reconnect all disconnected components.
- Regolazioni iniziali: Imposta l'altezza di marcia iniziale e damping settings as desired (refer to Section 5).
- Fissaggi di coppia: Tighten all bolts and nuts to the vehicle manufacturer's specified torque values.
- Reinstallare le ruote: Mount wheels and lower the vehicle.
- Controlli finali: Bounce the vehicle to settle the suspension. Check for any clearance issues.
- Allineamento delle ruote: It is crucial to have a professional wheel alignment performed immediately after installation.
5. Procedure di aggiustamento
5.1 Ride Height Adjustment
The ride height can be adjusted by rotating the lower spring seat. Use the provided adjustment wrenches.
- Loosen the lock collar above the spring seat.
- Rotate the spring seat to raise or lower the vehicle. Clockwise rotation typically lowers the vehicle, while counter-clockwise rotation raises it.
- Ensure both sides of the vehicle are adjusted evenly to maintain balance.
- After setting the desired height, tighten the lock collar securely against the spring seat.
- Always re-check ride height after driving a short distance to allow the suspension to settle.
5.2 GiorniampRegolazione della forza di trazione
The Tein Street Advance Z Coilovers feature 16-way damping force adjustment, allowing you to fine-tune the ride characteristics.
- Il damping adjustment knob is located at the top of the coilover shaft.
- Turn the knob clockwise for a firmer ride (increased damping force).
- Turn the knob counter-clockwise for a softer ride (decreased damping force).
- Start with the recommended factory settings (refer to Tein's official documentation if available) and adjust incrementally.
- Ensure all four coilovers are adjusted to the same setting or a balanced setting for optimal handling.
6. Manutenzione
Regular maintenance helps preserve the performance and lifespan of your coilovers.
- Ispezione regolare: Periodically inspect coilovers for signs of leaks, damage, or loose components.
- Pulizia: Keep the coilover bodies and threads clean, especially after driving in harsh conditions (e.g., snow, salt, dirt). Use mild soap and water.
- Lubrificazione della filettatura: Apply anti-seize lubricant to the adjustment threads annually to prevent seizing and ensure smooth height adjustments.
- Controllo della coppia: Re-check the torque of all mounting bolts and nuts periodically, especially after the first few hundred miles of driving.
7. Risoluzione Dei Problemi
Questa sezione affronta i problemi più comuni che potresti incontrare.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Altezza di marcia irregolare | Incorrect height adjustment; suspension not settled. | Re-measure and adjust ride height evenly. Drive the vehicle to settle suspension, then re-check. |
| Excessive Bouncing/Harsh Ride | Damping force set too soft/firm; incorrect spring preload. | Regola damping force (Section 5.2). Ensure spring preload is set correctly (refer to Tein's general guidelines). |
| Rumore di tonfo/crepitio | Loose mounting bolts; damaged components; foreign object. | Inspect all mounting points and tighten to specifications. Check for any contact with other vehicle components. Inspect for damage. |
| Oil Leak from Damper | Seal failure; damage to damper corpo. | Contact customer support for warranty or replacement options. |
8. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Produttore | Tein |
| Modello del prodotto | GSB48-91SS2 |
| Applicazione | Acura TSX (2004-2008) |
| Costruzione | Acciaio |
| Design interno | Tubo gemellare |
| Dampregolazione | 16 vie |
| Regolazione dell'altezza di marcia | Via Spring Seat |
| Peso dell'articolo | 51.3 libbre |
| Dimensioni del prodotto | 51.3 x 35.6 x 12.1 pollici |
| Valutazione di sicurezza | Certificato DOT |
9. Informazioni sulla garanzia
For specific warranty details regarding your Tein Street Advance Z Coilovers, please refer to the warranty card included with your product or visit the official Tein website. Warranty coverage typically addresses manufacturing defects and material flaws under normal use conditions.
10. Assistenza clienti
If you have any questions regarding the installation, adjustment, or maintenance of your Tein Street Advance Z Coilovers, please contact your authorized Tein dealer or the Tein customer support department. Contact information can typically be found on the official Tein websito o nella confezione del prodotto.
11. Esclusione di responsabilità legale
Questo prodotto è un prodotto aftermarket. Non è un OEM e non è né prodotto né venduto dal produttore del veicolo indicato. Non siamo affiliati al produttore del veicolo.
