vidaXL Foldable Walk-in Shower Wall Instruction Manual

Introduzione

Thank you for choosing the vidaXL Foldable Walk-in Shower Wall. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new shower enclosure. Please read these instructions carefully before beginning installation and retain them for future reference.

This shower wall features a practical foldable design with four panels and double handles, constructed from 0.2" (5mm) tempered frosted ESG glass and a durable aluminum frame. Its reversible fitting allows for flexible installation to suit your bathroom layout.

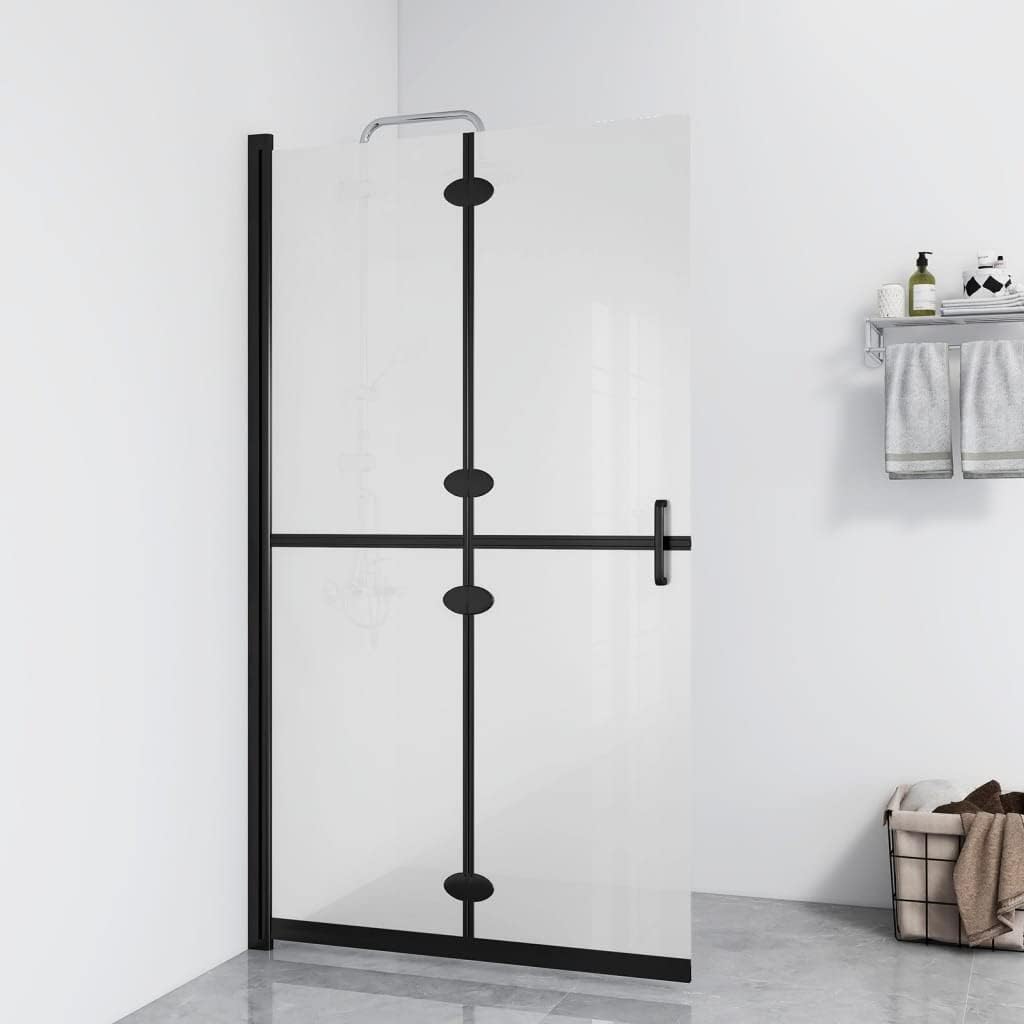

Image: The vidaXL Foldable Walk-in Shower Wall, Frosted ESG Glass, installed in a bathroom corner, showcasing its modern design and double handles.

Informazioni sulla sicurezza

• Durante l'installazione, indossare sempre dispositivi di protezione individuale (DPI) adeguati, tra cui occhiali e guanti di sicurezza.
• Tempered glass, while strong, can shatter into small pieces if impacted at the edges. Handle glass panels with extreme care.
• Ensure the installation surface (wall) is structurally sound and capable of supporting the weight of the shower wall.
• Do not overtighten screws, as this can damage components or glass.
• Tenere bambini e animali domestici lontani dall'area di installazione.
• In caso di dubbi su una qualsiasi fase del processo di installazione, consultare un professionista qualificato.

Contenuto della confezione

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact vidaXL customer support.

• Frosted ESG Glass Panels (4 panels)
• Telaio in alluminio Profiles
• Double Handles (2 sets)
• Installation Fittings (screws, wall plugs, seals, etc.)
• Manuale di istruzioni

Configurazione e installazione

Assembly is required for this product. Follow these steps carefully for proper installation. The fitting is reversible, allowing you to choose left or right mounting based on your bathroom layout.

1. Preparare l'area di installazione: Ensure the wall surface is clean, dry, and level. Mark the desired position for the shower wall, considering the dimensions.
2. Mount the Wall Profiles: Secure the vertical aluminum wall profiles to the wall using the provided screws and wall plugs. Use a spirit level to ensure they are perfectly vertical.
3. Installare i pannelli di vetro: Carefully insert the frosted ESG glass panels into the aluminum frame profiles. Ensure the seals are correctly positioned to prevent water leakage.
4. Assemble Horizontal Supports: Attach any horizontal aluminum supports or hinges as per the diagram, ensuring the panels can fold smoothly.
5. Fissare le maniglie: Install the double handles onto the designated glass panels. Ensure they are securely fastened but do not overtighten.
6. Sigillare le fessure: Apply silicone sealant to all external joints between the frame and the wall, and along the bottom edge of the shower wall, to ensure a watertight seal. Allow the sealant to cure completely before using the shower.
7. Controllo finale: Test the folding mechanism to ensure smooth operation. Check for any wobbling or loose parts.

Image: Technical diagram illustrating the dimensions of the shower wall: 90 cm (35.4") width and 190 cm (74.8") height.

Istruzioni per l'uso

The vidaXL Foldable Walk-in Shower Wall is designed for convenience and space-saving. Its four-panel design allows for flexible use.

• Opening the Shower Wall: Gently pull the handles to extend the panels into the desired open position. The panels are hinged to allow for a walk-in entry.
• Folding the Shower Wall: When not in use, push the panels inward towards the wall. The design allows them to fold compactly, saving space in your bathroom. Ensure the panels align correctly to prevent damage.
• Utilizzo della maniglia: Use the double handles for smooth and controlled opening and closing of the shower wall. Avoid forcing the panels.

Manutenzione

Regular cleaning and maintenance will ensure the longevity and appearance of your shower wall.

• Pulizia giornaliera: After each use, wipe down the glass panels with a soft cloth or squeegee to remove water droplets and prevent water stain buildup.
• Pulizia regolare: Clean the glass and aluminum frame with a mild, non-abrasive bathroom cleaner and a soft cloth. Avoid harsh chemicals, abrasive sponges, or scouring pads, as these can scratch the glass or damage the frame finish.
• Manutenzione delle guarnizioni: Periodically check the silicone seals for any signs of wear, cracking, or mold. Reapply sealant if necessary to maintain a watertight enclosure.
• Hinge and Mechanism Check: Ensure hinges and folding mechanisms operate smoothly. Apply a silicone-based lubricant if any stiffness is observed.

Risoluzione dei problemi

Specifiche

• Marca: vidaXL
• Numero modello: 151194
• Materiale: Aluminum frame, 0.2" (5mm) Tempered Frosted ESG Glass
• Colore: Frosted glass, Black frame (as per product image)
• Dimensioni (L x A): 35.4" x 74.8" (90 x 190 cm)
• Numero di pannelli: 4
• Tipo di maniglia: Bar (Double Handles)
• Stile della porta: Moderno
• Tipo di installazione: Freestanding (requires wall mounting)
• Peso dell'articolo: Circa 22.78 chilogrammi
• Assemblaggio richiesto: SÌ

Garanzia e supporto

For warranty information, technical support, or to order replacement parts, please contact vidaXL customer service. Refer to your purchase documentation for specific warranty terms and contact details.

In genere puoi trovare informazioni di supporto sul sito ufficiale vidaXL websito o tramite il rivenditore presso cui hai acquistato il prodotto.
