erjigo GK G1 HiFi In-Ear Headphones User Manual

1. Introduzione

Thank you for choosing the erjigo GK G1 HiFi In-Ear Headphones. These headphones are designed to deliver an immersive audio experience with a focus on detailed low-frequency reproduction and balanced sound. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your GK G1 headphones.

Image 1.1: erjigo GK G1 HiFi In-Ear Headphones with detachable cable.

2. Componenti del prodotto

The erjigo GK G1 headphones consist of the following main components:

• Unità auricolari: The main housing containing the 10mm dynamic drivers.
• Cavo staccabile: An oxygen-free copper flat cable for audio transmission and connectivity.
• Suggerimenti per le orecchie: Various sizes of silicone ear tips for a comfortable and secure fit.

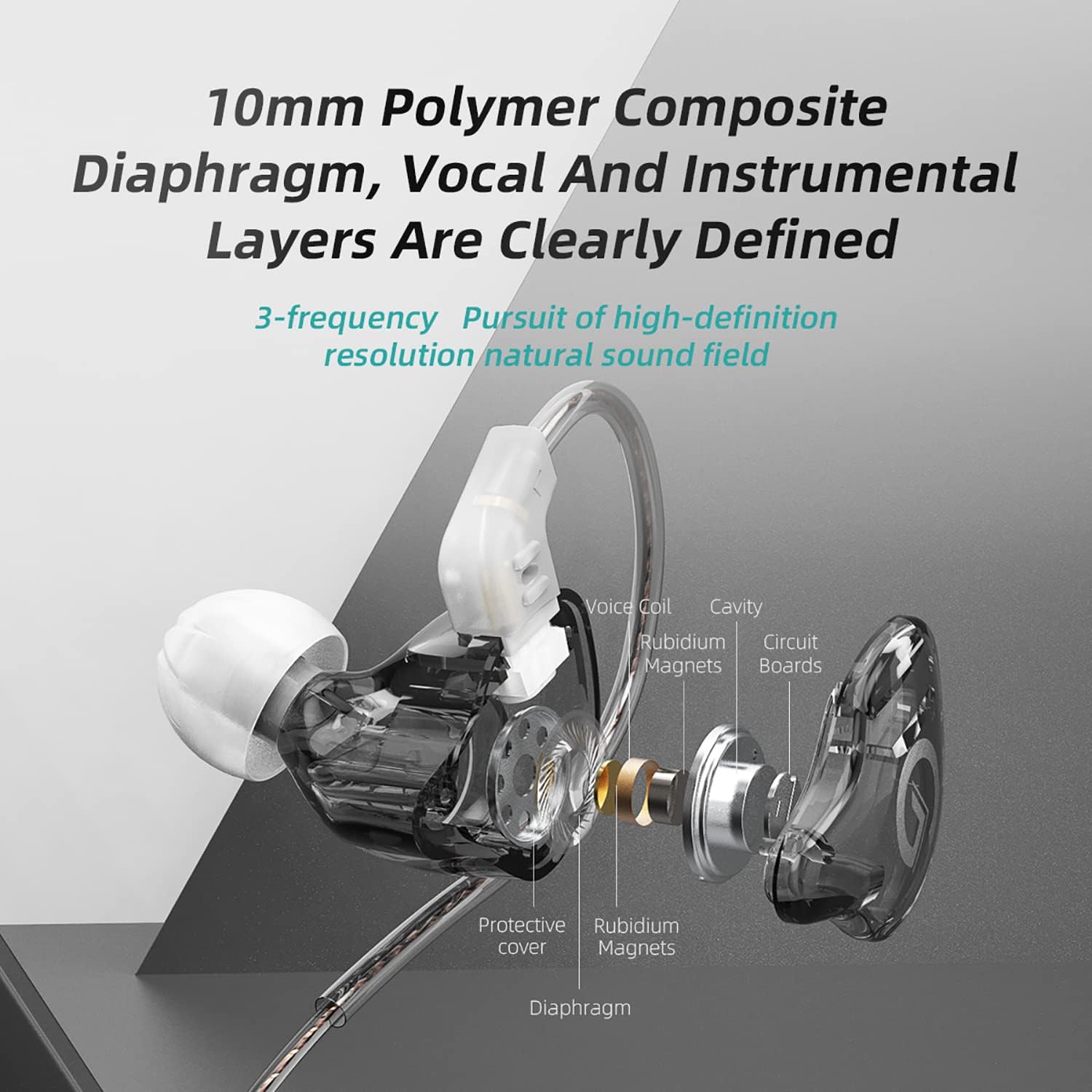

Immagine 2.1: Esploso view illustrating the internal components of the GK G1 earbud, including the 10mm polymer composite diaphragm, voice coil, rubidium magnets, and circuit boards.

3. Istruzioni per l'installazione

3.1 Collegamento del cavo staccabile

1. Identify the left (L) and right (R) earbud units and the corresponding connectors on the detachable cable. The cable connectors are typically marked.
2. Align the cable connector with the port on the earbud unit. Ensure the pins are correctly oriented.
3. Gently push the cable connector into the earbud port until it is securely seated. Do not force the connection.
4. Ripeti per l'altro auricolare.

3.2 Indossare gli auricolari

Una vestibilità adeguata è fondamentale per una qualità del suono e un comfort ottimali.

1. Select the appropriate ear tip size. Experiment with different sizes to find the one that creates a good seal in your ear canal.
2. Insert the earbud into your ear, ensuring the cable loops over the top of your ear for a secure fit. The ergonomic design is intended to conform to the shape of your ear.
3. Adjust the earbud until it feels comfortable and forms a good seal. A proper seal will enhance bass response and passive noise isolation.

Immagine 3.1: Es.ample of the ergonomic fit of the GK G1 in-ear headphones, with the cable looping over the ear.

3.3 Initial Use and Acoustic Adjustment

The GK G1 headphones feature innovative acoustic adjustment technology. To achieve optimal sound quality, it is recommended to play music at a low volume for approximately 10 minutes during the initial use. This process helps the drivers settle and deliver their intended performance.

Image 3.2: GK G1 headphones connected to a smartphone, illustrating the recommended initial low-volume playback for acoustic adjustment.

4. Istruzioni per l'uso

4.1 Collegamento a una sorgente audio

Connect the 3.5mm jack of the headphone cable to the audio output port of your device (e.g., smartphone, digital audio player, computer).

4.2 In-line Control Functions (if applicable)

If your GK G1 model includes an in-line microphone and control button, you can perform the following functions:

• Riproduci/Pausa: Premere una volta il pulsante.
• Prossima canzone: Premere il pulsante due volte.
• Canzone precedente: Premere il pulsante tre volte.
• Rispondi/Chiudi chiamata: Short press the button once during an incoming call or an active call.
• Rifiuta chiamata: Keep pressing the button during an incoming call.

Image 4.1: Visual guide to the in-line control button functions for music playback and call management.

5. Manutenzione e cura

To ensure the longevity and optimal performance of your GK G1 headphones, follow these care guidelines:

• Pulizia: Regularly clean the earbuds and ear tips with a soft, dry cloth. For ear tips, you may gently wash them with mild soap and water, ensuring they are completely dry before reattaching. Do not use harsh chemicals or abrasive materials.
• Magazzinaggio: When not in use, store the headphones in a clean, dry place, preferably in a protective case, to prevent tangling and damage.
• Cura del cavo: Avoid sharply bending or pulling the cable. When detaching the cable, always grip the connector housing, not the cable itself.
• Umidità: While the product description mentions "Waterproof" as a specification, it is generally advisable to avoid prolonged exposure to water or high humidity to prevent potential damage to internal components. Dry immediately if exposed to moisture.
• Temperatura: Avoid exposing the headphones to extreme temperatures, both hot and cold.

6. Risoluzione Dei Problemi

If you encounter issues with your GK G1 headphones, refer to the following common troubleshooting steps:

• No Sound from One or Both Earbuds:
  • Ensure the cable is securely connected to both the earbuds and the audio source.
  • Controlla il livello del volume sulla tua sorgente audio.
  • Prova le cuffie con una sorgente audio diversa per escludere problemi del dispositivo.
  • Ispezionare il cavo e i connettori per verificare la presenza di eventuali danni visibili.
• Poor Sound Quality (e.g., distorted, weak bass):
  • Ensure the ear tips create a proper seal in your ear canal. Try different ear tip sizes.
  • Check the audio source's equalizer settings, if any.
  • Pulisci eventuali detriti dagli ugelli degli auricolari.
• Earbuds Falling Out or Uncomfortable Fit:
  • Experiment with all provided ear tip sizes to find the best fit.
  • Ensure the cable is correctly looped over your ear.
  • Adjust the angle of the earbud in your ear for a more secure placement.

7. Specifiche

8. Garanzia e supporto

8.1 Informazioni sulla garanzia

The erjigo GK G1 HiFi In-Ear Headphones come with a garanzia di un anno dalla data di acquisto. La presente garanzia copre difetti di fabbricazione e problemi derivanti dal normale utilizzo. Si prega di conservare la prova d'acquisto per eventuali reclami in garanzia.

8.2 Assistenza clienti

For any questions, concerns, or technical assistance not covered in this manual, please contact erjigo customer service. Refer to the contact information provided with your purchase or visit the official erjigo websito per i dettagli del supporto.
