1. Informazioni sulla sicurezza
Si prega di leggere attentamente tutte le istruzioni di sicurezza prima di utilizzare il prodotto. Il mancato rispetto di queste istruzioni può causare scosse elettriche, incendi o lesioni gravi.
- Non smontare, riparare o modificare il prodotto.
- Tenere il prodotto lontano dall'acqua e da elevata umidità.
- Assicurati che l'adattatore di alimentazione sia compatibile con la tua tensione localetage.
- Do not cover the light with flammable materials.
- Tenere fuori dalla portata dei bambini.
- In caso di danni, interrompere immediatamente l'uso e contattare l'assistenza clienti.
2. Contenuto della confezione
Verificare che tutti gli articoli siano presenti nel pacco:
- SOAIY LED Bar Light (40cm)
- Adattatore di alimentazione CA.
- Self-adhesive Magnetic Clips (for installation)
- Manuale d'uso
Image: SOAIY LED Bar Light, AC adapter, and magnetic clips.
3. Configurazione e installazione
The SOAIY LED Bar Light is designed for easy, tool-free installation. No electrical work is required.
3.1 Scelta del luogo di installazione
Select a flat, clean surface such as under a cabinet, shelf, or counter. Ensure there is a power outlet nearby for the AC adapter.
3.2 Passaggi di installazione
- Preparare la superficie: Clean the desired installation surface thoroughly to ensure the self-adhesive magnetic clips adhere properly.
- Attach Magnetic Clips: Peel the protective film from the self-adhesive side of the magnetic clips. Attach the clips to the chosen surface, ensuring they are spaced appropriately to securely hold the LED bar light.
Image: Applying adhesive to magnetic clips.
- Montare la luce: Align the LED bar light with the attached magnetic clips. The magnets will hold the light securely in place.
Image: Attaching the LED light to the magnetic clips.
- Connetti alimentazione: Plug the AC adapter into the power port on the LED bar light, then plug the adapter into a standard electrical outlet.

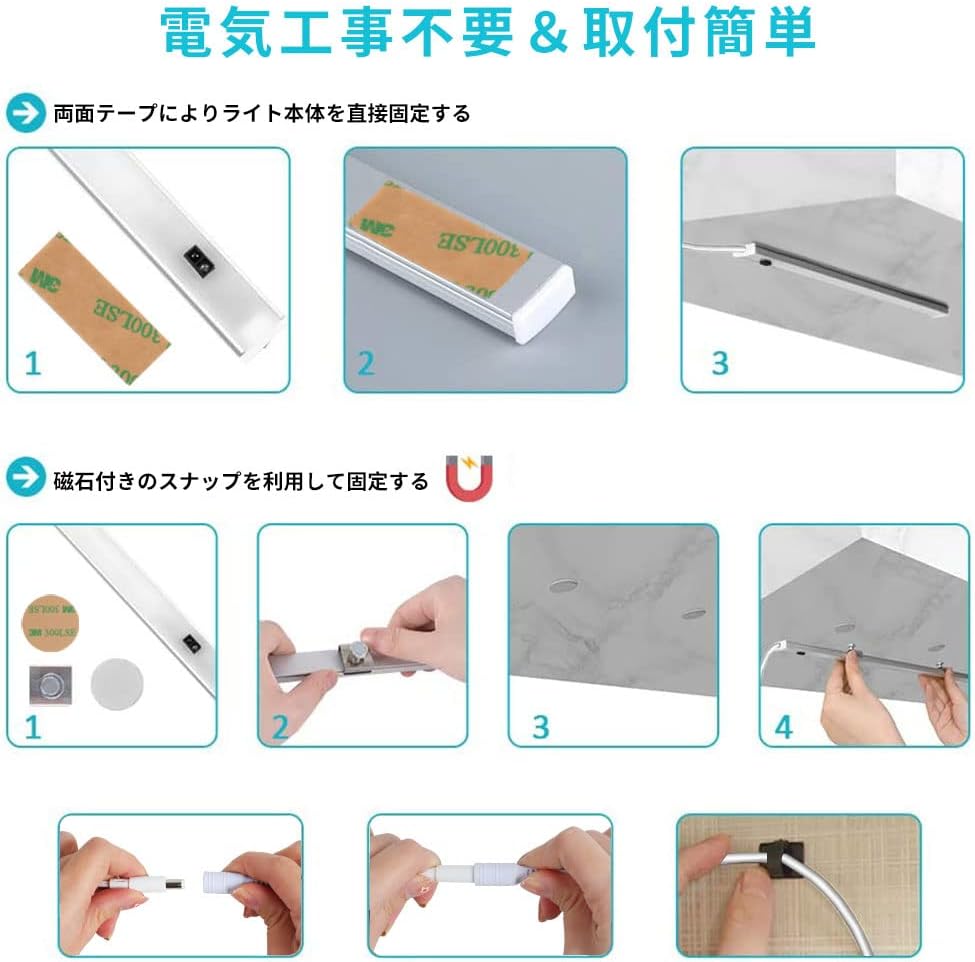

Immagine: Oltreview of power connection and installed light.
The magnetic mounting allows for easy removal and reinstallation if needed.
4. Funzionamento
The SOAIY LED Bar Light features touchless control for convenience and hygiene.
4.1 Accensione/Spegnimento
- Per accendere la luce ON: Wave your hand quickly (within 5cm) under the sensor.
- Per accendere la luce SPENTO: Wave your hand quickly (within 5cm) under the sensor again.
Image: Demonstrating hand gesture for touchless on/off operation.
4.2 Oscuramento continuo
- To adjust brightness: With the light on, hold your hand steadily under the sensor (within 5cm). The brightness will gradually change. Remove your hand when the desired brightness is reached.
- The light will cycle through its brightness range.
Image: Illustrating stepless dimming by holding hand under the sensor.
4.3 Funzione di memoria
The light remembers your last brightness setting. If the power is disconnected and reconnected, the light will turn on at the brightness level it was set to previously.
5. Manutenzione
To ensure optimal performance and longevity of your SOAIY LED Bar Light, follow these maintenance guidelines:
- Pulizia: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the surface of the light. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the product.
- Cura del sensore: Keep the sensor area clean and free from obstructions to ensure proper touchless operation.
- Magazzinaggio: If storing the light for an extended period, disconnect it from power and store it in a cool, dry place.
6. Risoluzione Dei Problemi
If you encounter issues with your SOAIY LED Bar Light, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La luce non si accende. | Nessuna connessione di alimentazione o adattatore difettoso. | Ensure the AC adapter is securely plugged into both the light and the power outlet. Test the outlet with another device. |
| Touchless sensor is unresponsive. | Sensor obstructed or incorrect hand gesture. | Ensure the sensor area is clean and clear. Use a quick wave for on/off, and hold your hand steadily for dimming, within 5cm of the sensor. |
| Brightness adjustment is erratic. | Interference or sensor issue. | Ensure no other objects are near the sensor during adjustment. Try resetting the power by unplugging and replugging the adapter. |
| Sfarfallio di luce. | Unstable power supply or internal fault. | Check power connection. If flickering persists, discontinue use and contact customer support. |
If the problem persists after trying these solutions, please contact SOAIY customer support.
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | Allora, dai |
| Numero di modello | SSDT40 |
| Lamp Tipo | GUIDATO |
| Tipo di interruttore | Touchless Sensor |
| Dimensioni del prodotto | 43.1 x 7.1 x 5.4 cm (circa 40 cm di lunghezza) |
| Peso del prodotto | 0.22 kg |
| Materiale di base | Plastica |
| Fonte di alimentazione | Adattatore CA (incluso) |
| Oscuramento | Oscuramento continuo |
| Caratteristiche speciali | Memory Function, Easy Installation (Magnetic) |
Image: Diagram showing product dimensions (40cm length).
8. Garanzia e supporto
SOAIY products are manufactured with high-quality standards. For warranty information or technical support, please refer to the warranty card included in your package or contact SOAIY customer service through your retailer.
Please have your model number (SSDT40) and purchase date ready when contacting support.
