1. Prodotto finitoview
The Sanpyl 3G/4G LTE Base Hat Module is designed to provide 3G/4G LTE connectivity to various single board computers. It features a Mini PCI-E socket for compatible cellular modules and a Nano SIM card slot. This module can also operate independently via a Micro USB connection.
Caratteristiche principali:
- Compatible with 40-pin GPIO header boards such as Raspberry Pi 4, 3, 2, B+.
- Efficient power circuit supporting up to 3 Amps.
- Wide operating temperature range: -40℃ to 80℃.
- Clip-in Mini PCI-E socket for various LTE, UMTS/HSPA+, and GSM/GPRS/ modules.
- Accessible Nano SIM card socket.
- Can be used standalone with a PC/Laptop via Micro USB.
2. Contenuto della confezione
Verifica che tutti gli articoli elencati di seguito siano inclusi nel pacco. Se alcuni articoli risultano mancanti o danneggiati, contatta l'assistenza clienti.
- 1 x 3G/4G LTE Base Hat Module
- 1 x USB 2.0 to Micro USB Cable
- Driver 1 x vite
- 1 x Accessories Package (screws, standoffs)
- 1 x Manuale utente (questo documento)
Figura 2.1: Contenuto della confezione
3. Specifiche del prodotto
| Caratteristica | Specificazione |
|---|---|
| Tipo di articolo | 3G/4G LTE Base Hat |
| Intervallo di temperatura di lavoro | -40℃ ~ 80℃ |
| Interfaccia Hardware | USB |
| Protocollo di collegamento dati | USB |
| Power Support | Fino a 3 Amps |
| Dimensioni del prodotto (L x P x A) | 85 x 55 mm (3.3 x 2.2 pollici) |
| Peso | 0.11 chilogrammi |
| Numero di modello | Sanpyl8gz9xgpbk78326 |
4. Compatibilità
Compatible Host Boards:
- Raspberry Pi 4
- Raspberry Pi 3
- Raspberry Pi 2
- Raspberry Pi B+
- Scheda Asus Tinker
- Roccia 64
- Samsung ARTIK's Board
- Latte Panda
Compatible Mini PCI-E Modules:
- For Quectel: EC25/EC21/EC20/UC20/LTE-EP06 Series
- For Sierra Wireless: AirPrime MC Series
- For Telit: LM960, LE910V2, HE910, LE910Cx Series
- For Huawei: ME909s-120, ME909s-821 Series
- For Simcom: SIM7100, SIM7230 Series
- For ZTE: ZM8620 Series
- For U-Blox: MPCI-L2 Series
- For Thales: PLS62W, mPLS8, mPLAS9 Series

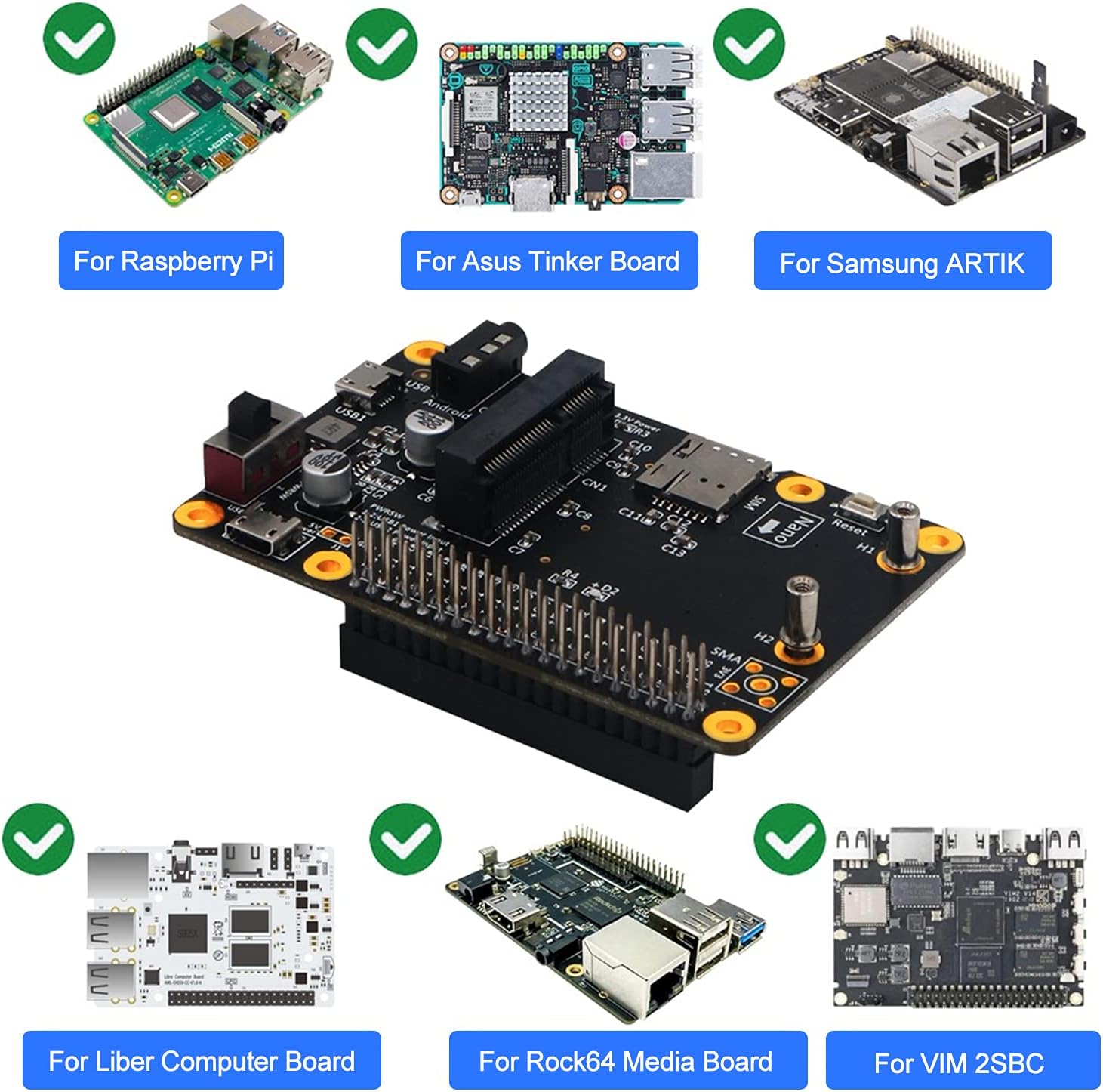

Figure 4.1: Compatible Single Board Computers
5. Product Layout and Dimensions
Familiarize yourself with the various components and their locations on the module.
Figure 5.1: Module Component Layout
The module's physical dimensions are provided for integration planning.
Figura 5.2: Dimensioni del prodotto
6. Istruzioni per l'installazione
Follow these steps to set up your 3G/4G LTE Base Hat Module.
- Attach the HAT to your Host Board: Carefully align the 40-pin GPIO header of the Base Hat Module with the corresponding pins on your compatible single board computer (e.g., Raspberry Pi). Press down gently until it is securely seated.
- Install Mini PCI-E Module: Insert your compatible 3G/4G LTE Mini PCI-E module into the designated slot on the Base Hat. Secure it with the provided screws if necessary.
- Inserire la scheda Nano SIM: Locate the Nano SIM card socket on the Base Hat. Insert your activated Nano SIM card into the slot until it clicks into place. Ensure the card is oriented correctly.
- Collegare le antenne (facoltativo): If your Mini PCI-E module requires external antennas, connect them to the appropriate SMA connectors on the Base Hat.
- Collegamento elettrico: Connect the Micro USB cable to the 'Main USB' port on the Base Hat. Connect the other end to a power source or your host board's USB port. Alternatively, if using the module standalone, connect it to a PC/Laptop via Micro USB.
- Interruttore di selezione della potenza: Adjust the power selection switch (PWR SW) if needed, based on your specific setup and power requirements.
Figura 6.1: Esempio di installazioneample
7. Istruzioni per l'uso
Once the module is physically set up and powered, follow these general steps for operation:
- Accensione: Ensure your host board or PC is powered on. The 3.3V Power LED on the Base Hat should illuminate, indicating power.
- Installazione del driver (se necessario): Depending on your operating system and Mini PCI-E module, you may need to install specific drivers. Refer to the documentation for your chosen Mini PCI-E module for driver requirements.
- Configurazione di rete: Configure your operating system to recognize and connect to the 3G/4G LTE network provided by the module. This typically involves setting up APN (Access Point Name) settings.
- Test di connettività: Verify network connectivity by attempting to access the internet or perform a network test.
- Modalità autonoma: When connected to a PC/Laptop via Micro USB, the module should be recognized as a USB modem or network adapter, allowing for direct network access.
8. Manutenzione
To ensure the longevity and optimal performance of your Sanpyl 3G/4G LTE Base Hat Module, observe the following maintenance guidelines:
- Mantenere pulito: Regularly clean the module with a soft, dry cloth. Avoid using liquid cleaners or solvents.
- Evitare condizioni estreme: Do not expose the module to extreme temperatures, humidity, or direct sunlight beyond its specified operating range.
- Maneggiare con cura: Avoid dropping or subjecting the module to physical shock. When inserting or removing components, do so gently to prevent damage to connectors and pins.
- Aggiornamenti del firmware: Periodically check for firmware updates for your Mini PCI-E module, as these can improve performance and stability.
9. Risoluzione Dei Problemi
If you encounter issues with your 3G/4G LTE Base Hat Module, refer to the following common troubleshooting steps:
- Nessun LED di alimentazione: Ensure the Micro USB cable is securely connected and the power source is active. Check the power selection switch (PWR SW) position.
- Modulo non rilevato: Verify that the Mini PCI-E module is correctly seated in its slot. Ensure the Base Hat is properly connected to the host board's GPIO or via Micro USB to a PC. Check for necessary drivers on your operating system.
- Nessuna connessione di rete: Confirm that the Nano SIM card is correctly inserted and activated with a data plan. Check your operating system's network settings, especially the APN configuration. Ensure external antennas (if used) are properly connected.
- Connettività intermittente: This could be due to weak cellular signal. Try relocating the device or using external antennas. Ensure the power supply is stable and sufficient (up to 3 AmpS).
- Surriscaldamento del modulo: Ensure adequate ventilation around the module and host board. Operating within the specified temperature range (-40℃ ~ 80℃) is crucial.
- Funzione di reset: If the module becomes unresponsive, press the 'Reset' button (S1) to restart the module.
If problems persist after attempting these steps, consult the documentation for your specific Mini PCI-E module or contact Sanpyl customer support.
