1. Prodotto finitoview
The Nanlite FS-200B is a powerful bi-color LED studio spotlight designed for professional photography and videography. It offers adjustable color temperature from 2700K to 6500K and dimming capabilities, providing versatile lighting options for various shooting environments. The fixture features a Bowens Mount for wide compatibility with light modifiers and multiple control options including on-board controls, Bluetooth for the NANLINK app, and 2.4G for a separately available remote.

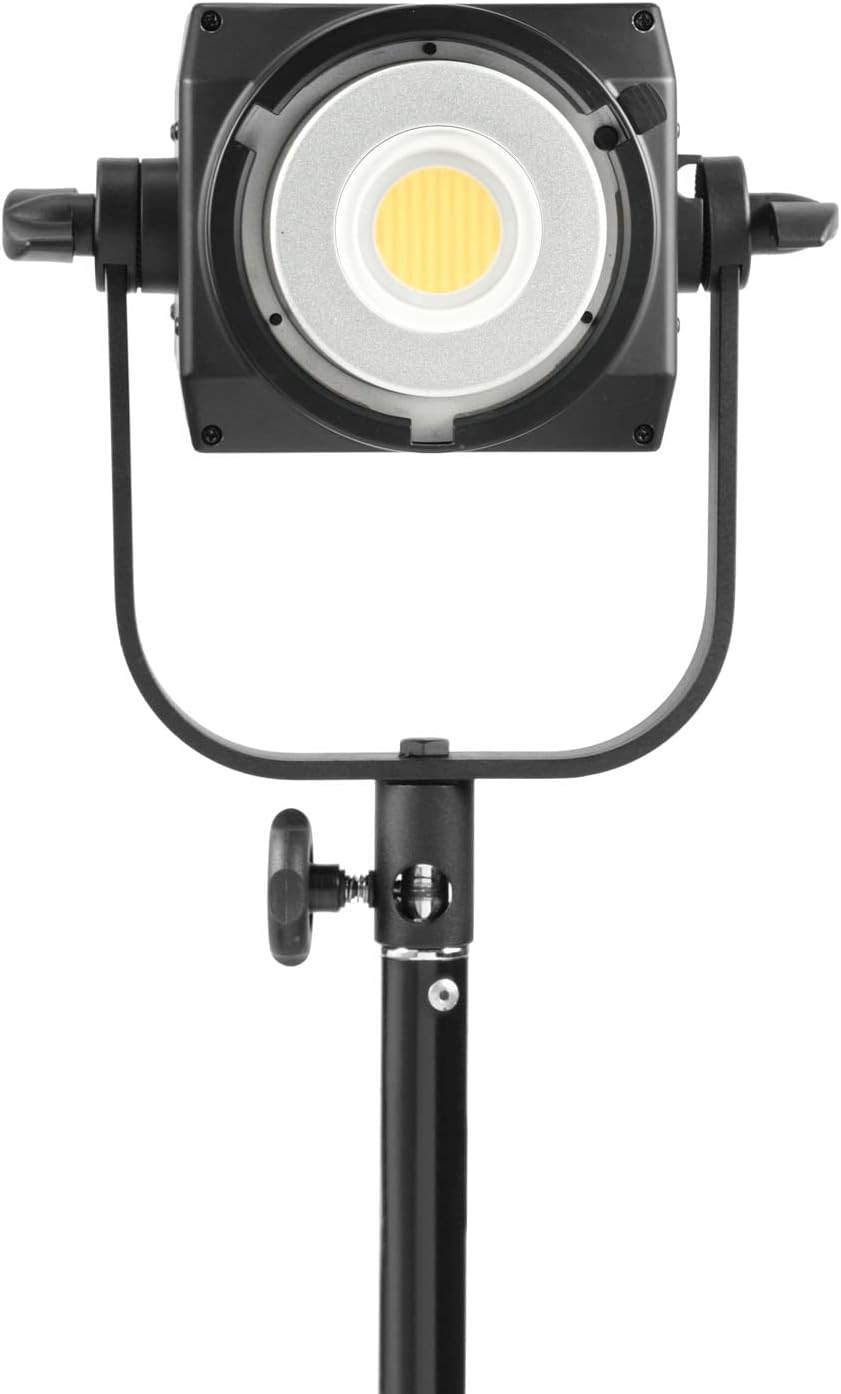

Figura 1.1: Fronte view of the Nanlite FS-200B mounted on a light stand. This image illustrates the compact design and the main light source.
2. Cosa c'è nella scatola
Si prega di controllare il contenuto del pacco per assicurarsi che tutti gli articoli siano presenti e integri.
- Nanlite FS-200B Bi-Color Studio Spotlight
- Cavo di alimentazione
- Standard 55-degree Reflector (Bowens Mount)
- Protective Cap for COB LED
Figure 2.1: All components included in the Nanlite FS-200B package. This image shows the light, reflector, power cable, and protective cap.
3. Istruzioni per l'installazione
- Montaggio della luce: Securely attach the FS-200B to a compatible light stand using the integrated yoke and stand mount. Ensure the locking knob is tightened to prevent accidental movement.
- Fissaggio del riflettore: Align the Bowens Mount of the standard reflector with the mount on the front of the FS-200B. Insert the reflector and twist clockwise until it locks into place. To remove, press the release button and twist counter-clockwise.
- Collegamento elettrico: Connect the provided power cable to the AC input port on the rear of the FS-200B. Plug the other end into a suitable AC power outlet (100-240V AC).

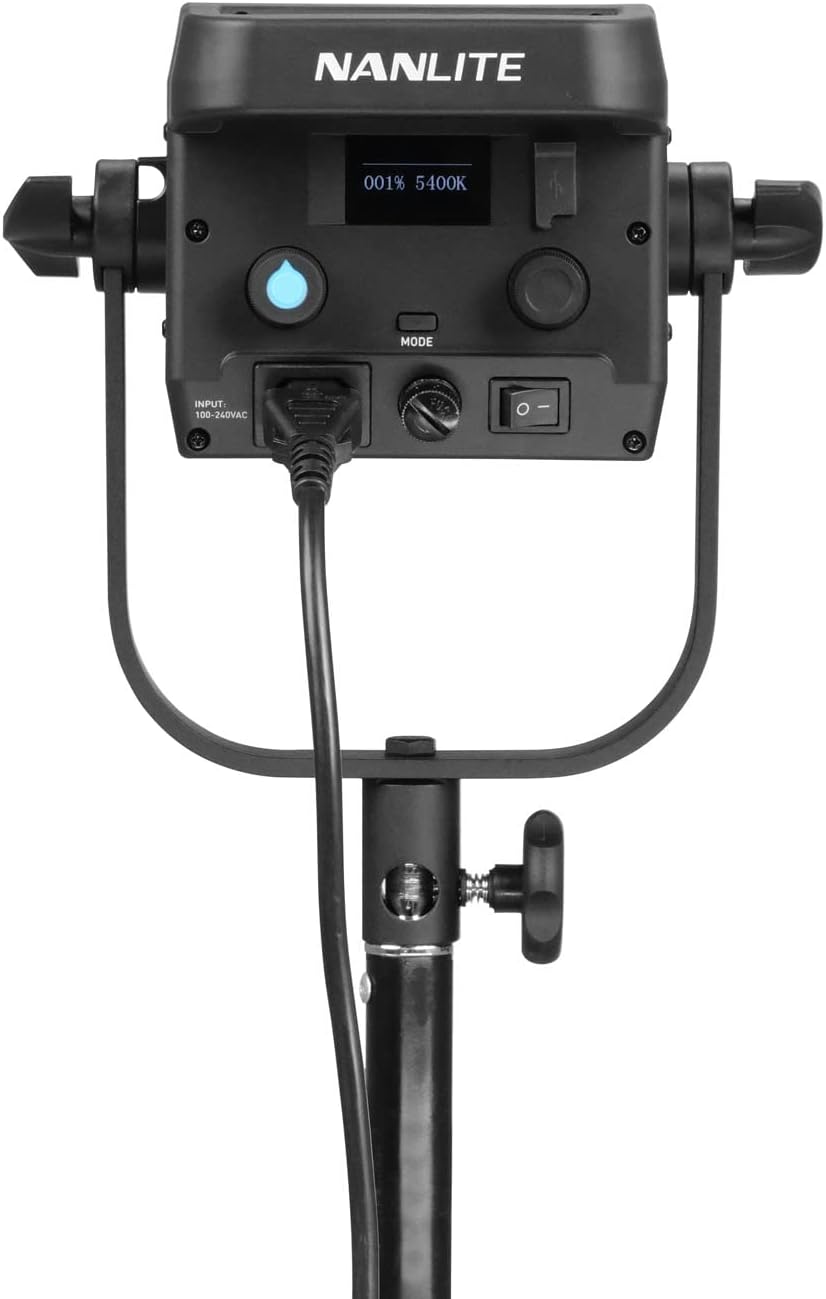

Figure 3.1: Rear panel of the FS-200B, highlighting the power input and control interface.
4. Operating the FS-200B
4.1. Funzionamento di base
- Accensione/spegnimento: Locate the power switch on the rear panel and flip it to the 'ON' position to power on the light. Flip to 'OFF' to power down.
- Regolazione della luminosità: Utilizzare il DIM knob on the control panel to adjust the light intensity from 0% to 100%. The current percentage will be displayed on the OLED screen.
- Regolazione della temperatura del colore: Utilizzare il TDC (Tedesco convenzionale) knob to change the color temperature between 2700K (warm) and 6500K (cool). The selected Kelvin value will be shown on the OLED screen.
4.2. Opzioni di controllo
The FS-200B offers multiple ways to control its functions:
- Comandi di bordo: Directly use the knobs and buttons on the rear panel for immediate adjustments.
- Bluetooth (NANLINK App): Download the free NANLINK app for iOS and Android devices. Enable Bluetooth on your device and pair with the FS-200B to control brightness, color temperature, and special effects remotely.
- Wireless 2.4G: The FS-200B supports 2.4G wireless control with the separately available WS-RC-C2 handheld remote. Refer to the remote's manual for pairing instructions.
4.3. Special Effects
The FS-200B includes 12 built-in practical effects to enhance your creative productions. To access these effects, press the MODALITÀ button on the control panel and navigate through the options using the knobs. Effects include:
- TV
- Paparazzi
- Candle/Fire
- Fuochi d'artificio
- Esplosione
- Tempesta
- E altro ancora...
Figura 4.1: dettagliata view of the FS-200B control panel, showing the OLED display, dimming and CCT knobs, and mode button.
5. Manutenzione
- Pulizia: Use a soft, dry cloth to clean the exterior of the light. Do not use abrasive cleaners or solvents. Ensure the cooling vents are free from dust and obstructions.
- Magazzinaggio: When not in use, store the FS-200B in a cool, dry place, away from direct sunlight and excessive humidity. It is recommended to use the original packaging or a padded case for transport and storage.
- Sicurezza: Always disconnect the power cable before cleaning or performing any maintenance. Do not block the ventilation holes during operation.
Figura 5.1: lato view of the FS-200B, illustrating the ventilation design crucial for maintaining optimal operating temperature.
6. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La luce non si accende. | No power supply; power cable loose; power switch off. | Check power cable connection; ensure power outlet is active; confirm power switch is in 'ON' position. |
| I comandi non rispondono. | Temporary software glitch; remote control interference. | Power cycle the unit (turn off, wait 10 seconds, turn on); ensure no other 2.4G devices are causing interference if using remote. |
| Problemi di connessione Bluetooth. | Bluetooth not enabled on device; app not updated; light too far from device. | Ensure Bluetooth is on; update NANLINK app; move device closer to the light; restart both devices. |
| La luce tremola o si attenua inaspettatamente. | Alimentazione instabile; surriscaldamento. | Ensure stable power source; check for blocked vents and allow light to cool down. |
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | Modello FS-200B |
| Dimensioni del prodotto | 12.17 x 9.13 x 4.84 pollici |
| Peso dell'articolo | 6.38 libbre |
| Temperatura del colore | 2700K-6500K |
| Connettività | Bluetooth, 2.4G |
| Tipo di montaggio | Monte Bowens |
| Descrizione delle modalità Flash | Illuminazione costante, luminosità regolabile, temperatura colore regolabile |
| Produttore | Nanlite |
8. Garanzia e supporto
The Nanlite FS-200B Bi-Color Studio Spotlight is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including warranty duration and coverage details.
For technical support, service, or warranty claims, please contact Nanlite customer service through their official website or the retailer from whom you purchased the product. Keep your proof of purchase for warranty validation.
Note: No official seller videos were found for this product that meet the criteria for inclusion in this manual.
