Tajima Grati-Lite Headlamp Manuale d'uso

Introduzione

The Tajima Grati-Lite Headlamp (Model LE-F502D) is engineered to provide powerful and versatile illumination for various tasks. Its GRATI-LITE FLOOD BEAM is specifically designed to produce bright, wide-angle light, making it ideal for detailed work such as inspecting wiring or surface materials. This headlamp operates on AA batteries and features a separate battery compartment for balanced weight distribution and extended use. With three adjustable brightness modes, from 50 lumens to a powerful 500 lumens, it adapts to different lighting needs. Integrated helmet clips ensure the headlamp remains securely in place during active use.

Informazioni sulla sicurezza

Please read and understand all safety instructions before using the Tajima Grati-Lite HeadlampIl mancato rispetto di queste istruzioni può causare lesioni o danni al prodotto.

• Sicurezza della batteria: Use only the specified AA batteries. Do not mix old and new batteries, or different types of batteries. Ensure correct polarity when inserting batteries. Remove batteries if the headlamp will not be used for an extended period to prevent leakage. Do not dispose of batteries in fire.
• Protezione degli occhi: Do not stare directly into the LED light beam, as it can cause temporary vision impairment or eye damage.
• Calore: il capoamp may become warm during prolonged use, especially on higher brightness settings. This is normal. Avoid direct contact with skin for extended periods if it becomes uncomfortably hot.
• Resistenza all'acqua: Questo prodotto è Non resistente all'acqua. Avoid exposure to water, rain, or high humidity to prevent damage to internal components.
• Bambini: Tenere fuori dalla portata dei bambini. Questo non è un giocattolo.
• Modifiche: Non tentare di smontare, modificare o riparare la testaampCiò invaliderà la garanzia e potrebbe causare danni o lesioni.

Contenuto della confezione

All'apertura della confezione, verificare che tutti i componenti siano presenti e integri:

• Tajima Grati-Lite Headlamp Unità
• Separate Battery Compartment (for AA batteries)
• Adjustable Head Strap with Helmet Clips
• Nota: le batterie AA non sono incluse e devono essere acquistate separatamente.

Impostare

1. Installazione della batteria

The Tajima Grati-Lite Headlamp uses a separate battery compartment for AA batteries. Ensure you have fresh AA batteries ready for installation.

1. Locate the separate battery compartment. It is connected to the headlamp unit by a coiled cable.
2. Open the battery compartment cover. This usually involves unlatching a clip or sliding a lock mechanism.
3. Insert the required number of AA batteries (typically 3) into the compartment, paying close attention to the positive (+) and negative (-) polarity markings inside the compartment. Incorrect insertion can prevent the headlamp from functioning and may damage the batteries or device.
4. Close the battery compartment cover securely until it clicks into place, ensuring a tight seal.

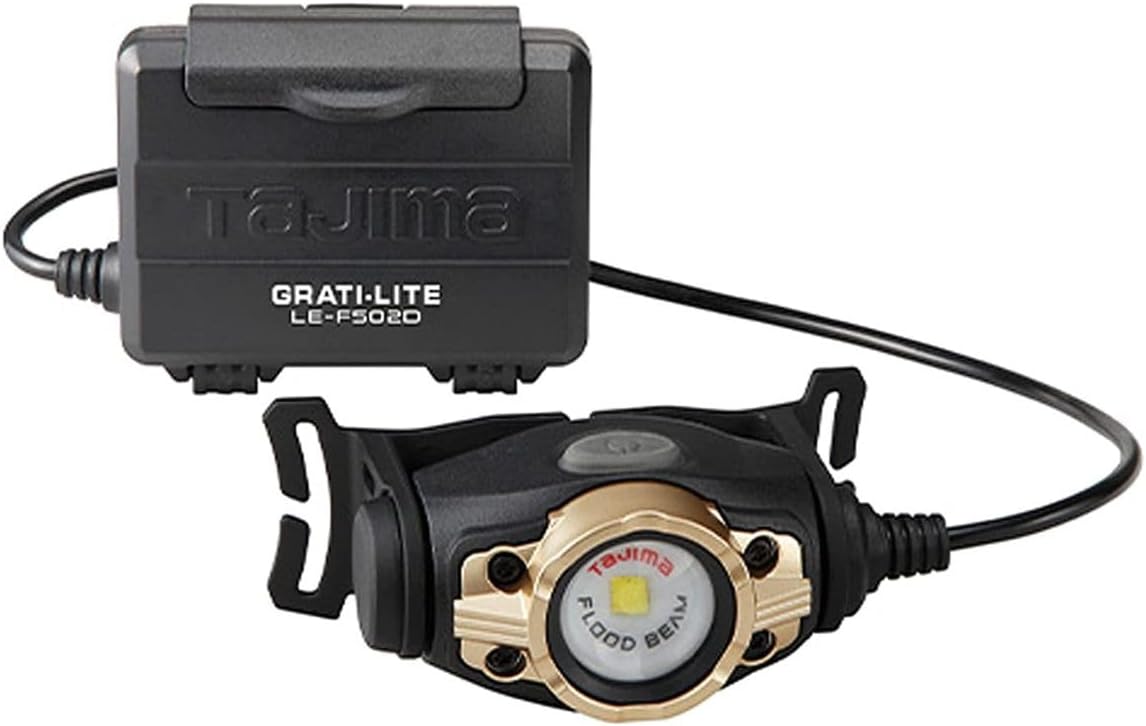

Figure 1: Proper insertion of AA batteries into the separate battery compartment.

2. Attaching to Head or Helmet

il capoamp comes with an adjustable strap and helmet clips for secure attachment.

• For Head Use: Adjust the elastic head strap to fit comfortably and securely around your head. The strap should be snug but not too tight. The separate battery compartment can be positioned at the back of your head for balanced weight.
• For Helmet Use: Utilize the integrated helmet clips on the head strap to secure the headlamp to the brim or edge of your hard hat or helmet. Ensure all clips are firmly attached to prevent the headlamp from slipping during movement.

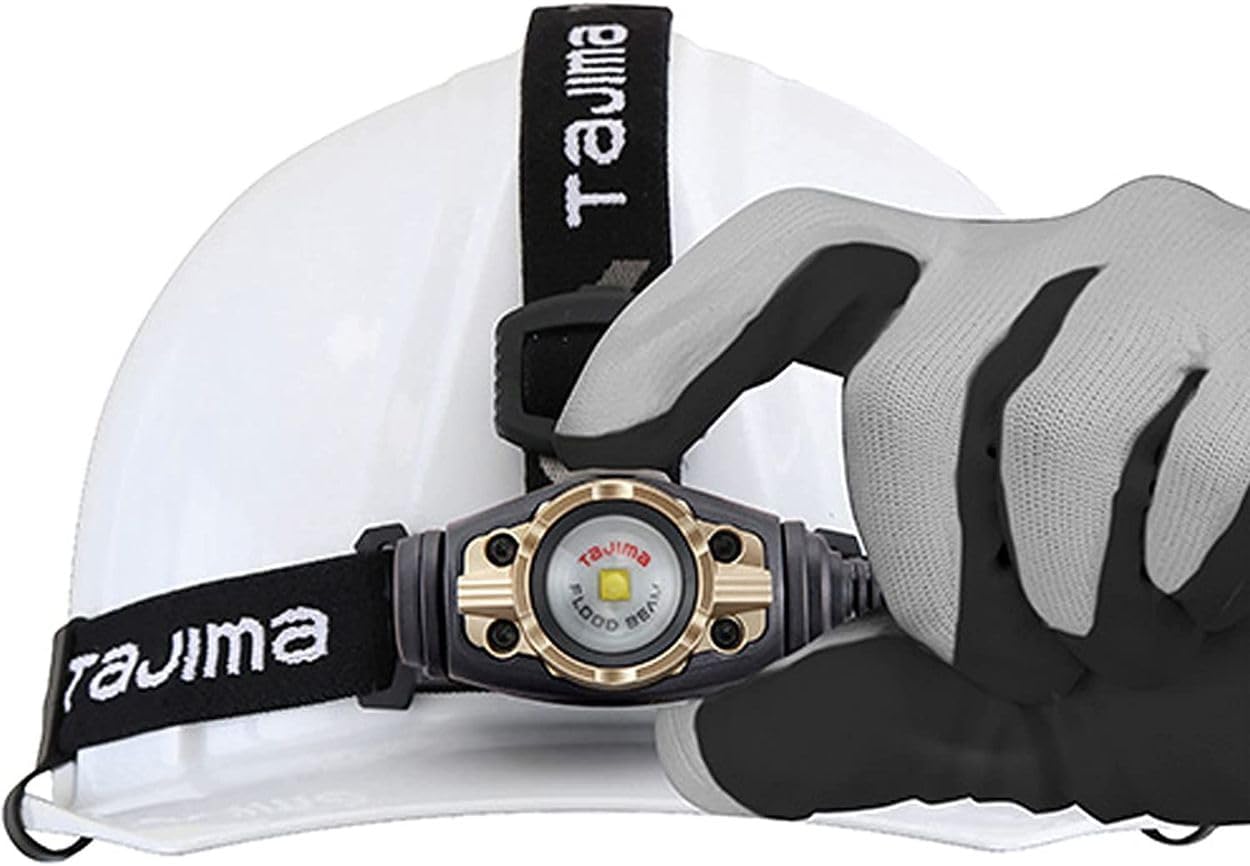

Figura 2: La testaamp can be worn directly on the head or securely attached to a helmet.

Istruzioni per l'uso

1. Accensione/spegnimento e regolazione della luminosità

il capoamp features a single button for controlling power and brightness modes.

1. Per attivare: Premere il pulsante di accensione situato sulla testataamp unit once. The headlamp will typically turn on in the lowest brightness mode (50 lumens).
2. Per scorrere le modalità di luminosità: Mentre il capoamp is on, press the power button repeatedly to cycle through the available brightness settings:
   • First Press: 50 Lumens (Low)
   • Second Press: 250 Lumens (Medium)
   • Third Press: 500 Lumens (High)
3. Per spegnere: After cycling through all brightness modes, pressing the button one more time will turn the headlamp spento. In alternativa, se la testaamp has been on a specific mode for more than 5 seconds, a single press will turn it off directly.

Figure 3: The power button controls both on/off and brightness modes.

2. Regolazione dell'angolo del fascio luminoso

il capoamp unit can be tilted up or down to direct the light beam precisely where needed.

• Gently grasp the headlamp unit and tilt it to the desired angle. The hinge mechanism is designed to hold its position firmly.
• Avoid forcing the tilt mechanism beyond its natural range of motion to prevent damage.

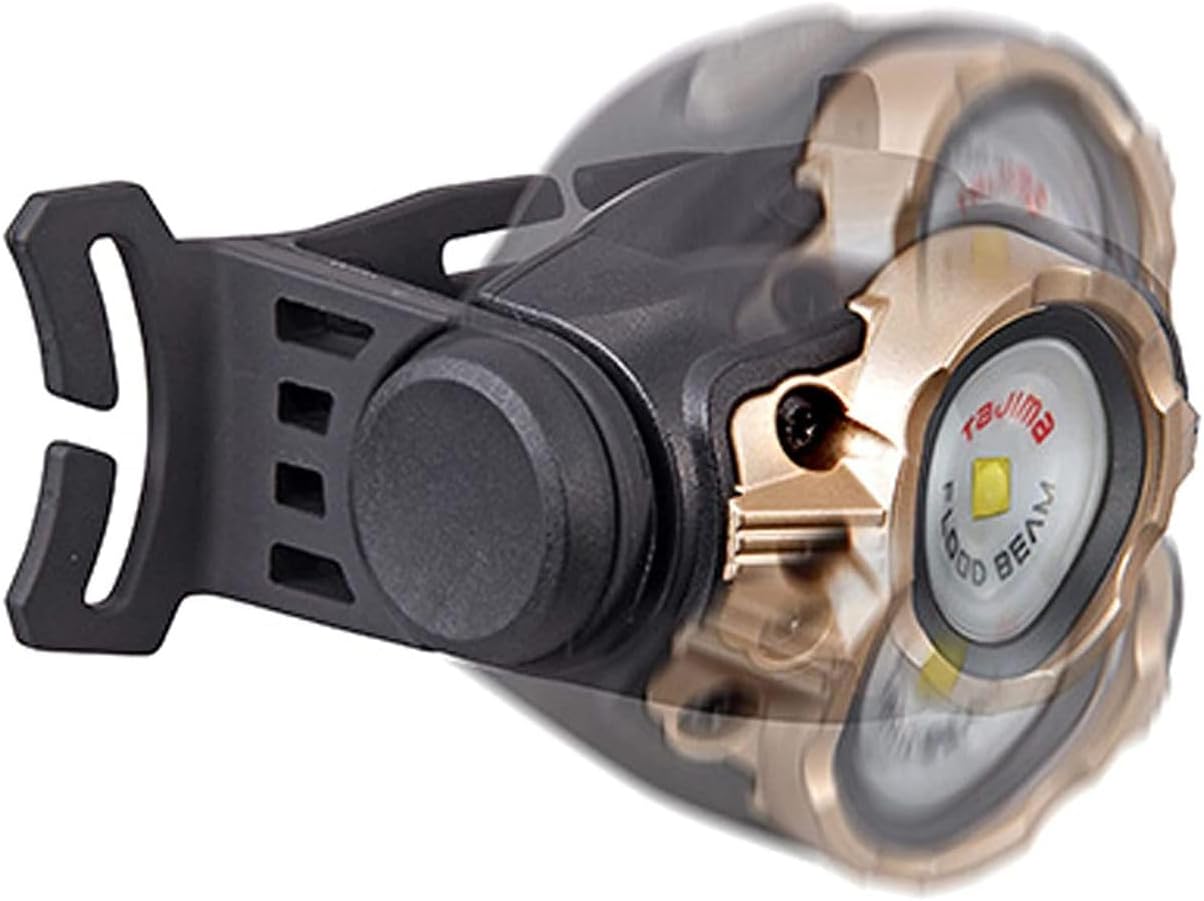

Figura 4: La testaamp unit can be tilted to adjust the beam angle.

Manutenzione

Pulizia

• Pulisci la testinaamp and battery compartment with a soft, damp stoffa.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the plastic and electronic components.
• Garantire la testaamp is completely dry before storing or using.

Magazzinaggio

• Conservare la testaamp in un luogo fresco e asciutto, al riparo dalla luce solare diretta e da temperature estreme.
• If storing for an extended period, remove the AA batteries from the compartment to prevent leakage and corrosion.

Cura della batteria

• Sostituire sempre tutte le batterie contemporaneamente.
• Smaltire le batterie usate in modo responsabile secondo le normative locali.

Risoluzione dei problemi

If you encounter issues with your Tajima Grati-Lite Headlamp, please refer to the table below for common problems and solutions.

Specifiche

Garanzia e supporto

The Tajima Grati-Lite Headlamp comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty information provided with your purchase or contact Tajima customer support.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Tajima customer service. Contact information can typically be found on the product packaging or the official Tajima websito.
