La Campingaz Uni 400 SG is a high-quality 2-burner stove designed for outdoor use, featuring two grill plates and a robust lid made of painted steel. Its innovative Xcelerate™ burner technology significantly reduces cooking time, especially in windy conditions, by halving it compared to traditional burner systems. The stable pot supports, equipped with the WindBlock™ system, provide enhanced wind protection, ensuring efficient cooking performance.
Immagine: La Campingaz Uni 400 SG Camping Stove with its lid open, revealing one gas burner and one grill plate. The blue lid features the 'Campingaz' logo.
Caratteristiche principali
- Xcelerate Burner Technology: Equipped with two 2.2kW burners and WindBlock pot supports, this technology halves cooking time in windy conditions compared to traditional systems.
- Compatto e pratico: An easy-to-use gas stove featuring piezo ignition and individually adjustable flames. Includes two removable grill plates for simultaneous cooking and grilling.
- Progettazione avanzata: Features a robust steel lid with a plastic handle for easy closing and carrying. Wide feet ensure high stability, and removable pot supports allow for simple cleaning.
- Worldwide Availability: Operates with Campingaz cylinders (R904/907), supported by a global distribution network for easy replacement access during international travels.
- Dimensioni: Measures 55.5 x 44.5 x 46 cm. Gas consumption is 2 x 155 g/h. Weighs 7.8 kg. Includes an 80 cm hose and 2 removable grill plates. Not suitable for use in enclosed spaces.

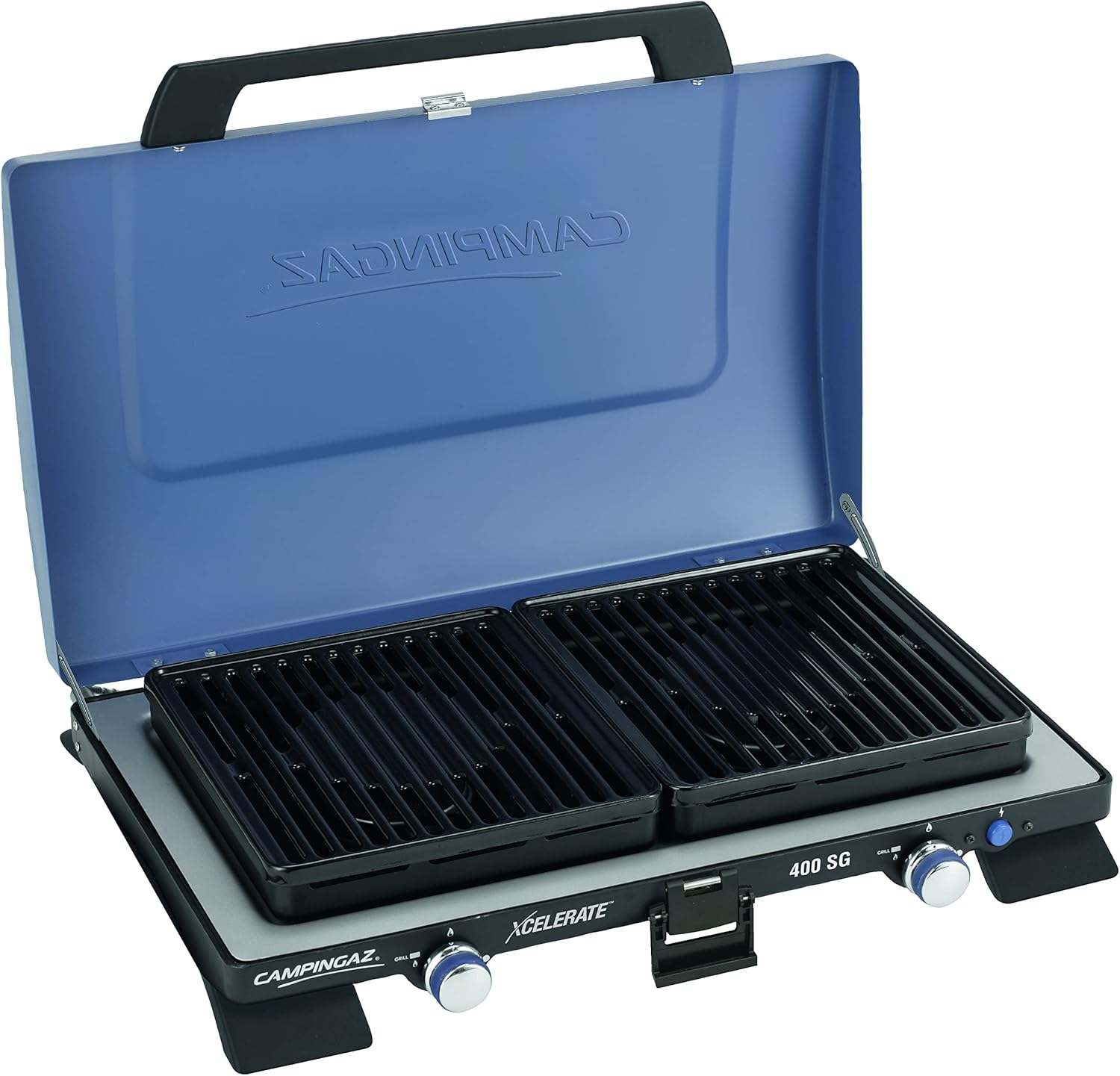

Immagine: La Campingaz Uni 400 SG Camping Stove shown with both grill plates in place, ready for use.
Informazioni sulla sicurezza
WARNING: For outdoor use only. Do not operate this appliance in an enclosed space such as a tent, caravan, or motorhome. This appliance consumes oxygen and can produce carbon monoxide, which can be fatal.
- Always read and understand the full instruction manual before use.
- Assicurare una ventilazione adeguata durante il funzionamento.
- Tenere lontano da materiali infiammabili.
- Non lasciare l'apparecchio incustodito durante il funzionamento.
- Check for gas leaks regularly using a soapy water solution. Never use a naked flame.
- Tenere bambini e animali domestici lontani dall'apparecchio caldo.
- Lasciare raffreddare completamente l'apparecchio prima di pulirlo o riporlo.
Impostare
- Disimballare: Rimuovere con attenzione tutti i componenti dalla confezione.
- Posizionamento: Place the stove on a stable, level, non-combustible surface, away from any flammable materials. Ensure there is sufficient clearance above and around the stove.
- Install Grill Plates/Pot Supports: Place the desired grill plates or pot supports onto the stove burners.
- Connect Gas Cylinder: Ensure the stove's control knobs are in the 'OFF' position. Connect the gas hose (80 cm included) to the stove's inlet and then securely attach the other end to a compatible Campingaz gas cylinder (R904/907). Tighten all connections by hand, then check for leaks.
Image: A hand demonstrating the connection of a gas hose to an outdoor gas supply point, illustrating the type of connection used for the stove.
Istruzioni per l'uso
- Fornitura di gas aperta: Aprire lentamente la valvola della bombola del gas.
- Accensione: Push and turn the desired burner control knob counter-clockwise to the 'HIGH' position. Simultaneously press the piezo ignition button (if available) until the burner ignites. If the burner does not ignite within a few seconds, turn the knob to 'OFF', wait a minute, and try again.
- Regola la fiamma: Once ignited, adjust the flame intensity by turning the control knob between 'LOW' and 'HIGH' as needed for cooking.
- Cucina: Place your cookware on the pot support or food directly on the grill plates.
- Fermare: When finished cooking, turn all burner control knobs to the 'OFF' position. Close the valve on the gas cylinder. Allow the stove to cool completely before handling or storing.

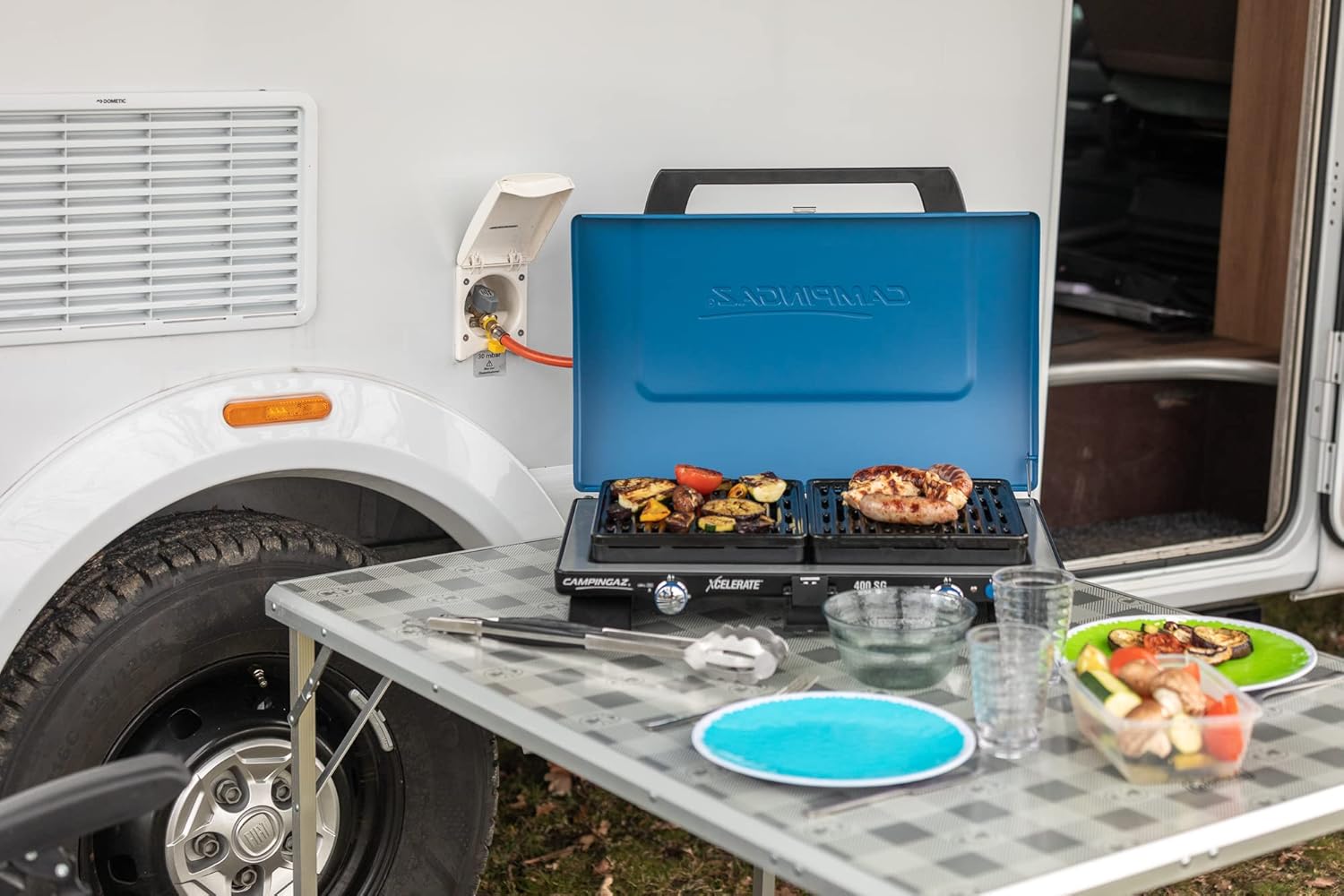

Immagine: La Campingaz Uni 400 SG Camping Stove actively cooking outdoors, with food grilling on both plates.
Immagine: un primo piano view of various foods, including vegetables and sausages, cooking on the grill plates of the Campingaz stove.
Manutenzione
- Pulizia: After each use, allow the stove to cool. Remove grill plates and pot supports. Clean them with warm soapy water. Wipe down the stove body with a damp panno. Non usare detergenti abrasivi.
- Magazzinaggio: Ensure the stove is clean and dry before storing. Disconnect the gas cylinder. Store the stove in a cool, dry place, away from direct sunlight and extreme temperatures.
- Ispezione regolare: Periodically check the gas hose and connections for any signs of wear, cracks, or damage. Replace if necessary.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il bruciatore non si accende. | No gas flow, faulty ignition, or clogged burner. | Check gas cylinder connection and ensure valve is open. Verify gas in cylinder. Check if piezo igniter sparks. Clean burner ports if clogged. |
| La fiamma è debole o incostante. | Low gas pressure, partially clogged burner, or wind interference. | Ensure gas cylinder is not nearly empty. Clean burner. Position stove to minimize wind exposure (WindBlock system helps, but extreme wind can still affect). |
| Rilevato odore di gas. | Perdita di gas. | Immediately turn off gas supply at the cylinder. Ventilate the area. Check all connections with soapy water for bubbles. Do not use the stove until the leak is found and fixed. |
Specifiche
- Marca: Campingaz
- Numero modello: 2000031430
- Colore: Grigio
- Materiale: Acciaio legato
- Peso dell'articolo: 13 chilogrammi
- Tipo di carburante: Gas di petrolio liquefatto (GPL)
- Dimensioni del prodotto: 32L x 14B x 23H cm (Note: Feature bullet states 55.5 x 44.5 x 46 cm, refer to product packaging for exact dimensions)
- Fonte di energia: Alimentato a gas
- Numero di identificazione commerciale globale (GTIN): 03138528051727
Garanzia e supporto
For detailed warranty information and customer support, please refer to the documentation included with your product or visit the official Campingaz websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
Risorse online:
- Campingaz Official Websito: www.campingaz.com
