Introduzione
This manual provides essential instructions for the proper installation, operation, and maintenance of your Technical Precision replacement starter for the Massey Ferguson MF-6160 tractor, model year 1996. Please read this manual thoroughly before attempting any installation or operation to ensure safety and optimal performance of the unit.
This replacement starter is designed to meet or exceed the specifications of the original equipment for the specified Massey Ferguson model.
Informazioni sulla sicurezza
Osservare sempre le seguenti precauzioni di sicurezza:
- Disconnect the battery before performing any work on the electrical system.
- Indossare adeguati dispositivi di protezione individuale (DPI), tra cui occhiali e guanti di sicurezza.
- Ensure the vehicle is stable and secured before working underneath it.
- Refer to the Massey Ferguson MF-6160 service manual for specific vehicle disassembly and reassembly procedures.
- Do not attempt to repair a damaged starter. Replace it with a new unit.
Cosa c'è nella scatola
Il tuo pacco dovrebbe contenere i seguenti articoli:
- 1 x Technical Precision Replacement Starter for Massey Ferguson MF-6160 (1996)

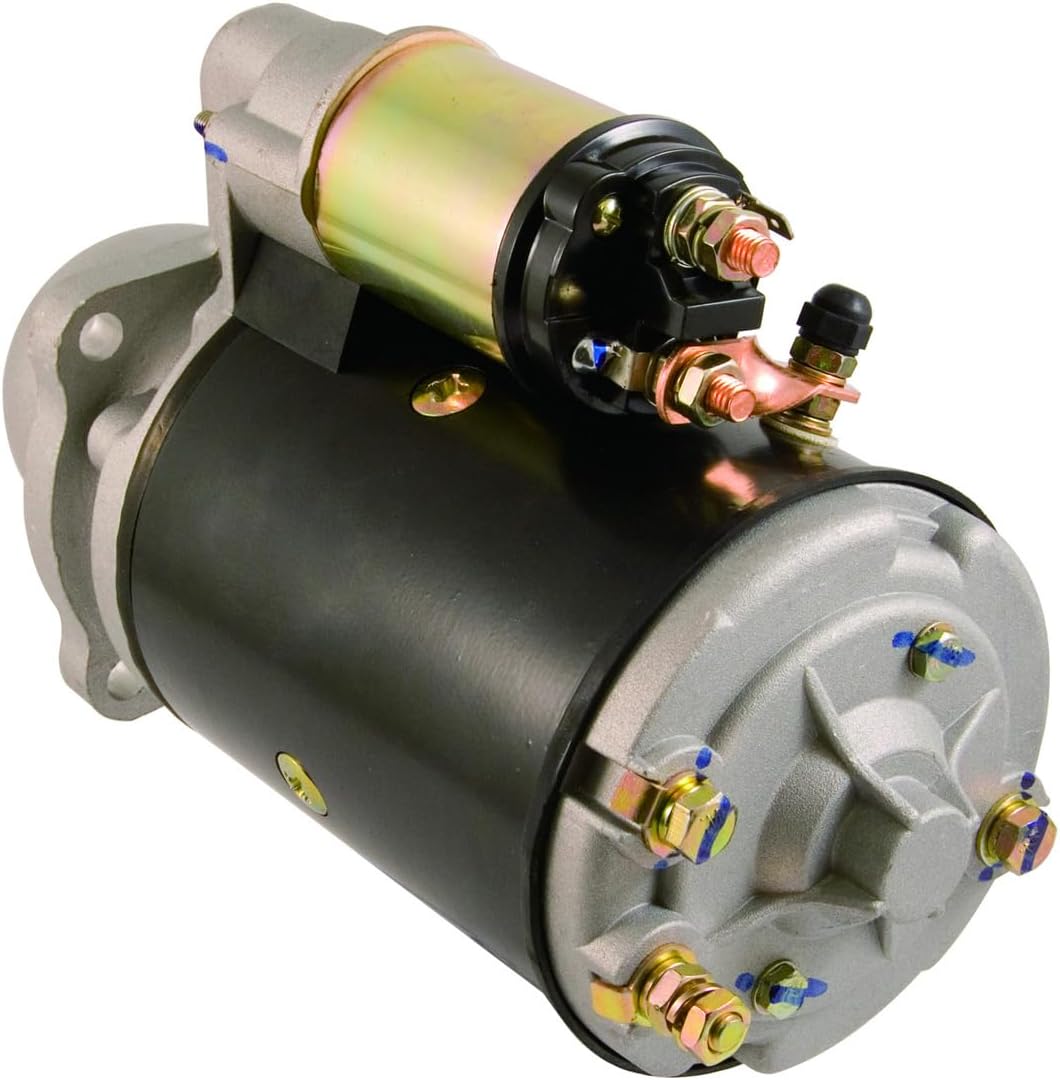

Immagine 1: Passoview of the Technical Precision Replacement Starter. This image displays the complete starter unit, featuring its main body, solenoid, and electrical terminals, ready for installation.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Compatibilità del modello | Massey Ferguson MF-6160 (Year 1996) |
| Tipo di parte | Replacement Starter |
| Marca | Precisione tecnica |
| Numero di parte del produttore | MF-6160 YEAR 1996 STARTER-AY-18W9-3 |
Configurazione e installazione
Installation of the replacement starter requires mechanical aptitude and basic tools. If you are unsure about any step, it is recommended to seek professional assistance.
Strumenti necessari:
- Wrench set (metric and/or imperial, as required by your tractor)
- Set di prese
- Pulitore per terminali della batteria
- Spazzola metallica
- Occhiali e guanti di sicurezza
Fasi di installazione:
- Preparare il trattore: Ensure the tractor is turned off, the parking brake is engaged, and the transmission is in neutral. Disconnect both the negative (-) and positive (+) battery cables from the battery terminals. Always disconnect the negative cable first.
- Locate the Old Starter: Identify the existing starter motor on your Massey Ferguson MF-6160. It is typically mounted on the engine block, near the flywheel housing.
- Scollegare i collegamenti elettrici: Carefully disconnect all electrical wires from the old starter. Note the position of each wire for correct reinstallation. There will typically be a large battery cable and one or more smaller solenoid wires.
Image 2: Close-up of the starter's solenoid and electrical terminals. This view highlights the main battery terminal and the smaller activation terminal, showing where electrical connections are made.
- Rimuovere i bulloni di montaggio: Remove the bolts securing the old starter to the engine block. Support the starter as you remove the last bolt to prevent it from falling.
- Rimuovere il vecchio motorino di avviamento: Carefully extract the old starter from its mounting position.
- Ispezionare la superficie di montaggio: Clean the mounting surface on the engine block to ensure a proper fit for the new starter.
- Installa il nuovo motorino di avviamento: Position the Technical Precision replacement starter into place and secure it with the mounting bolts. Tighten the bolts to the manufacturer's specified torque (refer to your tractor's service manual).
- Ricollegare i collegamenti elettrici: Reattach all electrical wires to the new starter, ensuring they are connected to the correct terminals. Ensure all connections are clean and tight.
Immagine 3: View of the starter motor's main body and mounting flange. This image illustrates the robust construction and the points where the starter attaches to the engine block.
- Ricollegare la batteria: Reconnect the positive (+) battery cable first, then the negative (-) battery cable.
- Test the Starter: Attempt to start the tractor to verify proper operation of the new starter. Listen for any unusual noises and ensure the engine cranks smoothly.
Istruzioni per l'uso
Once installed, the starter operates as part of your tractor's electrical system. Follow your Massey Ferguson MF-6160's standard starting procedures.
- Ensure the tractor is in neutral or park.
- Turn the ignition key to the "START" position. The starter motor will engage the engine's flywheel, causing the engine to crank.
- Release the key once the engine starts. Do not hold the key in the "START" position for more than 10-15 seconds to prevent overheating the starter. Allow a brief cool-down period between starting attempts if the engine does not start immediately.
Manutenzione
The Technical Precision replacement starter is designed for durability and typically requires minimal maintenance. However, periodic checks can extend its lifespan and ensure reliable operation:
- Condizioni della batteria: Ensure your tractor's battery is in good condition and fully charged. A weak battery can put excessive strain on the starter.
- Collegamenti elettrici: Ispezionare periodicamente tutti i collegamenti elettrici del motorino di avviamento per verificare la presenza di corrosione o allentamenti. Pulire e serrare se necessario.
- Bulloni di montaggio: Check the starter's mounting bolts for tightness. Vibrations can sometimes cause them to loosen over time.
- Integrità del cavo: Inspect battery cables and starter cables for fraying, cracks, or damage. Replace damaged cables promptly.
Risoluzione dei problemi
If you encounter issues with your starter, consider the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Starter does not engage or makes a single click. | Weak or dead battery, loose or corroded battery terminals, faulty solenoid, faulty ignition switch. | Charge or replace battery. Clean and tighten battery and starter connections. Test solenoid and ignition switch. |
| Il motorino di avviamento gira lentamente. | Low battery charge, corroded battery cables, high resistance in starter circuit, incorrect starter for application. | Charge battery. Clean and tighten all electrical connections. Inspect cables for damage. Verify starter compatibility. |
| Il motorino di avviamento gira ma il motore non si avvia. | Faulty starter drive (bendix), damaged flywheel teeth. | Inspect starter drive for damage. Inspect flywheel teeth. Replacement of starter or flywheel may be necessary. |
| Starter makes grinding noise. | Misalignment, damaged starter drive, damaged flywheel teeth. | Check starter mounting. Inspect starter drive and flywheel for damage. |
If these troubleshooting steps do not resolve the issue, it is recommended to consult a qualified mechanic or contact Technical Precision customer support.
Garanzia e supporto
For information regarding warranty coverage for your Technical Precision replacement starter, please refer to the documentation provided at the time of purchase or visit the official Technical Precision website. For technical support or assistance with installation and troubleshooting, please contact Technical Precision customer service.
Technical Precision Customer Service:
- Websito: Visit the Technical Precision Store on Amazon
- Contact information may also be available on the product packaging or included inserts.
