Voxelab Aquila D1 3D Printer Instruction Manual

1. Introduzione

This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Voxelab Aquila D1 FDM 3D Printer. Please read this manual thoroughly before operating the device to ensure proper usage and to prevent damage.

Immagine: Oltreview of the Voxelab Aquila D1 FDM 3D Printer, highlighting its key features such as 25-point auto leveling, 300°C high-temp nozzle, dual linear guides, all-metal dual gear direct extruder, 5-step quick installation, and support for various filament types.

Caratteristiche principali:

• 25-point Smart Auto Leveling for precise first layer adhesion.
• 300°C All-Metal Dual Gear Direct Extruder for high-temperature filaments and consistent feeding.
• Dual Z-axis Rails and XY Linear Rails for enhanced stability and printing precision.
• High-Speed Printing capability up to 180mm/s.
• Flexible PEI Magnetic Build Plate for easy model removal.
• Filament Sensor for automatic detection of filament run-out or breakage.
• 4.3-inch Touchscreen for intuitive operation.
• N32 Silent Motherboard for quiet operation.

2. Configurazione e installazione

The Voxelab Aquila D1 features a modular design for quick and easy assembly. Follow these 5 steps to set up your printer.

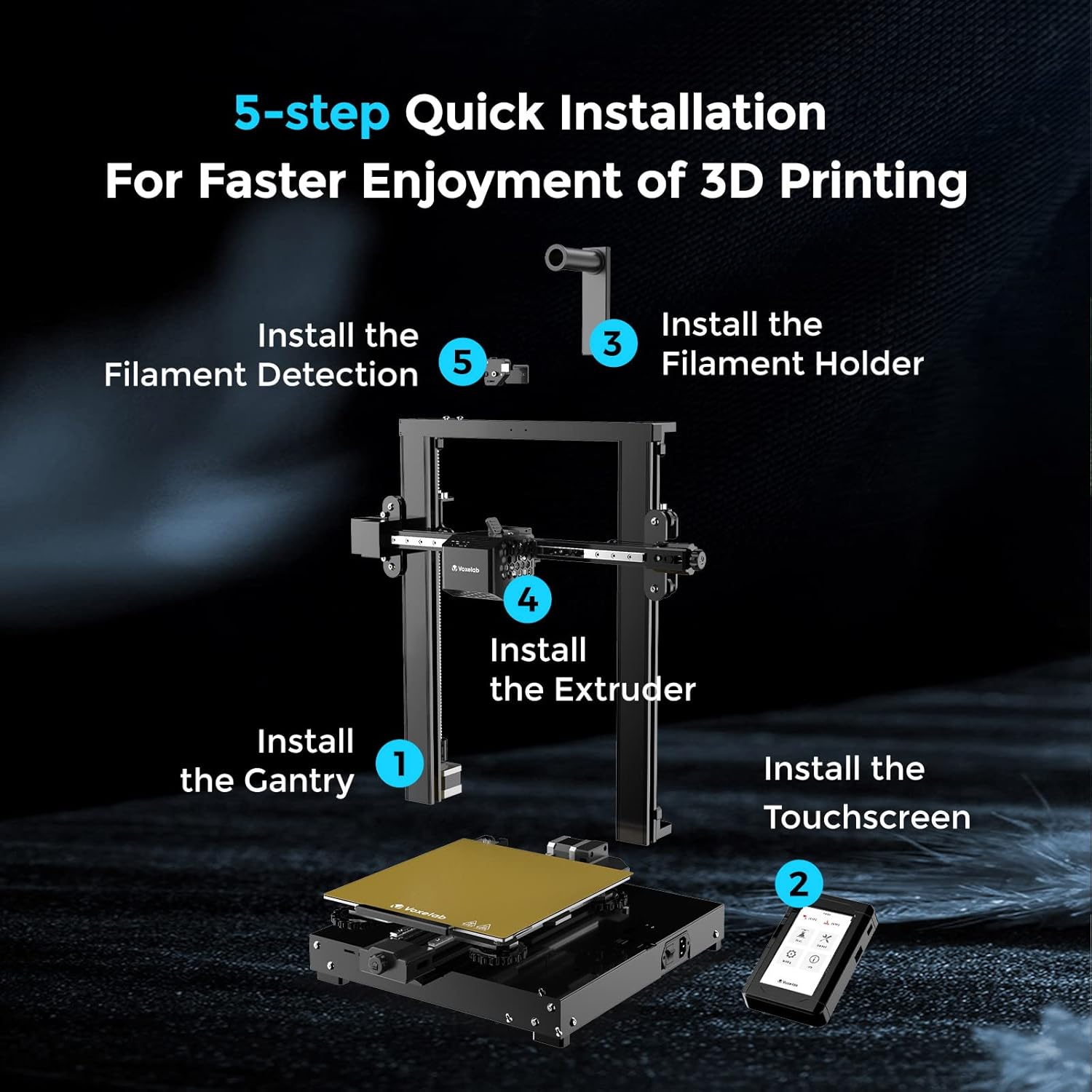

Image: Visual guide for the 5-step quick installation process. Steps include installing the gantry, touchscreen, filament holder, extruder, and filament detection module.

1. Installare il Gantry: Secure the gantry frame to the printer base.
2. Install the Touchscreen: Attach the 4.3-inch touchscreen to its designated port.
3. Installare il supporto del filamento: Mount the filament holder on top of the gantry.
4. Installare l'estrusore: Attach the direct extruder assembly to the X-axis linear rail.
5. Install the Filament Detection Module: Connect the filament detection sensor.

After physical assembly, ensure all cables are securely connected according to the included wiring diagram.

3. Istruzioni per l'uso

3.1 Accensione e configurazione iniziale

• Connect the power cable and turn on the printer using the switch located at the rear.
• The 4.3-inch touchscreen will display the main interface.
• Navigate through the menu using the touchscreen to access various functions.

Image: The Voxelab Aquila D1 printer with a visual representation of the smart auto-leveling process on the print bed, indicating multiple measurement points.

3.2 Smart Auto Leveling

The Aquila D1 features 25-point smart auto leveling. This system uses magnetic sensors to automatically adjust the printing platform height, ensuring the first layer is always even and accurate. This reduces printing failures and improves overall printing efficiency.

• Access the auto-leveling function through the touchscreen menu.
• Initiate the leveling process. The printer will automatically probe multiple points on the build plate.
• Wait for the process to complete before starting a print.

3.3 Caricamento e scaricamento del filamento

Image: Diagram illustrating the layers of the flexible PEI platform: PEI coating, spring steel sheet, and magnetic sticker, with a printed model on top.

• Place the filament spool on the filament holder.
• Feed the filament through the filament sensor and into the direct extruder.
• Use the touchscreen menu to preheat the nozzle and load the filament until it extrudes smoothly.
• To unload, preheat the nozzle and use the menu option to retract the filament.

The filament sensor automatically detects filament run-out or breakage, pausing the print and allowing you to resume after replacing the filament.

3.4 Stampa

Image: The Voxelab Aquila D1 printer in operation, with a visual effect indicating high-speed printing up to 180mm/s.

• Prepare your 3D model using compatible slicing software (VoxelMaker, Cura, Simplify3D).
• Salva il codice G suddiviso file to a memory card.
• Insert the memory card into the printer's card slot.
• Selezionare il desiderato file from the touchscreen menu and start printing.

3.5 Multi-Material Printing

Image: A 3D printed scooter model made from multiple materials, with labels indicating supported filament types: PLA, ABS, PETG, TPU, HIPS, ASA.

The Aquila D1 supports a wide range of filaments, including PLA, ABS, PETG, TPU, HIPS, and ASA, allowing for diverse printing applications.

4. Manutenzione

Una manutenzione regolare garantisce prestazioni ottimali e longevità della stampante 3D.

4.1 Pulizia della piastra di stampa

• After each print, allow the build plate to cool down.
• Gently remove the flexible PEI sheet and flex it to detach the printed model.
• Clean the PEI surface with isopropyl alcohol to remove any residue and maintain adhesion.

4.2 Manutenzione dell'estrusore e dell'ugello

Image: Close-up of the Voxelab Aquila D1's direct extruder, showing the 300°C all-metal hotend, dual cooling fans, and 70N strong filament feeding structure.

• Periodically check the nozzle for clogs. Use the provided needle to clear any blockages.
• Ensure the dual cooling fans are free from dust and debris to prevent overheating.
• Inspect the dual gear direct extruder for proper filament grip and smooth operation.

4.3 Linear Rail and Z-axis Maintenance

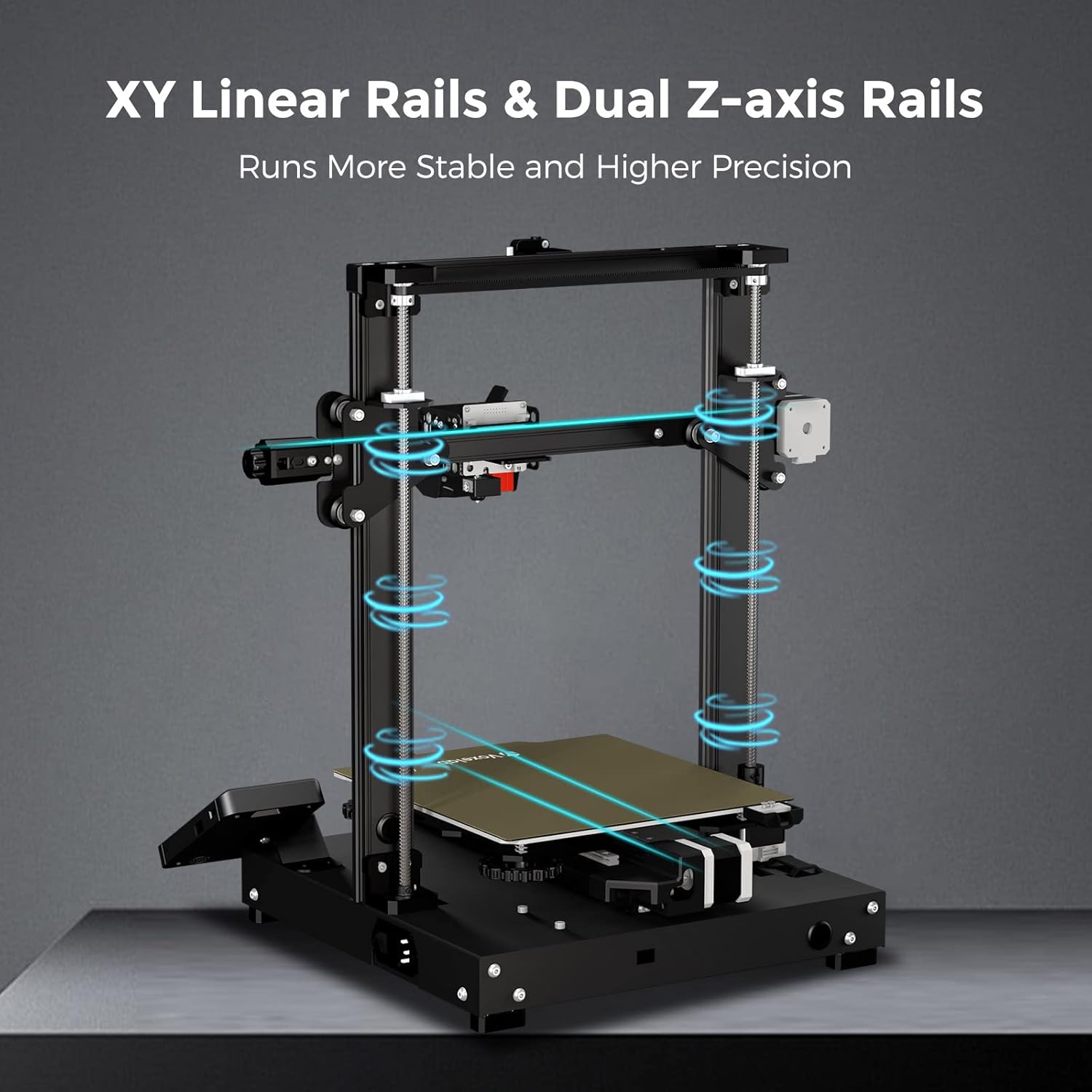

Image: The Voxelab Aquila D1 printer highlighting its XY linear rails and dual Z-axis rails, indicating stable and precise movement.

• Keep the XY linear rails and dual Z-axis rails clean and free of dust.
• Apply a small amount of lubricant to the linear rails and lead screws periodically to ensure smooth movement.

5. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your Voxelab Aquila D1 3D Printer.

Q: Why is it difficult to clean the PEI platform when printing PETG?

A: PETG has a unique stickiness that can damage the PEI coating and affect the platform's lifespan. It is recommended to print on the backside of the platform when using PETG.

Q: What should I do if the printed model appears to be offset?

A: 1. Check the tightness of the synchronous belt to ensure it is correctly fitted.
2. Re-slice the model.
3. Reduce the printing speed.
4. Ensure the working environment temperature is between 15-30°C.

Q: What should I do if the filament does not come out when printing?

A: 1. Shorten the retraction length to avoid wear and tear.
2. Make sure that the nozzle is not clogged. If it is, use a needle to clear it.
3. Make sure the filament feed wheel is not stuck. If it is, please clean it up.

Q: What should I do if the screen turns black?

A: 1. Re-plug the screen cable to see if the screen can be restored to normal.
2. Refresh the firmware to see if the screen can return to normal.
3. Contatta l'assistenza clienti.

6. Specifiche

Detailed technical specifications for the Voxelab Aquila D1 3D Printer.

Image: The Voxelab Aquila D1 3D Printer with its overall dimensions labeled: 17.3 inches (width), 18.5 inches (depth), and 20.1 inches (height).

7. Prodotto finitoview Video

8. Garanzia e supporto

For warranty information, please refer to the documentation included with your product or visit the official Voxelab website. For technical support, troubleshooting assistance, or to report issues, please contact Voxelab customer service.

Voxelab Support: https://www.voxelab3dp.com
