PMSUN 4500W Solar Hybrid Inverter User Manual

1. Introduzione

This manual provides essential information for the installation, operation, and maintenance of your PMSUN 4500W Solar Hybrid Inverter. This multifunctional inverter/charger combines the functions of an inverter, a 150A MPPT solar charger, and a battery charger to ensure an uninterruptible power supply. It features a new tempered glass screen design with user-friendly touch buttons and enhanced cooling with three integrated fans for improved efficiency and extended lifespan.

2. Importanti istruzioni di sicurezza

Please read all instructions and cautionary markings on the unit, batteries, and all appropriate sections of this manual before installation and operation. Failure to follow these instructions may result in electric shock, fire, or severe injury.

• Personale qualificato: Tutti i cablaggi devono essere eseguiti da personale qualificato.
• Tipo di batteria: Only use sealed lead-acid batteries, sealed GEL/AGM lead-acid batteries, or lithium batteries.
• Ventilazione: Ensure adequate ventilation around the inverter. Do not install in a confined space.
• Umidità: Non esporre l'inverter a pioggia, neve, spruzzi o altri liquidi.
• Protezione da sovraccarico: Non sovraccaricare l'inverter oltre la sua capacità nominale.
• Messa a terra: Assicurarsi che l'inverter sia correttamente collegato a terra per evitare scosse elettriche.
• Temperatura: Avoid installing the inverter near heat sources or in direct sunlight.
• Rumore del ventilatore: The inverter's fans will generate noise during operation. Consider installation location to avoid disturbance.
• Isolamento galvanico: Be aware that the PV input may not have galvanic isolation. Exercise extreme caution when handling PV modules, especially in humid conditions.

3. Prodotto finitoview

The PMSUN 4500W Solar Hybrid Inverter is designed for efficient power conversion and management in various applications, including RVs, camping, boats, and home emergency systems. Its robust design ensures reliable performance.

Figura 3.1: Fronte view of the PMSUN 4500W Solar Hybrid Inverter, showcasing the LCD screen and touch buttons.

3.1. Componenti e indicatori

Familiarize yourself with the various components and indicators of your inverter for proper operation and troubleshooting.

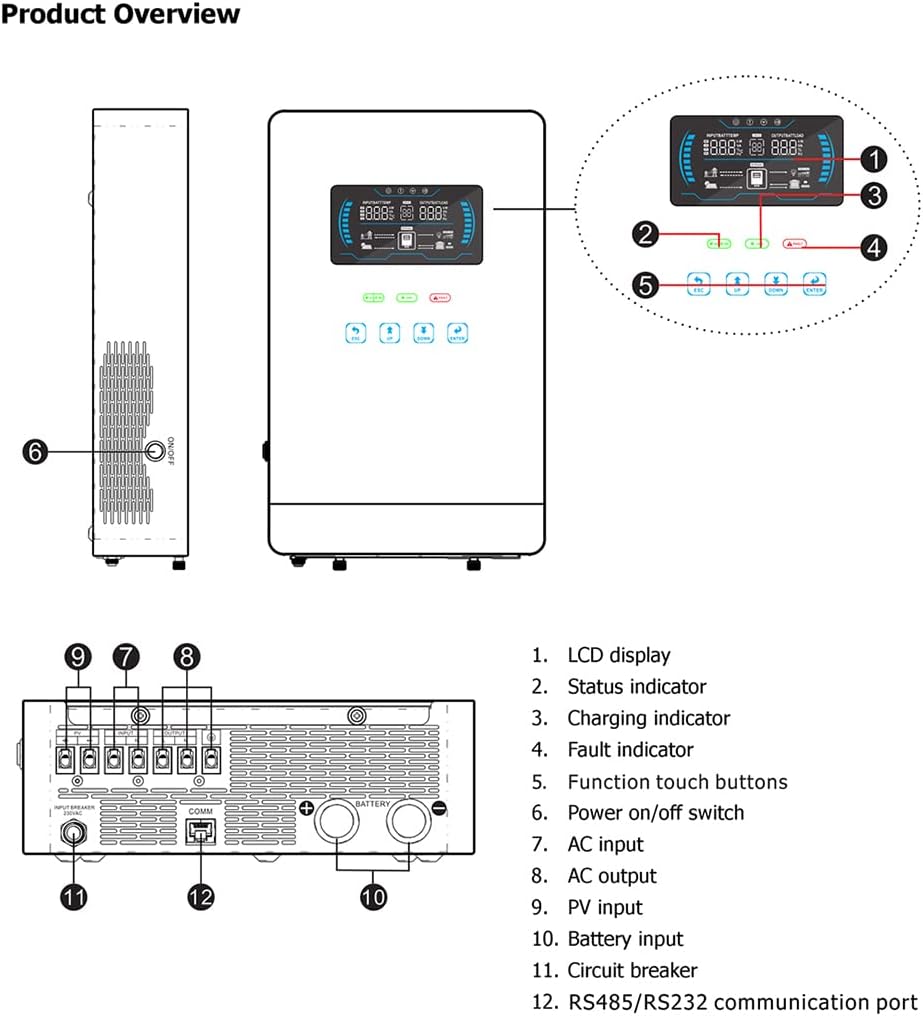

Figure 3.2: Detailed diagram of the inverter's front panel and rear connections with numbered components.

• Schermo LCD: Mostra lo stato del sistema, le impostazioni e i codici di errore.
• Indicatore di stato: LED che indica lo stato operativo.
• Indicatore di carica: LED che indica lo stato di carica della batteria.
• Indicatore di guasto: LED indicating system faults or warnings.
• Function Touch Buttons: Used for navigation and setting adjustments on the LCD.
• Interruttore di accensione/spegnimento: Controllo di potenza principale per l'unità.
• Ingresso CA: Terminale per il collegamento dell'alimentazione CA alla rete o al generatore.
• Uscita CA: Terminale per il collegamento di carichi CA.
• Ingresso FV: Terminali per il collegamento di gruppi di pannelli solari.
• Ingresso batteria: Terminals for connecting battery bank.
• Interruttore: Fornisce protezione da sovracorrente.
• Porta di comunicazione RS232/RS485: For data communication and monitoring.

4. Configurazione e installazione

Una corretta installazione è fondamentale per il funzionamento sicuro ed efficiente dell'inverter. Seguire attentamente questi passaggi.

4.1. Schema di collegamento del sistema

The following diagram illustrates a typical solar system connection with the PMSUN 4500W Hybrid Inverter.

Figure 4.1: Diagram showing the connection of solar modules, photovoltaic box, utility grid, battery packs, and home appliances to the hybrid inverter.

4.2. Fasi di installazione

1. Montaggio: Choose a suitable location for mounting the inverter. Ensure it is a dry, well-ventilated area, away from direct sunlight and heat sources.
2. Collegamento della batteria: Connect the battery bank to the inverter's Battery Input terminals (10). Ensure correct polarity (+ to + and - to -). Use appropriate cable gauges for the current.
3. Collegamento del pannello fotovoltaico: Connect your solar panel array to the PV Input terminals (9). Ensure the PV input voltage (120V - 450Vdc) and power (max 5500W) are within the inverter's specifications. The best working voltage è 200-300V.
4. Connessione ingresso CA: Connect the utility grid or generator AC power to the AC Input terminal (7).
5. Collegamento di uscita CA: Connect your AC loads (e.g., oven, rice cooker, lamps, TVs, fans) to the AC Output terminal (8).
6. Comunicazione (opzionale): If using, connect RS232/RS485 communication cables (12) or the optional WiFi monitoring module.
7. Accensione iniziale: Once all connections are secure, switch on the circuit breaker (11), then the Power On/Off switch (6) on the inverter.

5. Istruzioni per l'uso

The PMSUN 4500W Hybrid Inverter offers multiple charging and output modes to suit various application requirements. Use the touch buttons (5) and LCD display (1) to configure settings.

5.1. Modalità di ricarica

The inverter supports four optional charging modes:

• Solo solare: Carica le batterie esclusivamente tramite energia solare.
• Prima la rete elettrica: Prioritizes charging from the utility grid, supplementing with solar if needed.
• Solar First: Prioritizes charging from solar power, supplementing with grid if needed.
• Rete elettrica e solare ibrida: Utilizes both mains and solar power for charging simultaneously.

5.2. Modalità di uscita

Three output modes are available for power supply:

• Solar First: Prioritizes power from solar, then battery, then grid.
• Prima la rete elettrica: Dà priorità all'energia proveniente dalla rete elettrica, poi all'energia solare e infine alla batteria.
• Priorità SBU: Solar (S), Battery (B), Utility (U) - prioritizes solar, then battery, then utility grid.

The default mode is Off-Grid. You can manually activate On-Grid mode if desired. The AC output voltage can be adjusted to 110Vac or 220Vac in battery mode.

5.3. Lithium Battery Activation

The inverter includes a built-in BMS function with a reactivation feature to wake up sleeping lithium batteries.

5.4. Automatic Restart

The inverter supports automatic restart upon AC recovery, ensuring continuous power supply.

6. Manutenzione

Regular maintenance ensures the longevity and optimal performance of your PMSUN 4500W Solar Hybrid Inverter.

• Pulizia: Keep the inverter clean and free from dust. Use a dry cloth for cleaning. Do not use liquid cleaners.
• Ventilazione: Periodically check that the cooling fans and vents are clear of obstructions to ensure proper airflow.
• Connessioni: Regularly inspect all electrical connections for tightness. Loose connections can cause overheating and damage.
• Stato della batteria: Monitor your battery bank's health and charge levels. Follow battery manufacturer guidelines for maintenance.
• Aggiornamenti del firmware: Controllare il produttore websito per eventuali aggiornamenti firmware disponibili per migliorare le prestazioni o nuove funzionalità.

7. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your inverter. For problems not listed here, please contact customer support.

8. Specifiche tecniche

9. Garanzia e supporto

Specific warranty details for the PMSUN 4500W Solar Hybrid Inverter are not provided in this document. Please refer to your purchase documentation or contact PMSUN customer service for warranty information and technical support.

For further assistance, please visit the official PMSUN store or contact their support channels.
