Vive Bariatric Heavy-Duty Wheelchair User Manual

1. Introduzione

This manual provides essential information for the safe and effective use of your Vive Bariatric Heavy-Duty Wheelchair. Designed for strength, comfort, and convenience, this wheelchair supports individuals up to 400 pounds. It features a durable steel frame, an extra-wide 20-inch seat, padded armrests, and adjustable footrests. Please read this manual thoroughly before initial use and retain it for future reference.

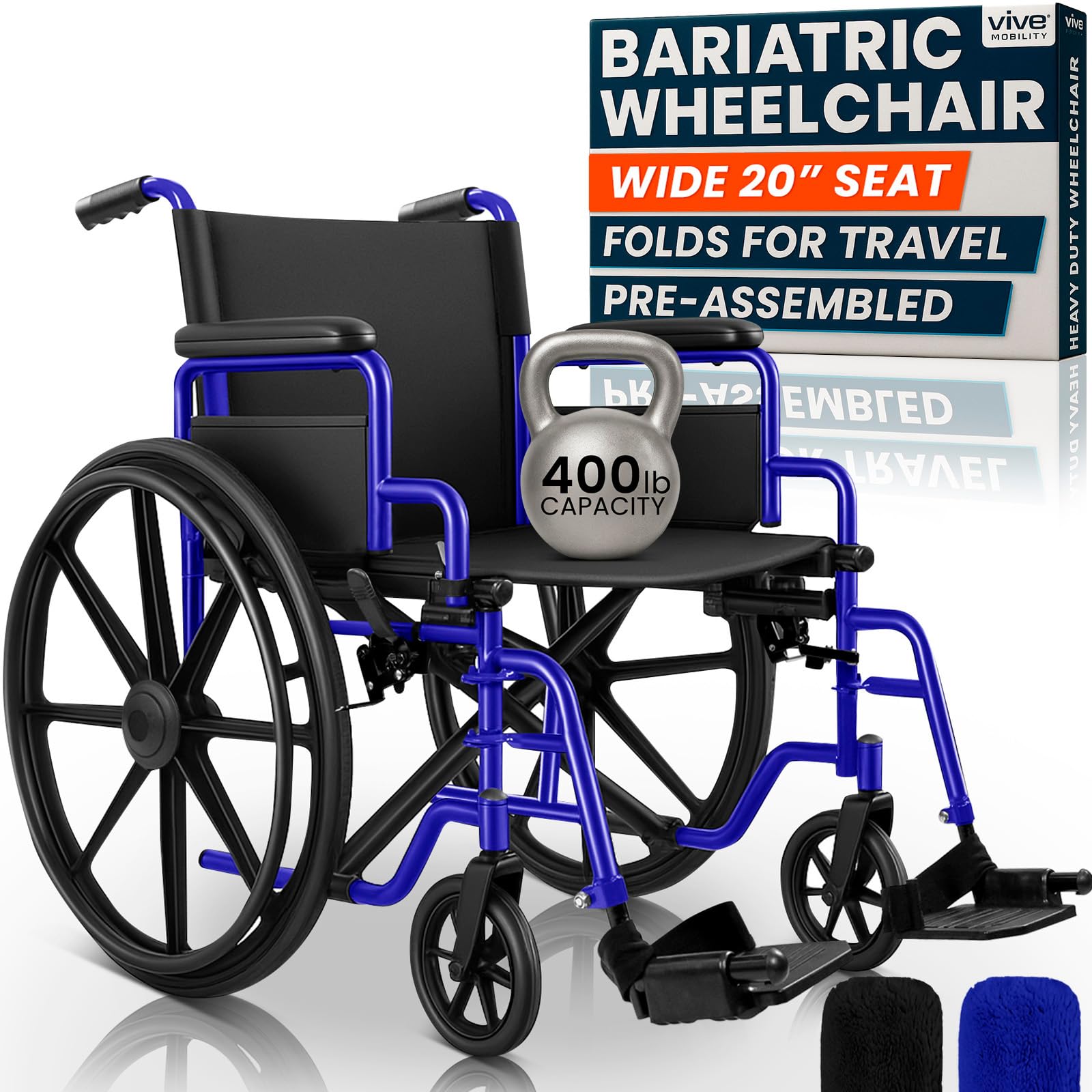

Image 1: The Vive Bariatric Heavy-Duty Wheelchair, showcasing il suo design robusto.

2. Informazioni sulla sicurezza

Always prioritize safety when using the wheelchair. Failure to follow these guidelines may result in injury or damage to the product.

• Capacità di peso: Non superare la capacità di peso massima di 400 libbre.
• Freni: Always engage the wheel locks (brakes) when transferring in or out of the wheelchair, or when the wheelchair is stationary.
• Stabilità: Avoid leaning excessively to one side or reaching too far, as this may cause the wheelchair to tip.
• Poggiapiedi: Ensure footrests are properly adjusted and secured before use. Do not stand on the footrests.
• Manovra: Be aware of your surroundings, especially when navigating through doorways or tight spaces. The total width of the wheelchair is 27 inches.
• Assistenza: If you require assistance, ensure the attendant is trained in safe wheelchair operation and transfers.
• Ispezione regolare: Periodically check all components for wear, damage, or loose parts. Do not use the wheelchair if any part is damaged.

3. Impostazione

The Vive Bariatric Heavy-Duty Wheelchair comes largely pre-assembled, requiring minimal setup before first use.

3.1 Apertura della sedia a rotelle

1. Posizionare la sedia a rotelle piegata su una superficie piana e stabile.
2. Grasp the top of the backrest and the front of the seat.
3. Pull the backrest and seat apart until the frame fully expands and locks into place.
4. Press down firmly on the seat rails to ensure the seat is fully open and flat.

Image 2: Visual guide for folding and unfolding the wheelchair.

3.2 Attaching and Adjusting Footrests

1. Align the footrest attachment pins with the corresponding holes on the wheelchair frame.
2. Push the footrest into place until it securely locks.
3. To adjust the length, locate the adjustment lever on the footrest assembly.
4. Pull the lever, adjust the footrest to the desired height, and release the lever to lock it. Ensure both footrests are at an equal height.
5. To swing the footrests away for easier transfers, pull the release lever and pivot the footrest outwards.

Image 3: Illustration of the swing-away and adjustable footrests.

3.3 Oltreview Video

4. Funzionamento

Operating your Vive Bariatric Heavy-Duty Wheelchair is straightforward, whether you are self-propelling or being assisted.

4.1 Self-Propelling

To move the wheelchair independently, grasp the handrims on the large rear wheels and push forward or backward. Use both hands to steer by applying more force to one handrim than the other.

4.2 Attendant Assistance

For assisted movement, an attendant can push the wheelchair using the handles located at the top of the backrest. Ensure the user's feet are securely on the footrests before moving.

4.3 Engaging and Disengaging Brakes

The wheelchair is equipped with push-to-lock brakes on the rear wheels. To engage, push the brake levers forward until they lock the wheels. To disengage, pull the levers backward.

4.4 Transfers

For easier transfers, the armrests are designed to swing back. Pull the release mechanism on the armrest to swing it out of the way. This allows for closer access to beds, chairs, or other surfaces.

Image 4: Swingback armrests facilitate easier transfers into and out of the wheelchair.

4.5 Portabilità e archiviazione

The wheelchair folds quickly and easily for transport or compact storage. Remove the footrests, then pull up on the center of the seat fabric to collapse the frame. The folded width is approximately 18 inches, making it suitable for car trunks.

5. Manutenzione

Una manutenzione regolare garantisce la longevità e il funzionamento sicuro della sedia a rotelle.

• Pulizia: Pulisci il telaio e il sedile con un pannoamp cloth and mild soap. Avoid abrasive cleaners. The material is easy to clean for a hygienic experience.
• Ispezione delle ruote: Regularly check the large rear wheels and front casters for debris, wear, or damage. Ensure the tires are in good condition.
• Controllo dei freni: Test the brakes regularly to ensure they engage and disengage properly and hold the wheels securely.
• Elementi di fissaggio: Periodically check all nuts, bolts, and screws to ensure they are tight. Do not overtighten.
• Magazzinaggio: Quando non viene utilizzata, conservare la sedia a rotelle in un ambiente asciutto e pulito.

6. Risoluzione Dei Problemi

If you encounter any issues with your wheelchair, refer to the following common problems and solutions:

If you cannot resolve an issue using the table above, please contact Vive customer support.

7. Specifiche

Image 5: Key dimensions of the wheelchair for reference.

8. Garanzia e supporto

Your Vive Bariatric Heavy-Duty Wheelchair is backed by a 1 anno di garanzia. This warranty covers manufacturing defects and ensures your confidence in the product's quality.

Additionally, the product is Approvato FSA/HSA, making it eligible for purchase with health savings and flexible savings accounts.

For customer support, returns, or warranty claims, please contact Vive Health Direct. They offer a 30-day free return policy for refunds or replacements.

Image 6: Vive Health 1-Year Guarantee for peace of mind.
