1. Prodotto finitoview
The Kariwust Kaidi KDPT007-52 is a linear actuator designed as a replacement motor for power recliner lift chairs. This component facilitates the smooth extension and retraction of the chair's mechanisms, enabling reclining and lifting functions. It is engineered for compatibility with various recliner models, specifically replacing Kaidi Model KDPT005-28 and similar units.

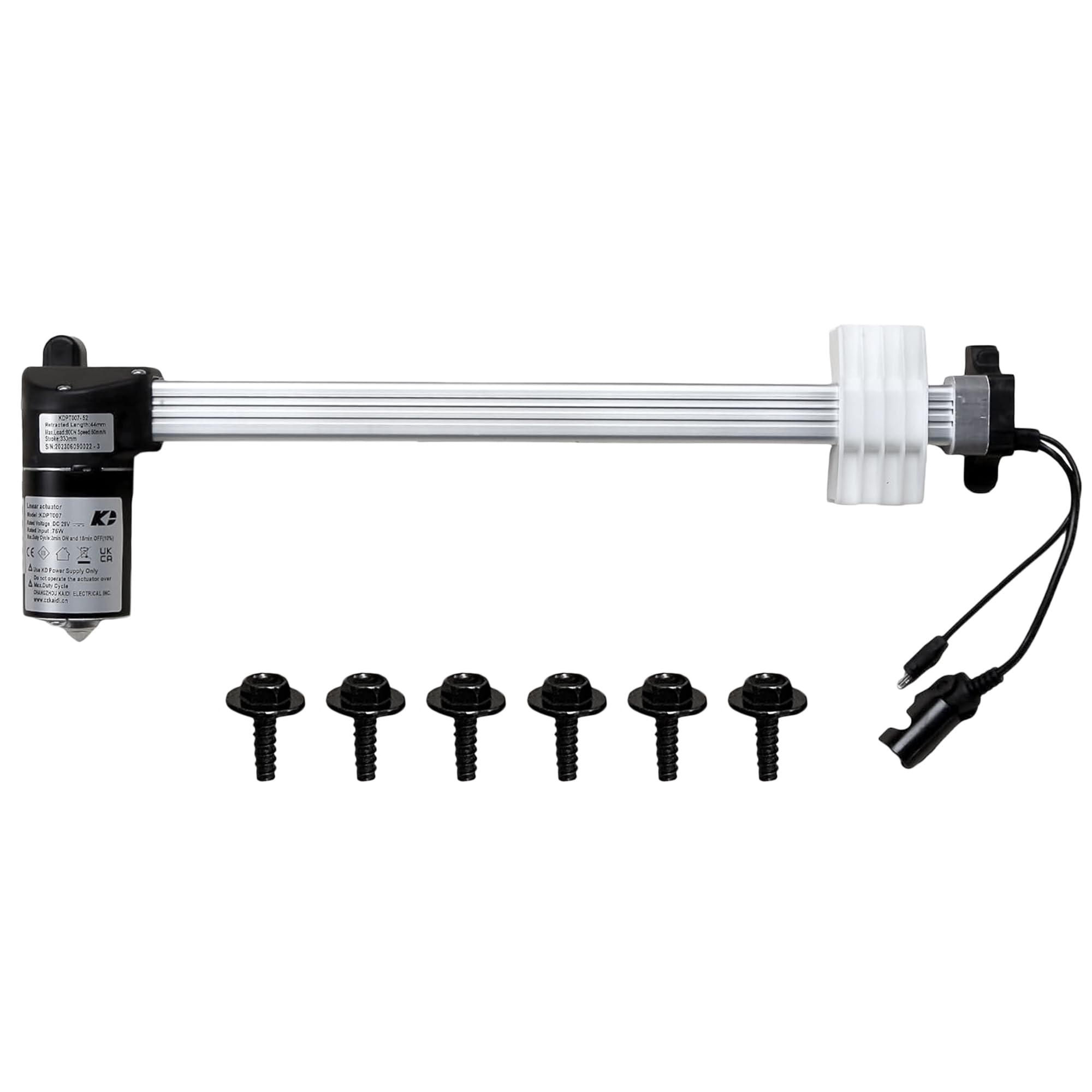

Image 1.1: The Kaidi KDPT007-52 linear actuator, a replacement motor for power recliner lift chairs.
2. Informazioni sulla sicurezza
AVVERTIMENTO: This is a replacement motor for a power recliner lift chair. Adhere to the following safety guidelines:
- Ensure proper assembly and secure connection of all electrical parts.
- Do not exceed the maximum weight capacity of 800 N (approximately 179 lbs) for the actuator.
- Always unplug the chair from the power outlet when not in use and before performing any assembly, maintenance, or inspection to prevent electrical shock.
- Keep the chair and its components away from heat sources and flammable materials.
- Always follow the original chair manufacturer's instructions for safe operation and maintenance.
3. Caratteristiche del prodotto
- OEM Kaidi Power Recliner Lift Chairs Motor Actuator Model KDPT007-52.
- Replaces Kaidi Model KDPT005-28 and various other brands and models. Verify your existing unit's label before ordering.
- Features a 2-Pin Flat Round Power Transformer Connection.
- Equipped with a 5-Pin Hand Control Plug Connection.
- Corsa: 330 mm (12.99 pollici).
- Minimum installation dimension: 139 mm (5.47 inches).
- Design facile da installare.
- Speed: 50 mm/s.
- Max. load: 800 N.
4. Configurazione e installazione
Before beginning installation, ensure the power recliner is unplugged from the wall outlet. Identify the existing linear actuator and confirm its model number matches or is compatible with the KDPT007-52. Refer to the images below for identification and connection details.
Image 4.1: Motor label showing model KDPT007-52 and specifications. Verify this matches your existing unit.
Image 4.2: Connection types: 2-pin flat round for power transformer and 5-pin circular for hand control.

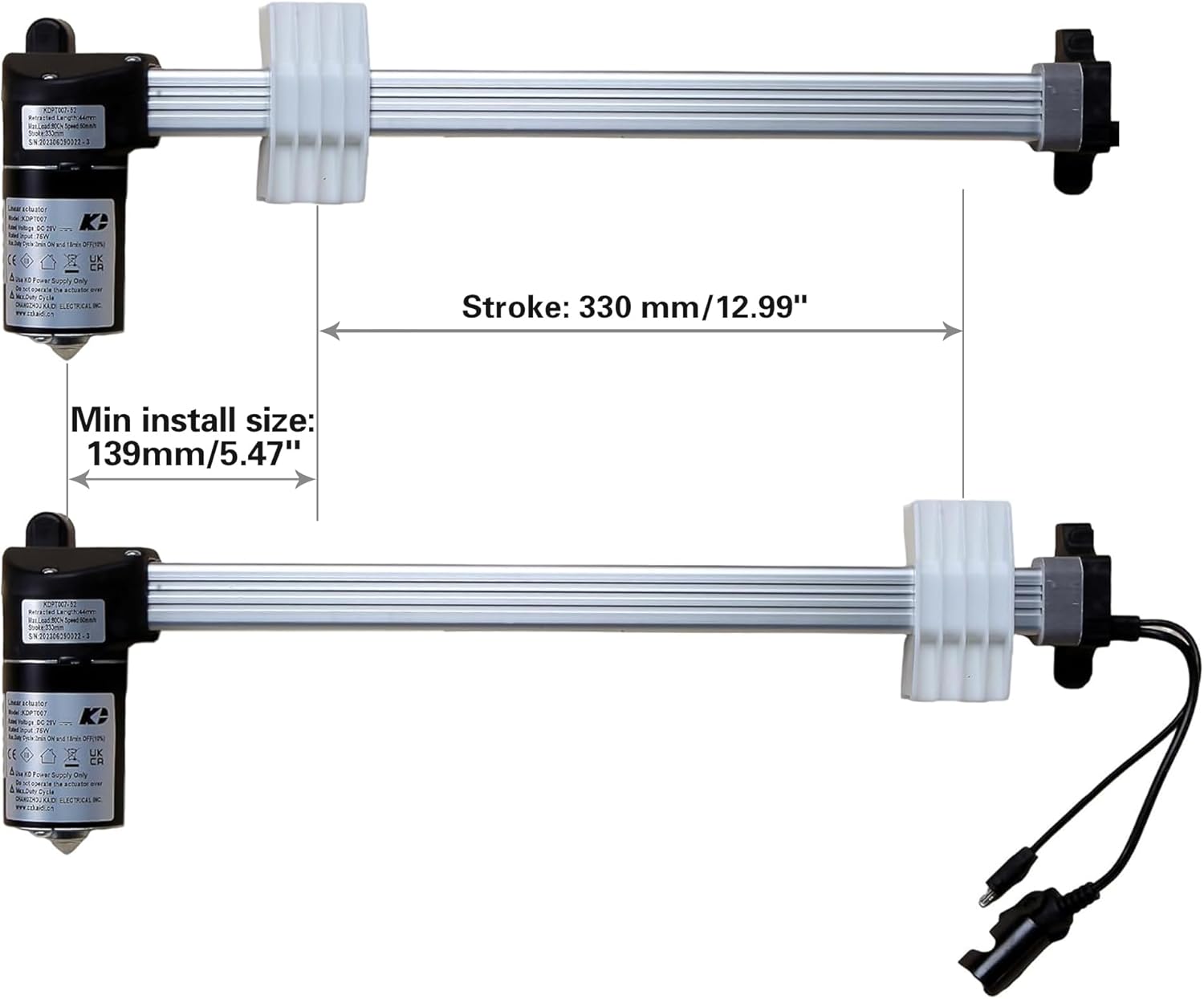

Image 4.3: Actuator dimensions, including 330mm stroke and 139mm minimum install size.
Image 4.4: The linear actuator shown in context with a recliner and mounting screws.
Fasi di installazione:
- Scollegare l'alimentazione: Unplug the recliner from the electrical outlet.
- Attuatore di accesso: Carefully turn the recliner over or access the underside to locate the existing linear actuator.
- Rimuovere il vecchio attuatore: Disconnect the power and hand control cables from the old actuator. Unbolt the old actuator from its mounting points. Typically, this involves removing 8 bolts.
- Installare il nuovo attuatore: Position the new KDPT007-52 actuator in the same location as the old one. Secure it using the appropriate bolts.
- Collegare i cavi: Connect the 2-pin flat round connector to the power transformer and the 5-pin circular connector to the hand control. Ensure all connections are firm and secure.
- Funzionalità di prova: Plug the recliner back into the electrical outlet. Test the recliner's functions using the hand control to ensure the actuator operates smoothly and correctly.
5. Istruzioni per l'uso
The KDPT007-52 linear actuator operates in conjunction with your recliner's existing hand control unit. Once installed and connected, the actuator will respond to commands from the hand control to extend or retract, facilitating the reclining or lifting motion of your chair.
- Press and hold the appropriate button on your hand control to initiate the desired movement (e.g., recline, lift).
- Release the button to stop the movement at any desired position.
- Ensure no obstructions are in the path of the recliner's moving parts during operation.
6. Manutenzione
Regular maintenance helps ensure the longevity and smooth operation of your linear actuator.
- Pulizia: Wipe clean the exterior of the actuator with a dry or slightly damp stoffa. Evitare l'uso di prodotti chimici aggressivi o detergenti abrasivi.
- Ispezione: Periodically inspect the actuator and its connections for any signs of wear, damage, or loose wiring. Ensure mounting bolts remain tight.
- Lubrificazione: The internal components of the actuator are typically pre-lubricated and sealed. No user lubrication is generally required.
- Gestione dei cavi: Ensure cables are not pinched or subjected to excessive stress during chair movement. Consider using zip ties to secure wires if they move excessively.
7. Risoluzione Dei Problemi
If you encounter issues with your linear actuator, refer to the following troubleshooting guide:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| L'attuatore non si muove. | No power, loose connection, faulty hand control, or motor failure. | Check if the recliner is plugged in. Verify all cable connections (power and hand control) are secure. Test the hand control if possible. If issues persist, consult a professional. |
| Actuator moves slowly or with difficulty. | Low power, excessive load, or mechanical obstruction. | Ensure the power supply is adequate. Check for any objects obstructing the recliner mechanism. Do not exceed the maximum load capacity. |
| Rumore insolito durante il funzionamento. | Loose mounting, internal wear, or foreign object. | Check mounting bolts for tightness. Inspect for any foreign objects. While some noise is normal, excessive or new noises may indicate an issue. |
| Actuator stops mid-movement. | Overload protection activated, intermittent power, or faulty control. | Release the hand control button and try again. Check power connections. Allow the motor to cool down if it has been operating continuously (Max. Duty Cycle: 2min ON and 18min OFF). |
8. Specifiche
| Specificazione | Dettaglio |
|---|---|
| Nome del modello | KDPT007-52 |
| Marca | Kariwust (Manufacturer: Kaidi) |
| Volume nominaletage | CC 29V |
| Ingresso nominale | 75W |
| massimo Ciclo di lavoro | 2 minutes ON, 18 minutes OFF (10%) |
| Colpo | 330 mm (12.99 pollici) |
| Minimum Install Dimension | 139 mm (5.47 pollici) |
| Velocità | 50 millimetri/secondo |
| Carico massimo | 800 N |
| Collegamento di potenza | 2-Pin Flat Round |
| Collegamento del comando manuale | Circolare a 5 pin |
| Peso dell'articolo | 5.37 libbre |
| Materiale | Metallo, Tessuto |
9. Informazioni sulla garanzia
Specific warranty details for the Kariwust Kaidi KDPT007-52 Linear Actuator may vary depending on the retailer and purchase date. Please refer to your purchase documentation or contact the seller directly for information regarding warranty coverage and terms.
10. Supporto
For technical assistance, replacement parts, or further inquiries regarding the Kariwust Kaidi KDPT007-52 Linear Actuator, please contact the retailer from whom the product was purchased. Provide your model number (KDPT007-52) and any relevant purchase details to facilitate support.
