Midea MMC1921WG Handheld Anti-Mite Vacuum Cleaner User Manual

1. Importanti istruzioni di sicurezza

Leggere attentamente tutte le istruzioni prima di utilizzare questo apparecchio. Conservare il manuale per riferimento futuro.

• Questo apparecchio è destinato esclusivamente all'uso domestico. Non utilizzare all'aperto o su superfici bagnate.
• Non permettere ai bambini di utilizzare l'aspirapolvere. È necessaria un'attenta supervisione quando l'aspirapolvere viene utilizzato in presenza di bambini.
• Non raccogliere liquidi infiammabili o combustibili, come benzina, né utilizzarli in aree in cui potrebbero essere presenti.
• Non raccogliere nulla che stia bruciando o che stia producendo fumo, come sigarette, fiammiferi o cenere calda.
• Non utilizzare senza il contenitore per la polvere e/oi filtri in posizione.
• Spegnere sempre l'apparecchio prima di collegare o scollegare il caricabatterie.
• Per la ricarica utilizzare esclusivamente il caricabatterie fornito dal produttore.
• Non maneggiare il caricabatterie o l'apparecchio con le mani bagnate.
• Se il cavo di alimentazione è danneggiato, deve essere sostituito dal produttore, dal suo agente di assistenza o da personale qualificato per evitare pericoli.

2. Prodotto finitoview

The Midea MMC1921WG is a compact and portable handheld anti-mite vacuum cleaner designed for effective cleaning of various surfaces, particularly textiles like mattresses, sofas, and carpets. It features powerful suction and high-frequency vibration to dislodge and remove dust mites and allergens.

Figure 2.1: Midea MMC1921WG Handheld Anti-Mite Vacuum Cleaner being used on a sofa.

3. Specifiche

Figura 3.1: Rappresentazione visiva delle specifiche chiave del prodotto.

4. Impostazione

4.1 Disimballaggio

Rimuovere con attenzione tutti i componenti dall'imballaggio. Verificare la presenza di eventuali danni durante il trasporto. Conservare il materiale di imballaggio per un eventuale stoccaggio o trasporto futuro.

4.2 Carica iniziale

Although the unit is portable, it contains a rechargeable battery (2000mAh) for its vibration function. Before first use, ensure the unit is fully charged. Connect the power adapter to the charging port on the vacuum cleaner and plug it into a suitable power outlet. The charging indicator light will show the charging status. A full charge typically takes approximately [X hours - *information not provided, user should refer to product label or quick start guide*].

5. Istruzioni per l'uso

5.1 Accensione/Spegnimento

To turn on the vacuum cleaner, press the power button located on the handle. Press it again to turn off the appliance.

5.2 Using the Anti-Mite Function

The Midea MMC1921WG utilizes powerful suction (7500 Pa) combined with high-frequency vibration (11000 times/min) to effectively dislodge and remove dust mites and fine dust from fabric surfaces. Move the vacuum cleaner slowly and steadily over the desired area to ensure thorough cleaning.

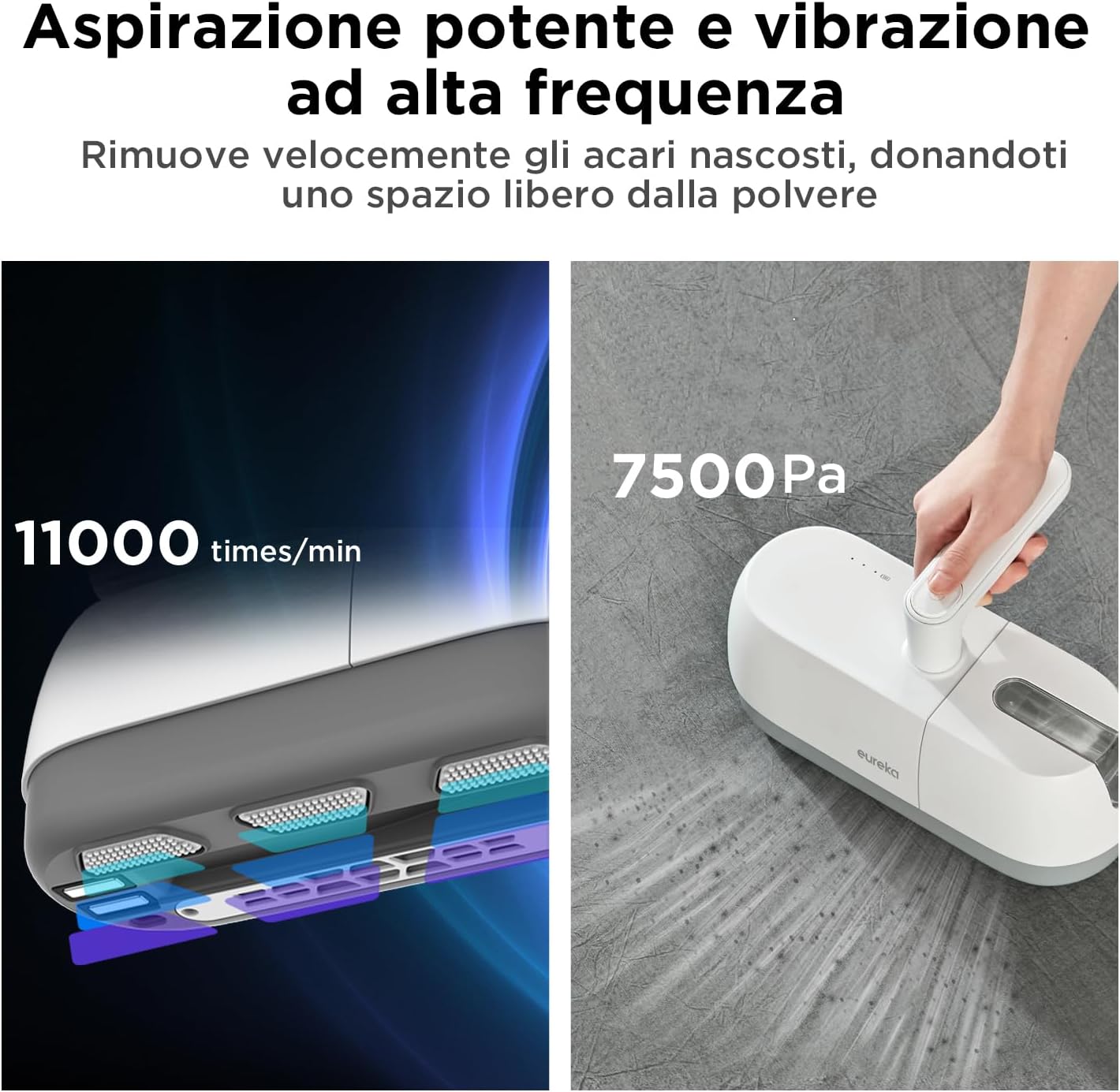

Figure 5.1: The vacuum's powerful suction and high-frequency vibration capabilities.

5.3 Rotatable Handle

The vacuum cleaner features a rotatable handle for improved ergonomics and ease of use. This design allows for comfortable gripping and maneuverability, making it easier to reach difficult angles and clean various surfaces without strain.

Figure 5.2: The rotatable handle for enhanced usability.

5.4 Design leggero

Weighing only 1.75 kg, the Midea MMC1921WG is designed for easy handling and portability. Its lightweight construction allows for extended cleaning sessions without fatigue, making it suitable for cleaning various items such as bedding, upholstery, and car interiors.

Figure 5.3: The lightweight design facilitates easy cleaning of items like crib mattresses.

6. Manutenzione

6.1 Svuotamento del contenitore della polvere

For optimal performance, empty the dust cup after each use or when it reaches its maximum capacity (0.35L). To empty, detach the dust cup from the main unit, open the lid, and dispose of the contents into a waste bin. Reattach the dust cup securely.

6.2 Pulizia dei filtri

The vacuum cleaner is equipped with filters that require regular cleaning to maintain suction power. Remove the filters from the dust cup. Tap them gently to remove loose dust. If washable, rinse them under cold running water until the water runs clear. Allow filters to air dry completely for at least 24 hours before reinserting them into the vacuum cleaner. Do not use the appliance with wet filters.

6.3 Conservazione

Store the vacuum cleaner in a cool, dry place away from direct sunlight and moisture. Ensure the unit is fully charged before storing for extended periods to prolong battery life. The portable rechargeable storage design helps save space in your home.

Figura 6.1: Il design compatto consente una comoda conservazione.

7. Risoluzione Dei Problemi

• Nessun potere: Ensure the power cord is securely plugged into a working outlet. Check if the power button is pressed. If battery-operated, ensure the battery is charged.
• Aspirazione ridotta: Check if the dust cup is full and needs emptying. Inspect filters for clogs and clean them as per maintenance instructions. Check for blockages in the nozzle or suction path.
• Rumore insolito: Turn off the vacuum immediately. Check for any foreign objects caught in the brush roll or suction inlet. Ensure all parts are correctly assembled.
• Surriscaldamento: If the vacuum cleaner stops unexpectedly, it might be due to overheating. Turn it off and unplug it. Allow it to cool down for at least 30 minutes. Check for blockages or full dust cup/clogged filters that might cause the motor to work harder.

8. Garanzia e supporto

This Midea product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact Midea customer support. Keep your proof of purchase for warranty claims.

For technical assistance, spare parts, or service inquiries, please visit the official Midea website or contact their customer service department. Contact information can typically be found in the product packaging or on the Midea brand websito.
