1. Introduzione
This manual provides detailed instructions for the proper installation, operation, and maintenance of the Senzooe CD4052 Programmable Amplifier Module. This module is designed for applications requiring a versatile and controllable amplifier solution. Please read this manual thoroughly before using the module to ensure safe and efficient operation.
2. Informazioni sulla sicurezza
Observe the following safety precautions to prevent damage to the module or injury to personnel:
- Ensure all power connections are correct before applying power. Incorrect voltage or polarity can damage the module.
- Avoid touching exposed circuitry when power is applied.
- Utilizzare il modulo entro il volume specificatotage e limiti di corrente.
- Protect the module from electrostatic discharge (ESD) during handling and installation.
- Non esporre il modulo a umidità, temperature estreme o ambienti corrosivi.
3. Prodotto finitoview
The Senzooe CD4052 Programmable Amplifier Module integrates a CD4052 analog multiplexer/demultiplexer with amplifier circuitry, allowing for selectable input channels and adjustable gain. It is suitable for various signal processing applications.

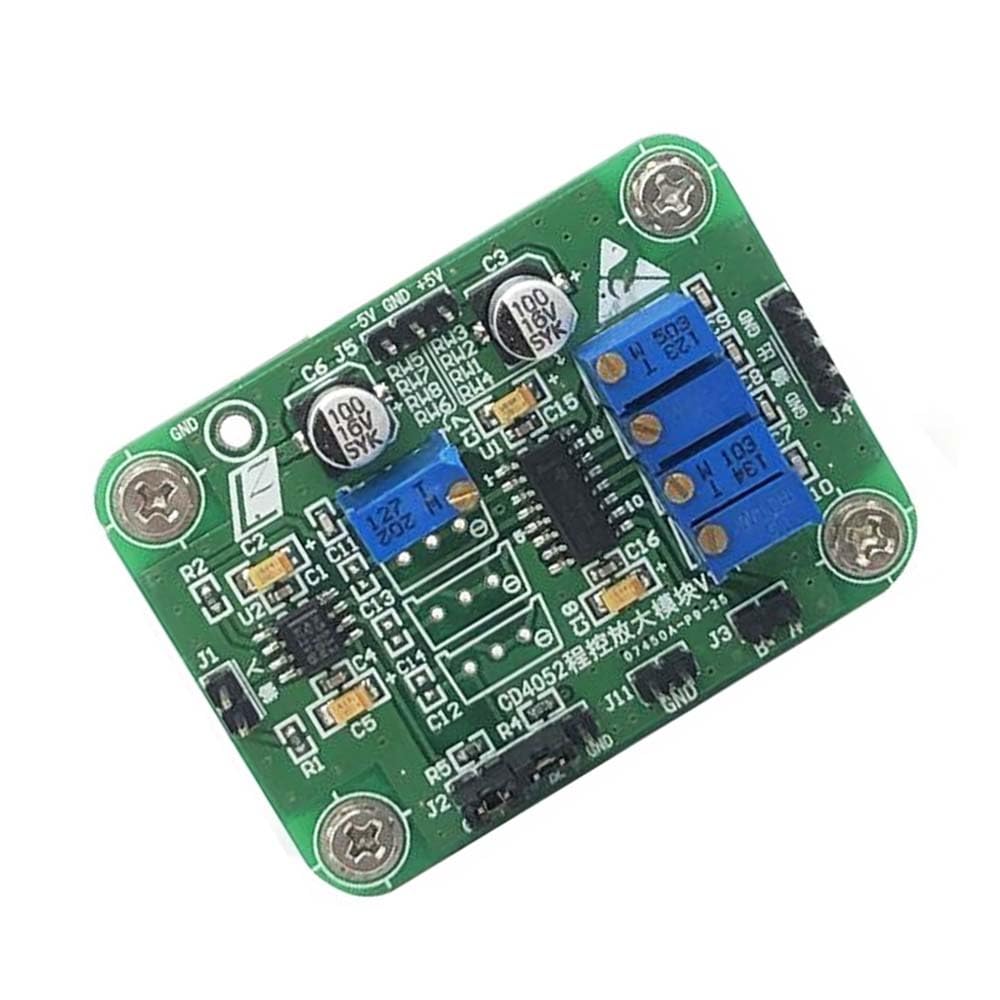

Figura 3.1: in alto view of the CD4052 Programmable Amplifier Module. This image displays the main components including the CD4052 IC, capacitors, resistors, and potentiometers for adjustment.
3.1. Componenti chiave
- CD4052 IC: Dual 4-channel analog multiplexer/demultiplexer, central to input selection.
- Potentiometers (W503, W103): Likely used for gain adjustment, offset, or other signal conditioning.
- Power Input (J5): Labeled -5V, GND, +5V for power supply connections.
- Input/Output Headers (J1, J2, J3, J4): Connection points for analog signals and control signals.
4. Impostazione
Follow these steps to set up the CD4052 Programmable AmpModulo lificatore:
- Collegamento dell'alimentazione: Connect a stable +5V, GND, and -5V power supply to the J5 header. Ensure correct polarity. The module requires a dual-rail power supply for optimal performance.
- Collegamento del segnale di ingresso: Connect your analog input signals to the appropriate pins on headers J1, J2, or J3, depending on the desired channel. Refer to the CD4052 datasheet for specific channel assignments if not labeled on the board.
- Collegamento del segnale di uscita: Collegare il amplified output signal from header J4 to your receiving circuit or measurement device.
- Collegamento del segnale di controllo: Connect digital control signals (e.g., A, B, Inhibit pins of CD4052) to the module to select the desired input channel. These pins are typically found on one of the headers (J1, J2, or J3).
Figura 4.1: Fronte view of the module, highlighting potential connection headers for power, input, output, and control signals.
5. Istruzioni per l'uso
Once the module is correctly wired and powered, you can begin operation:
- Selezione canale: Apply the appropriate digital logic levels to the control pins (A and B) of the CD4052 to select one of the four input channels. Consult the CD4052 datasheet for the truth table of channel selection.
- Regolazione del guadagno: Use a small screwdriver to carefully adjust the potentiometers (W503, W103) to set the desired gain or offset for the amplifier circuit. Monitor the output signal with an oscilloscope or multimeter during adjustment.
- Monitoraggio del segnale: Osservare il amplified output signal at header J4. Ensure the signal is within the expected voltage range and free from distortion.
6. Manutenzione
The CD4052 Programmable Amplifier Module requires minimal maintenance. Follow these guidelines:
- Keep the module clean and free from dust and debris. Use a soft, dry brush or compressed air for cleaning.
- Periodically inspect all connections for secure fit and signs of corrosion.
- Store the module in a dry, temperature-controlled environment when not in use.
7. Risoluzione Dei Problemi
If you encounter issues with the module, refer to the following troubleshooting steps:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessun segnale di uscita | Incorrect power supply; input signal not connected; incorrect channel selection; faulty connections. | Verificare alimentazione voltage and polarity. Check input signal presence. Ensure correct digital control signals for channel selection. Inspect all wiring. |
| Segnale di uscita distorto | Input signal too strong (clipping); incorrect gain setting; power supply noise. | Ridurre il segnale di ingresso amplitude. Adjust gain potentiometers. Ensure power supply is clean and stable. |
| Module not responding to control signals | Incorrect logic levels; control pins not connected. | Verify logic levels (e.g., 0V for LOW, +5V for HIGH). Check connections to control pins. |
8. Specifiche
Technical specifications for the Senzooe CD4052 Programmable AmpModulo lificatore:
- Modello: 707638026630
- Main IC: CD4052 Dual 4-Channel Analog Multiplexer/Demultiplexer
- Alimentazione elettrica: Dual-rail, typically +5V, GND, -5V (refer to CD4052 datasheet for exact operating voltage gamma)
- Dimensioni: Circa 56.4 mm x 41.4 mm
Figure 8.1: Module dimensions. The board measures approximately 56.4mm in length and 41.4mm in width.
9. Garanzia e supporto
For warranty information and technical support, please refer to the documentation provided with your purchase or contact your vendor. Keep your purchase receipt for warranty claims.
