URAQT 19-Function Waterproof Bicycle Computer User Manual

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your URAQT 19-Function Waterproof Bicycle Computer. Please read this manual thoroughly before use to ensure proper function and longevity of the device.

Avvertenze di sicurezza

• Do not immerse the cyclometer directly in water, despite its IP54 waterproof rating. It is designed to withstand rain but not submersion.
• Ensure all components are securely installed before riding to prevent accidents.
• Dare sempre priorità alla sicurezza stradale. Non utilizzare il dispositivo in modo da distrarti dalla guida.

2. Contenuto della confezione

Verifica che tutti gli articoli siano presenti nel tuo pacco:

• Unità computer per bicicletta
• Sensore
• Magnete
• Mounting Bracket (Universal and Extension Bracket)
• Fascette per cavi
• Manuale d'uso

3. Prodotto finitoview

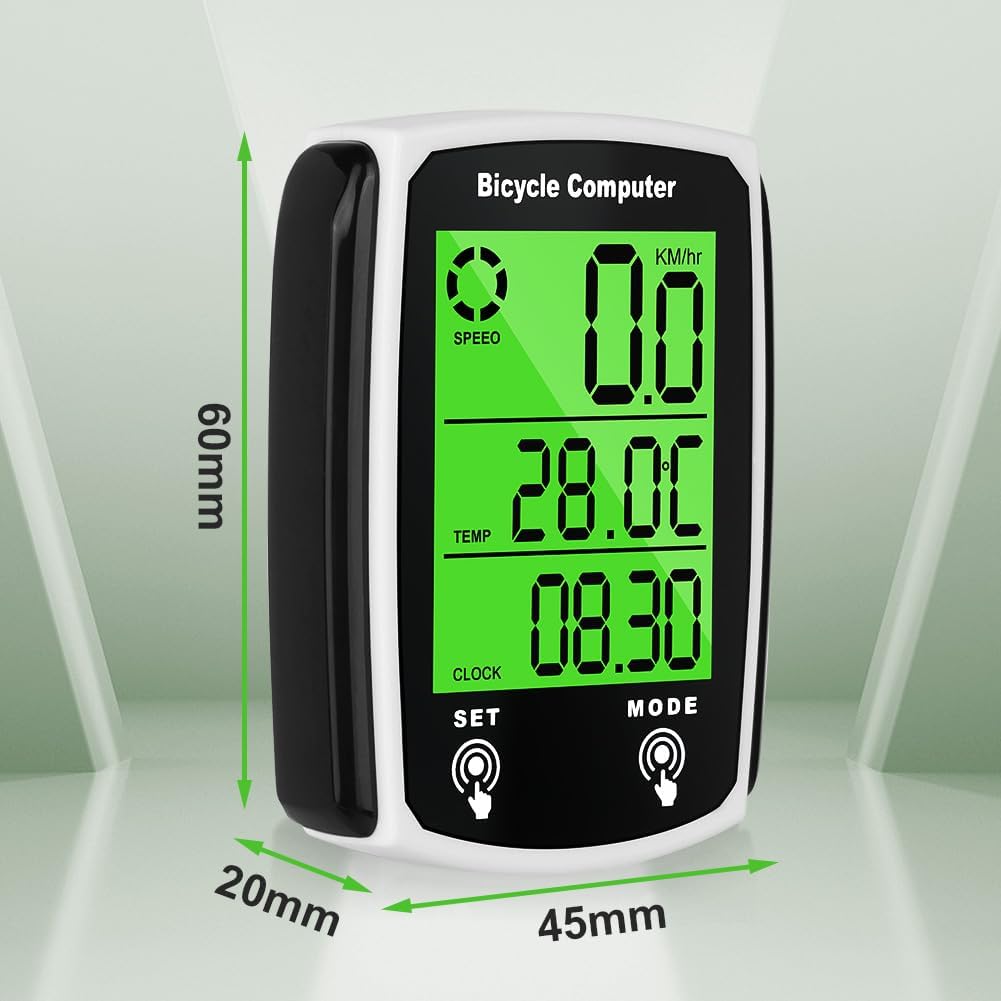

The URAQT Bicycle Computer is a versatile device designed to track various cycling metrics. It features a backlit LCD display and an automatic start/stop system for convenience.

Caratteristiche principali:

• Funzioni 19: Measures speed, distance, calories burned, ride time, and more.
• Display LCD retroilluminato: Glare-free screen for clear readability day and night.
• IP54 impermeabile: Designed to operate in rainy conditions.
• Avvio/Arresto automatico: Conserves battery by entering sleep mode after 5 minutes of inactivity and automatically resuming upon movement.
• Risparmio energetico: Enters power-saving mode after 300 seconds of inactivity.
• Archiviazione dati: Retains battery data for 20 seconds during battery changes.
• Supporto estensione: Includes a universal and extension bracket for handlebar diameters from 22.2 to 31.8 cm.

4. Configurazione e installazione

Follow these steps to correctly install your bicycle computer:

1. Montare l'unità computer: Attach the universal or extension bracket to your handlebar. The extension bracket supports handlebar diameters from 22.2 to 31.8 cm. Secure the computer unit onto the bracket.
2. Installare il sensore: Mount the sensor on the bicycle fork.
3. Installa il magnete: Attach the magnet to a spoke on your front wheel.
4. Positioning Requirements:
   • The distance between the sensor and the main computer unit must be less than 50 cm for reliable signal reception. Closer proximity is recommended.
   • The distance between the magnet and the sensor should be approximately 5 mm. A smaller gap ensures better accuracy.
   • Ensure the magnet is oriented towards the rear of the sensor's battery compartment for optimal performance.

5. Istruzioni per l'uso

The bicycle computer features two main buttons for navigation and settings:

• "Mode" Button (Right): Used to cycle through different display modes or select desired settings.
• "Settings" Button (Left): Used to confirm selections or enter specific settings.

Funzionamento di base:

• Accensione/spegnimento: The device automatically turns on when movement is detected and enters sleep mode after 5 minutes of inactivity.
• Controllo della retroilluminazione: To activate the backlight, press the "Mode" and "Settings" buttons simultaneously. Repeat the action to deactivate it.
• Setting Tire Size: Refer to the detailed instructions in the full manual for precise tire circumference settings to ensure accurate speed and distance measurements.
• KM/M Selection: Customize your preferred unit of measurement (kilometers or miles) through the settings menu.

6. Funzioni finiteview

The URAQT Bicycle Computer offers 19 functions to enhance your cycling experience:

• Current Speed (SPD)
• Average Speed (AVS)
• Velocità massima (MAX)
• Distanza di viaggio (DST)
• Contachilometri (ODO)
• Elapsed Time (TM)
• Calories Burned (CAL)
• Temperatura (TEMP)
• Orologio (CLK)
• Confronto velocità (+/-)
• Scan Mode (cycles through data)
• Avviso di manutenzione
• Display dell'orologio per il sonno
• Modalità di risparmio energetico
• Automatic Wake-up while Riding
• Backlight Function (user selectable)
• Change Battery Data Storage (20 seconds)
• Setting Type Circumference
• Setting Speed Scale (KM/H, M/H)

7. Manutenzione

• Resistenza all'acqua: The device has an IP54 waterproof rating, meaning it is protected against dust and splashing water from any direction. It is suitable for use in light rain but should not be submerged or exposed to heavy downpours for extended periods.
• Pulizia: Pulire l'unità con un panno morbido, damp panno. Non usare detergenti abrasivi o solventi.
• Batteria: The device is designed for long-lasting battery life, typically lasting at least 8 months. When changing the battery, the device stores data for 20 seconds, allowing for a seamless transition.

8. Risoluzione Dei Problemi

• Fluctuating Data: If the cyclometer displays fluctuating data, especially speed or distance, check the distance between the sensor and the main unit. Ensure it is less than 50 cm. Also, verify the magnet-to-sensor distance is approximately 5 mm and the magnet is correctly oriented.
• Nessun display/alimentazione: Controllare la batteria. Assicurarsi che sia inserita correttamente e che abbia una carica sufficiente.
• La retroilluminazione non funziona: Ensure you are pressing both "Mode" and "Settings" buttons simultaneously to activate/deactivate the backlight.
• Letture imprecise: Verify that the tire circumference setting is correct for your bicycle.

9. Specifiche

10. Garanzia e supporto

Per informazioni sulla garanzia e sull'assistenza clienti, consultare la documentazione inclusa con l'acquisto o contattare il rivenditore. Conservare la prova d'acquisto per eventuali reclami in garanzia.
