Eseesmart Smart Cabinet Lock F3BC User Manual

1. Introduzione

The Eseesmart Smart Cabinet Lock F3BC provides a secure and convenient solution for locking cabinets, drawers, and other furniture. This hidden electronic lock offers multiple access options including a mobile application, RFID cards, NFC, and iWatch unlock, eliminating the need for traditional keys. Designed for discreet installation, it helps maintain the aesthetic integrity of your furniture while providing robust security features for child safety, protecting valuables, or securing hazardous items.

2. Cosa è incluso

1 x Manuale utente
2 carte RFID
Blocco corpo
Fibbia
Double-Sided Tapes (for lock body and buckle)
Screws (for optional installation)
Double Doors Accessory (if applicable)
Amplificatore del segnale

**Figure 2.1: Everything Included in Kit.** This image displays all components provided with the Eseesmart Smart Cabinet Lock, including the lock body, buckle, RFID cards, double-sided tapes, screws, and a signal booster.

3. Configurazione e installazione

3.1. Installazione della batteria

The lock requires 2 AA batteries (not included). Open the battery compartment on the lock body and insert the batteries, ensuring correct polarity. Close the compartment securely.

Battery Replacement Only Once a Year — **Figure 3.1: Battery Installation and Life.** This image illustrates the battery compartment for 2 AA batteries and highlights the long standby time of 365 days, along with a low battery alarm and auto-unlock feature.

3.2. Scelta del metodo di installazione

You can choose between stick-on installation using the provided high-viscosity double-sided tape or screw installation for a more permanent fit. The lock is designed for discreet, hidden installation, preserving the original appearance of your furniture.

Easy Installation - Stick-on or Screw — **Figura 3.2: Opzioni di installazione semplici.** This image demonstrates both stick-on installation using adhesive tape and screw installation for the smart cabinet lock, emphasizing no drilling is required for the stick-on method.

3.3. Positioning the Lock

Use the provided positioning template to accurately mark the installation spots for the lock body and the buckle. Ensure your cabinet thickness is less than 1.8 inches (30mm) and depth is greater than 2.2 inches (55mm) for optimal performance.

Cabinet Dimensions and Warm Tips — **Figure 3.3: Cabinet Compatibility and Dimensions.** This image provides critical dimensions for cabinet thickness and depth, along with a visual representation of the lock's placement to ensure proper fit and function.

3.4. Attaching the Lock Components

Peel the backing from the double-sided tape and firmly press the lock body onto the marked position inside the cabinet door. Repeat for the buckle, ensuring it aligns perfectly with the lock mechanism when the door is closed. For screw installation, use the provided screws to secure both components.

Video 3.1: Smart Hidden Cabinet Lock Installation. This video demonstrates the easy installation process of the Eseesmart Smart Cabinet Lock, highlighting its hidden design and multiple unlock methods.

Video 3.2: Lock Mechanism Demonstration. This short video shows the Eseesmart Smart Cabinet Lock's mechanism in action, demonstrating how the bolt retracts and extends for locking and unlocking.

Video 3.3: How to Install the Smart Cabinet Lock. A detailed guide on installing the Eseesmart Smart Cabinet Lock, covering all necessary steps for a secure setup.

4. Istruzioni per l'uso

4.1. Metodi di sblocco

The Eseesmart Smart Cabinet Lock offers multiple convenient ways to unlock:

Applicazione mobile: Download the eSmartLock app (available on App Store and Google Play). Connect the lock via Bluetooth. You can then unlock the cabinet directly from your smartphone.
Carta RFID: Place a registered RFID card near the designated sensor area on the outside of the cabinet. The lock will beep and unlock.
NFC: For NFC-enabled devices, place your device near the sensor area to unlock.
iWatch App: Utilize the iWatch application for convenient unlocking directly from your smartwatch.

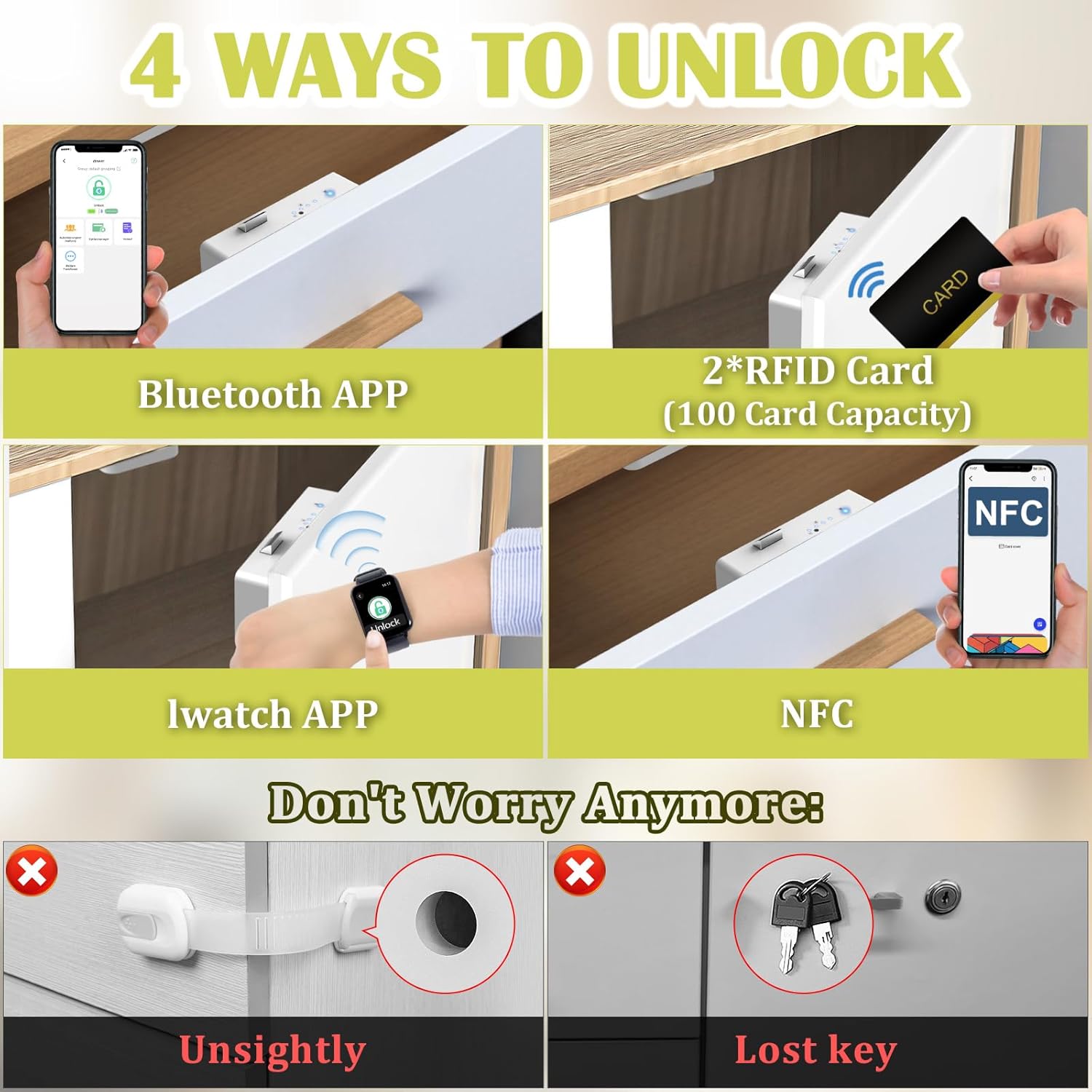

4 modi per sbloccare — **Figure 4.1: Multiple Unlocking Options.** This image visually presents the four primary ways to unlock the Eseesmart Smart Cabinet Lock: Bluetooth APP, 2*RFID Card, iWatch APP, and NFC, highlighting the convenience and versatility.

NFC Unlock and iWatch Unlock — **Figure 4.2: NFC and iWatch Unlocking.** This image specifically illustrates the NFC and iWatch unlocking capabilities, showing a smartphone with NFC enabled and an iWatch displaying an unlock interface.

4.2. Bloccaggio automatico

After unlocking, the lock will automatically re-engage after a short period or when the cabinet door is closed, ensuring continuous security.

5 Caratteristiche

Opzioni di accesso multiplo: App, RFID card, NFC, and iWatch unlock.
Installazione flessibile: Choose between stick-on or screw installation.
Design discreto: Invisible installation preserves furniture aesthetics.
Sicurezza solida: Crafted from high-quality materials with anti-prying and anti-vandalism features.
Long Induction Distance: Features an enlarged coil for a 50mm induction distance, allowing for faster unlocking.
Ampia compatibilità: Suitable for 99% of cabinets, drawers, wardrobes, and other furniture types.
Indicatore della batteria: Real-time battery status available via the app and LED indicators on the lock.
Low Battery Auto-Unlock: The lock automatically unlocks when batteries are critically low to prevent permanent lockout.

Make Unlocking a Breeze - 50mm Induction — **Figure 5.1: Enhanced Unlocking Speed.** This image highlights the 50mm induction distance provided by an enlarged coil, resulting in 2.5X faster unlocking compared to other models.

Suitable for 99% of Cabinets — **Figure 5.2: Versatile Application.** This image showcases the lock's adaptability for various furniture types, including drawers, single-door cabinets, double-door cabinets, and general cabinets.

Block Off-Limit Places — **Figure 5.3: Child Safety and Security.** This image illustrates how the lock can be used to secure dangerous items like medicines, chemical liquids, sharp utensils, and pet snacks from children.

6. Specifiche

Caratteristica	Specificazione
Marca	Eseesmart
Numero di modello	F3BC
Caratteristica speciale	Hidden, NFC Unlock, No Drilling, RFID Unlock, iWatch Unlock
Tipo di blocco	Keypad (via app)
Dimensioni articolo (L x P x A)	2.2 x 1 x 4.7 pollici
Materiale	Metallo
Usi consigliati	Cabinet, Drawer, Child Safety, Baby Proof, Home, Office, Locker
Componenti inclusi	1 * User Manual, 2 RFID Cards
Peso dell'articolo	4 once
Tipo di controllore	Androide, iOS
Metodo di controllo	Applicazione
Protocollo di connettività	Bluetooth
Colore	Bianco

7. Manutenzione

7.1. Sostituzione della batteria

The Eseesmart Smart Cabinet Lock is designed for long-lasting performance, typically requiring battery replacement only once a year under normal usage. It uses 2 AA batteries. Replace them when the low battery reminder is activated.

7.2. Promemoria batteria scarica

The lock features a low battery alarm that will beep continuously 5 times when the battery level is below 25%, reminding you to replace the batteries. Additionally, the lock will automatically unlock when the batteries become too low to operate, preventing you from being locked out.

Battery Indicator and Reset Button — **Figure 7.1: Battery and Status Indicators.** This image shows the battery indicator lights and the reset button on the lock body, providing visual cues for battery status and functionality.

8. Risoluzione Dei Problemi

Il lucchetto non risponde: Check battery levels and replace if necessary. Ensure the RFID card or device is correctly positioned over the sensor.
Difficoltà con la connessione all'app: Ensure Bluetooth is enabled on your device and the lock is within range. Restart the app or the lock if issues persist.
Accidental lockout: The lock is designed to auto-unlock when batteries are critically low. If this occurs, replace batteries immediately.

9. Garanzia e supporto

Eseesmart offers a 6-month warranty for this product, along with lifetime technical support. For any inquiries or assistance, please contact customer service. A free replacement is available if the lock received does not work.

Eseesmart F3BC
