A ABSOPRO C16 9007 9004 LED Headlight Canbus Decoder Instruction Manual

1. Introduzione

This instruction manual provides essential information for the proper installation, function, and care of your A ABSOPRO C16 9007 9004 LED Headlight Canbus Decoder. This device is designed to address common issues encountered when upgrading vehicle headlights to LED technology, such as error codes, flickering, or warning messages on the dashboard. Please read this manual thoroughly before installation to ensure correct usage and optimal performance.

Image 1.1: Illustration of a vehicle equipped with LED headlights, demonstrating the application context for the Canbus decoder.

2. Prodotto finitoview e Caratteristiche

The A ABSOPRO C16 9007 9004 LED Headlight Canbus Decoder is a specialized component designed to integrate aftermarket LED headlights into vehicles equipped with Canbus systems. It helps prevent common electrical issues that arise from the lower power consumption of LED bulbs compared to traditional halogen bulbs.

Caratteristiche principali:

• Error Code Resolution: Designed to eliminate warning error codes on the dashboard that may appear after installing LED headlights.
• Anti-Flicker Function: Helps prevent rapid flashing or flickering of LED headlights, ensuring stable illumination.
• Installazione Plug and Play: Engineered for straightforward installation without the need for complex wiring modifications.
• Costruzione durevole: Realizzato in materiale plastico per un uso duraturo.
• Compatibilità: Specifically designed for C16 9007 9004 socket types.

Image 2.1: A pair of A ABSOPRO C16 9007 9004 LED Headlight Canbus Decoders, showing their compact design and connectors.

Immagine 2.2: Primo piano views highlighting the main decoder unit and the specific 3-pin connector type.

3. Configurazione e installazione

The A ABSOPRO Canbus Decoder is designed for a simple plug-and-play installation. No special tools or complex wiring modifications are typically required. Always ensure the vehicle's ignition is off and the battery is disconnected before beginning any electrical work.

Fasi di installazione:

1. Identify Headlight Socket: Locate the existing headlight bulb socket in your vehicle. Ensure it matches the C16 9007 9004 type.
2. Disconnect Old Bulb (if applicable): If replacing existing bulbs, carefully disconnect the old headlight bulb from its wiring harness.
3. Connect Decoder to LED Headlight: Plug one end of the Canbus decoder into your new LED headlight bulb. Ensure a secure connection.
4. Connect Decoder to Vehicle Harness: Plug the other end of the Canbus decoder into the vehicle's original headlight wiring harness. Ensure a firm connection.
5. Secure Decoder: Position the decoder and wiring away from moving parts or excessive heat sources. You may use zip ties (not included) to secure it.
6. Funzionalità di prova: Reconnect the vehicle battery and turn on the headlights to verify proper operation. Check for any dashboard error messages or flickering.

Nota importante: While designed for broad compatibility, some vehicles may have unique electrical systems. Always ensure this part is suitable for your specific vehicle before purchasing e installazione.

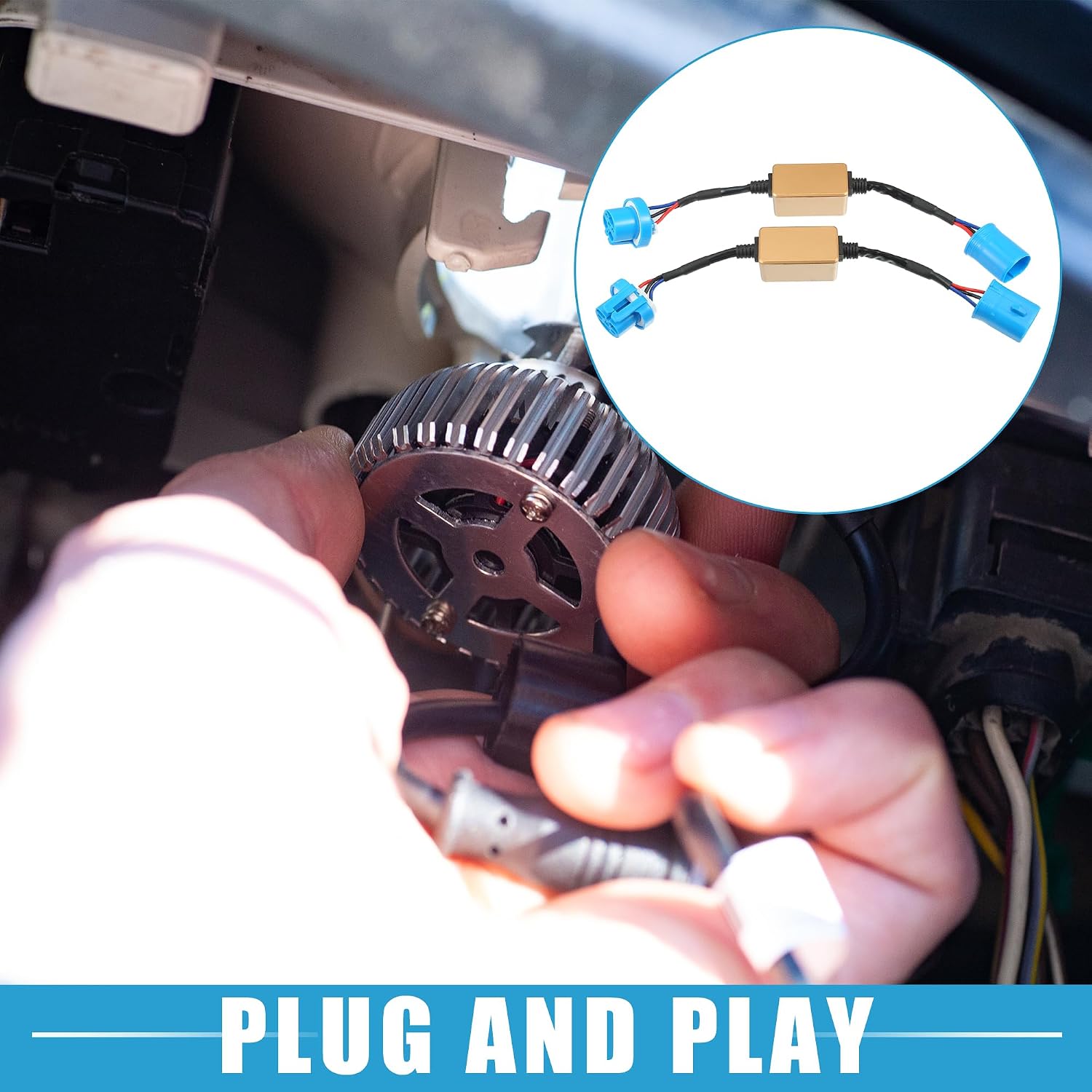

Image 3.1: Visual representation of the plug-and-play installation process, showing the connection of the decoder to a headlight assembly.

4. Istruzioni per l'uso

Once correctly installed, the A ABSOPRO Canbus Decoder operates automatically. Its primary function is to emulate the electrical load of a traditional halogen bulb, thereby preventing the vehicle's onboard computer (Canbus system) from detecting a bulb outage or low current draw, which would otherwise trigger error messages or cause flickering.

• The decoder works in conjunction with your LED headlights to provide a stable electrical signal to the vehicle's system.
• No user interaction is required after installation. The device functions passively to ensure compatibility.

5. Manutenzione

The A ABSOPRO Canbus Decoder is designed to be maintenance-free. Its durable plastic construction ensures longevity under normal operating conditions within a vehicle's engine bay or headlight housing.

• Ispezione: Periodically check the connections to ensure they remain secure and free from corrosion or damage.
• Pulizia: If necessary, gently wipe the exterior of the decoder with a dry cloth to remove dust or debris. Avoid using harsh chemicals or abrasive materials.
• Fattori ambientali: The decoder is designed to be waterproof, offering protection against moisture. However, avoid submerging the unit or exposing it to extreme environmental conditions beyond typical automotive use.

6. Risoluzione Dei Problemi

If you encounter issues after installing the Canbus decoder, consider the following troubleshooting steps:

• Flickering Persists: While the decoder is designed to solve flickering, some vehicles may have more complex electrical systems. Ensure all connections are tight. If flickering continues, consult a professional automotive electrician.
• Error Codes Remain: Double-check that the decoder is correctly installed and that the headlight socket type (C16 9007 9004) matches your vehicle's requirements. Some vehicles may require a specific type of Canbus decoder or additional components.
• Nessuna emissione luminosa: Verify that the LED headlight bulbs themselves are functioning correctly. Check all connections for proper seating and ensure no pins are bent or damaged.
• Collegamenti allentati: Vibrations during driving can sometimes loosen connections. Ensure all plugs are fully seated and secured.

If problems persist after performing these checks, it is recommended to seek assistance from a qualified automotive technician.

7. Specifiche

Image 7.1: Product size illustration, indicating a total length of 13.27 inches (33.7 cm) for the decoder unit and cables.

8. Garanzia e supporto

For information regarding warranty coverage or technical support, please refer to the A ABSOPRO official webo contattare direttamente il servizio clienti. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.

Produttore: A ABSOPRO

Data prima disponibilità: 22 agosto 2023
