Total 20V Lithium Battery Pruning Shear TSSLI2001 User Manual

Introduzione

Thank you for choosing the Total 20V Lithium Battery Pruning Shear, model TSSLI2001. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pruning shear. Please read this manual thoroughly before first use and keep it for future reference. This tool is designed for pruning branches in gardening and landscaping applications.

Istruzioni di sicurezza

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using power tools. Failure to follow these instructions may result in serious injury.

• Leggi il manuale: Familiarize yourself with all controls and proper use before operating the tool.
• Indossare protezioni per gli occhi: Indossare sempre occhiali di sicurezza o maschere per proteggere gli occhi dai detriti volanti.
• Tieni le mani libere: Never place hands or fingers near the cutting blades during operation or when the battery is installed.
• Area di lavoro sicura: Ensure the area is clear of bystanders, especially children and pets.
• Evitare condizioni di bagnato: Do not operate the pruning shear in rain or damp ambienti.
• Use Correct Battery and Charger: Only use Total 20V lithium-ion batteries and compatible chargers. (Note: Battery and charger are sold separately).
• Conservare in modo sicuro: When not in use, store the tool in a dry, secure place out of reach of children.
• Ispezionare prima dell'uso: Check for damaged parts, loose screws, or any other condition that may affect safe operation.
• Mantenere la presa: Always hold the tool firmly with both hands if possible, or with a secure grip.

Prodotto finitoview

The Total TSSLI2001 pruning shear is a powerful, battery-operated tool designed for efficient pruning. Below are the key components:

• Lame da taglio: Sharp, durable blades for clean cuts.
• Grilletto: Activates the cutting mechanism.
• Blocco di sicurezza: Prevents accidental activation of the trigger.
• Maniglia: Progettato ergonomicamente per una presa comoda.
• Vano batteria: Receptacle for the 20V lithium-ion battery.

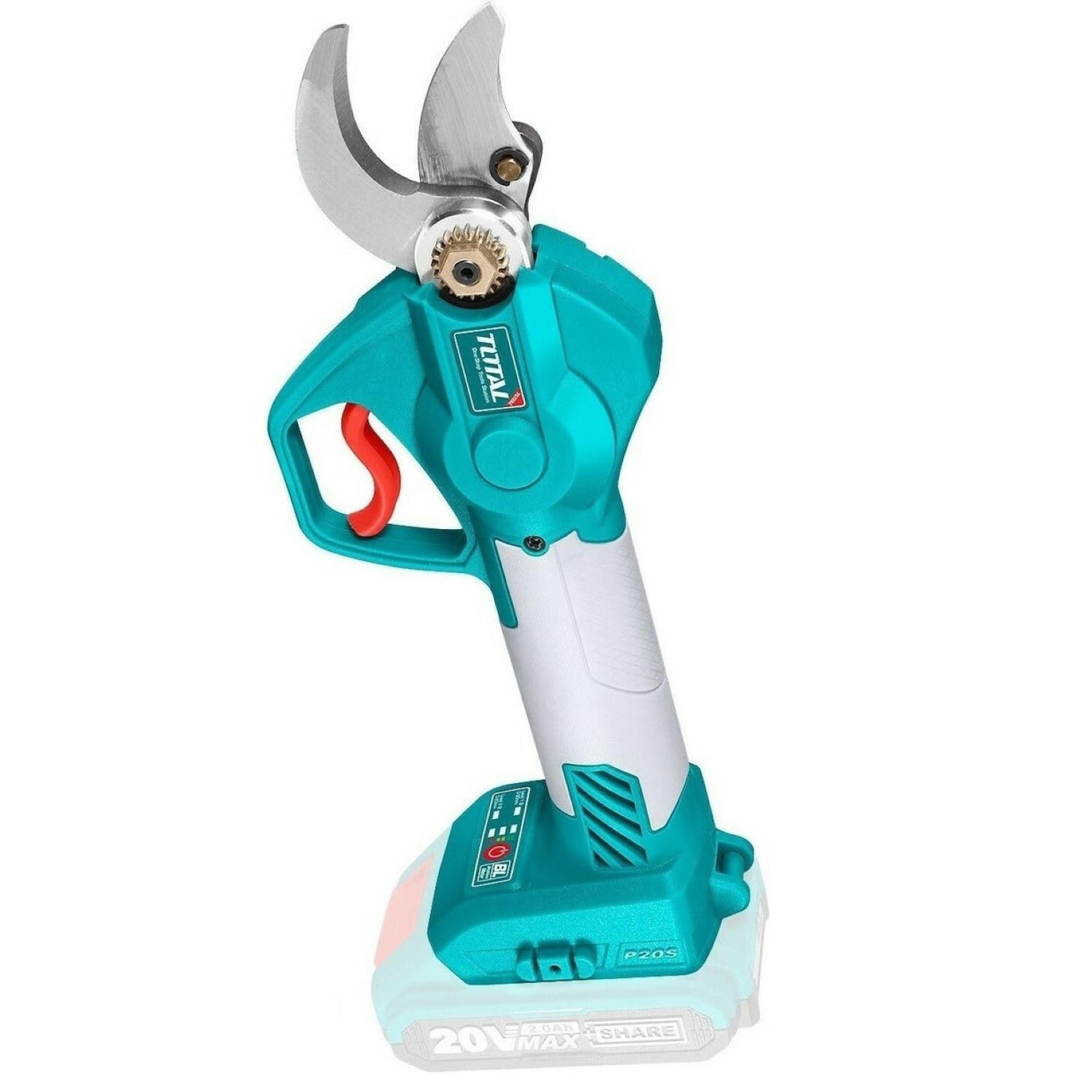

Image: Total 20V Lithium Battery Pruning Shear TSSLI2001. This image shows the main unit, a compatible battery, and a carrying case. Note that the battery and charger are typically sold separately.

Impostare

1. Caricare la batteria: If the battery is not charged, connect it to a compatible Total 20V charger and charge fully according to the charger's instructions. (Battery and charger sold separately).
2. Installare la batteria: Align the charged 20V lithium-ion battery with the battery slot on the pruning shear. Slide the battery into place until it clicks securely.
3. Ispezionare le lame: Before each use, ensure the cutting blades are clean, sharp, and free from damage.
4. Attivare il blocco di sicurezza: Ensure the safety lock is engaged (if applicable) before handling the tool.

Istruzioni per l'uso

1. Prepararsi all'operazione:
   • Assicurarsi che la batteria sia completamente carica e installata saldamente.
   • Indossare adeguati dispositivi di protezione individuale (DPI), tra cui occhiali e guanti di sicurezza.
   • Clear the work area of any obstructions or debris.
2. Sblocca lo strumento: Disengage the safety lock. The specific mechanism may vary, refer to the tool's markings.
3. Start Pruning:
   • Position the open blades around the branch to be cut.
   • Ensure the branch fits within the maximum cutting capacity of the shear.
   • Press the trigger firmly to close the blades and make the cut. Release the trigger to open the blades.
   • Make clean, single cuts. Avoid twisting or forcing the tool.
4. Dopo l'uso:
   • Engage the safety lock immediately after completing your task.
   • Rimuovere la batteria dall'utensile.
   • Clean the blades as described in the Maintenance section.

Manutenzione

Regular maintenance ensures optimal performance and extends the life of your pruning shear.

• Pulizia della lama: Dopo ogni utilizzo, pulire le lame con un adamp cloth to remove sap and debris. For stubborn residue, use a specialized blade cleaner or rubbing alcohol.
• Lubrificazione della lama: Apply a light coat of machine oil or silicone spray to the blades after cleaning to prevent rust and ensure smooth operation.
• Cura della batteria:
  • Conservare le batterie in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
  • Non conservare le batterie completamente scariche per periodi prolungati. Ricaricarle periodicamente.
  • Non esporre le batterie all'acqua o all'umidità.
• Ispezione generale: Periodically check all screws and fasteners for tightness. Inspect the housing for cracks or damage.
• Magazzinaggio: Store the pruning shear in its original case or a safe, dry location, with the safety lock engaged and the battery removed.

Risoluzione dei problemi

Specifiche

Nota: le specifiche sono soggette a modifiche senza preavviso per migliorare il prodotto.

Garanzia e supporto

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your purchase or contact Total customer service. Keep your proof of purchase for warranty claims.

For further assistance, visit the official Total Tools websito o contattare il rivenditore locale.
