erjigo KZ AM01 Portable DAC Decoding AmpManuale utente lifier

1. Introduzione

The erjigo KZ AM01 is a portable Digital-to-Analog Converter (DAC) decoding amplifier designed to enhance the audio quality from your Type-C enabled devices. It converts digital audio signals into analog signals, providing a clearer and more powerful sound output for your headphones and earphones. This manual provides essential information for the proper setup, operation, and maintenance of your KZ AM01.

Figure 1: erjigo KZ AM01 Portable DAC Decoding Amppiù vivace

2. Caratteristiche del prodotto

The KZ AM01 incorporates advanced audio technology to deliver high-fidelity sound:

• Dual Independent Chips: Features an independent DAC decoding chip and a professional Operational Amplificatore (OP-AMP) IC for enhanced audio processing.
• High-Performance DAC Decoding: The integrated DAC chip utilizes modern manufacturing processes, resulting in low standby power consumption (10mW/h). It achieves a signal-to-noise ratio of up to 124dB and a dynamic range of 111dB for precise digital-to-analog conversion.
• Potente Amplificatore IC: Equipped with a MAX97220 independent power amplifier IC that adaptively drives loads up to 600Ω, suitable for a wide range of headphones and earphones. This minimizes distortion and provides a robust audio output.
• Supporto audio ad alta risoluzione: Supports a PCM sampling rate of up to 32-bit/384kHz, allowing for playback of audio quality that surpasses standard CD audio.
• Low Overall Power Consumption: The device's maximum power consumption is within 575mW/h, contributing to minimal heat generation and reduced impact on the battery life of your connected device.

Figure 2: Key features of the KZ AM01 amppiù vivace

Figure 3: Internal architecture highlighting dual independent chips

Figure 4: Independent DAC decoding chip

Figura 5: Amplifier connected to a smartphone, demonstrating high impedance load capability

Figure 6: High-resolution audio support

Figure 7: Low power consumption feature

3. Istruzioni per l'installazione

Follow these steps to set up your erjigo KZ AM01:

1. Identificare i componenti: Ensure you have the KZ AM01 ampcavo lificatore.
2. Connetti al dispositivo sorgente: Plug the USB Type-C end of the KZ AM01 into the Type-C port of your smartphone, tablet, or computer. Ensure your device's Type-C port supports OTG (On-The-Go) functionality for audio output.
3. Collegare le cuffie: Plug your 3.5mm headphones or earphones into the 3.5mm female jack of the KZ AM01.
4. Verifica connessione: Once connected, your device should automatically recognize the KZ AM01 as an external audio output device.

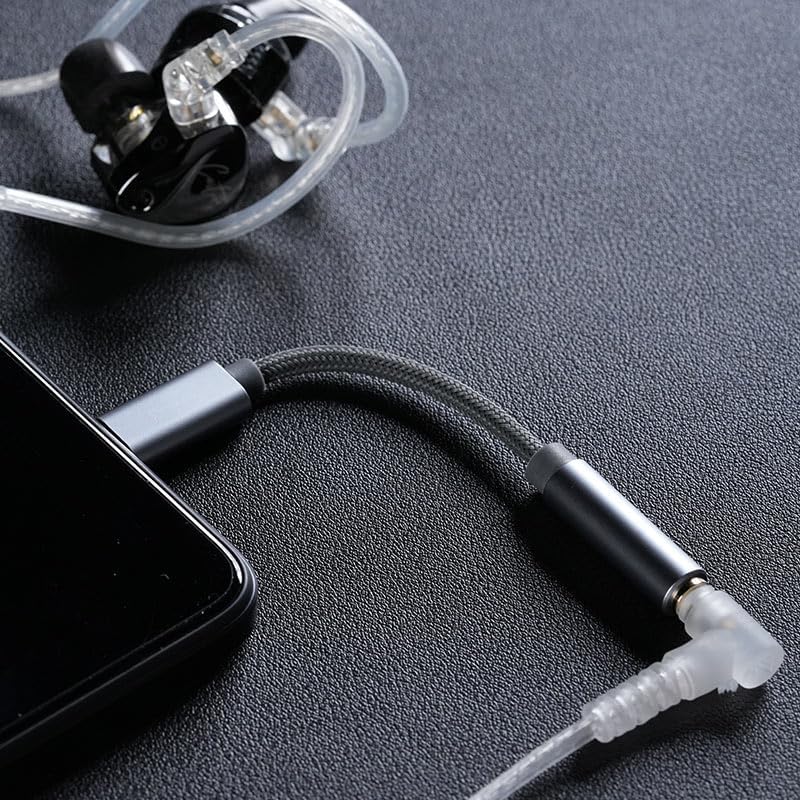

Figure 8: KZ AM01 connected and ready for use

4. Istruzioni per l'uso

The KZ AM01 is designed for simple plug-and-play operation:

• Riconoscimento automatico: After connecting, your device should automatically switch audio output to the KZ AM01.
• Controllo del volume: Adjust the audio volume directly from your connected source device (smartphone, tablet, or computer).
• Compatibilità: IL amplifier is compatible with any device featuring an adaptive Type-C interface that supports OTG functionality.

5. Manutenzione

To ensure the longevity and optimal performance of your KZ AM01, follow these maintenance guidelines:

• Pulizia: Use a soft, dry cloth to gently wipe the device. Avoid using liquid cleaners or abrasive materials.
• Magazzinaggio: Conservare il amplifier in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Gestione: Avoid bending or twisting the cable excessively, especially near the connectors, to prevent internal damage. Do not pull on the cable to disconnect it; always grasp the connector housing.
• Umidità: Tenere il dispositivo lontano dall'acqua e dall'umidità elevata.

6. Risoluzione Dei Problemi

If you encounter issues with your KZ AM01, refer to the following common troubleshooting steps:

• Nessuna uscita audio:
  • Ensure the KZ AM01 is fully plugged into both your source device and headphones.
  • Check the volume level on your source device.
  • Verify that your source device's Type-C port supports OTG audio output. Some devices may require enabling OTG in settings.
  • Test with different headphones or a different source device to isolate the problem.
• Dispositivo non riconosciuto:
  • Disconnect and reconnect the KZ AM01.
  • Riavvia il dispositivo di origine.
  • Assicurati che il sistema operativo del tuo dispositivo sia aggiornato.
• Poor Audio Quality (Static, Distortion):
  • Assicurarsi che tutti i collegamenti siano sicuri.
  • Prova con audio diverso files or streaming services to rule out source material issues.
  • Reduce the volume on your source device if distortion occurs at high levels.
  • Assicurati che le tue cuffie funzionino correttamente.

7. Specifiche

8. Garanzia e supporto

Per informazioni sulla garanzia e sull'assistenza clienti, consultare la documentazione fornita con l'acquisto o contattare direttamente il rivenditore/produttore. Conservare la prova d'acquisto per eventuali reclami in garanzia.
