ACEZUK M03 8000A Jump Starter with 150PSI Portable Air Compressor Instruction Manual

Modello: M03

1. Informazioni sulla sicurezza

Si prega di leggere attentamente tutte le avvertenze e le istruzioni di sicurezza prima di utilizzare questo prodotto. La mancata osservanza delle avvertenze e delle istruzioni può causare scosse elettriche, incendi e/o lesioni gravi.

  • Do not use the air pump function continuously. If the tire battery compressor becomes very hot, allow it to cool down for several minutes before continuing to inflate the tire.
  • Charge the jump starter fully upon first receiving it, even if it appears to have full power.
  • It is recommended to jump start the car when the power is above 25%.
  • Recharge the car jump pack every 2-3 months to activate the battery and prolong the portable emergency starter's lifespan.
  • Ensure proper connection of jumper cables (red to positive, black to negative) to avoid sparks or damage.
  • Tenere fuori dalla portata dei bambini.
  • Non immergere il dispositivo in acqua.
  • Non smontare il dispositivo.

2. Contenuto della confezione

The ACEZUK M03 package includes the following items:

  • 1 x avviatore di emergenza ACEZUK con compressore d'aria
  • 1 x cavi jumper intelligenti
  • 1 x tubo flessibile della pompa dell'aria
  • 4 x ugelli del gas
  • Cavo di ricarica 1 x USB-C
  • 1 x Manuale utente
  • 1 x custodia portatile in EVA
ACEZUK M03 Package Contents
Image: All items included in the ACEZUK M03 package, neatly arranged. This includes the jump starter unit, smart jumper cables, air pump hose, various nozzles, USB-C cable, user manual, and a portable EVA carrying case.

3. Prodotto finitoview

Caratteristiche principali:

  • High Performance Jump Start: 8000A peak current, capable of starting 12V batteries (up to all gas/10.0L diesel engines) in seconds, even at extreme temperatures (-4°F to 140°F).
  • Portable Car Power Supply: Integrated with 2 USB outputs and a Type-C input/output for charging mobile phones, tablets, and other devices.
  • Protezioni di sicurezza avanzate: Features 10 intelligent safety protections including anti-spark, overload, reverse charge, short circuit, overcurrent, and thermal protection.
  • Strumento versatile: High-lumen flashlight with light/strobe/SOS modes, suitable for outdoor activities and emergencies. Additional intimate light for illumination during use.
  • Compressore d'aria integrato: Powerful cordless air compressor with 4 preset modes, inflates car, motorcycle, bicycle tires, and balls up to 150 PSI (35 L/min airflow). Automatically stops when preset value is reached.
  • Display LCD da 3.4 pollici: Large digital screen displays operating status, battery level, and potential errors in real-time.

Identificazione dei componenti:

ACEZUK M03 Component Identification
Image: Detailed diagram of the ACEZUK M03 unit showing its various ports and buttons. Key labels include LED light, LCD display, air-filled hole, Type-C input/output port, USB 1 output port, USB 2 output port, straw hat lamp, mode button, minus button, power button, light button, and plus button.

4. Configurazione e ricarica

Carica iniziale:

Before first use, fully charge the ACEZUK M03 unit using the provided USB-C charging cable and a 5V/2A (or higher) adapter. The LCD display will indicate the charging status.

Connecting the Jumper Cables:

The smart jumper cables connect to the dedicated EC5 port on the jump starter unit. Ensure a secure connection before attaching to the vehicle battery.

5. Istruzioni per l'uso

5.1. Avviamento di emergenza di un veicolo:

  1. Fase 1: Inserire il cavo di avviamento nell'avviatore di emergenza.
  2. Fase 2: Collegare il clamps to the car battery. Attach the red clamp al terminale positivo (+) e al cl . neroamp al terminale negativo (-) della batteria del veicolo.
  3. Fase 3: Start the engine. Turn on your car's ignition.
  4. Fase 4: Rimuovi il clamps immediately after the car starts.

Nota: rimuovere il clampsubito dopo aver avviato l'auto.

How to Jump Start Your Car with ACEZUK M03
Image: A four-step visual guide demonstrating how to jump start a car using the ACEZUK M03. Step 1 shows inserting the jumper cable into the unit. Step 2 shows connecting the red and black clamps to the car battery terminals. Step 3 shows pressing the car's start button. Step 4 shows removing the clamps after the engine starts.

Video: A demonstration titled "How to Start Your Car" showing the process of connecting the jump starter to a car battery and starting the vehicle. This video is provided by the seller "gerrit".

Video: A demonstration titled "How to Force Start the Car with YaberAuto AP03?" showing the process of using a jump starter to force start a vehicle. This video is provided by the seller "Jessibest".

5.2. Gonfiaggio dei pneumatici:

  1. Fase 1: Assemble the flexible hose to the air pump port on the unit.
  2. Fase 2: Connect the hose to the car tire valve.
  3. Fase 3: Set the inflation mode and press the "+" or "-" button to adjust the inflation volume.
  4. Fase 4: Press the power button to start inflating. The compressor will automatically stop when the preset pressure is reached.
ACEZUK M03 Tire Inflator Function
Image: The ACEZUK M03 unit connected to a car tire, demonstrating its tire inflation capability. The large digital display shows the pressure reading.
ACEZUK M03 Tire Inflator in use
Image: A close-up of the ACEZUK M03 unit displaying "150.0" PSI, indicating its maximum inflation capability. The unit is shown inflating a car tire, highlighting its cordless and precise pressure visualization features.

Video: A demonstration titled "Car Battery Starter with Compressor" showing the tire inflation function of a similar device. This video is provided by the seller "CYBSHOP".

5.3. Funzione banca di potere:

Connect your mobile devices (phones, tablets, etc.) to the USB output ports (USB1, USB2) or the Type-C input/output port using their respective charging cables. The unit will provide power to charge your devices.

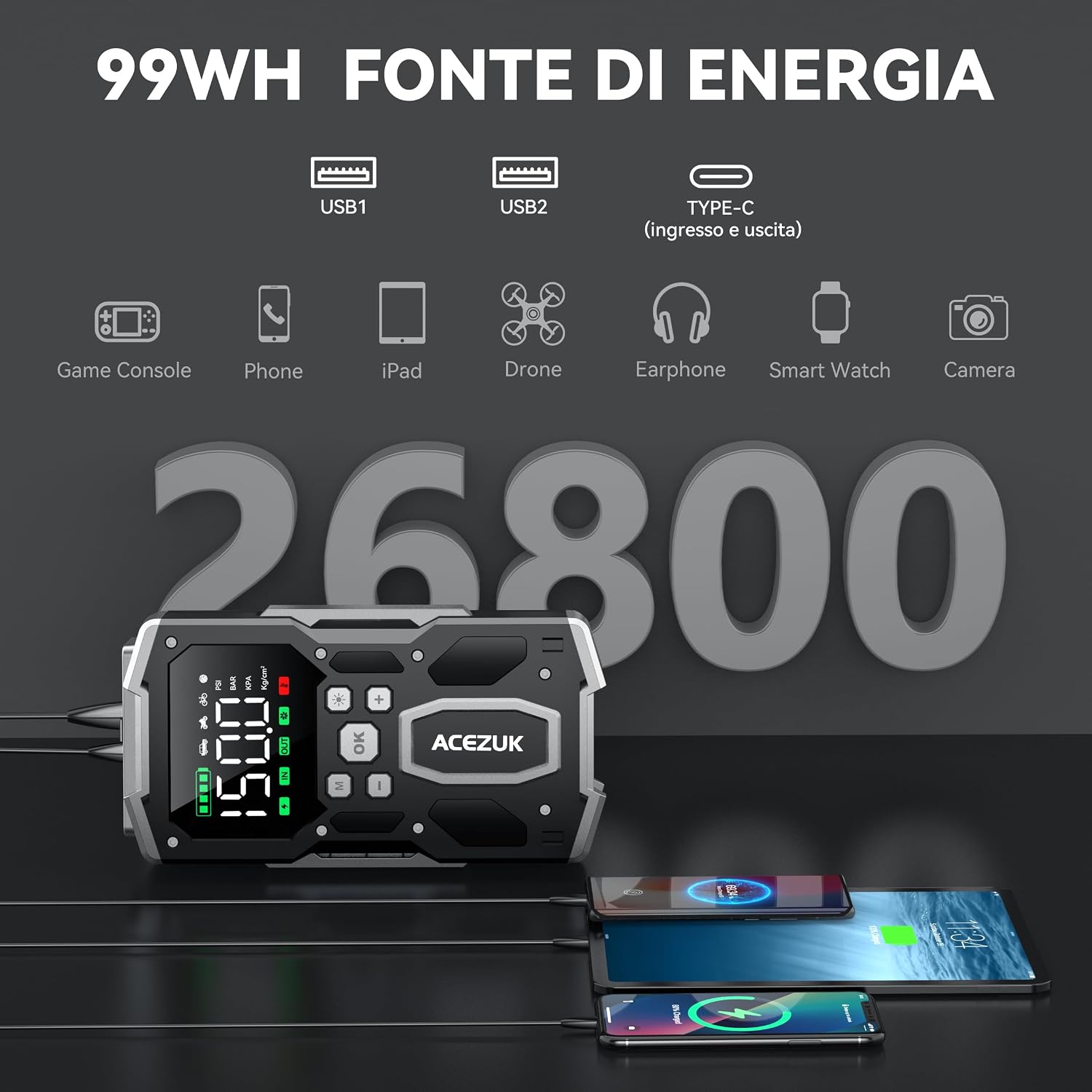

ACEZUK M03 Power Bank Function
Image: The ACEZUK M03 unit shown charging multiple electronic devices (phone, tablet, drone, earphone, smart watch, camera) via its USB and Type-C ports, highlighting its 99Wh power source capability.

5.4. Funzione torcia:

The unit features a high-lumen LED flashlight with multiple modes:

  • Modalità luce: Fornisce un'illuminazione continua.
  • Modalità strobo: Flashes rapidly for signaling.
  • Modalità SOS: Emits the international SOS signal for emergencies.

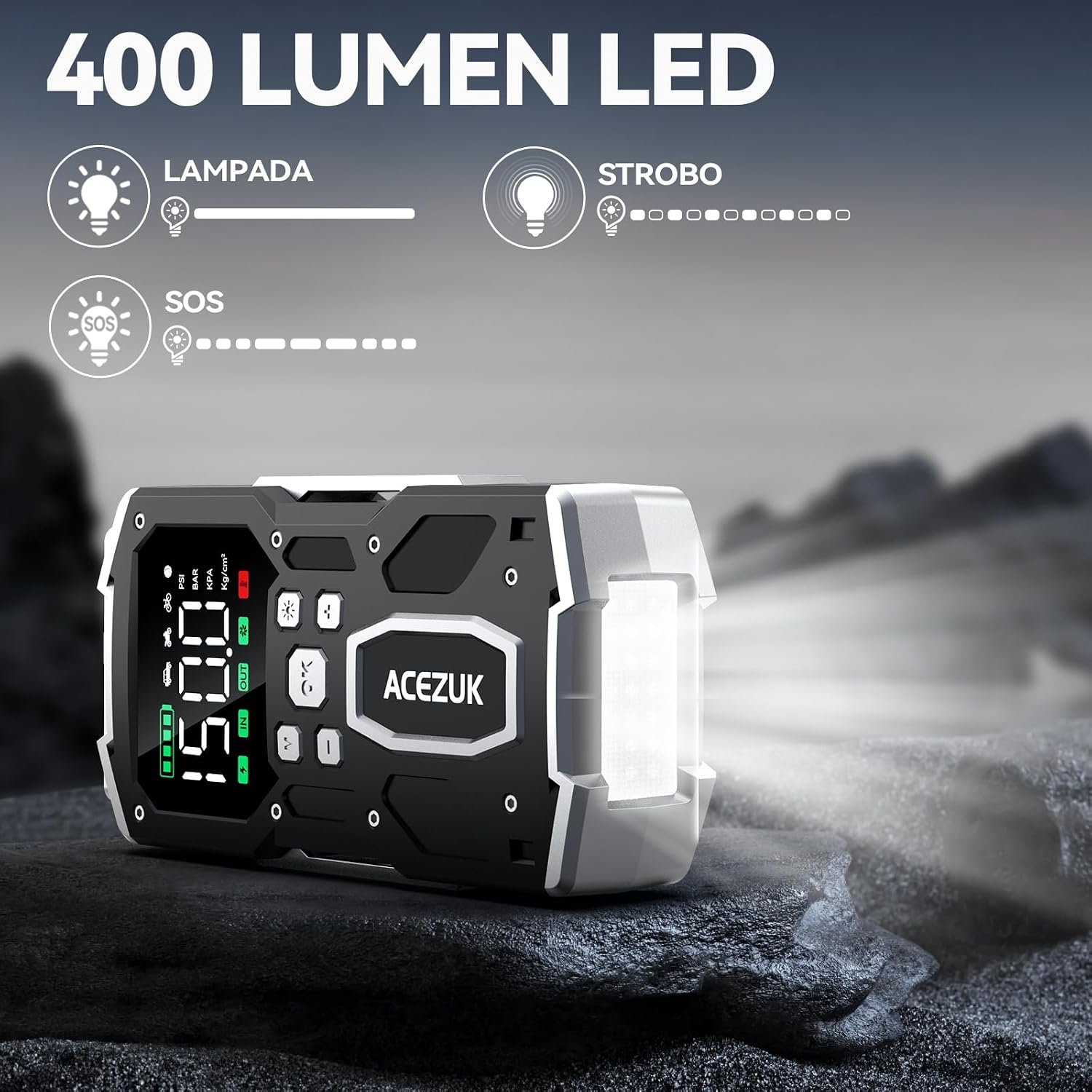

ACEZUK M03 Flashlight Modes
Image: The ACEZUK M03 unit with its LED flashlight illuminated, demonstrating the different modes: Lampada (continuous light), Stroboscopica (strobe), and SOS. The light is powerful, rated at 400 lumens.

6. Manutenzione

  • Mantenere l'unità pulita e asciutta.
  • Conservare in un luogo fresco e asciutto, lontano dalla luce solare diretta e dalle alte temperature.
  • Ricaricare l'unità ogni 2-3 mesi per preservare la salute della batteria, anche se non viene utilizzata.
  • Inspect jumper cables and air hose for any damage before each use.

7. Risoluzione Dei Problemi

ProblemaPossibile causaSoluzione
L'unità non si accendeBatteria scarica o unità spenta.Charge the unit fully. Press the power button to turn on.
Il veicolo non si avviaIncorrect cable connection, low unit battery, or vehicle battery is severely damaged.Ensure correct cable connection (red to +, black to -). Charge the unit. If vehicle battery is severely damaged, professional assistance may be required.
Il compressore d'aria non si gonfiaHose not securely connected, incorrect pressure setting, or unit battery is low.Check hose connection. Verify pressure settings on the LCD. Charge the unit.
Unit gets hot during useContinuous use of air pump.Allow the unit to cool down for several minutes before continuing use.

Video: A demonstration titled "How to use the OBD2 scanner?" showing how to connect and use an OBD2 scanner for vehicle diagnostics. This video is provided by the seller "gerrit".

Video: A demonstration titled "How to configure with OBD II" showing the steps to set up an OBD II device. This video is provided by the seller "alinstore".

8. Specifiche

  • Marca: ACEZUK
  • Modello: Numero di modello: M03
  • Corrente di picco: 8000 Ampqui
  • Tipo di servizio del veicolo: Automobile, Truck, Van
  • Composizione delle celle della batteria: Ioni di litio
  • Peso dell'articolo: 1.77 chilogrammi
  • Pressione del compressore d'aria: 150 bar
  • Display: LCD da 3.4 pollici
  • Leggero: 400 Lumen LED (Light/Strobe/SOS modes)
  • Uscita USB: 5V/3.1A (USB1+USB2)
  • Ingresso/uscita di tipo C: 5V/3A

9. Garanzia e supporto

ACEZUK offers a 2-year FREE warranty, lifetime technical support, and 24/7 customer service for the M03 Jump Starter with Air Compressor.

For any inquiries or support, please contact ACEZUK customer service.
