Manuale utente della cappa aspirante Ciarra CBCS6903D da 60 cm

1. Introduzione

Thank you for choosing the Ciarra CBCS6903D 60cm Range Hood. This appliance is designed to efficiently remove smoke, steam, and odors from your kitchen, providing a cleaner and more comfortable cooking environment. Please read this manual carefully before installation and operation to ensure safe and optimal performance.

Caratteristiche principali:

• Advanced Energy Efficiency: Rated A+ for energy performance, significantly reducing energy consumption and costs.
• Design compatto e versatile: 60cm width, suitable for wall-mounted or integrated installation, ideal for smaller kitchens.
• Aspirazione potente: Equipped with a DC motor providing a maximum suction power of 220 m³/h for effective smoke and odor elimination.
• Doppia modalità operativa: Supports recirculation mode with an active carbon filter (included) for air purification, or external extraction mode for venting odors outside.
• Funzionamento intuitivo: Easy-to-use push-button controls for quick adjustment of settings.
• Illuminazione a LED: Energy-efficient and long-lasting LED lights provide bright illumination for your stovetop.

2. Informazioni sulla sicurezza

Quando si utilizzano apparecchi elettrici, attenersi sempre alle precauzioni di sicurezza di base per ridurre il rischio di incendi, scosse elettriche e lesioni.

Sicurezza generale:

• Leggere tutte le istruzioni prima di mettere in funzione l'apparecchio.
• Assicurarsi che l'alimentazione corrisponda al voltage specificato sulla targhetta dei dati tecnici (220 Volt).
• Non utilizzare la cappa se il cavo di alimentazione o la spina sono danneggiati.
• Tenere i bambini lontani dall'apparecchio durante il funzionamento.
• Never leave frying food unattended, as grease can overheat and catch fire.
• Assicurare un'adeguata ventilazione nella stanza quando la cappa viene utilizzata contemporaneamente ad apparecchi a gas o a combustione di altri combustibili.

Sicurezza dell'installazione:

• Installation must be carried out by a qualified person in accordance with all local codes and regulations.
• Ensure the mounting surface is strong enough to support the weight of the range hood.
• Maintain the minimum distance between the cooktop and the range hood as specified in the installation section.

3. Componenti del prodotto

The Ciarra CBCS6903D range hood typically includes the following main components:

• Range Hood Body (Stainless Steel)
• Filtri antigrasso in alluminio
• Carbon Filter (for recirculation mode)
• Pannello luminoso a LED
• Push-button Control Panel

Figure 3.1: Ciarra CBCS6903D Range Hood and Carbon Filter.

Figure 3.2: Carbon Filter Structure.

Figure 3.3: Aluminum Grease Filter.

4. Configurazione e installazione

The Ciarra CBCS6903D range hood is designed for under-cabinet mounting and supports both ducted (external extraction) and recirculating ventilation modes.

Dimensioni e spazio libero:

Before installation, ensure you have sufficient space and maintain the recommended clearances from your cooktop.

Figure 4.1: Product Dimensions (in mm).

Figure 4.2: Recommended Installation Heights.

• Minimum height above electric cooktop: 650mm
• Minimum height above gas cooktop: 750mm

Fasi di installazione (generali):

1. Preparare il mobile: Ensure the cabinet opening matches the hood's dimensions (59.6 x 44 x 8 cm).
2. Choose Ventilation Mode: Decide between ducted (requires external ducting) or recirculating (uses carbon filter).
3. Montaggio: Secure the hood to the underside of the cabinet using appropriate screws and anchors.
4. Collegamento elettrico: Connect the hood to a suitable 220V power supply. It is recommended to have this done by a qualified electrician.
5. Installa filtri: Insert the aluminum grease filters and, if using recirculation mode, the carbon filter.

5. Istruzioni per l'uso

The Ciarra CBCS6903D range hood features user-friendly push-button controls located on the front panel.

Pannello di controllo:

Il pannello di controllo in genere include pulsanti per:

• Accensione/spegnimento: To switch the hood on or off.
• Selezione della velocità della ventola: Usually multiple speed settings (e.g., Low, Medium, High) to adjust suction power based on cooking needs.
• Luce accesa/spenta: To control the integrated LED lighting.

Figure 5.1: Range Hood with LED Light.

Figure 5.2: Hood in operation, demonstrating steam extraction.

Funzionamento della cappa:

1. Attiva: Press the power button to activate the hood.
2. Regola la velocità della ventola: Select the desired fan speed (1, 2, or 3) based on the intensity of cooking fumes. For light cooking, a lower speed is sufficient. For heavy frying or strong odors, use a higher speed.
3. Attiva la luce: Press the light button to illuminate your cooking area.
4. Spegnere: Press the power button again to switch off the hood after cooking.

6. Manutenzione

Regular maintenance ensures the longevity and efficient performance of your range hood.

Pulizia dei filtri antigrasso:

The aluminum grease filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to prevent grease buildup and maintain suction efficiency.

1. Rimuovi filtri: Carefully unlatch and remove the aluminum grease filters from the hood.
2. Pulito: Wash the filters by hand in warm soapy water or in a dishwasher. For stubborn grease, a degreasing agent can be used.
3. Asciugare e reinstallare: Assicurarsi che i filtri siano completamente asciutti prima di reinserirli nella cappa.

Replacing the Carbon Filter (Recirculation Mode Only):

If you are using the hood in recirculation mode, the carbon filter (CBCF009) needs to be replaced periodically (typically every 3-6 months, depending on usage) as it cannot be washed.

1. Rimuovere i filtri antigrasso: First, remove the aluminum grease filters to access the carbon filter.
2. Remove Old Carbon Filter: Detach the used carbon filter.
3. Install New Carbon Filter: Attach the new carbon filter, ensuring it is securely in place.
4. Reinstallare i filtri antigrasso: Place the aluminum grease filters back into position.

Pulizia della superficie della cappa:

Clean the stainless steel surface of the hood regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals or abrasive pads that could scratch the finish.

7. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your range hood. If the problem persists, please contact customer support.

8. Specifiche

Detailed technical specifications for the Ciarra CBCS6903D Range Hood:

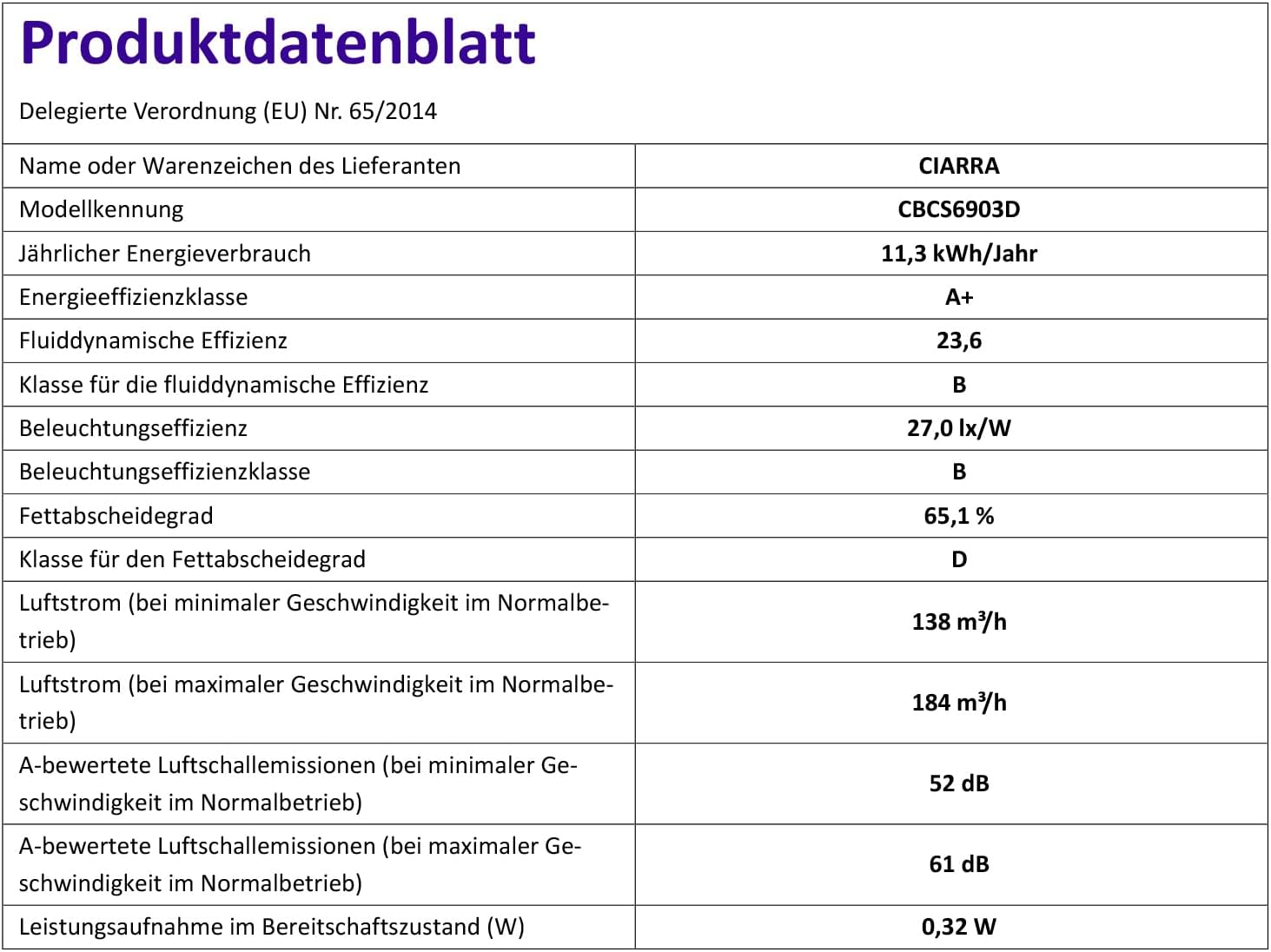

Figura 8.1: Scheda tecnica del prodotto.

9. Garanzia e supporto

Per informazioni sulla garanzia, consultare la documentazione fornita al momento dell'acquisto o contattare il rivenditore. Al momento non sono disponibili informazioni sulla disponibilità dei pezzi di ricambio per questo modello.

For technical support, troubleshooting assistance beyond this manual, or to inquire about spare parts, please contact Ciarra customer service through their official websito o i recapiti forniti al momento dell'acquisto.
