Pissente AT5-1500X Variable Frequency Drive User Manual

1. Introduzione

This manual provides essential information for the safe and efficient operation of your Pissente AT5-1500X Variable Frequency Drive (VFD). The AT5-1500X is designed to control the speed of 3-phase motors, offering high torsion and a wide speed regulation range. It features a single-phase 110VAC input and a 3-phase 220VAC output, with a power rating of 1500W. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper use and prevent potential hazards.

2. Precauzioni di sicurezza

Failure to follow these safety instructions may result in death, severe injury, or property damage. Always prioritize safety during installation, operation, and maintenance.

• Disconnessione dell'alimentazione: Always ensure the power supply is completely disconnected before performing any wiring, inspection, or maintenance on the inverter.
• Cablaggio corretto: It is strictly forbidden to connect the U, V, W output terminals to the AC power supply. Incorrect wiring will cause severe damage to the inverter.
• Messa a terra: Il terminale di terra dell'inverter deve essere collegato a terra in modo corretto e sicuro per evitare scosse elettriche.
• Ambiente di installazione: Do not install the inverter in environments with flammable or explosive gases, as this poses a significant risk of explosion. Ensure adequate ventilation.
• Installazione professionale: Wiring and internal adjustments should only be performed by qualified professionals. The inverter contains high-voltage components; do not open the casing casually.
• Caratteristiche di protezione: The device includes comprehensive protection against overcurrent, overvoltage, sottovoltage, module failure, overheating, and short circuits. However, these features do not negate the need for careful handling and adherence to safety protocols.

Immagine: Frontale view of the AT5-1500X VFD, showing the safety precaution label on the lower front panel. This label outlines critical warnings regarding power, wiring, grounding, and installation environment.

3. Caratteristiche del prodotto

The Pissente AT5-1500X VFD is equipped with advanced features for reliable motor control:

• Protezione completa: Features built-in safeguards against overcurrent, overvoltage, sottovoltage, module failure, overheating, and short circuits. It also provides low electromagnetic interference.
• Display digitale chiaro: An integrated digital display offers clear readings and facilitates convenient parameter settings for easy monitoring and customization of speed.
• High-Performance Speed Adjustment: Provides precise speed adjustment for motors with high torsion and a wide regulation range, ensuring optimal motor performance.
• Costruzione durevole: Constructed from robust plastic material, ensuring impact resistance and long-term durability for enhanced safety and reliability.
• Applicazione versatile: Suitable for various applications including 3-phase motor speed regulation, lighting adjustment, and power cooling.

4. Contenuto della confezione

Dopo aver disimballato, verificare che tutti gli articoli siano presenti e integri:

• 1 x Pissente AT5-1500X Inverter
• 1 x Manuale utente (questo documento)

5. Specifiche

6. Configurazione e installazione

Proper installation is crucial for the safe and effective operation of the VFD. It is highly recommended that installation be performed by a qualified electrician.

6.1 Montaggio

• Montare il VFD verticalmente su una superficie stabile e non infiammabile.
• Ensure sufficient clearance around the unit for proper ventilation and heat dissipation. Avoid enclosed spaces.
• Keep the VFD away from direct sunlight, excessive dust, corrosive gases, and moisture.

Immagine: Angolata view of the AT5-1500X VFD, highlighting the ventilation grilles on the sides and cooling fans at the bottom, essential for heat dissipation during operation.

6.2 Cablaggio

WARNING: Ensure all power is disconnected before wiring. Incorrect wiring can cause severe damage to the unit and pose electrical hazards.

• Input Power (Single Phase 110VAC): Connect the single-phase 110VAC power supply to the designated input terminals (typically marked L and N or R and S).
• Output Power (Three Phase 220VAC): Connect the 3-phase motor to the output terminals (typically marked U, V, W). Do not connect these terminals to the main AC power supply.
• Messa a terra: Connect the ground terminal (marked with the ground symbol) to a reliable earth ground. This is critical for safety.
• Control Wiring (Optional): If external control signals (e.g., start/stop, speed reference) are used, refer to the detailed wiring diagram in the full technical manual (if provided separately) for correct connections.

Immagine: dall'alto verso il basso view of the AT5-1500X VFD, showing the internal heatsink and the area where power and motor terminals are located. Proper wiring to these terminals is essential.

7. Istruzioni per l'uso

The AT5-1500X features a user-friendly control panel for easy operation and parameter adjustment.

7.1 Pannello di controllo Sopraview

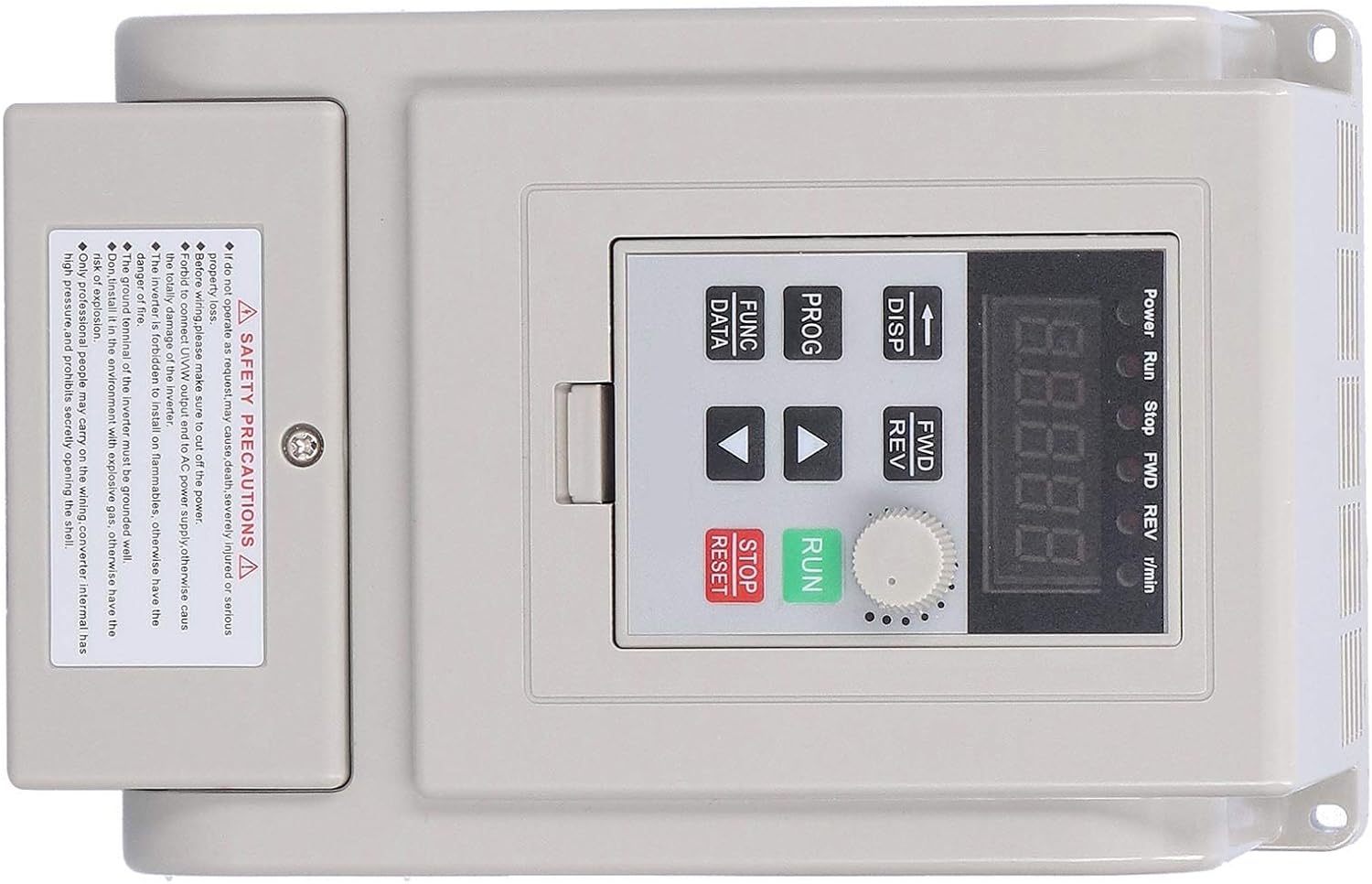

Immagine: Primo piano view of the AT5-1500X VFD control panel, showing the digital display, rotary knob, and various function buttons for operation and parameter settings.

• Display digitale: Shows current operating status, frequency, and parameter values.
• Power/Run/Stop/FWD/REV Indicators: LEDs indicating the VFD's status.
• Pulsante DISP: Toggles display modes (e.g., output frequency, output current).
• Pulsante PROG: Enters/exits parameter programming mode.
• Pulsante FUNC/DATA: Used to select parameters or confirm data entry.
• Frecce su/giù: Navigare tra i parametri o regolare i valori.
• Pulsante AVANTI/INDIETRO: Cambia la direzione di rotazione del motore (avanti/indietro).
• Manopola rotante: Regola con precisione i valori della frequenza o dei parametri.
• Pulsante RUN: Avvia il motore.
• Pulsante STOP/RESET: Arresta il motore o ripristina gli allarmi di guasto.

7.2 Funzionamento di base

1. Accensione: After ensuring correct wiring, apply power to the VFD. The digital display will light up.
2. Imposta frequenza: Use the Up/Down arrow buttons or the rotary knob to set the desired output frequency. The display will show the current frequency.
3. Avviamento del motore: Premere il tasto CORRERE button to start the motor. The "Run" indicator will illuminate.
4. Regola la velocità: While the motor is running, use the Up/Down arrows or rotary knob to adjust the motor speed.
5. Cambia direzione: Premere il tasto AV/REV pulsante per cambiare il senso di rotazione del motore.
6. Arresto motore: Premere il tasto ARRESTO/RIPRISTINO button to stop the motor. The "Stop" indicator will illuminate.

7.3 Impostazioni dei parametri

To access and modify advanced parameters (e.g., acceleration/deceleration time, motor parameters), follow these general steps:

1. Premere il tasto PROG button to enter parameter programming mode. The display will show a parameter code (e.g., P001).
2. Use the Up/Down arrows to navigate through the parameter codes.
3. Premere FUNZ/DATI A view the current value of the selected parameter.
4. Use the Up/Down arrows or rotary knob to adjust the parameter value.
5. Premere FUNZ/DATI di nuovo per salvare il nuovo valore.
6. Premere PROG per uscire dalla modalità di programmazione.

Note: A detailed list of parameters and their functions can be found in the comprehensive technical manual. Incorrect parameter settings can lead to motor damage or improper operation.

8. Manutenzione

Regular maintenance helps ensure the longevity and optimal performance of your VFD.

• Pulizia: Periodically clean the exterior of the VFD with a soft, dry cloth. Ensure ventilation grilles are free from dust and debris to prevent overheating. Non utilizzare detergenti liquidi.
• Ventilazione: Verify that the cooling fans (if present) are operating correctly and that airflow is not obstructed.
• Connessioni: Regularly inspect all wiring connections for tightness and signs of corrosion or damage. Loose connections can lead to poor performance or safety hazards.
• Controllo ambientale: Ensure the operating environment remains within specified temperature and humidity ranges, and free from excessive dust or corrosive substances.

Immagine: Interna view of the AT5-1500X VFD, showing the heatsink fins. Keeping these clear of dust is vital for efficient cooling and preventing overheating.

9. Risoluzione Dei Problemi

If you encounter issues with your VFD, refer to the following common troubleshooting steps. For complex problems, contact technical support.

If a fault occurs, the VFD's digital display will typically show an error code. Refer to the full technical manual for a complete list of error codes and their specific remedies. After resolving a fault, press the ARRESTO/RIPRISTINO pulsante per cancellare l'allarme.

10. Garanzia e supporto

For warranty information, technical support, or service inquiries, please contact your original point of purchase or the manufacturer, Pissente. Ensure you have your product model number (AT5-1500X) and purchase details available when contacting support.

Manufacturer: Pissente

Modello: AT5-1500X
