Prodotto finitoview
The Treeligo 12V Mini Split Air Conditioner is designed to provide efficient cooling for various vehicle types, including semi-trucks, RVs, vans, pickups, cars, trailers, and buses. This unit operates on a 12-volt DC power supply, offering a cooling capacity of 8500 BTU with low noise operation. It features a variable frequency compressor for energy efficiency and multiple operating modes to suit different needs.

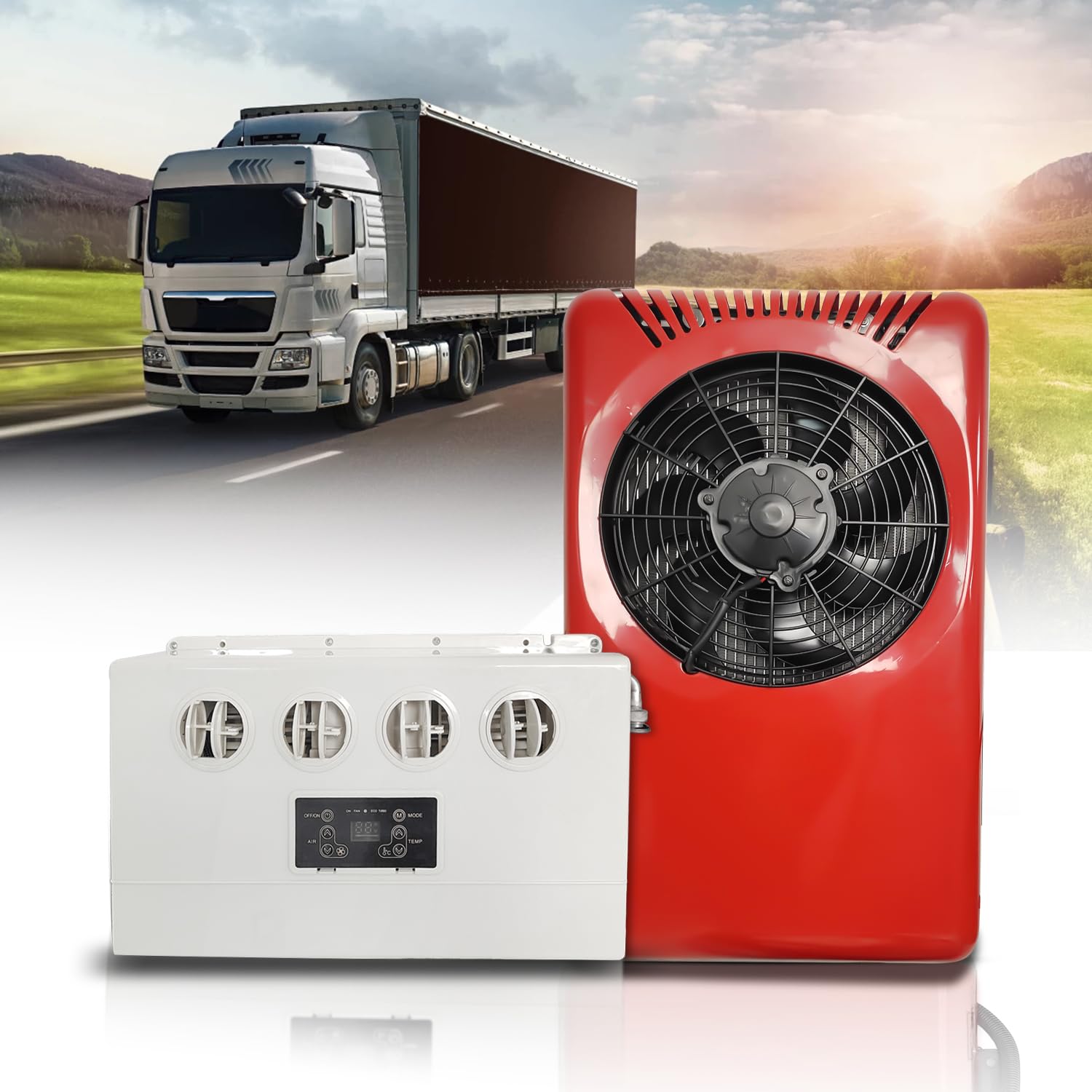

Image: The Treeligo 12V Mini Split Air Conditioner, featuring the indoor evaporator unit and the outdoor condenser unit.
Informazioni sulla sicurezza
Before installation or operation, please read all safety warnings and instructions carefully. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- Prima di effettuare qualsiasi installazione o manutenzione, assicurarsi che l'alimentazione sia scollegata.
- Installation should be performed by qualified personnel to prevent damage and ensure proper function.
- Do not connect the power cord to the power-off switch or the power switch directly. Connect directly to the battery, observing correct polarity (+ positive / - negative).
- Use only the specified refrigerant (R134a) and quantity (550-650g).
- Tenere bambini e animali domestici lontani dall'unità durante il funzionamento e la manutenzione.
Contenuto della confezione
Verificare che tutti i componenti siano presenti nella confezione:
- Evaporator (Indoor Unit)
- Condenser (Outdoor Unit)
- Electric Scroll Compressor
- Accessories (various bolts, washers, nuts, rubber pads)
- Nastro adesivo
- Telecomando
- Tubo refrigerante
- Tubo di scarico
- Valvola di espansione
Immagine: Tutti i componenti inclusi nella confezione del prodotto.
Configurazione e installazione
Follow these steps for proper installation of the air conditioning unit. Professional installation is recommended.
- Install the External Machine:
Rimuovere il casing of the external unit. Mark the drilling positions on the vehicle. Use an 8mm drill bit to create the holes. Use a riveting tool to secure the rivet nuts at the drilling points. Install shock pads and sleeves at the holes of the external machine. Securely fix the external machine to the vehicle.
Image: External unit installation process.
- Install the Expansion Valve:
Locate the position for the expansion valve on the evaporator. Remove any protective iron sheet. Fix the expansion valve to the evaporator. Ensure the two black screws align with the two corresponding holes for correct installation. Wrap the installed expansion valve with black cotton wrap.
Image: Expansion valve installation.
- Install the Indoor Unit:
First, install a wooden board or suitable mounting surface to the interior wall of the vehicle. Then, mount the evaporator (indoor unit) onto this board.
Image: Indoor unit installation.
- Install High & Low Pressure Pipelines:
Create a 50mm hole in the vehicle body for the pipes. Install the rubber cover with three holes into this opening. The thick pipe is the low-pressure line and connects to the compressor. The thin pipe is the high-pressure line and connects to the condenser. Connect the other ends of the high and low-pressure pipes to the corresponding holes on the expansion valve of the indoor unit. Use long black screws and iron sheets to clamp the aluminum joints and tighten the screws securely.
Image: Refrigerant pipeline connection.
- Install the Connection Line, Drain Pipe, and Power Line:
Connect the electrical connection lines between the internal and external units. Plug the power cord plugs into each other. Connect the drain pipe from the evaporator to allow for condensate drainage.
Image: Electrical and drain pipe connections.
- Vacuuming and Adding Refrigerant:
The system must be vacuumed for 15-20 minutes to remove air and moisture. After vacuuming, add R134a refrigerant, approximately 600g. The refrigerant amount can be adjusted based on pressure readings. Typically, after R134a injection, the low-pressure port should read 35psi, and the high-pressure port 140-180psi.
Image: Vacuuming and refrigerant charging process.
- Connect the Power Cord to the Battery:
Connect the power cord directly to the vehicle's battery. Pay close attention to the positive (+) and negative (-) terminals to avoid reverse connection. Do not connect to any power-off switches or general power switches.
Image: Battery connection for power supply.
- Test the Air Conditioner:
After completing all installation steps, start the air conditioner to verify its functionality. Observe the control panel for any error codes.
Image: Final testing of the air conditioner.
Istruzioni per l'uso
The Treeligo 12V Mini Split Air Conditioner can be operated via its LCD control panel or the included remote control.
- Accensione/spegnimento: Use the power button on the control panel or remote to turn the unit on or off.
- Selezione della modalità: Select from three operating modes: Dormire, Standard, E Forte. These modes adjust cooling intensity and power consumption.
- Regolazione della temperatura: Use the temperature controls on the panel or remote to set your desired cooling level.
- Direzione del flusso d'aria: The indoor unit features 360° adjustable air vents to direct airflow as needed.
- Durata della batteria: The unit can operate for approximately 8 hours on a 480 AH battery in Strong mode, or 8 hours on a 200 AH battery in Standard or Sleeping mode.
Image: LCD Control Panel, 360° Air Cooling, and Remote Control features.
Image: The indoor unit installed in a vehicle, demonstrating airflow.
Manutenzione
Una manutenzione regolare garantisce prestazioni ottimali e longevità del condizionatore. Scollegare sempre l'alimentazione prima di eseguire qualsiasi intervento di manutenzione.
- Pulizia del filtro: Regularly clean or replace the air filters in the indoor unit to maintain airflow and cooling efficiency.
- Pulizia della bobina: Periodically inspect and clean the evaporator and condenser coils. Dust and debris can reduce efficiency.
- Controllo del drenaggio: Ensure the drain hose is clear and free of obstructions to prevent water buildup.
- Livello del refrigerante: If you notice a decrease in cooling performance, have a qualified technician check the refrigerant levels.
- Ispezione generale: Check all electrical connections and mounting hardware for tightness and signs of wear.
Image: Outdoor unit components, indicating areas for inspection and cleaning.
Risoluzione dei problemi
Se riscontri problemi con il tuo condizionatore d'aria, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| L'unità non si accende | No power, loose connection, battery issue | Check battery connections, ensure sufficient battery charge. Verify all power cables are securely connected. |
| Raffreddamento insufficiente | Low refrigerant, dirty filters/coils, blocked airflow | Check refrigerant levels (professional service recommended). Clean air filters and coils. Ensure no obstructions to airflow. |
| Control panel displays an error code | Insufficient current, incorrect refrigerant level (too much or too little) | Controllare il volume della batteriatage and current supply. Verify refrigerant charge (professional service required). Consult the service center if the issue persists. |
| Rumore insolito durante il funzionamento | Componenti allentati, ostruzione della ventola | Inspect for any loose parts or debris obstructing the fan. If noise persists, contact support. |
For issues not listed here or if solutions do not resolve the problem, please contact Treeligo customer support.
Specifiche
Detailed technical specifications for the Treeligo 12V Mini Split Air Conditioner:
| Caratteristica | Specificazione |
|---|---|
| Marca | Treeligo |
| Numero di modello | EAC001.32.R |
| Peso dell'articolo | 57 libbre |
| Dimensioni del prodotto (unità interna) | 18"L x 11"A x 6"P |
| Dimensioni del prodotto (unità esterna) | 28"W x 16"H x 7"D (Approximate, derived from A+ content) |
| Capacità di raffreddamento | 8500 BTU (2100 W) |
| Potenza nominale | 720W |
| Voltage | 12 Volt (CC) |
| Livello di rumore | 45 decibel |
| Tipo di installazione | Sistema diviso |
| Refrigerante | R-134A (550-650g) |
| Tipo di compressore | Variable Frequency Scroll Compressor |
| Tipo di materiale | addominali |
| Caratteristiche speciali | Fast Cooling, Remote Control, Panel Control |
Image: Noise level comparison, highlighting the unit's quiet operation at 45dB.
Garanzia e supporto
Treeligo is committed to providing reliable products and customer satisfaction.
- Assistenza clienti: For any assistance with installation, operation, or troubleshooting, please contact Treeligo customer service. We aim to provide swift and prompt support within 12 hours.
- Informazioni sulla garanzia: Specific warranty details may vary. Please refer to your purchase documentation or contact customer support for comprehensive warranty terms and conditions.
