Manuale di istruzioni per la serratura interna quadrata invisibile MagiDeal

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your MagiDeal Invisible Square Interior Door Lock. Designed for modern interiors, this lock offers a minimalist aesthetic while ensuring privacy and security for various rooms such as study rooms, bathrooms, kitchens, and bedrooms.

2. Informazioni sulla sicurezza

• Leggere attentamente tutte le istruzioni prima dell'installazione e dell'uso.
• Tenere le parti piccole lontano dalla portata dei bambini per evitare rischi di soffocamento.
• Ensure proper tools are used to avoid damage to the product or personal injury.
• Non modificare il prodotto in alcun modo non descritto nel presente manuale.
• Always wear appropriate safety gear, such as eye protection, during installation.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti e integri prima di iniziare l'installazione. Se qualche componente risulta mancante o danneggiato, contattare l'assistenza clienti.

• 1x Square Invisible Door Knob (Black)
• 1x corpo della serratura
• 2x Strike Plates
• 1 chiavi a brugola
• Viti di montaggio
• 1x Plastic Latch Guide
• 1x Spindle Bar
• 1x Decorative Cover Plate

Figure 3.1: All parts included in the MagiDeal Invisible Square Interior Door Lock package.

4. Specifiche del prodotto

Figure 4.1: Dimensional diagram of the door knob and lock body components.

5. Configurazione e installazione

This section guides you through the process of installing your invisible door lock. Ensure you have all necessary tools and components before starting.

5.1 Tools Required (Recommended)

• Trapano
• Cacciavite (testa a croce)
• Nastro di misurazione
• Matita
• Chisel (if mortising is required)

5.2 Passaggi di installazione

1. Prepara la porta: Ensure your door has the necessary boreholes and mortises for the lock body and knob. Refer to the dimension diagram in the specifications section (Figure 4.1) for precise measurements. Proper preparation is crucial for a flush and secure fit.

   Figure 5.1: The lock installed on a door, illustrating the final appearance.
2. Installare il corpo della serratura: Insert the lock body into the mortise on the edge of the door. Secure it with the provided mounting screws. Ensure the latch bolt operates smoothly without obstruction.

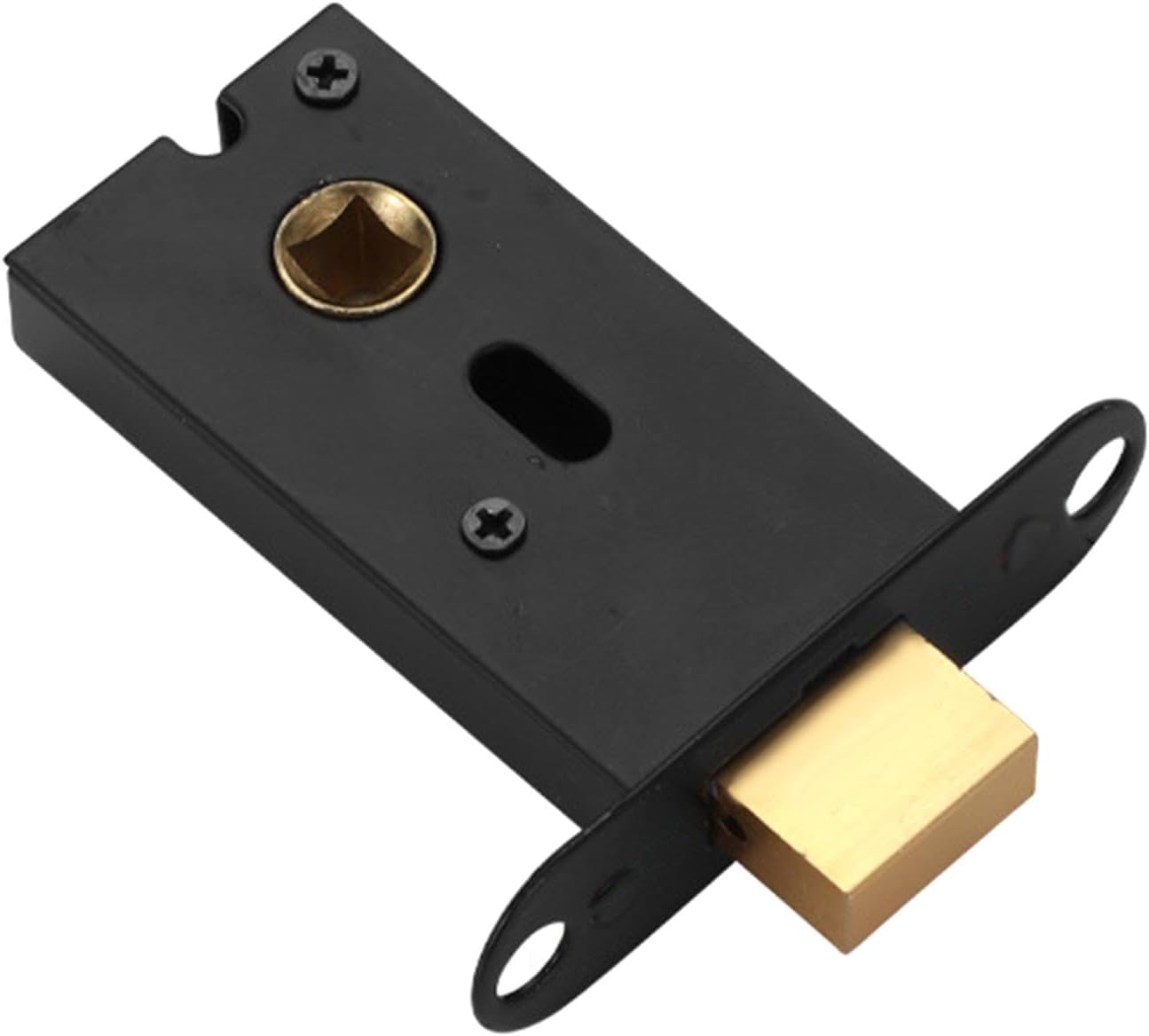

   Figura 5.2: dettagliata view of the lock body, highlighting its components and mounting points.

3. Attach the Door Knobs: Align the square door knobs with the spindle bar and secure them through the door, ensuring they are flush against the door surface and the spindle correctly engages with the lock mechanism. Tighten the retaining screws.

   Figura 5.3: dettagliata view of the square door knob.

4. Install the Strike Plates: On the door frame, align and install the two strike plates where the latch bolt will engage. Ensure a smooth closing and locking action. Adjust the position of the strike plates if the door does not close or latch properly.
5. Adjust the Lock (if necessary): The lock features an adjustable design. If needed, insert the provided Allen wrench into the adjustment hole to regulate the speed and force of the latch mechanism according to your preference.

For optimal performance, ensure all screws are tightened securely but do not overtighten, as this can impede the lock's function.

6. Istruzioni per l'uso

The MagiDeal Invisible Square Interior Door Lock is designed for simple and intuitive operation.

6.1 Blocco e sblocco

• To lock the door from the inside, rotate the square knob. The internal mechanism will engage, preventing the door from being opened from the outside.
• To unlock the door, rotate the square knob back to its original position.
• From the outside, the door appears handle-less and locked, providing a clean, minimalist look.
• In case of emergency, an emergency release mechanism may be present (refer to specific product design for details).

7. Manutenzione

Regular maintenance will ensure the longevity and smooth operation of your door lock.

• Pulizia: Wipe the visible parts of the lock with a soft, damp panno. Evitare detergenti abrasivi, prodotti chimici aggressivi o solventi che potrebbero danneggiare la finitura.
• Lubrificazione: Periodically apply a small amount of graphite-based lubricant to the internal locking mechanism to ensure smooth operation. Do not use oil-based lubricants as they can attract dust and grime.
• Ispezione: Check all screws and components periodically for tightness. Retighten if necessary to prevent loosening over time.
• Resistenza alla ruggine: The lock is made from rust-resistant zinc alloy, but prolonged exposure to excessive moisture or corrosive environments should be avoided to maintain its integrity.

8. Risoluzione Dei Problemi

If you encounter any issues with your door lock, refer to the following table for common problems and solutions.

Se i problemi persistono dopo aver provato queste soluzioni, contattare l'assistenza clienti per ulteriore assistenza.

9. Garanzia e supporto

This product is manufactured by MagiDeal. For warranty information or technical support, please refer to the retailer where the product was purchased or visit the official MagiDeal websito. Conserva la ricevuta d'acquisto come prova d'acquisto.

For further assistance, you may contact MagiDeal customer service through their official channels.

Risorse online: For additional information and support, visit the MagiDeal official websito: www.magideal.com (Nota: questo è un segnaposto URL as no official support link was provided in the product data.)
