hygger Automatic Fish Pond Feeder HG-967 Instruction Manual

1. Prodotto finitoview

The hygger Automatic Fish Pond Feeder HG-967 is designed to provide consistent and scheduled feeding for pond fish, including Koi. With a large 5.5-liter capacity, it can store up to 2.3 kg of fish food, ensuring your fish are fed even when you are away for extended periods. The feeder features an intelligent LCD display for easy programming of feeding times and quantities, and its waterproof design makes it suitable for outdoor pond environments.

Image 1.1: The hygger Automatic Fish Pond Feeder dispensing food into a pond.

Le caratteristiche principali includono:

• Large 5.5-liter (2.3 kg) food capacity.
• Programmable up to 6 feeds per day.
• Adjustable feeding quantity (up to 9 portions per feed, each lasting 8 seconds).
• Two interchangeable feed outlets for different food sizes and quantities.
• Impermeabile casing and semi-protective controller for outdoor use.
• Funzione di memoria per conservare le impostazioni durante lo spegnimentotages.
• Manual feeding option.

Immagine 1.2: Passoview of the hygger Automatic Fish Pond Feeder with its control panel.

2. Informazioni sulla sicurezza

Please read and understand all safety instructions before operating this device. Failure to follow these instructions may result in product damage or injury.

• Ensure the power adapter and cord are kept away from water to prevent electrical hazards.
• Do not immerse the controller or power adapter in water. The feeder unit itself is designed for outdoor exposure but the electrical components require protection.
• Scollegare sempre l'alimentazione prima di effettuare qualsiasi operazione di manutenzione o pulizia.
• Tenere fuori dalla portata dei bambini e degli animali domestici per evitare il contatto accidentale.ampirritazione o infortunio.
• Utilizzare solo l'adattatore di alimentazione fornito. L'utilizzo di un adattatore non corretto potrebbe danneggiare il dispositivo.
• Ensure the feeder is securely installed to prevent it from falling into the pond.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti nella confezione:

Image 3.1: All components included in the hygger Automatic Fish Pond Feeder kit.

• Feeder Unit (with food container)
• Controller (with LCD display)
• In piedi
• Base
• Tubo di collegamento
• Angle Piece
• Cavo di alimentazione
• Adattatore
• Narrow Feed Outlet (screw stem)
• Wide Feed Outlet (screw stem)
• Viti e utensili di montaggio

4. Configurazione e installazione

Follow these steps to assemble and install your automatic fish pond feeder:

1. Montare il supporto: Attach the stand to the base using the provided screws. Ensure it is stable.
2. Collegare il controller: Secure the controller to the stand.
3. Connect Feeder Unit: Attach the feeder unit to the angle piece, then connect the angle piece to the connecting tube, and finally to the controller assembly. Ensure all connections are firm.
4. Montaggio: Position the assembled feeder near your pond. The base can be secured to a stable surface (e.g., wooden deck, concrete slab) using a drill and screwdriver with the provided mounting screws. This ensures the feeder does not tip over.
5. Choose Feed Outlet: Select either the narrow or wide feed outlet (screw stem) based on your fish food size and desired dispensing quantity. The narrow outlet dispenses less food per rotation, while the wide outlet dispenses more. Insert the chosen outlet into the feeder's dispensing mechanism.

   Image 4.1: Comparison of narrow and wide feed outlets.
6. Riempire il contenitore per alimenti: Open the snap-on lid of the food container. Fill it with appropriate fish food. The feeder is suitable for 4-10mm pellets or sticks. Avoid using flakes as they may clog the mechanism.

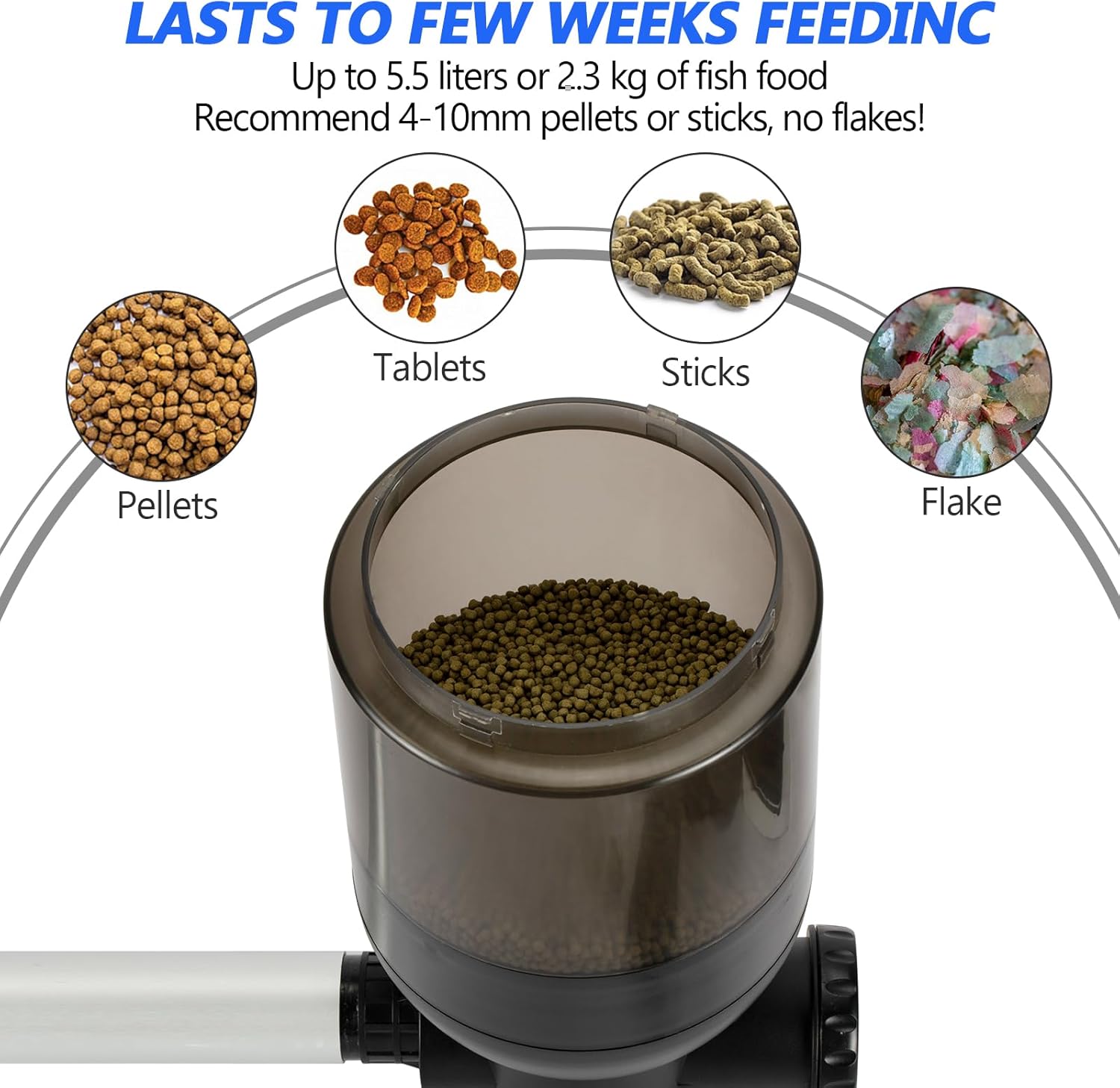

   Image 4.2: Recommended food types for the feeder.

7. Connetti alimentazione: Plug the power cord into the feeder's controller and then connect the adapter to a suitable outdoor power outlet. Ensure the outlet is protected from direct water exposure.

5. Istruzioni per l'uso

The LCD display and control buttons allow for easy programming of feeding schedules.

5.1 Impostazione dell'ora corrente

Refer to the controller's LCD display and buttons. Typically, there will be a 'SET' or 'MODE' button to enter the time setting mode, and 'UP'/'DOWN' or number buttons to adjust hours and minutes. Confirm settings with 'SET' or 'OK'.

5.2 Programmazione dei programmi di alimentazione

The feeder allows up to 6 feeding times per day. Each feeding time can have up to 9 quantities, with each quantity dispensing for 8 seconds.

1. Entra in modalità programma: Press the 'PROGRAM' or 'SET' button to cycle through feeding programs (P1, P2, P3, etc.).
2. Imposta l'ora di alimentazione: For each program (P1-P6), use the 'UP'/'DOWN' buttons to set the desired hour and minute for feeding.
3. Set Feeding Quantity: After setting the time, proceed to set the quantity. Use 'UP'/'DOWN' buttons to select the number of dispensing cycles (1-9). Each cycle rotates the screw stem for 8 seconds.
4. Conferma e salva: Press 'SET' or 'OK' to confirm each setting and move to the next program or exit programming mode.

5.3 Alimentazione manuale

To dispense food manually, press the 'MANUAL' or 'FEED' button. The feeder will dispense one portion of food (8 seconds rotation). You can press it multiple times for additional portions.

5.4 Funzione di memoria

The feeder is equipped with a memory function. In the event of a power outage, all programmed settings will be saved. When power is restored, the device will resume operation according to the last saved schedule.

6. Manutenzione

Regular maintenance ensures the longevity and proper functioning of your feeder.

• Pulizia del contenitore per alimenti: Periodically empty and clean the food container to prevent mold or bacterial growth. Use a damp cloth and mild detergent if necessary, then rinse thoroughly and ensure it is completely dry before refilling.
• Cleaning the Dispensing Mechanism: Check the dispensing screw stem and outlet for any food blockages. Use a small brush to clear any debris.
• Keeping Food Dry: The feeder's thick lid is designed to keep food dry. Always ensure the lid is securely closed after refilling. Avoid exposing the feeder to excessive moisture beyond normal rain.
• Ispezione del cavo di alimentazione: Regularly inspect the power cord and adapter for any signs of damage. Replace immediately if damaged.

7. Risoluzione Dei Problemi

If you encounter issues with your hygger Automatic Fish Pond Feeder, refer to the following common problems and solutions:

8. Specifiche

9. Garanzia e supporto

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your package or contact hygger customer support. If you have any questions, require technical assistance, or need to report a defect, please contact hygger customer service through their official websito o le informazioni di contatto fornite con l'acquisto.
