BONTANNY Red Light Therapy Device XL 400W User Manual

1. Informazioni importanti sulla sicurezza

AVVERTIMENTO: Please use the included eye protection when irradiating the face or eyes.

This device is intended for general wellness and relaxation. It is not intended to diagnose, treat, cure, or prevent any disease or health condition. Consult with a healthcare professional before using this device if you have any medical conditions or concerns.

Materiali: The device is constructed primarily from metal.

2. Prodotto finitoview

The BONTANNY Red Light Therapy Device XL 400W is designed to deliver targeted red and near-infrared light wavelengths for various wellness applications. It features 300 dual-chip LEDs, offering specific wavelengths of 660nm (red) and 850nm (near-infrared). The device includes a remote control and an intelligent operation panel for ease of use.

Caratteristiche principali:

• LED a doppio chip: 300 LEDs providing 660nm (red) and 850nm (near-infrared) wavelengths.
• Elevata irradianza: Delivers an impressive 118mW/cm² irradiation at 6 inches.
• Remote Control & Panel Operation: Easy setting of 3 modes and adjustable treatment times (1-30 minutes).
• Ampio angolo di fascio: Each LED boasts a 60-degree beam angle for even and widespread penetration.
• Utilizzo versatile: Suitable for various body areas, including face and body.
• Dimensioni: Approximately 37.4" x 13.7" x 2.6" (95cm x 35cm x 6.6cm).
• Peso: Circa 31.45 libbre (14.26 kg).

Figure 1: BONTANNY Red Light Therapy Device XL 400W.

3. Istruzioni per l'installazione

The BONTANNY Red Light Therapy Device XL 400W can be used in various configurations.

Disimballaggio:

1. Estrarre con cautela il dispositivo e tutti gli accessori dalla confezione.
2. Verify that all components are present: Red Light Therapy Device, power cord, remote control, hanging kit, and eye protection.
3. Inspect the device for any signs of damage during transit. If damaged, contact customer support immediately.

Opzioni di montaggio:

The device is designed to be used with a horizontal or vertical stand (sold separately) or can be hung using the included hanging kit.

• Utilizzo del supporto: If using a BONTANNY horizontal or vertical stand, follow the assembly instructions provided with the stand. Ensure the device is securely mounted.
• Hanging Kit: For wall or door mounting, use the provided hanging kit. Ensure the mounting surface is sturdy enough to support the device's weight (approximately 31.45 lbs / 14.26 kg).

Figure 2: The device supports both vertical and horizontal orientations with an optional stand (sold separately).

Figure 3: Compatible stands for the device, available in black and white (sold separately).

4. Istruzioni per l'uso

Pannello di controllo e telecomando:

The device can be operated using the intelligent control panel located on the side of the unit or via the included remote control. The remote control requires a 23A 12V battery (not included).

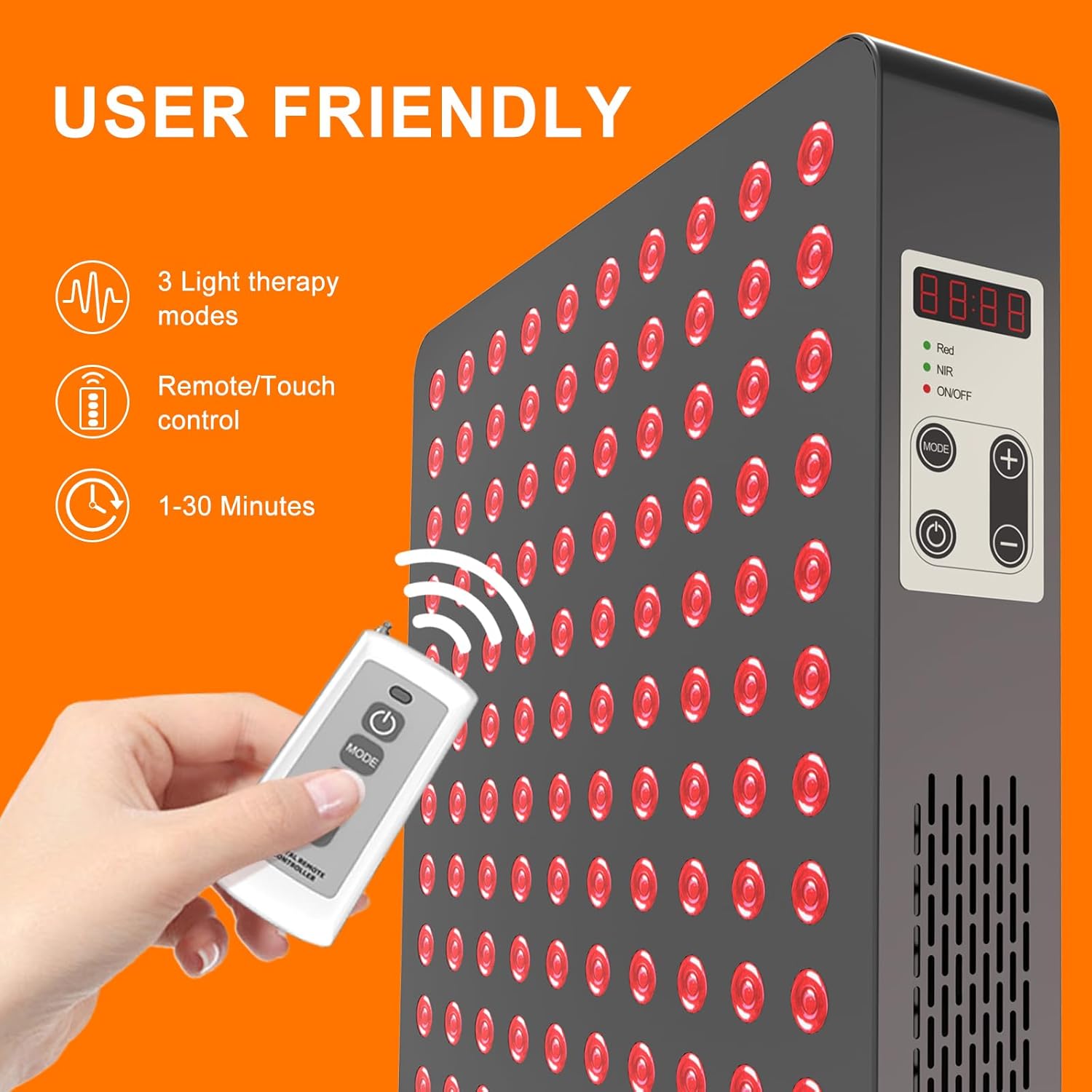

Figure 4: The device features a user-friendly control panel and remote for easy operation.

Funzionamento di base:

1. Accensione: Connect the power cord to the device and a suitable power outlet. Flip the main power switch located on the back of the panel. The fans will turn on, and the red lights will briefly illuminate before turning off.
2. Seleziona modalità: Use the "MODE" button on the control panel or remote to cycle through the 3 available light therapy modes:
   • Red Light (660nm) only
   • Near-Infrared Light (850nm) only
   • Red + Near-Infrared Light (660nm & 850nm)
3. Imposta timer: Use the "+" and "-" buttons on the control panel or remote to adjust the treatment time from 1 to 30 minutes.
4. Avvio/Arresto: Press the "ON/OFF" button to start or stop the light therapy session.
5. Protezione degli occhi: Always wear the provided eye protection during facial or eye area treatments.

5. Linee guida per l'utilizzo

For optimal results and safety, adhere to the following guidelines:

• Treatment Distance: Position yourself 16-24 inches (approximately 40-60 cm) from the device. Closer distances increase irradiance.
• Durata del trattamento: Recommended treatment sessions are 10-20 minutes. Do not exceed 30 minutes per session.
• Frequenza: Use the device daily or as recommended by a healthcare professional.
• Protezione degli occhi: Always wear the provided eye protection, especially when treating the face or eyes.
• Idratazione: Ensure adequate hydration before and after sessions.

Figure 5: Diagram illustrating irradiance levels and coverage at various distances from the device.

Figura 6: Esample of a user receiving red light therapy in a horizontal position.

Figura 7: Un altro example of a user receiving red light therapy in a horizontal position.

Figure 8: User performing light exercise near the red light therapy device.

6. Manutenzione

• Pulizia: Ensure the device is unplugged before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use abrasive cleaners or liquids directly on the LEDs.
• Magazzinaggio: Conservare il dispositivo in un luogo fresco e asciutto, lontano dalla luce solare diretta e dall'umidità quando non viene utilizzato.
• Raffreddamento: The metal case may become warm during operation. Allow the internal fans to run for a few minutes after use to cool down the unit before turning off the main power switch.

7. Risoluzione Dei Problemi

If you encounter issues with your BONTANNY Red Light Therapy Device, please refer to the following common solutions:

• Dispositivo non si accende:
  • Assicurarsi che il cavo di alimentazione sia collegato saldamente sia al dispositivo sia a una presa elettrica funzionante.
  • Check that the main power switch on the back of the device is in the "ON" position.
• Il telecomando non risponde:
  • Verify that a 23A 12V battery is correctly installed in the remote control.
  • Sostituire la batteria se è scarica.
  • Assicurarsi che non vi siano ostacoli tra il telecomando e il sensore del dispositivo.
• Luci non illuminate:
  • After powering on, the lights briefly flash then turn off. Use the "ON/OFF" button on the control panel or remote to start a session.
  • Ensure a mode (Red, NIR, or Red+NIR) and a timer duration have been selected.
• Calore eccessivo:
  • The device is designed with cooling fans. Ensure the vents on the sides are not obstructed.
  • Allow the fans to run for a few minutes after use to dissipate heat.

If the problem persists, please contact BONTANNY customer support.

8. Specifiche

Figura 9: Rappresentazione visiva delle dimensioni del prodotto e delle specifiche principali.

9. Garanzia e supporto

BONTANNY offers a 30-day testing period for this product, allowing you to evaluate its performance with peace of mind.

For any questions, technical assistance, or support needs, please contact BONTANNY customer service. Our team is dedicated to providing friendly and prompt assistance.

Informazioni sui contatti: Please refer to your purchase documentation or the BONTANNY official websito per i dettagli di contatto più aggiornati dell'assistenza clienti.
