1. Introduzione
This manual provides detailed instructions for the setup, operation, and maintenance of your UPERFECT 4K 15.6-inch Portable Monitor. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage. Keep this manual for future reference.
2. Prodotto finitoview
2.1 Caratteristiche principali
- Risoluzione 4K UHD (3840x2160): Delivers stunning, high-definition visuals.
- 100% AdobeRGB Color Gamut: Ensures accurate and vibrant color reproduction, suitable for professional use.
- High Contrast Ratio (1200:1) & Brightness (400 cd/m²): Provides deep blacks and bright whites for dynamic images.
- Pannello IPS: Offre un'ampia apertura di 178° viewangoli di inclinazione.
- Supporto HDR: Enhances dynamic range for more detailed visuals.
- Tecnologia FreeSync: Synchronizes refresh rates to reduce screen tearing and stuttering during gaming.
- Fast Response Time (3ms): Minimizes motion blur for smooth fast-paced content.
- Connettività versatile: Features 2x USB Type-C ports and 1x Mini HDMI port.
- Compatibile con montaggio VESA: Supports 75x75mm (M3*4mm) VESA standard for flexible mounting options.
- Lightweight Metal Body: Design durevole e portatile.
- Copertura intelligente: Doubles as a protective cover and adjustable stand.
2.2 Contenuto della confezione
Verificare che tutti gli articoli siano presenti nel pacco:
- UPERFECT 4K 15.6-inch Portable Monitor
- Smart Protective Cover
- Cavo da USB-C a USB-C
- Cavo da mini HDMI a HDMI
- Adattatore di alimentazione
- Manuale dell'utente (questo documento)
3. Impostazione
3.1 Utilizzo della Smart Cover come supporto
The included smart cover can be folded to act as a stand, allowing you to position the monitor at various viewangoli di inclinazione.
- Lay the monitor face down on a soft, clean surface.
- Fold the smart cover along its creases to form a triangular support.
- Place the monitor into the grooves of the folded cover to secure it in an upright position.
3.2 Collegamento a una fonte di alimentazione
The monitor requires external power for operation. Connect the provided power adapter to one of the USB Type-C ports on the monitor and then to a power outlet.
3.3 Connessione ai dispositivi
The monitor supports various devices via USB Type-C or Mini HDMI.
3.3.1 USB Type-C Connection (Full-Featured)
For devices with a full-featured USB Type-C port (supporting DisplayPort Alternate Mode and power delivery), a single USB-C to USB-C cable can transmit both video signal and power.
- Connect one end of the USB-C to USB-C cable to your device (e.g., laptop, smartphone).
- Connect the other end to either of the USB Type-C ports on the monitor.
- If the device cannot provide sufficient power, connect the monitor to an external power source using the provided power adapter.
3.3.2 Mini HDMI Connection
For devices with an HDMI output (e.g., PC, game console, Raspberry Pi), use the Mini HDMI port.
- Collega un'estremità del cavo Mini HDMI-HDMI alla porta HDMI del tuo dispositivo.
- Connect the Mini HDMI end to the Mini HDMI port on the monitor.
- Ensure the monitor is connected to an external power source using the provided power adapter.
Image: Monitor connected to a laptop, demonstrating an extended display setup.
Image: Monitor displaying a video game, connected to a console, highlighting its use as a portable gaming display.
4. Istruzioni per l'uso
4.1 Accensione/spegnimento
Press and hold the power button (usually located on the side or back of the monitor) for a few seconds to turn the monitor on or off. A short press typically activates or deactivates the On-Screen Display (OSD) menu.
4.2 Menu di visualizzazione su schermo (OSD)
The OSD menu allows you to adjust various display settings. Use the control buttons (joystick or individual buttons) on the monitor to navigate the menu.
4.2.1 Impostazioni OSD comuni
- Luminosità/Contrasto: Regola la luminosità complessiva e la differenza tra aree chiare e scure.
- Impostazioni colore: Modifica la temperatura del colore, la tonalità e la saturazione.
- Sorgente di input: Seleziona manualmente tra gli ingressi USB Type-C e Mini HDMI.
- Proporzioni: Choose between 16:9, 4:3, or other available options.
- Modalità HDR: Abilita o disabilita l'High Dynamic Range.
- Sincronizzazione libera: Enable or disable adaptive sync technology.
- Modalità di gioco: Activates optimized settings for gaming.
- Volume: Adjust audio output if using the monitor's built-in speakers or headphone jack.

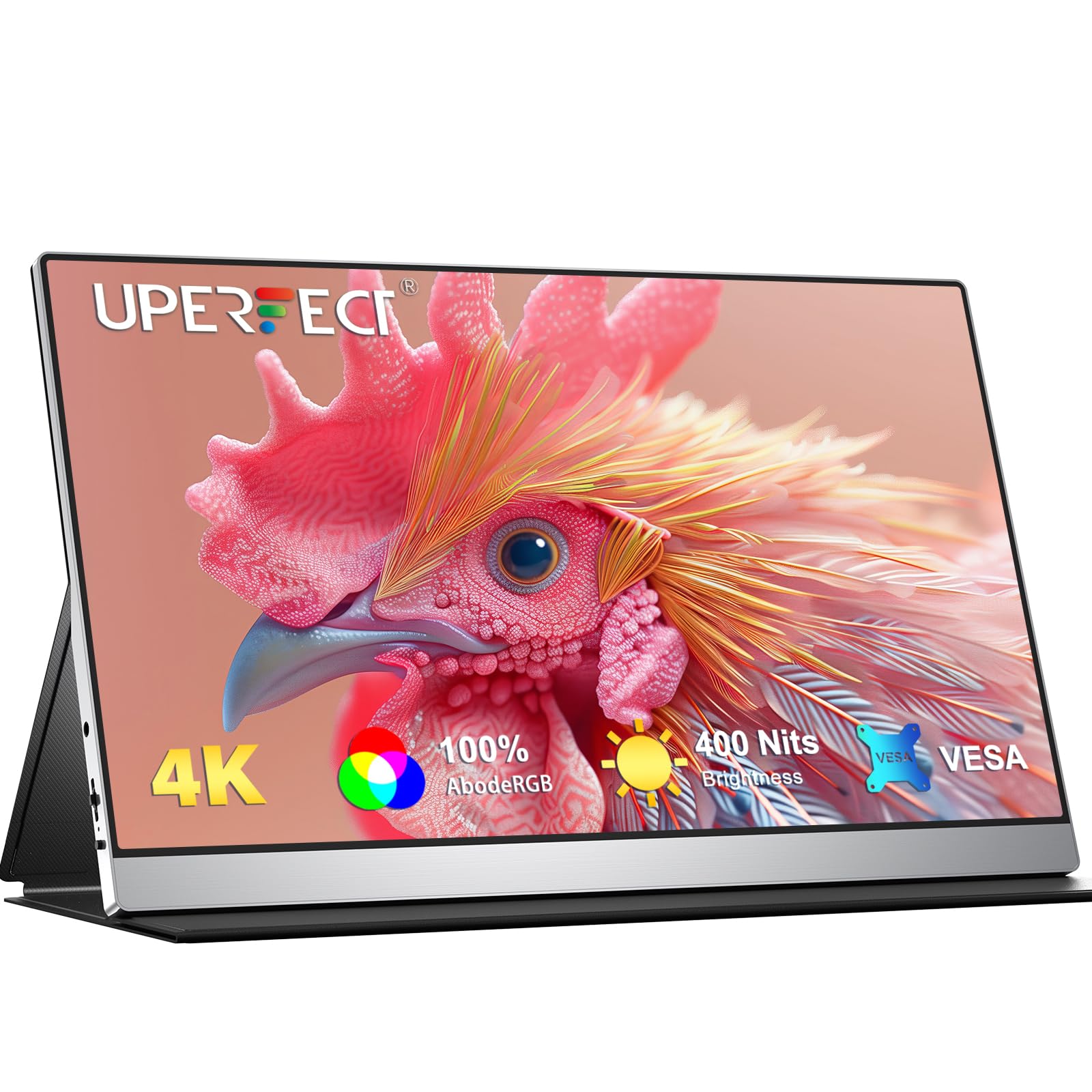

Immagine: Il monitor mostraasing its 4K UHD resolution, IPS viewing angle, and contrast ratio capabilities.
Image: Visual representation of the monitor's 1200:1 contrast ratio and 400 nits brightness for dynamic image details.
Image: Illustrates the monitor's 100% AdobeRGB color accuracy, ideal for color-critical applications.
5. Connessioni
The monitor is equipped with the following ports:
- 2 porte USB di tipo C: For video, audio, and power delivery (requires a full-featured USB-C port on the source device).
- 1 porta Mini HDMI: For video and audio input from HDMI-enabled devices.
- 1 jack audio da 3.5 mm: Per collegare cuffie o altoparlanti esterni.
Immagine: Primo piano view delle porte di connettività del monitor.
6. Montaggio VESA
The monitor features standard VESA mounting holes (75x75mm, M3*4mm screws) on the back, allowing it to be mounted on a compatible desk mount or wall mount.
- Assicurarsi che il monitor sia spento e scollegato da tutti i cavi.
- Carefully remove the smart cover if it is attached.
- Align the VESA mount bracket with the mounting holes on the back of the monitor.
- Secure the monitor to the bracket using M3*4mm screws (not included with the monitor, typically provided with the VESA mount). Do not overtighten.
- Mount the monitor assembly to your desired desk or wall mount.
Image: Illustration of VESA compatibility and mounting process.
7. Manutenzione
7.1 Pulizia dello schermo
Per pulire lo schermo del monitor, strofinarlo delicatamente con un panno morbido e privo di lanugine. Per macchie ostinate, strofinare leggermenteampImmergere il panno in acqua o in una soluzione detergente per schermi. Evitare l'uso di prodotti chimici aggressivi, alcol o materiali abrasivi.
7.2 Cura generale
- Evitare di posizionare oggetti pesanti sul monitor.
- Non esporre il monitor a temperature estreme, umidità o luce solare diretta.
- Use the smart cover to protect the screen during transport.
- Disconnect the power adapter during thunderstorms or when not in use for extended periods.
8. Risoluzione Dei Problemi
Se riscontri problemi con il monitor, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| No image/No signal | Sorgente di ingresso selezionata non corretta; Collegamento del cavo allentato; Potenza insufficiente; Dispositivo che non emette segnale. | Check cable connections; Select correct input source via OSD; Ensure monitor is powered; Verify device output settings. |
| Schermo tremolante | Faulty cable; Graphics driver issue; Refresh rate mismatch. | Replace cable; Update graphics drivers; Adjust refresh rate in device settings. |
| Il monitor non si accende | Nessuna alimentazione; adattatore di alimentazione difettoso. | Ensure power adapter is securely connected to monitor and outlet; Try a different power outlet. |
| Scarsa qualità dell'immagine | Incorrect resolution; OSD settings; Cable quality. | Set device resolution to 3840x2160; Adjust brightness, contrast, color in OSD; Use high-quality cables. |
9. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Marca | SUPERFETTO |
| Numero di modello | B0D3LXB44S |
| Dimensioni dello schermo | 15.6 pollici |
| Risoluzione | Risoluzione 3840 x 2160 (4K UHD) |
| Proporzioni | 1.77:1 (16:9) |
| Rapporto di contrasto | 1200:1 |
| Tempo di risposta | 3 millisecondi |
| Frequenza di aggiornamento | Frequenza 60 Hz |
| Tipo di visualizzazione | Informazione pubblica |
| Luminosità | 400 cd/m² |
| Gamma di colori | 100% AdobeRGB |
| Connettività | 2x USB Type-C, 1x Mini HDMI |
| Compatibilità VESA | 75x75mm (M3*4mm) |
| Dimensioni (PxWxH) | 22P x 36l x 1H cm |
| Sincronizzazione adattiva | Sincronizzazione gratuita |
Image: Italian Product Information Sheet with detailed technical data.
Image: EU Energy Label for the monitor, indicating energy efficiency. For more details, visit eprel.ec.europa.eu/qr/1803782.
10. Garanzia e supporto
10.1 Informazioni sulla garanzia
For specific warranty terms and conditions, please refer to the warranty card included with your product or contact the retailer where the product was purchased. Warranty coverage typically includes defects in materials and workmanship under normal use.
10.2 Assistenza clienti
If you require technical assistance, troubleshooting beyond this manual, or have questions about your product, please contact UPERFECT customer support. Contact details can usually be found on the official UPERFECT websito o sulla confezione del prodotto.
