This manual provides essential information for the Areyourshop Timing Chain Kit with Phasers. This kit is designed as a direct replacement for specific Ford and Lincoln vehicles, ensuring reliable engine timing and performance. It includes all necessary components for a comprehensive timing system overhaul.
Compatibilità:
- Ford F-150 with 3.5L Ecoboost (2017-2023)
- Spedizione Ford (2018-2023)
- Lincoln Navigatore (2018-2023)
Please verify your vehicle's exact year and model before proceeding with installation.

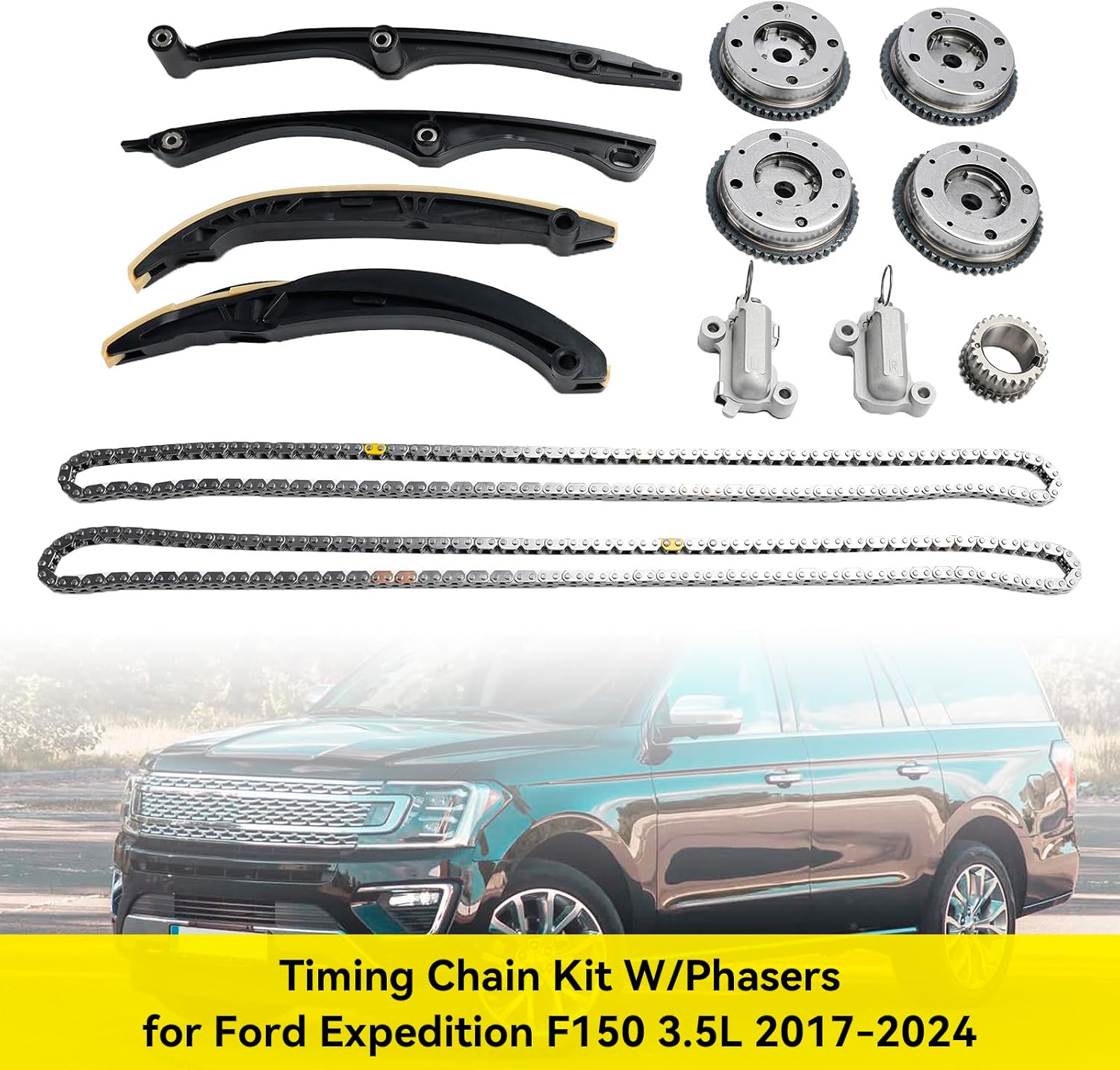

Image: Complete Areyourshop Timing Chain Kit, showing chains, phasers, tensioners, and guides.
Configurazione e installazione
Installation of a timing chain kit is a complex procedure that requires specialized tools and advanced mechanical knowledge. It is highly recommended that installation be performed by a certified professional technician.
Controlli pre-installazione:
- Verifica dei componenti: Ensure all components listed in the kit are present and undamaged. Refer to the product images for a visual check.
- Preparazione del veicolo: Disconnect the vehicle's battery. Allow the engine to cool completely.
- Engine Timing Marks: Familiarize yourself with the engine's timing marks and procedures specific to your vehicle model.
- Related Components: Inspect other engine components that interact with the timing system, such as the water pump, oil pump, and crankshaft/camshaft seals, for wear or damage. Replace as necessary.
Immagine: Un completo view of all timing chain kit components, including chains, phasers, tensioners, and guides, arranged for inspection.
Fasi di installazione (indicazioni generali):
- Safely lift and support the vehicle. Drain engine oil and coolant if necessary.
- Remove all necessary external engine components to access the timing cover (e.g., accessory belts, pulleys, engine mounts, valve covers, oil pan).
- Remove the timing cover.
- Carefully remove the old timing chain, guides, tensioners, and phasers. Note their original orientation.
- Install new timing chain guides and tensioners. Ensure proper torque specifications are met.
- Install the new timing chains and phasers, aligning all timing marks precisely according to the vehicle manufacturer's service manual. This step is critical for engine operation.
- Reinstall the timing cover with a new gasket and sealant as required.
- Reassemble all removed external engine components.
- Refill engine oil and coolant.
- Perform initial engine startup and check for proper operation, leaks, and any abnormal noises.
Always consult the specific service manual for your vehicle model for detailed, step-by-step installation instructions and torque specifications.
Funzionamento e funzione
The timing chain kit is a critical component of your engine's internal combustion system. It synchronizes the rotation of the crankshaft and camshafts, ensuring that the engine's valves open and close at the correct times in relation to the piston's position. This precise synchronization is essential for optimal engine performance, fuel efficiency, and emissions control.
The phasers (variable valve timing actuators) included in this kit allow for dynamic adjustment of camshaft timing. This technology optimizes valve overlap and lift for various engine speeds and loads, improving power delivery and fuel economy across the RPM range.
Image: Illustrative diagram showing the timing chain connecting the crankshaft and camshaft phasers, demonstrating the synchronized movement.
Manutenzione
Timing chain kits are designed for long-term durability. However, proper engine maintenance is crucial for their longevity and performance.
- Cambi d'olio regolari: Adhere to your vehicle manufacturer's recommended oil change intervals using the specified oil type. Clean engine oil is vital for the proper lubrication of the timing chain and the hydraulic operation of the phasers and tensioners.
- Oil Level Monitoring: Regularly check and maintain the correct engine oil level. Low oil levels can lead to insufficient lubrication and premature wear of timing components.
- Ascolta i rumori anomali: Pay attention to any unusual noises from the engine, especially rattling or ticking sounds from the front of the engine, which could indicate timing chain wear or tensioner issues.
- Ispezione professionale: During routine vehicle servicing, have a qualified technician inspect the engine for any signs of timing system issues.
Image: Detailed close-up of the timing chain links, highlighting the robust construction designed for durability.
Risoluzione dei problemi
If you experience any of the following symptoms after installation or during vehicle operation, it may indicate an issue with the timing chain system. Professional diagnosis is recommended.
| Sintomo | Possibile causa | Azione |
|---|---|---|
| Engine rattling or ticking noise (especially on startup) | Worn timing chain, faulty tensioner, low oil pressure. | Check engine oil level and quality. Consult a professional for diagnosis. |
| Check Engine Light (CEL) with P0011, P0012, P0021, P0022 codes | Camshaft position timing over-advanced/retarded, often related to phaser issues or oil pressure. | Scan for diagnostic trouble codes. Professional diagnosis and repair are required. |
| Reduced engine performance, misfires, rough idle | Incorrect timing, worn components, or issues with phaser operation. | Seek professional diagnosis immediately to prevent further engine damage. |
| Engine fails to start or cranks but doesn't start | Severe timing chain failure (e.g., broken chain, jumped timing). | Do not attempt to start the engine. This indicates a major issue requiring immediate professional attention. |
Note: Attempting to diagnose or repair complex engine timing issues without proper training and tools can lead to further damage. Always consult a qualified mechanic.
Specifiche
Key specifications for the Areyourshop Timing Chain Kit with Phasers:
- Produttore: Areyourshop
- Marca: Areyourshop
- Peso dell'articolo: 12.54 libbre
- Dimensioni del prodotto: 14.57 x 11.02 x 3.15 pollici
- Codici articolo del produttore: HL3Z6268A, HL3Z6B274A, HL3Z6B274B
- Numeri di parte OEM (riferimento incrociato): HL3Z6268A, HL3Z6B274A, HL3Z6B274B, HL3Z6K255A, HL3Z6K255B, HL3Z6L266A, HL3Z6L266C, ML3Z6C525A, ML3Z6256A
- Compatibilità: Ford F-150 (3.5L Ecoboost 2017-2023), Ford Expedition (2018-2023), Lincoln Navigator (2018-2023)
- Materiale: High-quality, durable materials designed for automotive applications.
Immagine: dettagliata view of the timing phasers, showing their intricate design and gear teeth.
Garanzia e supporto
This Areyourshop product is an aftermarket component designed to meet or exceed OEM specifications. For specific warranty details, please refer to the warranty information provided by Areyourshop at the time of purchase or contact their customer service directly.
Politica di ritorno: As per standard retail policy, returns are typically accepted within 30 days of purchase for refund or replacement, subject to seller's terms and conditions.
Assistenza clienti: For technical assistance, installation queries, or warranty claims, please contact Areyourshop customer support through their official website or the retailer from whom the product was purchased. Provide your product model number and purchase details for efficient service.
Risorse online: Per ulteriori informazioni o per view other products, visit the official Areyourshop store on Amazon: Areyourshop Store
