Aheaplus 67-inch Tall Bar Cabinet with Power Outlets and LED Lights User Manual

Introduzione

This manual provides detailed instructions for the assembly, setup, operation, and maintenance of your Aheaplus 67-inch Tall Bar Cabinet. Please read this manual thoroughly before assembly and use to ensure proper function and safety. Keep this manual for future reference.

Informazioni sulla sicurezza

AVVERTIMENTO:

• Ensure the cabinet is properly installed and secured to avoid tipping. Anti-toppling fittings are included and must be used.
• Do not exceed the weight capacity of the shelves. Refer to the specifications section for details.
• Keep electrical appliances away from water to prevent electric shock.
• Always unplug the power strip before cleaning or performing any maintenance.
• Non permettere ai bambini di arrampicarsi o giocare con il mobile.

Contenuto della confezione

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact Aheaplus customer support.

• All cabinet panels (MDF board)
• Componenti del telaio in metallo
• Kit ferramenta (viti, tasselli, serrature a camma, ecc.)
• Power strip with 3 AC outlets and 2 USB ports
• Striscia luminosa a LED con telecomando
• Wine glass holders
• Cuscinetti regolabili per le gambe
• Raccordi antiribaltamento
• Strumenti di montaggio (ad esempio, chiave a brugola)

Figure 1: Fully assembled Aheaplus Bar Cabinet, showcasinil suo design e le sue caratteristiche.

Istruzioni di montaggio

Assembly typically requires two people and can take several hours. Follow the numbered steps carefully. Do not overtighten screws.

1. Disimballare e identificare le parti: Lay out all components on a clean, soft surface to prevent scratches. Identify each part using the provided labels and the parts list.
2. Montare il telaio di base: Connect the metal frame components for the base cabinet using the designated screws. Ensure all connections are secure.
3. Fissare i pannelli laterali: Secure the side panels of the lower cabinet to the assembled base frame.
4. Installare il pannello posteriore: Fasten the back panel to the lower cabinet structure.
5. Inserire ripiani regolabili: Place the adjustable shelves into the lower cabinet. Adjust their height as desired.
6. Porte di collegamento: Mount the cabinet doors to the lower cabinet using the provided hinges. Ensure they open and close smoothly.
7. Assemble Upper Hutch Frame: Construct the metal frame for the upper hutch, similar to the base frame.
8. Attach Upper Hutch Panels: Secure the panels for the upper hutch to its frame.
9. Installare i ripiani superiori: Place the open shelves in the upper hutch.
10. Mount Wine Glass Holders: Attach the wine glass holders to the underside of the top shelf in the upper hutch.
11. Connect Upper Hutch to Base: Carefully lift and secure the assembled upper hutch onto the lower cabinet. Use the specified connectors to ensure stability.
12. Installare la ciabatta elettrica: Integrate the power strip into the designated slot on the countertop or shelf. Ensure the cable is routed safely.
13. Collegare luci LED: Adhere the LED light strip to the desired location, typically under shelves or along the top frame.
14. Installare i cuscinetti regolabili per le gambe: Screw the adjustable leg pads into the bottom of the cabinet legs. Adjust them to level the cabinet on uneven floors.
15. Raccordi antiribaltamento sicuri: Attach the anti-toppling hardware to the top rear of the cabinet and secure it to a wall stud using appropriate wall anchors. This step is critical for safety.

Figure 2: Illustration of the adjustable storage shelves, highlighting flexibility for various items.

Impostare

1. Posizionamento: Choose a stable, level surface for the cabinet. Ensure it is not in a high-traffic area where it could be easily bumped.
2. Livellamento: Use the adjustable leg pads to ensure the cabinet is perfectly level. This prevents wobbling and ensures doors close properly.
3. Collegamento elettrico: Plug the cabinet's power cord (6.56 ft long) into a standard wall outlet.
4. Anti-Toppling Securement: Double-check that the anti-toppling fittings are securely anchored to the wall.

Istruzioni per l'uso

Prese di corrente e porte USB

Figura 3: primo piano view of the integrated power strip with AC outlets and USB ports.

• The cabinet is equipped with 3 AC outlets (120V/12A) and 2 USB ports (5V/2A).
• Plug in small kitchen appliances like coffee makers, juicers, or microwave ovens into the AC outlets.
• Use the USB ports to charge mobile devices or other USB-powered accessories.
• Do not overload the power strip. Refer to the maximum wattage rating if available.

Funzionamento delle luci a LED

Figure 4: The bar cabinet illuminated by RGB LED lights, demonstrating various color and mode options.

• The built-in RGB LED lights offer over 60,000 colors and multiple flashing modes.
• Control the lights using the provided remote control or a compatible smartphone application (if applicable, check product packaging for app details).
• Funzione di sincronizzazione musicale: The LED lights can change color with the rhythm of sound and music. Activate this feature via the remote or app.
• Funzione di temporizzazione: Imposta i timer per l'accensione e lo spegnimento automatico delle luci.

Manutenzione

• Pulizia: Pulire le superfici con un panno morbido, damp panno. Evitare prodotti chimici aggressivi o detergenti abrasivi che potrebbero danneggiare la finitura.
• Spolverare: Spolverare regolarmente il mobile per evitare accumuli di polvere.
• Controllo hardware: Controllare periodicamente tutte le viti e i collegamenti per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
• Componenti elettrici: Assicurarsi che la ciabatta e le luci a LED siano prive di polvere e detriti. Non tentare di riparare autonomamente i componenti elettrici.

Risoluzione dei problemi

Specifiche

• Marca: Aheaplus
• Modello: AHEAPLUS-67-TALL-WINE-BAR-CAB-12e42a6c1c
• Colore: Nero
• Dimensioni (L x P x A): 26.9"P x 15.7"L x 66.9"A
• Materiale: High-quality MDF board, rugged metal frame
• Numero di ripiani: 4 (regolabile)
• Prese di corrente: 3 prese CA (120 V/12 A)
• Porte USB: 2 porte USB (5 V/2 A)
• Lunghezza del cavo di alimentazione: 6.56 piedi
• Luci LED: RGB, over 60,000 colors, multiple modes, music sync, timing function
• Caratteristiche speciali: Built-in USB Outlet, LED Light, Adjustable Feet, Wine Glass Holders, Anti-toppling fittings
• Assemblaggio richiesto: SÌ

Figure 5: Detailed product dimensions for the Aheaplus Bar Cabinet.

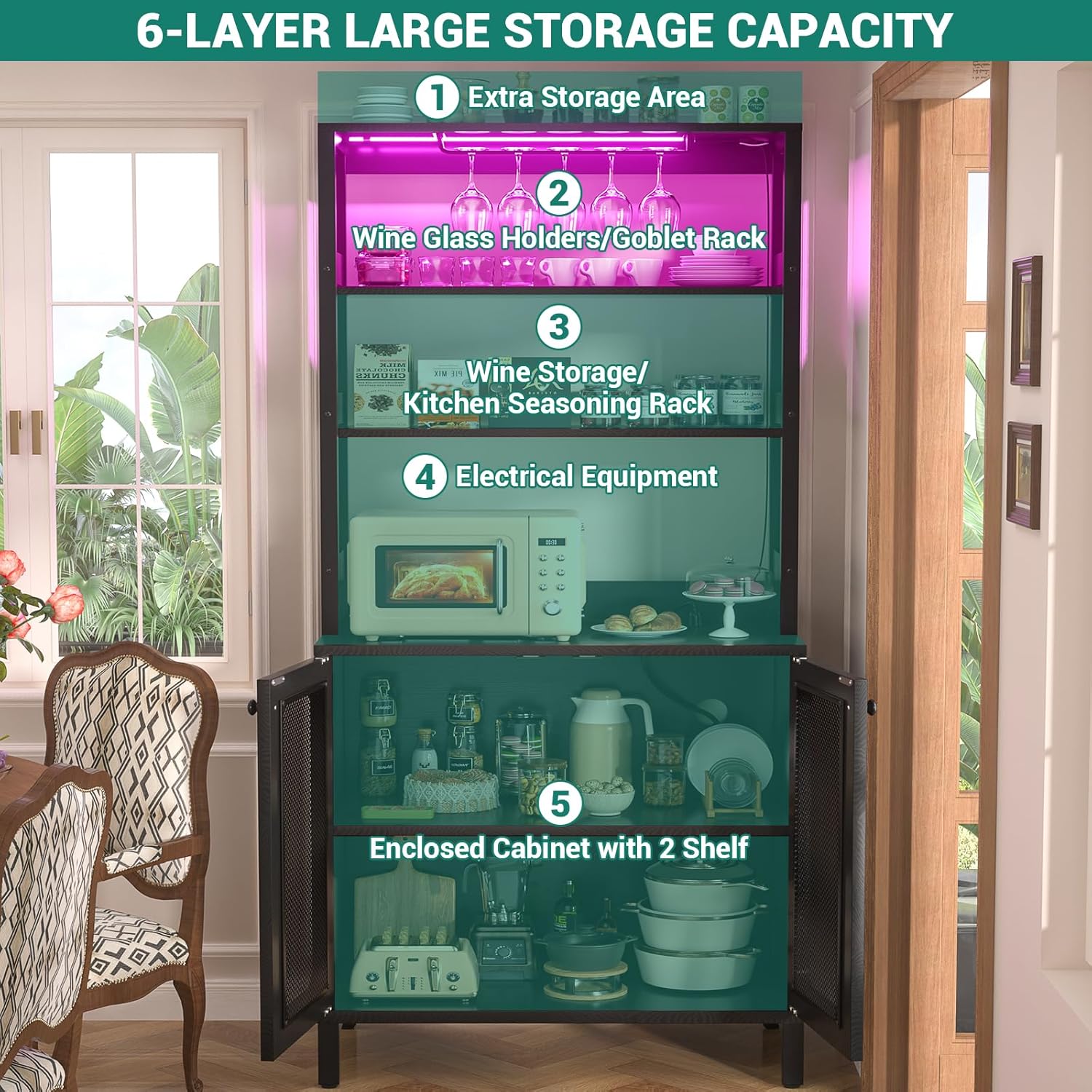

Figure 6: Diagram illustrating the 6-layer storage capacity and organization of the cabinet.

Garanzia e supporto

Aheaplus products are designed for quality and durability. For any questions, missing parts, or issues not covered in this manual, please contact Aheaplus customer support. Please have your model number and purchase information ready when contacting support.
