Introduzione
Welcome to the OLEVS WD-S-G9809G-JL Stainless Steel Quartz Watch for Men. This manual provides essential information for the proper setup, operation, maintenance, and care of your new timepiece. Please read these instructions carefully to ensure optimal performance and longevity of your watch.
Informazioni sulla sicurezza
- Evitare di esporre l'orologio a temperature estreme (calde o fredde) per periodi prolungati.
- Tenere l'orologio lontano da forti campi magnetici, poiché potrebbero compromettere la precisione del movimento al quarzo.
- Do not expose the watch to harsh chemicals, solvents, or detergents, which can damage the case, strap, or internal components.
- Dopo aver impostato l'ora/data, assicurarsi che la corona sia completamente premuta per mantenere l'impermeabilità.
Impostare
1. Impostazione di ora e data
- Per impostare la data: Gently pull the crown out to the first click position. Turn the crown clockwise or counter-clockwise until the correct date is displayed.
- Per impostare l'ora: Pull the crown out to the second click position. Turn the crown to move the hands clockwise until the desired time is set. For watches with a date function, ensure you pass 12 AM to change the date if setting for the next day.
- Once the time and date are set, push the crown back in completely to its original position.
2. Regolazione del cinturino
The stainless steel strap can be adjusted to fit your wrist comfortably. Your watch comes with a specialized tool for this purpose. To adjust, locate the pins on the inside of the strap links. Use the provided tool to push out the pins in the direction of the arrow on the link, remove the desired number of links, and then reassemble by pushing the pins back in.

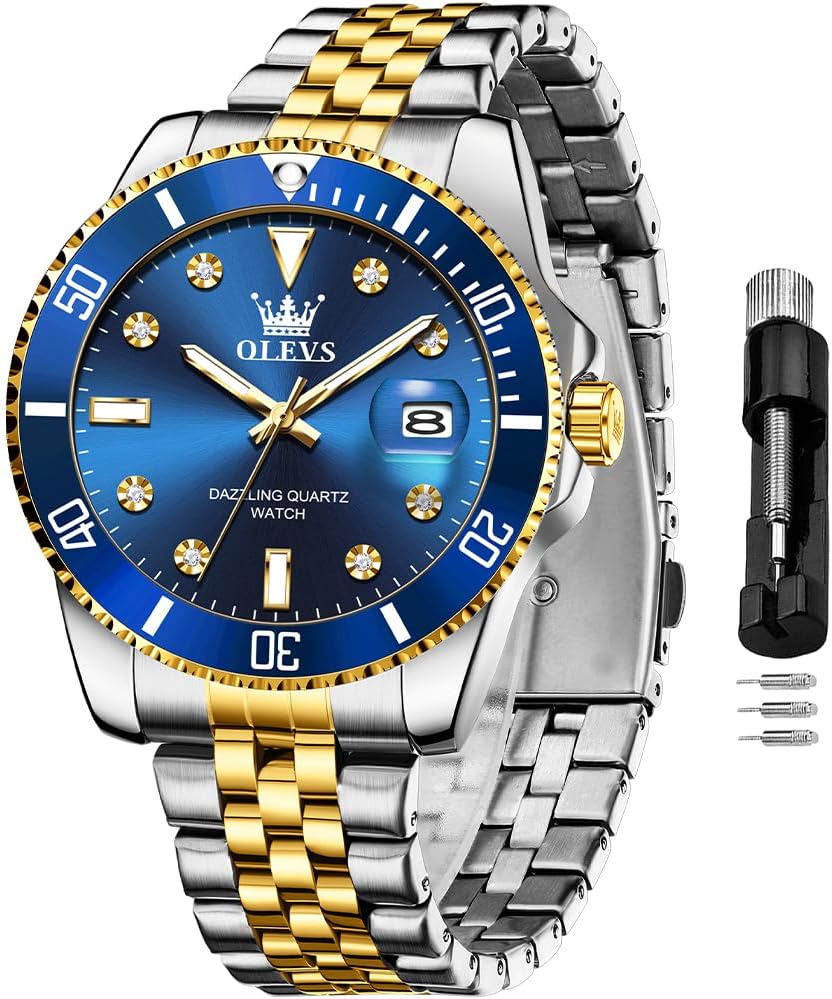

This image displays the OLEVS watch alongside the included strap adjustment tool, which is used to remove or add links for a customized fit.
Funzionamento dell'orologio
1. Indossare l'orologio
Ensure the watch is worn snugly but comfortably on your wrist. The folding clasp provides a secure fit. A proper fit prevents excessive movement and potential damage.
2. Funzione luminosa
The hands and hour markers of your OLEVS watch feature a luminous coating. After exposure to light, these elements will glow in dark environments, allowing for easy time reading. The intensity and duration of the glow depend on the exposure time and intensity of the light source.
This image illustrates the luminous hands and hour markers of the OLEVS watch, glowing in a dark environment for enhanced visibility.
Manutenzione
1. Pulizia
- Pulire regolarmente la cassa e il cinturino dell'orologio con un panno morbido e asciutto per rimuovere polvere e sporco.
- Per le parti in acciaio inossidabile, una leggera damp è possibile utilizzare un panno e procedere immediatamente all'asciugatura.
- Avoid using abrasive materials or harsh cleaning agents.
2. Linee guida sulla resistenza all'acqua
Your OLEVS watch is rated for 30 meters (3ATM) of water resistance. This means it is suitable for daily use, such as splashes, rain, and handwashing. It is non suitable for showering, bathing, swimming, diving, or any water sports where the watch might be submerged or exposed to high-pressure water.
This image shows the OLEVS watch partially submerged in water, demonstrating its 30-meter water resistance suitable for splashes and rain.
3. Sostituzione della batteria
The watch is powered by an original imported quartz movement. When the battery needs replacement, it is recommended to take the watch to a qualified watchmaker or service center. Attempting to replace the battery yourself may void the warranty or damage the watch's water resistance seal.
Risoluzione dei problemi
- Orologio non in funzione: Controllare che la corona sia completamente inserita. Se l'orologio continua a non funzionare, potrebbe essere necessario sostituire la batteria.
- Data non cambia: Ensure the time is set correctly, passing 12 AM for the date to advance. If the date changes at noon, the time is set for PM instead of AM. Adjust accordingly.
- Condensa all'interno dell'orologio: Ciò indica una perdita di resistenza all'acqua. Evitare ulteriori contatti con l'acqua e rivolgersi immediatamente a un tecnico specializzato.
- Disagio dovuto al cinturino: Re-adjust the strap using the provided tool to ensure a comfortable fit.
Specifiche
| Caratteristica | Specificazione |
|---|---|
| Modello di marca | OLEVS/9809 (WD-S-G9809G-JL) |
| Movimento | Quarzo originale |
| Funzione | Cronometraggio, visualizzazione della data |
| Ombreggiatura speculare | Rivestimento ad alta durezza |
| Materiale della fascia | Acciaio inossidabile (catena per orologio con trama) |
| Fibbia per orologio | Fibbia pieghevole |
| Grado di impermeabilità | 30 metri (3 ATM) |
| Peso | 114g |
| Diametro della cassa | 40 mm / 1.57 pollici |
| Spessore della cassa | 12 mm / 0.47 pollici |
| Larghezza della cinghia | 20 mm / 0.78 pollici |
| Watch Circumference | 20 cm / 7.87 pollici |
This diagram provides detailed product parameters for the OLEVS watch, including case diameter, case thickness, strap width, and watch circumference.
Garanzia e supporto
OLEVS provides a commitment to quality for its products. If you encounter any issues with your OLEVS watch after purchase, please contact the seller through the Amazon platform. They will assist with troubleshooting or provide information regarding returns or refunds as per their policy.
For general inquiries or support, please refer to the OLEVS brand store on Amazon or contact their customer service as indicated on the product packaging or official websito.
