1. Introduzione

This instruction manual provides detailed information for the ALPGEN Headlight Head Light Lamp Column Switch, designed as a direct replacement for original equipment. This switch integrates control for headlights, parking lights, and turn signals, ensuring essential vehicle lighting functions. Please read this manual thoroughly before installation and operation to ensure correct usage and safety.

2. Informazioni sulla sicurezza

Always prioritize safety when working on vehicle electrical systems. Failure to follow these guidelines may result in personal injury or damage to the vehicle.

• Scollegare la batteria: Before beginning any installation, disconnect the vehicle's negative battery terminal to prevent electrical shock or short circuits.
• Installazione professionale consigliata: Se non si ha esperienza con gli impianti elettrici per autoveicoli, si consiglia vivamente di rivolgersi a un professionista per l'installazione.
• Indossare dispositivi di protezione: Always wear appropriate safety glasses and gloves during installation.
• Maneggiare con cura: Avoid dropping or subjecting the switch to impact, as this may damage internal components.

3. Compatibilità

This headlight column switch is designed to be compatible with specific vehicle models and years. Please verify your vehicle's make, model, and year against the list below and cross-reference with the OEM part numbers.

Numeri di parte OEM:

• 25540-5M000
• 255405M000

Modelli di veicoli compatibili:

4. Contenuto della confezione

All'apertura della confezione, assicurarsi che tutti i componenti siano presenti e integri.

• 1 x ALPGEN Headlight Head Light Lamp Column Switch (Model: YAN-240709)

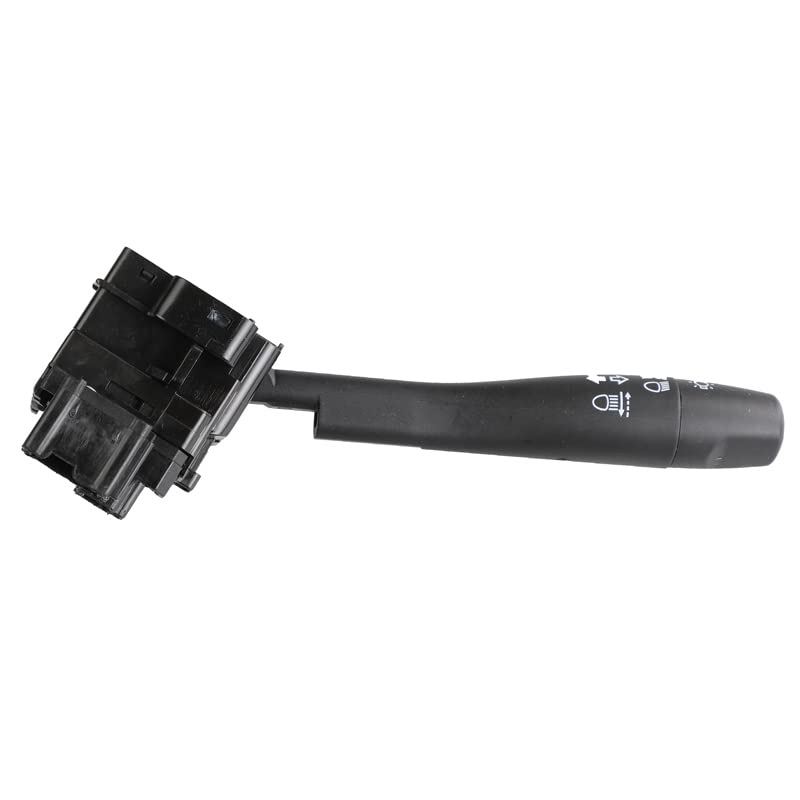

Figure 4.1: The ALPGEN Headlight Head Light Lamp Column Switch, showing its overall design and lever.

5. Configurazione e installazione

This section outlines the general steps for replacing a headlight column switch. Specific procedures may vary by vehicle model. Refer to your vehicle's service manual for detailed instructions.

1. Preparare il veicolo: Park the vehicle on a level surface, engage the parking brake, and turn off the ignition.
2. Scollegare la batteria: Using a wrench, disconnect the negative (-) terminal from the vehicle's battery. This is a critical safety step.
3. Accesso al piantone dello sterzo: Depending on your vehicle, you may need to remove plastic covers around the steering column. This usually involves unscrewing fasteners and carefully prying the covers apart.
4. Locate and Disconnect Old Switch: Identify the existing headlight column switch. It will be mounted to the steering column and connected by electrical harnesses. Carefully disconnect all electrical connectors by pressing release tabs and pulling.
5. Rimuovi il vecchio interruttore: The switch is typically held in place by screws or clips. Remove these fasteners and carefully slide the old switch out of its mounting position.
6. Installa nuovo switch: Align the new ALPGEN switch with the mounting points on the steering column. Secure it with the screws or clips removed earlier. Ensure it is seated firmly.
7. Connect Electrical Harnesses: Reconnect all electrical connectors to the new switch. Ensure they click into place securely.
8. Reassemble Steering Column Covers: Carefully reattach the steering column covers, ensuring all fasteners are tightened.
9. Ricollegare la batteria: Ricollegare il terminale negativo (-) della batteria.
10. Funzionalità di prova: Turn on the ignition (do not start the engine yet) and test all functions of the new switch: headlights (low and high beam), parking lights, and turn signals (left and right). Ensure all lights illuminate correctly and the turn signals flash as expected.

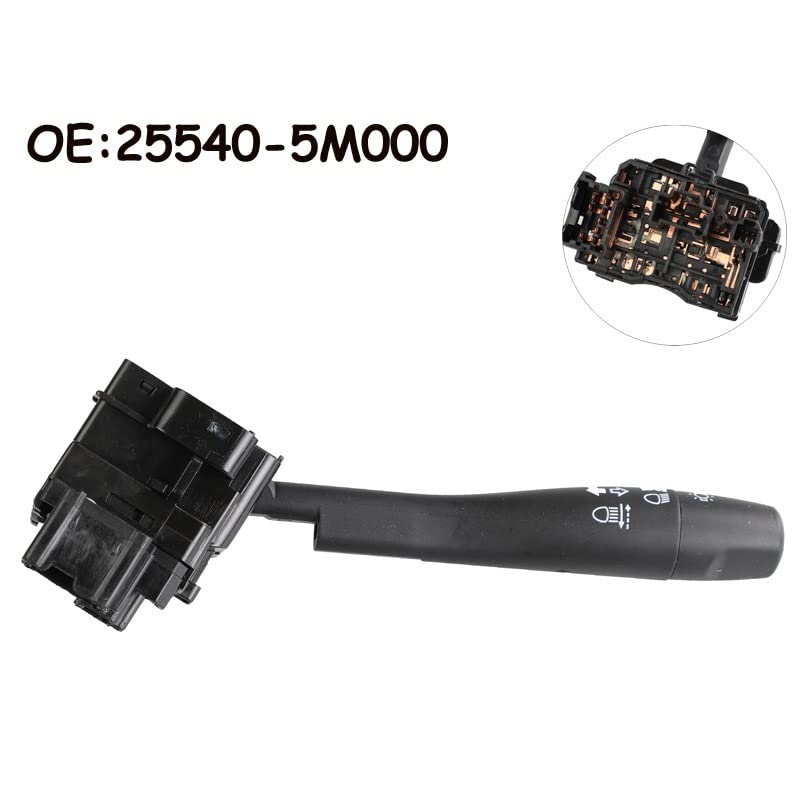

Figure 5.1: The headlight switch with its OEM part number clearly visible, aiding in identification and proper replacement.

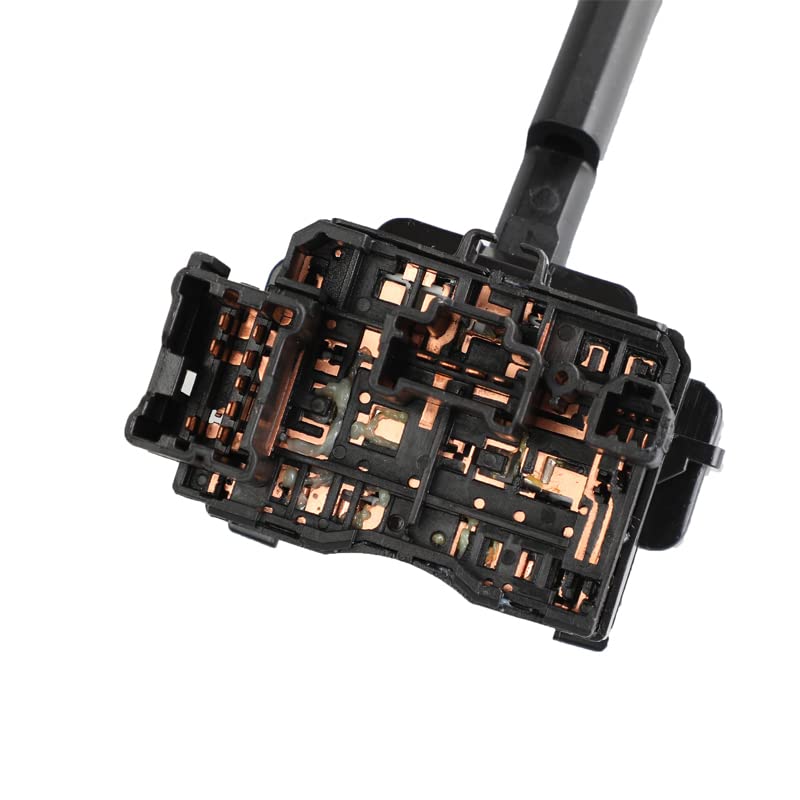

Figura 5.2: Un primo piano view of the electrical connectors on the headlight switch, showing the intricate pin layout for proper connection.

6. Istruzioni per l'uso

The ALPGEN Headlight Head Light Lamp Column Switch provides intuitive control over your vehicle's lighting system.

• Controllo fari:
  • Rotate the outer ring of the switch to select lighting modes:
  • OFF: All lights are off (unless automatic daytime running lights are active).
  • Luci di parcheggio: Activates front parking lights, taillights, and license plate lights.
  • Headlights ON: Activates low beam headlights, parking lights, taillights, and license plate lights.
• Controllo abbaglianti:
  • With headlights ON, push the lever forward (away from you) to engage high beams.
  • Pull the lever back (towards you) to disengage high beams and return to low beams.
  • Pull the lever momentarily towards you and release for a "flash-to-pass" signal.
• Turn Signal Control:
  • Push the lever up for a right turn signal.
  • Push the lever down for a left turn signal.
  • The lever will automatically return to the center position after completing a turn. For lane changes, partially move the lever up or down and release; it will flash a few times and then turn off.

Figure 6.1: The control lever of the switch, showing the symbols for headlight settings (OFF, parking lights, headlights ON) and turn signals.

7. Manutenzione

The ALPGEN Headlight Head Light Lamp Column Switch is designed for durability and requires minimal maintenance. Following these simple guidelines can help ensure its longevity:

• Mantenere pulito: Periodically wipe the exterior of the switch with a soft, dry cloth to remove dust and grime. Avoid using harsh chemicals or abrasive cleaners, as they may damage the plastic or markings.
• Evitare l'esposizione ai liquidi: Do not allow liquids to spill onto or into the switch, as this can cause electrical shorts or corrosion.
• Operazione delicata: Operate the lever and rotary switch with gentle, firm movements. Avoid excessive force, which could lead to premature wear or damage.
• Controllo funzionale regolare: Occasionally test all functions of the switch (headlights, high beams, turn signals) to ensure they are operating correctly.

8. Risoluzione Dei Problemi

If you encounter issues with your ALPGEN Headlight Head Light Lamp Column Switch, refer to the following common problems and solutions. For complex issues, professional assistance is recommended.

Se le procedure di risoluzione dei problemi non risolvono il problema, si consiglia di consultare un tecnico automobilistico qualificato.

9. Specifiche

Detailed technical specifications for the ALPGEN Headlight Head Light Lamp Column Switch.

• Marca: ALPGEN
• Numero modello: YAN-240709
• Numeri di parte OEM: 25540-5M000, 255405M000
• Dimensioni della confezione: 1.18 x 0.79 x 0.39 pollici
• Peso dell'articolo: 1.76 once
• Colore: Un colore (nero)
• Numero di articoli: 1
• Dipartimento: Unisex Adulto
• Prima data disponibile: 9 luglio 2024

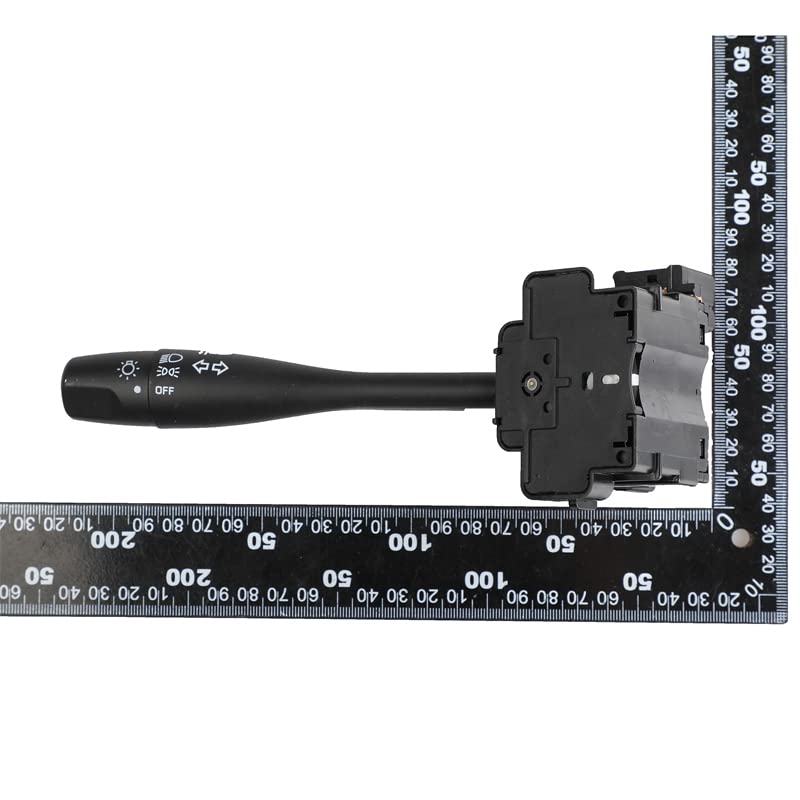

Figure 9.1: The headlight switch shown alongside a ruler, providing a visual reference for its dimensions and compact size.

10. Informazioni sulla garanzia

ALPGEN products are manufactured to high standards. For specific warranty terms and conditions, including coverage duration and claim procedures, please refer to the seller or manufacturer's official websito. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.

11. Supporto e informazioni di contatto

For technical assistance, installation queries, or any other support needs regarding your ALPGEN Headlight Head Light Lamp Column Switch, please contact your retailer or the manufacturer directly. Provide your product model number (YAN-240709) and OEM part numbers (25540-5M000, 255405M000) when seeking support to expedite assistance.

For general inquiries, you may also visit the ALPGEN brand page on Amazon: ALPGEN Brand Store
