1. Introduzione
Thank you for choosing the PZLVAME High Power Binoculars 20-180X100. These binoculars are designed for a wide range of outdoor activities, offering a powerful 20-180x magnification and a large 70mm objective lens for bright and clear viewing. They are suitable for bird watching, travel, stargazing, hunting, concerts, camping, ed escursionismo.
Key features include a fully multi-coated optical system for enhanced light transmission, BAK7 prisms for clear images, and a waterproof design for durability in various environments. This manual provides detailed instructions for the proper setup, operation, and maintenance of your binoculars to ensure optimal performance and longevity.
Image 1.1: PZLVAME High Power Binoculars 20-180X100, showcasing il loro design robusto.
2. Caratteristiche del prodotto
- High Power Magnification: 20-180x zoom magnification for versatile viewing from wide landscapes to distant details.
- Lente obiettivo grande: 70mm objective lens for maximum light gathering, providing bright images even in low light conditions.
- Fully Multi-Coated (FMC) Lenses: Multiple layers of anti-reflective coatings on all air-to-glass surfaces ensure high light transmission (99.5%) and sharp, clear images with true color fidelity.
- BAK7 Prisms: High-quality BAK7 prisms enhance image brightness and clarity.
- Ampio campo di View: Offers a field of view of 183 ft to 3280 ft, suitable for tracking moving subjects.
- Design impermeabile: Prevents moisture, dust, and debris from entering the binoculars, making them suitable for various outdoor environments.
- Design ergonomico: Features a smooth center focusing wheel and anti-slip rubber coating for comfortable and secure handling.
- Adattabile al treppiede: Includes a built-in tripod adapter nut for stable, extended viewsessioni di ing.
Image 2.1: Diagram highlighting key professional features including 18mm eyepiece, 70mm ocular lens, waterproof construction, FMC lenses, and BAK7 prism.
Image 2.2: Comparison illustrating the superior image brightness and contrast achieved with fully multi-coated (FMC) lenses compared to single-coated lenses.
3. Impostazione
- Disimballaggio: Carefully remove the binoculars and all accessories from the packaging. Check for any damage.
- Fissaggio del cinturino: Infilare la tracolla in dotazione negli appositi passanti ai lati del binocolo. Assicurarsi che sia ben fissata per evitare cadute accidentali.
- Regolazione della distanza interpupillare (IPD): Tieni il binocolo all'altezza degli occhi. Regola la distanza tra i due barilotti avvicinandoli o allontanandoli finché non vedi un unico campo circolare chiaro di viewIn questo modo si garantisce che entrambi gli occhi siano allineati con il percorso ottico.
- Regolazione diottrica:
- Chiudi l'occhio destro o copri la lente dell'obiettivo destro.
- Look through the binoculars with your left eye at a distant object. Rotate the center focus wheel until the image is sharp and clear.
- Chiudi l'occhio sinistro o copri la lente dell'obiettivo sinistro.
- Look through the binoculars with your right eye. Rotate the diopter adjustment ring (usually on the right eyepiece) until the image is sharp. Do not adjust the center focus wheel during this step.
- Now, with both eyes open, the image should be clear. For future use, you will only need to adjust the center focus wheel.
- Montaggio su treppiede (opzionale): Per esteso viewing or maximum stability, especially at higher magnifications, you can mount the binoculars on a tripod. Locate the tripod adapter nut (usually under a cap on the front hinge) and attach a compatible tripod adapter (not included).

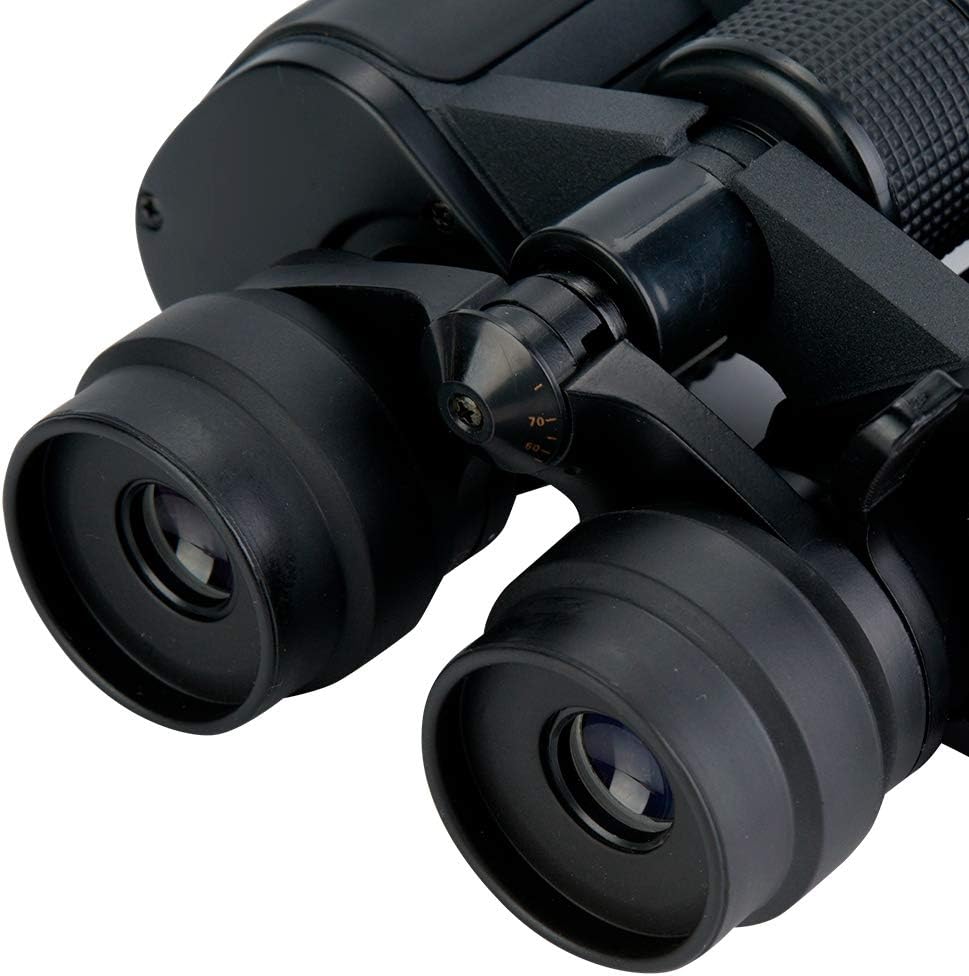

Immagine 3.1: Primo piano view of the eyepieces and center focus wheel, illustrating the components used for diopter and focus adjustments.
4. Operativo
- Tenere il binocolo: Hold the binoculars firmly with both hands. For best stability, brace your elbows against your body or use a tripod.
- Viewcreare un oggetto: Point the binoculars towards the object you wish to observe. Look through the eyepieces.
- Messa a fuoco: Once the interpupillary distance and diopter are set (as described in Section 3), use the center focus wheel to bring the image into sharp focus for both eyes.
- Regolazione dello zoom: These binoculars feature a variable zoom. To change the magnification, rotate the zoom lever or ring (if present) on the eyepiece assembly. Start at a lower magnification for a wider field of view to locate your subject, then zoom in for more detail.
- Campo di View: The binoculars offer a wide field of view, allowing you to observe a broad area. At 20x magnification, you can see approximately 168 feet at 1000 yards.
Image 4.1: Illustration demonstrating the field of view at 20x magnification, showing approximately 168 feet visible at a distance of 1000 yards.
Immagine 4.2: Es.ample of binoculars in use, demonstrating a typical viewscenario di ing.
5. Manutenzione
Proper care and maintenance will ensure the longevity and optimal performance of your binoculars.
- Pulizia delle lenti:
- Use the provided cleaning cloth or a soft, lint-free cloth specifically designed for optical lenses.
- Gently brush off any dust or loose particles from the lens surfaces.
- If necessary, use a small amount of lens cleaning fluid applied to the cloth (not directly to the lens) to wipe away smudges or fingerprints.
- Avoid using abrasive cloths, paper towels, or harsh chemicals, as these can scratch the lens coatings.
- Pulizia del corpo: Pulisci il corpo del binocolo con un panno morbido eamp cloth. Avoid using solvents or harsh cleaners.
- Caratteristica impermeabile: While these binoculars are waterproof, it is recommended to wipe them dry after exposure to moisture to prevent water spots and maintain their appearance. Do not submerge them in water.
- Magazzinaggio: When not in use, store the binoculars in their carrying bag in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure lens caps are in place to protect the lenses.
- Evitare lo smontaggio: Do not attempt to disassemble or repair the binoculars yourself, as this will void any potential warranty and may cause permanent damage.
Image 5.1: The binoculars demonstrating their waterproof capability, showing water droplets on the surface.
6. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| L'immagine è sfocata o fuori fuoco. | Regolazione della messa a fuoco errata. | Adjust the center focus wheel. If still blurry, re-adjust the diopter for your right eye (refer to Section 3). |
| Seeing two overlapping images. | La distanza interpupillare (IPD) non è impostata correttamente. | Adjust the distance between the two barrels until you see a single, circular field of view (vedere Sezione 3). |
| L'immagine è scura o poco definita. | Insufficient light, dirty lenses, or lens caps still on. | Ensure lens caps are removed. Clean lenses if dirty (refer to Section 5). Note that viewing in extremely low light conditions will naturally result in a dimmer image. |
| Difficulty adjusting zoom. | Zoom mechanism is stiff or obstructed. | Ensure no debris is obstructing the zoom lever/ring. Apply gentle, even pressure. If the issue persists, contact customer support. |
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | PZLVAME |
| Numero di modello | TAEKHW (Product Identifier: 20-180X100) |
| Ingrandimento | 20-180x (zoom variabile) |
| Diametro della lente dell'obiettivo | 70 millimetri |
| Diametro dell'oculare | 18 millimetri |
| Tipo di prisma | BAK7 |
| Rivestimento delle lenti | Completamente multistrato (FMC) |
| Campo di View | 183 ft ~ 3280 ft (at 1000 yards) |
| Impermeabile | SÌ |
| Dimensioni approssimative (L x P x A) | 29 cm x 21.5 cm x 8.2 cm (11.6 pollici x 8.7 pollici x 3.3 pollici) |
| Peso dell'articolo | Approximately 1.76 ounces (50 grams) - Note: This weight appears to be for packaging or a component, not the full binoculars. Actual weight is typically higher for this size. |
| Usi specifici | Bird Watching, Camping, Concert, Hiking & Outdoors, Hunting, Star Gazing |
Image 7.1: Diagram showing the dimensions of the binoculars in centimeters (29cm x 21.5cm x 8.2cm).
Image 7.2: Diagram showing the dimensions of the binoculars in inches (11.6in x 8.7in x 3.3in).
8. Garanzia e supporto
For any questions, technical support, or warranty inquiries regarding your PZLVAME High Power Binoculars, please refer to the contact information provided with your purchase or visit the manufacturer's official websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
