1. Introduzione
This manual provides essential instructions for the safe and efficient use of your Hulkman Solva 100 Solar Panel. Please read this manual thoroughly before operating the device and retain it for future reference.
2. Prodotto finitoview
The Hulkman Solva 100 is a portable 100W solar panel designed to provide power for compatible devices, such as portable power stations. It features a foldable design for easy transport and storage.
2.1 Componenti
- Gambe di sostegno
- Borsa porta accessori
- Celle solari
- Maniglia
- Fori per ganci
2.2 Caratteristiche del prodotto
- 100W power output.
- Multiple units can be connected for increased power output (up to 4 units for Mega Power Station).
- Integrated support legs for optimal angle adjustment.
- Design durevole e portatile.
Image: Hulkman Solva 100 Solar Panel in its folded, compact state.

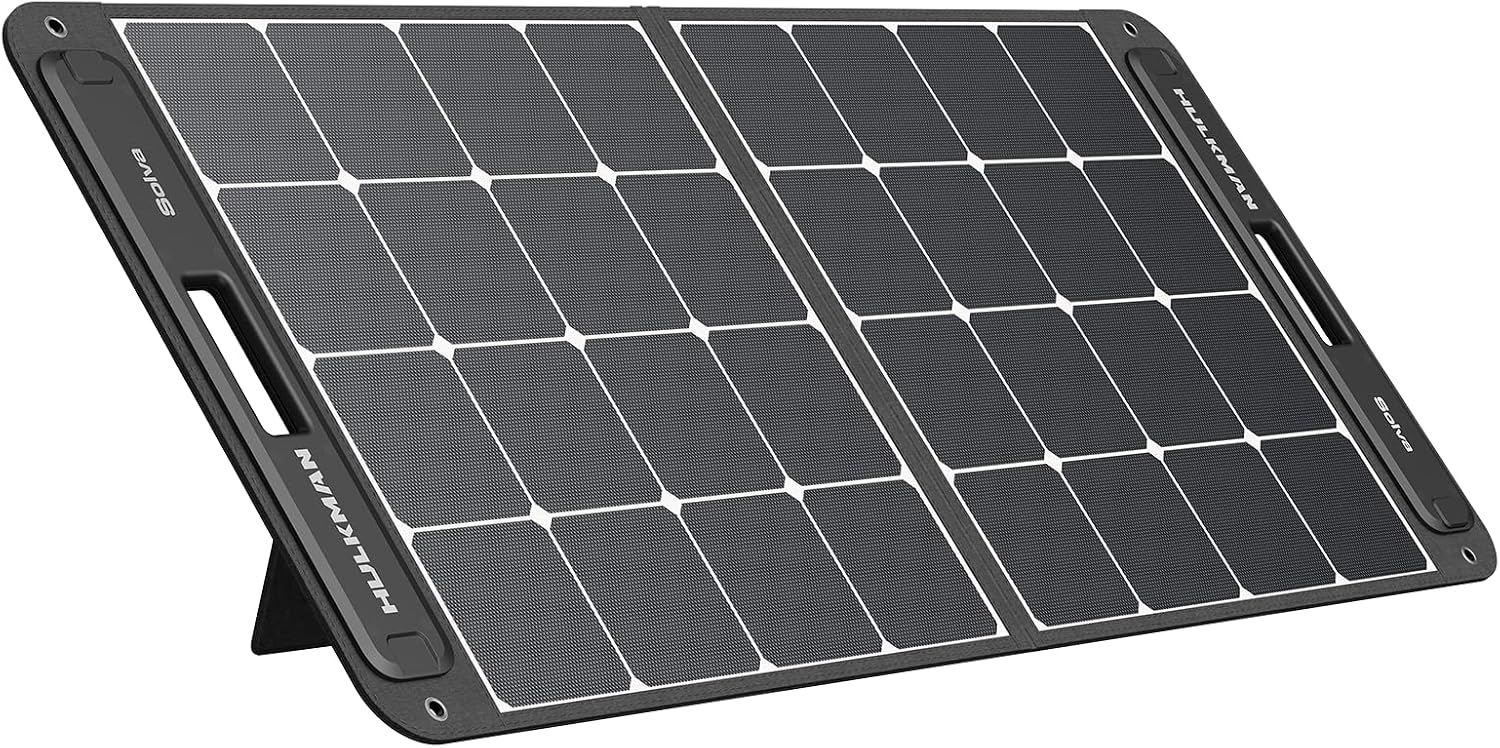

Image: Hulkman Solva 100 Solar Panel fully unfolded, showcasing the solar cells.
3. Istruzioni per l'installazione
Follow these steps to set up your Hulkman Solva 100 Solar Panel:
- Aprire il pannello solare: Dispiegare con cautela il pannello solare completamente su una superficie piana e stabile.
- Posizionare il pannello: Posizionare il pannello solare alla luce diretta del sole.
- Estendi le gambe di supporto: Locate the support legs on the back of the panel. Extend them to prop up the panel at an optimal angle towards the sun. This angle maximizes solar energy absorption.
- Recupera il cavo di ricarica: Open the accessory storage bag and take out the charging cable.
- Connetti al dispositivo: Plug the charging cable into the designated input port of your compatible Hulkman device (e.g., a portable power station).
Image: The solar panel with its integrated kickstands extended, ready for use.
Immagine: Lato view of the solar panel showing the angle provided by the kickstands.
Immagine: Posteriore view of the solar panel, illustrating the support leg mechanism.
Video: This video demonstrates the setup and use of a portable power station with a solar panel, similar to the Hulkman Solva 100. It shows how to unfold the panel and connect it for charging.
4. Istruzioni per l'uso
Once the solar panel is set up and connected to your device, it will begin converting sunlight into electrical energy. Ensure the panel is continuously exposed to direct sunlight for optimal charging performance.
- Ricarica del monitor: Check your connected device's display to confirm that it is receiving a charge from the solar panel.
- Regola la posizione: Periodically adjust the panel's angle throughout the day to follow the sun's path, maximizing energy capture.
- Pannelli multipli: If using multiple Solva 100 panels with a compatible power station, ensure they are connected correctly according to your power station's manual to achieve the desired combined wattage.
5. Manutenzione
Proper maintenance ensures the longevity and efficiency of your solar panel.
- Pulizia: Pulire regolarmente la superficie del pannello solare con un panno morbido eamp cloth to remove dust, dirt, or debris that may obstruct sunlight. Do not use harsh chemicals or abrasive materials.
- Magazzinaggio: When not in use, fold the solar panel and store it in a dry, cool place away from direct sunlight and extreme temperatures. Use the accessory storage bag to protect cables.
- Ispezione: Periodically inspect the panel and cables for any signs of damage, wear, or corrosion. If any damage is found, contact customer support.
6. Risoluzione Dei Problemi
If you encounter issues with your Hulkman Solva 100 Solar Panel, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessuna potenza in uscita / Dispositivo non in carica | Not enough sunlight; Panel not angled correctly; Loose cable connection; Damaged cable/panel. | Ensure direct sunlight exposure. Adjust panel angle. Check all cable connections. Inspect cables and panel for damage. |
| Bassa efficienza di carica | Partial shading; Dirty panel surface; Suboptimal angle; Overcast weather. | Move panel to a fully unshaded area. Clean the solar panel surface. Re-adjust the panel angle towards the sun. Charging efficiency will naturally be lower in cloudy conditions. |
| Surriscaldamento del pannello | Poor ventilation; Prolonged exposure to extreme heat. | Ensure adequate airflow around the panel. Avoid placing the panel on heat-absorbing surfaces. |
If the problem persists after trying these solutions, please contact Hulkman customer support.
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | Hulkman |
| Modello | Solva 100 |
| Tipo di prodotto | Pannello solare |
| Potenza in uscita | 100W |
| Componenti inclusi | Solva Solar Panel, Accessory Storage Bag |
| Quantità dell'articolo | 1 |
8. Garanzia e supporto
Hulkman products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your product or visit the official Hulkman websito.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Hulkman customer service through their official channels. Have your product model and purchase date ready when contacting support.
Ufficiale Websito: Hulkman Store on Amazon
