Gemmac Portable Emergency Radio

1. Introduzione

This manual provides comprehensive instructions for the safe and efficient operation of your Gemmac Portable Emergency Radio (Model XLN-297WB). This multi-functional device is designed for emergency preparedness and outdoor activities, offering radio reception, multiple charging options, illumination, and an SOS alarm. Please read this manual thoroughly before use and retain it for future reference.

Figure 1: Gemmac Portable Emergency Radio (Model XLN-297WB)

2. Prodotto finitoview

2.1 Componenti

Figure 2: Labeled Components of the Emergency Radio

• Antenna: Estensibile per una migliore ricezione radio.
• Pannello solare: Per la ricarica solare.
• Flashlight / SOS Button: Activates flashlight and SOS alarm.
• Volume / Radio Switch: Controls power and volume.
• AM/FM/SW Switch: Selects radio band.
• Manopola di sintonia: Regola la frequenza radio.
• Quadrante di frequenza: Displays current radio frequency.
• Oratore: Uscita audio.
• Ingresso di tipo C: For USB charging the radio.
• Jack per cuffie (3.5 mm): Per l'ascolto privato.
• Uscita USB: Per caricare dispositivi esterni (funzione power bank).
• Battery Container: Houses the removable Lithium-ion battery.
• Manovella: For hand-crank charging.
• LED Flood Light: Provides broader illumination.

2.2 Caratteristiche principali

• Radio multibanda: Receives AM (530-1710 kHz), FM (87-108 MHz), and SW (7-19 MHz) frequencies.
• Molteplici opzioni di ricarica: Supports USB Type-C input, solar panel, and hand crank dynamo.
• Power Bank da 2000 mAh: Built-in rechargeable battery to charge mobile phones and other USB-compatible devices.
• Illuminazione di emergenza: Features a bright 3W flashlight and an LED reading lamp.
• Allarme SOS: Attiva una sirena ad alto volume e una luce lampeggiante per la segnalazione di emergenza.
• Design portatile: Compatto, leggero e dotato di cordino per un facile trasporto.
• Resistente all'acqua: Progettato per resistere agli schizzi e alla pioggia leggera.

3. Impostazione

3.1 Initial Battery Check and Installation

The radio comes with a pre-installed 2000mAh Lithium-ion battery. Before first use, ensure the battery is securely placed in its compartment. If the battery needs to be installed or replaced, open the battery container cover, insert the battery with correct polarity, and close the cover securely.

3.2 Carica iniziale

For optimal performance, fully charge the radio before its first use. Use the provided USB Type-C cable to connect the radio to a 5V DC USB power source (e.g., wall adapter, computer USB port). The charging indicator will illuminate. Charging methods are detailed in Section 4.2.

4. Istruzioni per l'uso

4.1 Funzionamento della radio

1. Accensione/Spegnimento e Volume: Ruotare il Volume / Radio Switch clockwise to turn on the radio and increase volume. Rotate counter-clockwise to decrease volume and turn off.
2. Seleziona banda: Fai scorrere il AM/FM/SW Switch to select your desired frequency band (AM, FM, or SW).
3. Sintonizzazione della stazione: Estendi il Antenna for better reception. Rotate the Manopola di sintonia to scan for stations. The selected frequency will be indicated on the Selezione frequenza Frequency.
4. Utilizzo delle cuffie: Insert 3.5mm headphones into the Presa per cuffie per l'ascolto privato. L'altoparlante verrà automaticamente disattivato.

Figure 3: Radio receiving weather alerts

4.2 metodi di ricarica

The radio offers three ways to recharge its internal battery:

Figura 4: Molteplici opzioni di ricarica

1. Ricarica USB: Connect the supplied USB Type-C cable to the Ingresso di tipo C port and a 5V DC power source. This is the fastest charging method.
2. Ricarica a manovella: Spiega il Manovella and rotate it clockwise or counter-clockwise at a steady pace (approximately 120-180 cycles per minute). This generates power to charge the internal battery.
3. Ricarica solare: Place the radio with the Pannello solare facing direct sunlight. This method is ideal for maintaining charge or for slow charging in emergencies. Charging efficiency depends on sunlight intensity.

4.3 Torcia e lettura Lamp

Premere il tasto Flashlight / SOS Button once to turn on the flashlight. Press again to switch to the LED reading lamp. Press a third time to turn off the light. The flashlight provides focused illumination, while the reading lamp offers broader, softer light.

Figure 5: Flashlight and LED Reading Lamp in uso

4.4 Funzione di allarme SOS

In caso di emergenza, tenere premuto il tasto Flashlight / SOS Button for 3 seconds to activate the SOS alarm. This will trigger a loud siren and a flashing light to attract attention. Press the button again briefly to deactivate the alarm.

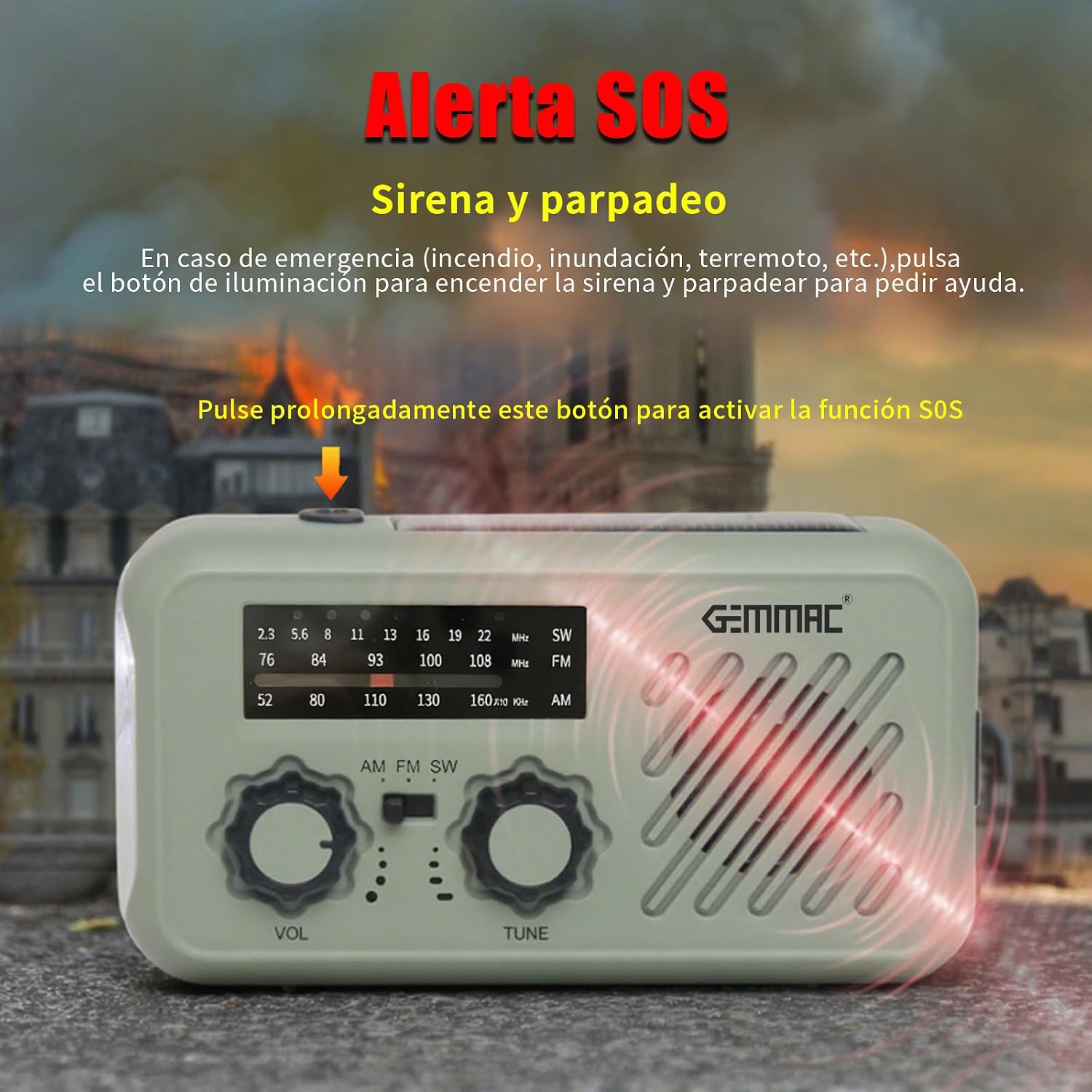

Figura 6: Attivazione dell'allarme SOS

4.5 Funzione Power Bank

To charge external devices, connect your device's USB charging cable to the Uscita USB port on the radio. The radio's internal 2000mAh battery will begin charging your device. This feature is crucial for keeping your mobile phone powered during outages.

5. Manutenzione

5.1 Pulizia

Pulire la radio con un panno morbido, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the surface. Ensure all ports are dry before charging or using the device.

5.2 Conservazione

Store the radio in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, fully charge the battery every 3-6 months to maintain battery health.

6. Risoluzione Dei Problemi

• Nessun potere: Ensure the radio is turned on. Check the battery level. If low, charge the radio using any of the three methods (USB, hand crank, solar).
• Scarsa ricezione radio: Extend the antenna fully. Try repositioning the radio. Ensure you have selected the correct frequency band (AM/FM/SW).
• Flashlight/Lamp Non funziona: Check battery level. Ensure the button is pressed correctly.
• Dispositivo esterno non in carica: Ensure the radio has sufficient battery charge. Verify the USB cable connection. Some devices may require more power than the radio can provide.
• Hand Crank is Stiff: Ensure the crank handle is fully extended and rotates freely. Do not force it.

7. Specifiche

Numero di modello	XLN-297WB
Marca	Gemmac
Bande radiofoniche	AM (530-1710 kHz), FM (87-108 MHz), SW (7-19 MHz)
Tipo di batteria	1 x 2000mAh agli ioni di litio (inclusa)
Ingressi di ricarica	USB Type-C (DC 5V), Solar Panel, Hand Crank
Power Bank Output	USB
Potenza della torcia	3W
Materiale	Acrilonitrile Butadiene Stirene (ABS)
Dimensioni (L x P x A)	Dimensioni: 40 mm x 70 mm x 130 mm
Resistenza all'acqua	Resistente all'acqua
Interfaccia	USB 3.0 Tipo C
Tipo di visualizzazione	LCD

8. Garanzia e supporto

This product is eligible for return or refund within 30 days of purchase. For any issues or support inquiries, please contact your retailer or the manufacturer directly. Please refer to your purchase documentation for specific contact details.
