QXNASU HB-D333 Submersible Pump User Manual

Introduzione

Thank you for choosing the QXNASU HB-D333 Submersible Pump. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your pump. Please read this manual thoroughly before use and retain it for future reference.

The HB-D333 is designed for various applications, including ice machines and air coolers, providing reliable water circulation with its compact and efficient design.

Istruzioni di sicurezza

Per evitare lesioni o danni alla pompa, osservare sempre le seguenti precauzioni di sicurezza:

• Ensure the power supply matches the pump's specifications (AC 220-240V, 50Hz).
• Do not operate the pump out of water. It is designed for submersible use only.
• Before performing any maintenance or cleaning, always disconnect the pump from the power supply.
• Do not use the pump with flammable liquids or in explosive environments.
• Tenere bambini e animali domestici lontani dalla pompa in funzione.
• Regularly inspect the power cord for damage. Do not use the pump if the cord is damaged.
• This pump is rated IPX8, meaning it is protected against continuous immersion in water. However, ensure all electrical connections are secure and dry.

Prodotto finitoview

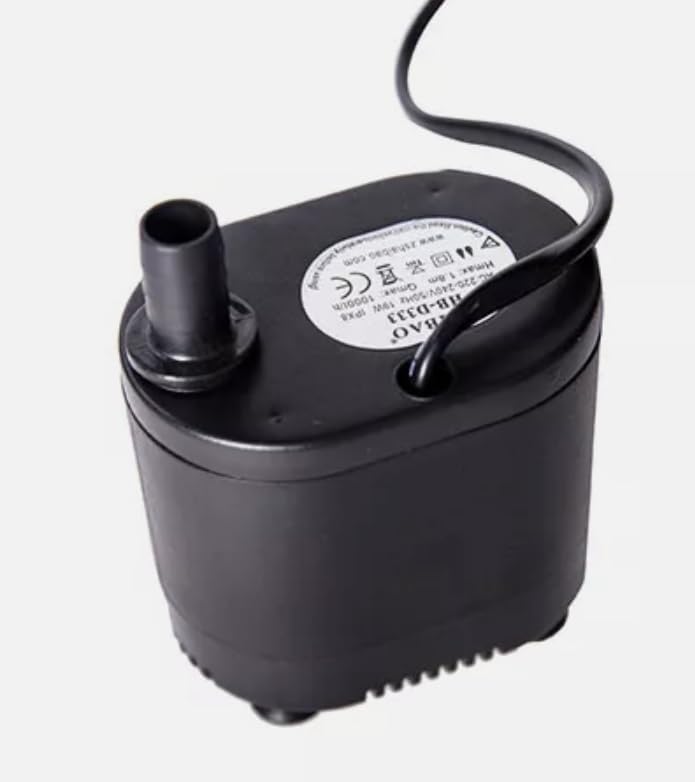

An image showing the compact black body of the HB-D333 submersible pump with its power cord and water outlet nozzle visible. A label on top indicates model number, voltage, power, and flow specifications.

The HB-D333 is a compact and efficient submersible pump designed for continuous operation in water. Its robust construction ensures durability and reliable performance for various water circulation needs.

Caratteristiche principali:

• Model: HB-D333
• Voltage: CA 220-240 V, 50 Hz
• Consumo energetico: 19 W
• Maximum Head (Hmax): 1.8 meters (approx. 5.9 feet)
• Maximum Flow Rate (Gmax): 1000 Liters per hour (approx. 264 gallons per hour)
• Ingress Protection: IPX8 (suitable for continuous submersion)
• Connection: 2-wire AC

Impostare

1. Disimballaggio: Estrarre con cautela la pompa dalla confezione. Verificare che non presenti segni di danneggiamento.
2. Posizionamento: Position the pump in the desired water reservoir (e.g., ice machine water tank, air cooler basin). Ensure it is fully submerged in clean water. The pump must not operate dry.
3. Collegamento della presa: Connect the appropriate tubing or hose to the pump's water outlet nozzle. Ensure the connection is secure to prevent leaks.
4. Collegamento elettrico: Plug the 2-wire AC power cord into a suitable AC 220-240V, 50Hz power outlet. Ensure the outlet is protected by a Residual Current Device (RCD) if required by local regulations.
5. Controllo iniziale: Once connected, the pump should begin circulating water. Verify proper water flow and check for any unusual noises or vibrations.

Istruzioni per l'uso

The HB-D333 pump is designed for continuous operation once properly installed and powered. It does not have an external on/off switch; operation is controlled by plugging/unplugging the power cord or by the power supply of the appliance it is integrated into.

• Accensione: Connect the pump to the power supply. The pump will start immediately.
• Spegni: Disconnect the pump from the power supply. The pump will stop.
• Monitoraggio: Periodically check the water level to ensure the pump remains fully submerged during operation. Running the pump dry can cause damage.
• Regolazione del flusso: This pump does not feature adjustable flow. Ensure your application is compatible with its fixed flow rate.

Manutenzione

Una manutenzione regolare garantisce prestazioni ottimali e prolunga la durata della pompa.

1. Scollegare l'alimentazione: Scollegare sempre la pompa prima di qualsiasi intervento di manutenzione.
2. Pulisci lo schermo di aspirazione: Periodically check and clean the intake screen to prevent blockages from debris, which can reduce flow or damage the impeller.
3. Pulizia della girante: If flow is reduced or the pump is noisy, the impeller may need cleaning.
   • Carefully remove the pump's front cover (if detachable) to access the impeller chamber.
   • Remove the impeller assembly.
   • Clean the impeller and its chamber with a soft brush and clean water to remove any mineral deposits or debris.
   • Reassemble the impeller and cover securely.
4. Qualità dell'acqua: Using clean water helps prevent mineral buildup and extends pump life.
5. Magazzinaggio: If storing the pump for an extended period, clean it thoroughly, dry it completely, and store it in a cool, dry place.

Risoluzione dei problemi

Specifiche

Garanzia e supporto

Per informazioni sulla garanzia e sull'assistenza tecnica, consultare la documentazione fornita al momento dell'acquisto o contattare il rivenditore. Conservare la ricevuta d'acquisto come prova d'acquisto.

For general inquiries or further assistance, you may also visit the manufacturer's website or contact their customer service department. (Note: Specific contact details are not provided in this manual.)
