Generic 6-Speed Fat Tire 4-Wheel Pedal Quad Bike Bicycle User Manual

1. Informazioni sulla sicurezza

Read this manual thoroughly before operating the quad bike. Failure to follow instructions can result in serious injury or property damage.

• Quando si va in bici, indossare sempre il casco e l'attrezzatura di sicurezza adeguata (guanti, ginocchiere, gomitiere).
• Prima di ogni utilizzo, assicurarsi che tutti i bulloni, i dadi e gli sganci rapidi siano ben serrati.
• Check tire pressure before each use. Refer to the tire sidewall for recommended pressure.
• Verify that brakes are functioning correctly before riding.
• Non superare la capacità di carico massima di 200 kg (440 libbre).
• This quad bike is designed for adult use.
• Avoid riding on public roads with heavy traffic. Use designated cycling paths or off-road trails.
• Siate consapevoli dell'ambiente circostante e guidate in modo difensivo.
• Non guidare sotto l'effetto di alcol o droghe.
• La manutenzione regolare è fondamentale per un funzionamento sicuro.

2. Contenuto della confezione

Upon unpacking, ensure all components are present and undamaged. If any parts are missing or damaged, contact customer service immediately.

• Quad Bike Frame (Steel, Blue)
• Front Fork (Aluminum)
• 20-inch Fat Tires (4x)
• Manubrio
• Posto a sedere
• Pedali
• Freni a disco (anteriori e posteriori)
• Cambio a 6 velocità
• Rear Basket with Liner
• Fenders (Front and Rear)
• Assembly Tools (Wrenches, Hex Keys)
• Manuale d'uso

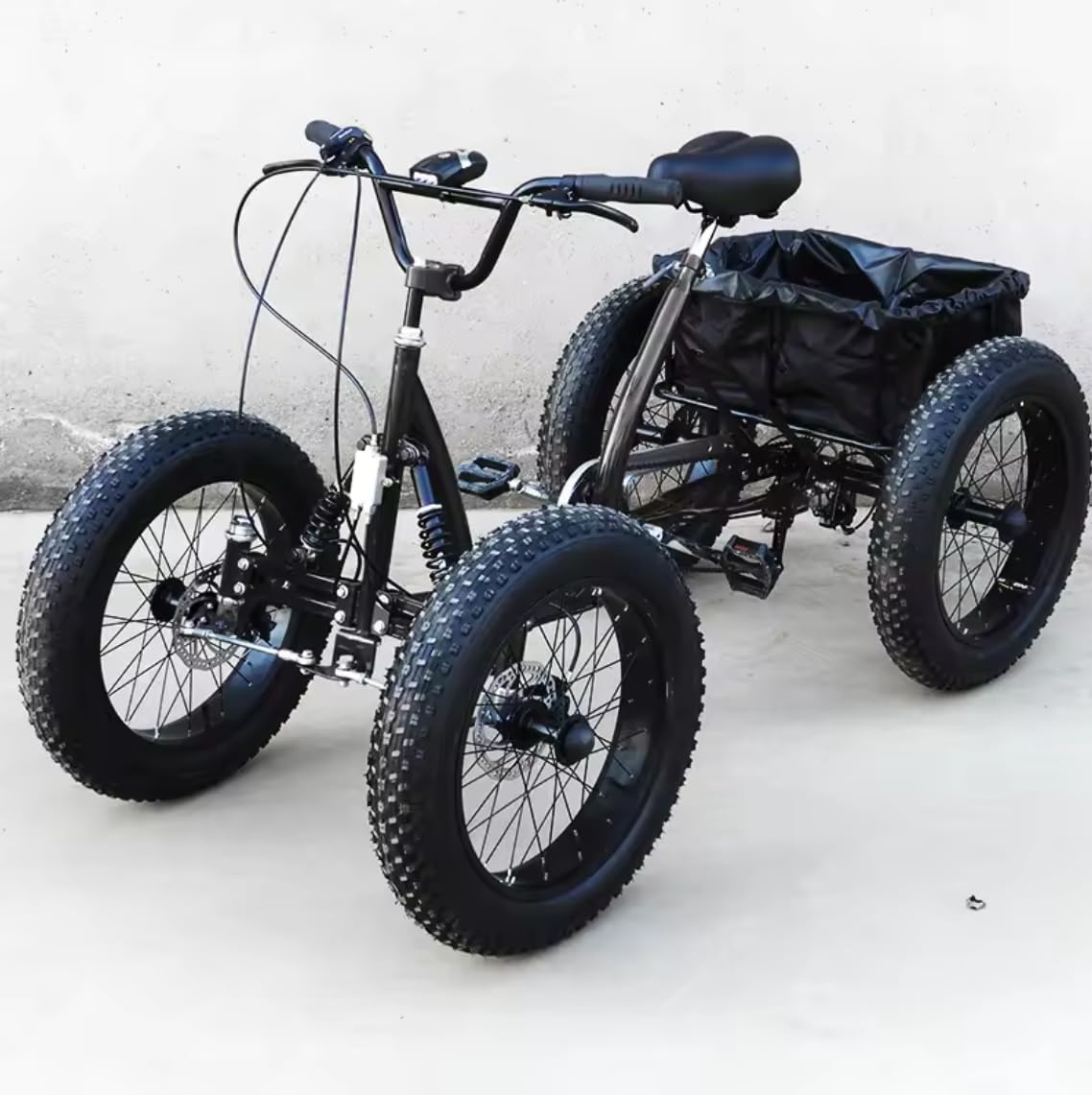

Image 1: Fully assembled Generic 6-Speed Fat Tire 4-Wheel Pedal Quad Bike Bicycle.

3. Installazione e montaggio

Assembly is required. Follow these steps carefully. It is recommended to have a second person assist with some steps.

1. Installazione del parafango anteriore:

   Attach the front fender to the front fork. Ensure the support rods are correctly aligned and secure the fender using the provided screws. Do not overtighten initially to allow for wheel installation.

2. Installazione della ruota anteriore:

   Loosen the screws and safety hooks on both sides of the front fork. Carefully insert the front wheel, ensuring the disc brake pads are centered within the disc brake caliper. Tighten the screws and safety hooks securely. Adjust the wheel to the center position before fully tightening.

3. Installazione del manubrio:

   Loosen the screw on the handlebar stem. Insert the handlebar stem into the front fork. Adjust the handlebar to a comfortable angle and ensure it is in a straight line with the front wheel. Tighten the screw securely. Ensure the safety line is not exposed above the fork.
4. Brake Cable Connection:

   Connect the front and rear brake cables to their respective levers on the handlebar. Ensure the cables are routed correctly and securely attached to the brake calipers. Adjust cable tension for proper braking function.

5. Regolazione del deragliatore posteriore:

   Adjust the rear derailleur for smooth gear shifting. Loosen the adjustment screw, position the derailleur correctly relative to the chain and cogs, and then tighten the screw. Ensure the transmission line is properly threaded and secured.

6. Installazione del parafango posteriore:

   Attach the rear fenders to the rear wheel frame. Note that the rear fender stays have specific orientations (upward and downward facing). Secure them with the provided screws and a wrench. Adjust the position of the fenders to be centered over the wheels.
7. Installazione del pedale:

   Attach the pedals to the crank arms. Note that pedals are typically marked 'L' for left and 'R' for right. Thread them carefully to avoid cross-threading and tighten them firmly.

8. Installazione del cestello:

   Mount the rear basket onto the designated rack at the back of the quad bike. Secure it using the provided hardware. Place the liner inside the basket.

Immagine 2: Primo piano view of the rear section of the quad bike, highlighting the fat tire, disc brake, and the heavy-duty steel basket with its liner.

4. Istruzioni per l'uso

Familiarize yourself with the controls before your first ride.

• Di partenza: Mount the quad bike, place your feet on the pedals, and push off gently to gain momentum.
• Pedalando: Apply even pressure to the pedals to propel the quad bike forward.
• Sterzo: Use the handlebars to steer. The 4-wheel design provides enhanced stability, especially on uneven terrain.
• Cambio marcia: The 6-speed trigger shifter allows you to change gears. Shift to a lower gear for uphill climbs or starting, and to a higher gear for flat terrain or downhill riding. Shift smoothly to avoid damaging the drivetrain.
• Frenata: The quad bike is equipped with front and rear disc brakes. Squeeze both brake levers gently and evenly to slow down or stop. Avoid sudden, hard braking, especially on loose surfaces, to prevent skidding.
• Uso fuoristrada: The fat tires are designed for off-road and snow conditions. Exercise caution on challenging terrain and adjust your speed accordingly.

5. Manutenzione

Regular maintenance ensures the longevity and safe operation of your quad bike.

• Pneumatici: Check tire pressure weekly. Inspect tires for wear, cuts, or punctures. Consider puncture-resistant tubes or tire liners for areas with sharp debris.
• Freni: Regularly inspect brake pads for wear and replace them when necessary. Ensure brake cables are free of fraying and properly tensioned. Adjust brake calipers if the disc rubs.
• Catena: Keep the chain clean and lubricated. Clean with a degreaser and apply bicycle-specific chain lubricant every few rides or after riding in wet/dirty conditions.
• Ingranaggi: Check gear shifting for smoothness. If shifting is rough or inconsistent, adjust the derailleur cables.
• Bulloni e dadi: Periodically check all bolts and nuts for tightness, especially on the wheels, handlebars, seat post, and frame connections.
• Pulizia: Clean the quad bike with mild soap and water. Avoid high-pressure washers directly on bearings or electrical components (if applicable). Dry thoroughly after washing.
• Magazzinaggio: Store the quad bike in a dry, covered area to protect it from the elements.

6. Risoluzione Dei Problemi

Ecco le soluzioni ai problemi più comuni che potresti riscontrare:

• Gomma a terra: Inspect the tire for punctures. If found, repair or replace the inner tube. Ensure the tire liner (if installed) is properly seated.
• Brakes Squealing/Rubbing: Check if the brake pads are worn or if the disc is bent. Adjust the brake caliper to ensure the pads are not rubbing against the disc when not engaged. Clean the disc and pads if contaminated.
• Difficoltà nel cambiare marcia: This often indicates a loose or stretched derailleur cable. Adjust the cable tension at the shifter or derailleur. Ensure the chain is clean and lubricated.
• Loose Handlebars/Seat: Tighten the stem bolt for handlebars or the quick-release/bolt for the seat post. Do not overtighten.
• Rumori insoliti: Inspect all moving parts for loose components, lack of lubrication, or foreign objects. Pay attention to the chain, pedals, and wheel bearings.

7. Specifiche

8. Garanzia e supporto

Questo prodotto viene fornito con un Garanzia di 1 anno as per manufacturer's terms.

For technical support, warranty claims, or replacement parts, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
