Kariwust Kaidi KDPT007-08 Linear Actuator Instruction Manual

1. Prodotto finitoview

The Kariwust Kaidi Model KDPT007-08 Linear Actuator is designed as a direct replacement motor for various power recliner lift chairs. This actuator is compatible with several Kaidi motor models, ensuring a broad range of applications for repair and maintenance.

It features specific connection types for power and hand control, making it suitable for standard recliner systems.

2. Informazioni sulla sicurezza

Please read and understand all safety instructions before installation or operation of the linear actuator. Failure to follow these instructions may result in injury or damage to the product.

• Disconnessione dell'alimentazione: Always unplug the power cord from the wall outlet before attempting any installation, removal, or maintenance of the motor.
• Parti mobili: Exercise caution around moving parts when the recliner chair is in operation. Keep hands and loose clothing clear of the actuator mechanism.
• Capacità di carico: Non superare la capacità di carico massima di 750 N (Newtons) for this actuator. Overloading can lead to motor failure and potential safety hazards.
• Gestione del cavo: Keep the power cord away from heat sources, sharp objects, and areas where it could be pinched or damaged.
• Istruzioni del produttore: Always adhere to the recliner chair manufacturer's instructions for safe installation and usage, in addition to these guidelines.

3. Caratteristiche del prodotto e compatibilità

• Modello: OEM Kaidi Power Recliner Lift Chairs Motor Actuator Model KDPT007-08.
• Compatibilità: This motor replaces Kaidi Models KDPT007-01, KDPT007-02, KDPT007-38, KDPT007-52, and KDPT007-179. Please verify your existing motor's label before ordering to ensure compatibility.
• Collegamento elettrico: Features a 2-Pin Flat Round Power Transformer Connection.
• Hand Control Connection: Equipped with a 5-Pin Hand Control Plug Connection.
• Lunghezza del tratto: 333 mm (13.11 pollici).
• Minimum Install Dimension: 139 mm (5.47 pollici).
• Velocità: 55.5 mm/s
• Carico massimo: 750 N.

Image 1: Product label showing model number KDPT007-08 and technical specifications.

Image 2: Close-up of the 2-pin flat round power transformer connection and the 5-pin hand control plug connection.

4. Configurazione e installazione

This linear actuator is designed for easy installation as a direct replacement. Follow these general steps:

1. Scollegare l'alimentazione: Ensure the recliner chair is unplugged from the electrical outlet before beginning any work.
2. Attuatore di accesso: Carefully turn the recliner chair over or tilt it to access the existing linear actuator.
3. Rimuovere il vecchio attuatore:
   • Disconnect the power cable and hand control cable from the old actuator.
   • Unbolt or unpin the old actuator from its mounting points on the chair frame. Note the orientation for the new installation.
4. Installare il nuovo attuatore:
   • Position the new KDPT007-08 actuator in the same orientation as the old one.
   • Securely bolt or pin the new actuator to the chair frame's mounting points.
   • Connect the 2-pin flat round power transformer cable to the actuator.
   • Connect the 5-pin hand control cable to the actuator. Ensure all connections are firm.
5. Funzionalità di prova: Once installed, carefully return the chair to its upright position. Plug the recliner back into the electrical outlet and test the hand control to ensure the actuator operates smoothly through its full range of motion.

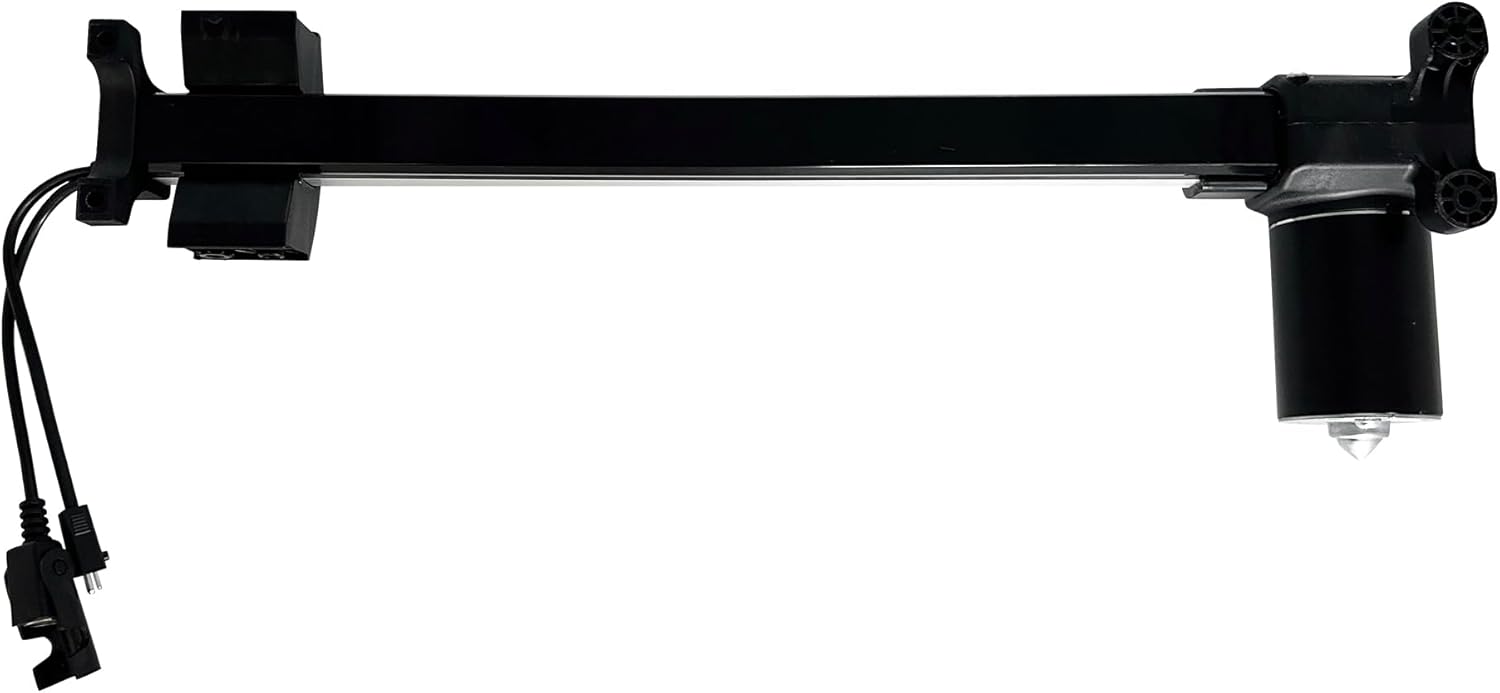

Immagine 3: Completa view of the linear actuator, showing its overall structure for installation reference.

5. Istruzioni per l'uso

The KDPT007-08 linear actuator operates in conjunction with your recliner chair's existing hand control unit. Operation is straightforward:

• Accensione: Ensure the recliner chair is properly plugged into a functioning electrical outlet.
• Reclinazione/Estensione: Use the buttons or levers on your hand control to initiate the reclining or extending motion of the chair. The actuator will move the chair's mechanism to the desired position.
• Stop Motion: Release the button or lever on the hand control to stop the actuator at any point during its travel.
• Ciclo di lavoro: The actuator has a maximum duty cycle of 2 minutes ON and 18 minutes OFF (10%). Avoid continuous operation for extended periods to prevent overheating and ensure longevity. Allow the motor to rest if it has been running for its maximum continuous duration.

6. Manutenzione

The Kaidi KDPT007-08 linear actuator is designed for minimal maintenance. However, periodic checks can help ensure its long-term performance:

• Pulizia: Keep the actuator free from dust and debris. Use a dry cloth to wipe down the exterior. Do not use liquid cleaners directly on the motor or electrical components.
• Ispezione dei cavi: Periodically inspect all cables and connections for any signs of wear, fraying, or damage. Ensure they are securely plugged in.
• Punti di montaggio: Check that the actuator remains securely bolted or pinned to the chair frame. Tighten any loose fasteners if necessary.
• Lubrificazione: The actuator is pre-lubricated and generally does not require additional lubrication. If unusual noises occur, consult a professional.

7. Risoluzione Dei Problemi

If you encounter issues with your linear actuator, refer to the following troubleshooting guide:

Se le procedure di risoluzione dei problemi non risolvono il problema, contattare l'assistenza clienti.

8. Specifiche

Image 4: Diagram illustrating the stroke length and minimum installation dimension of the actuator.

9. Supporto

For any questions, technical assistance, or support regarding your Kariwust Kaidi KDPT007-08 Linear Actuator, please contact the seller or manufacturer directly. Refer to your purchase documentation for specific contact information.

When contacting support, please have your product model number (KDPT007-08) and purchase details readily available.
