1. Introduzione
Thank you for choosing the BYECOLD Smart Bathroom Mirror Electric Glass Heating Mirror Panel with Remote Control. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new heated mirror. Please read these instructions thoroughly before use and retain them for future reference.
Image 1.1: The BYECOLD Heated Mirror Infrared Heating Panel with its remote control.
2. Informazioni sulla sicurezza
Per evitare lesioni o danni al prodotto, osservare le seguenti precauzioni di sicurezza:
- Always use appropriate safety measures when handling and installing the mirror.
- Ensure the wall is sturdy enough to support the mirror's weight. Consult a professional if unsure.
- Be cautious of the mirror's edges to prevent injury during handling and installation.
- Ensure electrical installation is performed by a qualified electrician and complies with local regulations.
- Do not immerse the mirror or its electrical components in water.
- Tenere il telecomando lontano dall'acqua e da temperature estreme.
3. Caratteristiche del prodotto
The BYECOLD Heated Mirror offers a combination of functionality and efficiency:
- Applicazioni versatili: Functions as a mirror, an infrared heater, and features 6000K LED lighting.
- Efficienza energetica: Designed to save up to 60% on heating bills compared to traditional heating methods due to lower wattage.
- Benefici per la salute: Infrared heating reduces dust circulation, contributing to improved air quality, which can benefit individuals with allergies and respiratory issues.
- Comfort migliorato: Provides even heat distribution, eliminating cold spots and ensuring consistent warmth throughout the room.
- Ecologico: Infrared heating is a greener alternative, helping to reduce your carbon footprint.
Image 3.1: Key features of the BYECOLD Heated Mirror, including heating, anti-fog, remote control, HD glass, and flexible mounting options.
4. Contenuto della confezione
Si prega di verificare che tutti gli articoli siano presenti e integri:
- BYECOLD Heated Mirror Infrared Heating Panel (Model G1006-LH)
- Telecomando
- Mounting Hardware (screws, wall plugs, template)
- Manuale d'uso
5. Guida all'installazione
Installation requires careful attention to detail. It is recommended that installation be performed by a qualified professional.
5.1 Montaggio dello specchio
- Prepara il muro: Ensure the wall surface is clean, dry, and capable of supporting the mirror's weight (refer to specifications for weight).
- Segna i punti di perforazione: Use the supplied template to accurately mark the four screw positions on the wall.
- Fori di perforazione: Praticare i fori nei punti contrassegnati e inserire i tasselli appropriati.
- Installare le viti: Insert the four screws, leaving them protruding slightly from the wall.
- Appendi lo specchio: Carefully lift the mirror and align the frame on the back of the unit with the protruding screws.
- Proteggere lo specchio: Once the mirror is on the screws, lift it approximately half an inch and slide it horizontally (left or right) by about one inch. This action engages the screws into a slot on the back frame, securing the mirror in place. This step requires precision due to limited room for error.
5.2 Collegamento elettrico
The mirror comes hard-wired with a 3-pin plug. For bathroom installations, it is often necessary to remove this plug and hardwire the unit directly into a suitable electrical connection point behind the mirror. This must be done by a qualified electrician to ensure compliance with electrical safety standards and proper cable routing to keep the cable hidden.

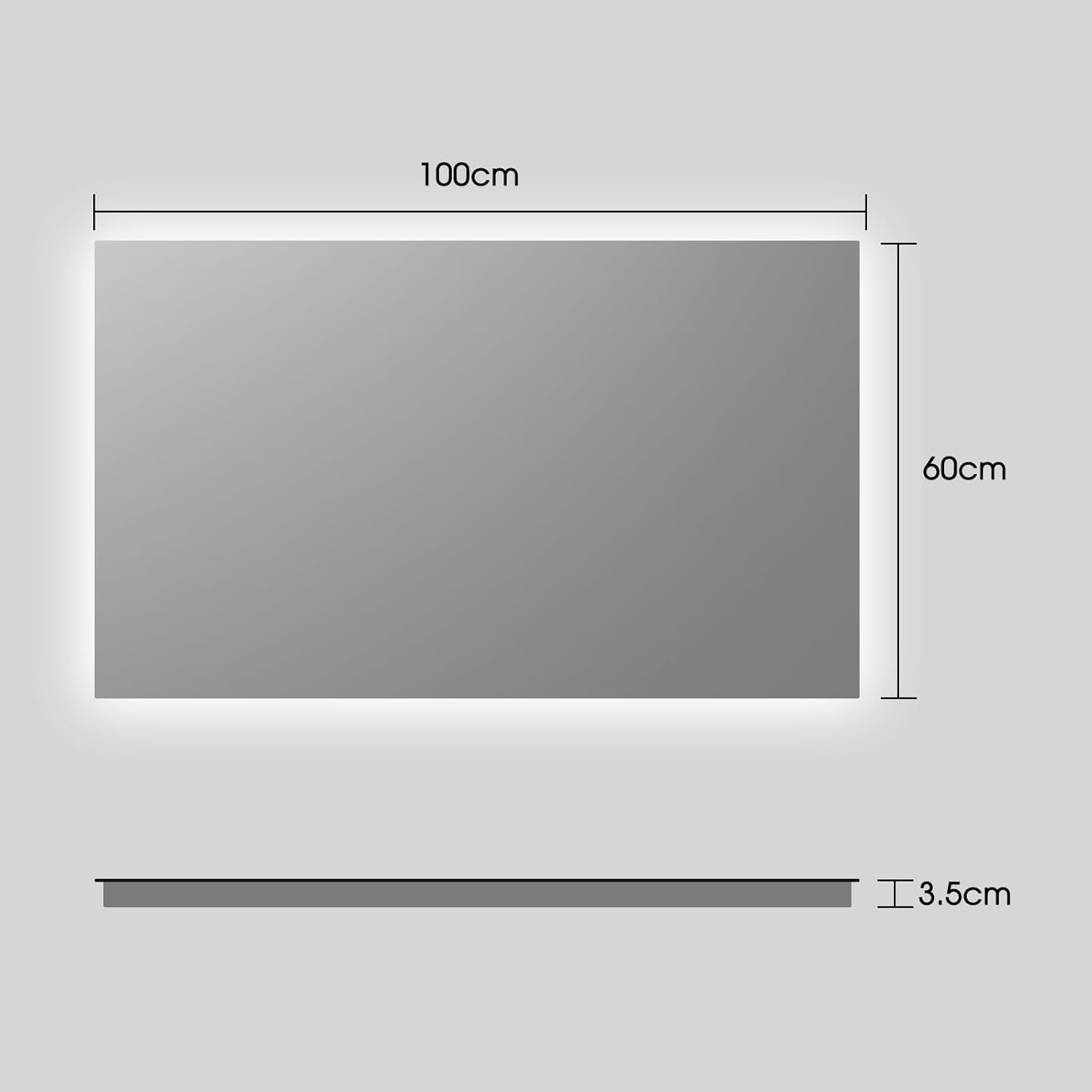

Image 5.1: Dimensions of the heated mirror (100cm x 60cm x 3.5cm).
Image 5.2: The LED switch located on the back of the mirror for controlling the lighting.
6. Istruzioni per l'uso
6.1 Illuminazione a LED
- The LED lighting can be turned on or off using the green switch located on the back of the mirror (refer to Image 5.2).
- The 6000K cold white light is suitable for various tasks such as makeup application, shaving, or general illumination.
6.2 Infrared Heating
- The infrared heating function is controlled via the supplied remote control.
- Upon activation, the heating element typically takes approximately 10 minutes to reach optimal operating temperature and begin effectively heating the room.
- The built-in thermostat allows for temperature regulation to maintain consistent warmth.
6.3 telecomando
- The remote control provides a simple interface for adjusting heating settings and other functions.
- Each command sent from the remote control will be acknowledged by an audible beep from the mirror.
Image 6.1: The LED heating mirror provides 6000K cold white light, ideal for various personal grooming tasks.
Image 6.2: The mirror is suitable for various scenarios including bathrooms, hair salons, hotels, and dressers.
7. Manutenzione
To ensure the longevity and optimal performance of your BYECOLD Heated Mirror, follow these maintenance guidelines:
- Pulizia della superficie dello specchio: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into electrical components.
- Pulizia del telaio: Pulisci il telaio in alluminio con un panno morbido eamp stoffa. Evitare prodotti chimici aggressivi.
- Sicurezza elettrica: Before cleaning, ensure the mirror is disconnected from the power supply.
- Telecomando: Keep the remote control clean and dry. Replace batteries as needed.
8. Risoluzione Dei Problemi
Questa sezione affronta i problemi più comuni che potresti incontrare:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Mirror does not heat | No power; Heating function not activated; Thermostat setting too low. | Check power connection; Activate heating via remote; Increase thermostat setting. Allow 10 minutes for heating to become noticeable. |
| La luce LED non si accende | LED switch off; No power. | Toggle the green LED switch on the back of the mirror; Check power connection. |
| Il telecomando non funziona | Dead batteries; Obstruction between remote and mirror; Remote out of range. | Replace remote control batteries; Ensure clear line of sight; Move closer to the mirror. |
| Mirror surface is distorted | Variazione di produzione. | This may be a characteristic of the product. If distortion significantly impacts usability, contact customer support. |
| Loud beep from mirror when using remote | Funzionamento normale. | The beep indicates that the mirror has received a command from the remote control. This is an intended feature and cannot be disabled. |
9. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | BYECOLD |
| Numero di modello | G1006-LH |
| Dimensioni del prodotto | 39.37" L x 23.62" W (100cm x 60cm) |
| Profondità | 3.5 centimetri |
| Potenza in uscita | 580W |
| Tipologia di camera | Bagno |
| Forma | Rettangolare |
| Materiale del telaio | Alluminio |
| Colore della cornice | Argento |
| Tipo di montaggio | Montaggio a parete |
| Materiale | Bicchiere |
| Temperatura colore luce LED | 6000K Bianco Freddo |
| Assemblaggio richiesto | No (for the mirror itself) |
10. Informazioni sulla garanzia
BYECOLD products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact BYECOLD customer support. Keep your proof of purchase for warranty claims.
11. Assistenza clienti
If you have any questions, require technical assistance, or need to report an issue, please contact BYECOLD customer support through the retailer where the product was purchased or visit the official BYECOLD websito per le informazioni di contatto.
