IDMarket Clyde Double Storage Bed Instruction Manual

1. Introduzione

Thank you for choosing the IDMarket Clyde Double Storage Bed. This modern and functional bed frame features a spacious under-bed storage compartment with a lifting slatted base and a multi-functional headboard with integrated shelves and niches. This manual provides essential information for safe assembly, operation, and maintenance of your new bed. Please read these instructions carefully before beginning assembly and retain them for future reference.

2. Informazioni sulla sicurezza

• Assemblea di due persone: For safety and ease, assembly of this bed frame requires two adults.
• Meccanismo di sollevamento: This bed features a slatted base with lifting cylinders. Use these mechanisms with caution. Ensure the bed base is fully lowered before placing weight on it. Keep hands and fingers clear of moving parts when operating the lifting mechanism.
• Capacità di peso: Do not exceed the maximum recommended load of 250 kg (including mattress and occupants).
• Superficie stabile: Assemble the bed on a clean, flat, and stable surface to prevent damage or injury.
• Controllo hardware: Regularly check all bolts, screws, and connections to ensure they remain tight. Retighten as necessary.
• Bambini e animali domestici: Keep children and pets away from the assembly area. Do not allow children to play with the lifting mechanism or inside the storage compartment.
• Ventilazione: Ensure adequate ventilation when storing items in the under-bed compartment.

3. Contenuto della confezione

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact IDMarket customer service.

• Bed Frame Panels (Particle Board)
• Headboard Panels (Particle Board)
• Slatted Base (Wooden Slats, Metal Frame)
• Lifting Cylinders and Mechanism
• Assembly Hardware (Screws, bolts, dowels, connectors, etc.)
• Assembly Instructions (Separate document, if included)

4. Istruzioni per l'installazione e il montaggio

Follow the detailed assembly instructions provided in the separate assembly guide included with your product. The general steps are outlined below:

1. Disimballare e organizzare: Carefully unpack all components and lay them out on a soft, clean surface. Group similar parts and hardware.
2. Montare la struttura del letto: Connect the side rails, footboard, and headboard support panels using the provided hardware. Ensure all connections are secure.
3. Install Headboard Storage: Attach the headboard shelves and niche panels to the main headboard structure. Secure any doors or covers.
4. Assemble Slatted Base: Construct the metal frame for the slatted base and insert the wooden slats.
5. Attach Lifting Mechanism: Securely attach the lifting cylinders and associated hardware to the bed frame and slatted base according to the specific instructions. Exercise caution during this step.
6. Posizionare la rete a doghe: Carefully position the assembled slatted base onto the bed frame, ensuring the lifting mechanism is correctly aligned and functional.
7. Controllo finale: Verify that all connections are tight and the bed is stable. Test the lifting mechanism for smooth operation.

Figure 1: Overall dimensions of the IDMarket Clyde Double Storage Bed.

Figure 2: Detail of the slatted base and internal support structure.

5. Istruzioni per l'uso

5.1 Spazio sotto il letto

The IDMarket Clyde bed features a convenient under-bed storage compartment accessible via a lifting slatted base.

• Per aprire: Remove the mattress from the bed. Grasp the handles (if present) or the edge of the slatted base firmly. Lift the base upwards. The lifting cylinders will assist in raising and holding the base in the open position.
• Chiudere: Gently pull the slatted base downwards. The cylinders will provide resistance, allowing for a controlled descent. Ensure no objects or body parts are in the way before fully closing.
• Capacità di archiviazione: Use the spacious compartment to store bedding, seasonal clothing, or other items. Do not overload the compartment.

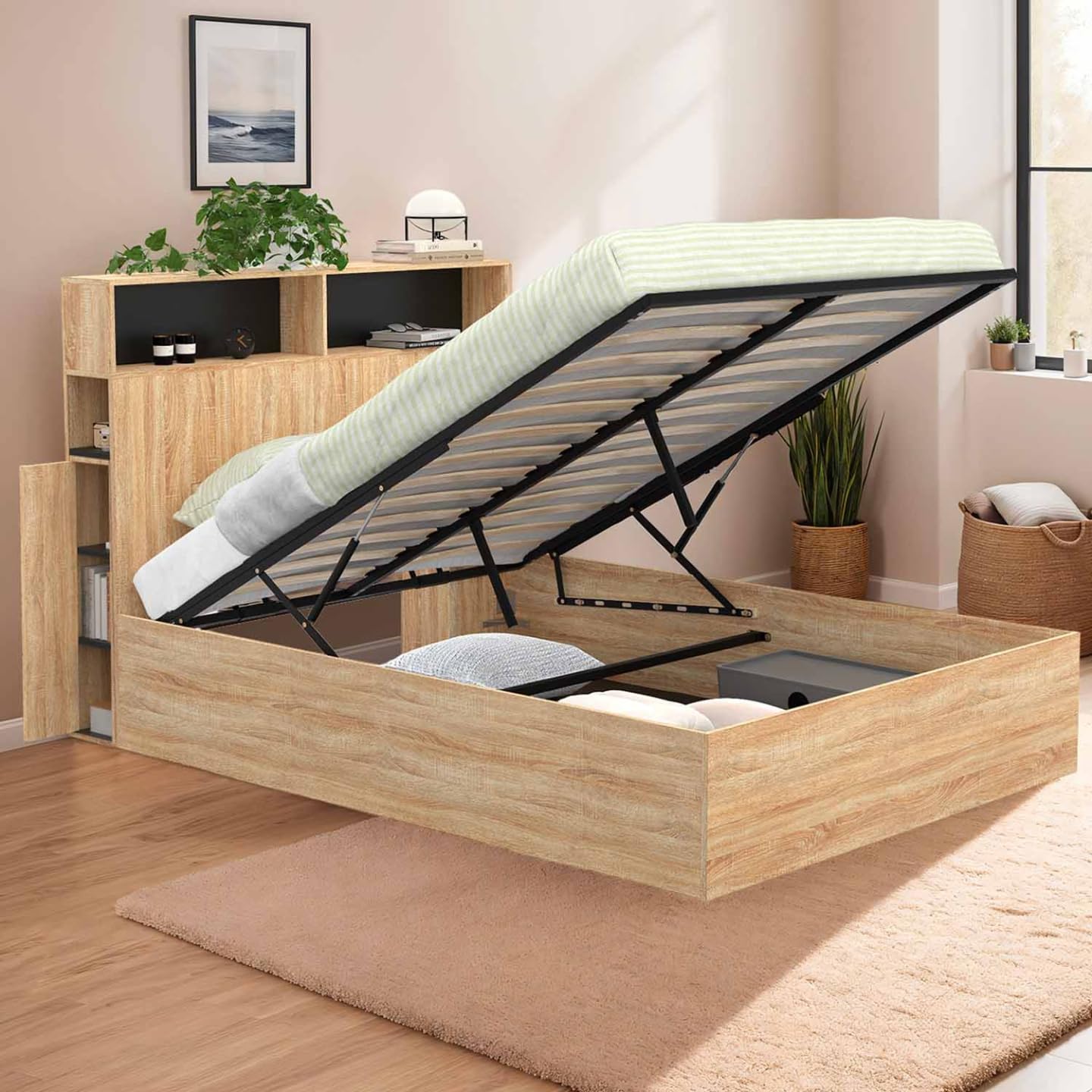

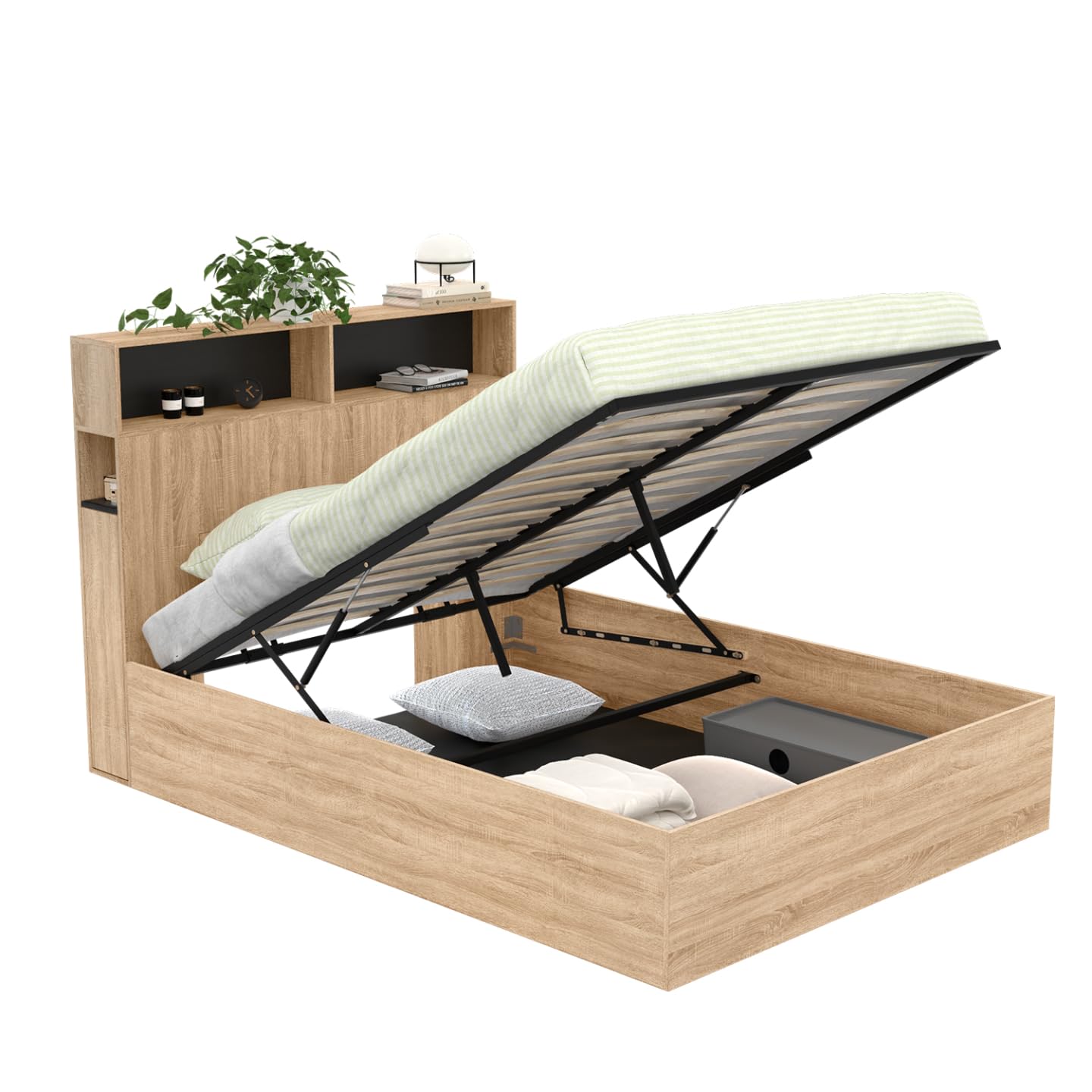

Figure 3: Under-bed storage compartment with slatted base lifted.

5.2 Headboard Storage

The integrated headboard offers multiple storage options:

• Open Niches: Use the open shelves at the top for decorative items, books, or frequently accessed essentials.
• Side Niches with Doors: The lateral niches, partially enclosed by pressure doors, provide discreet storage for smaller items. Gently push the door to open or close.

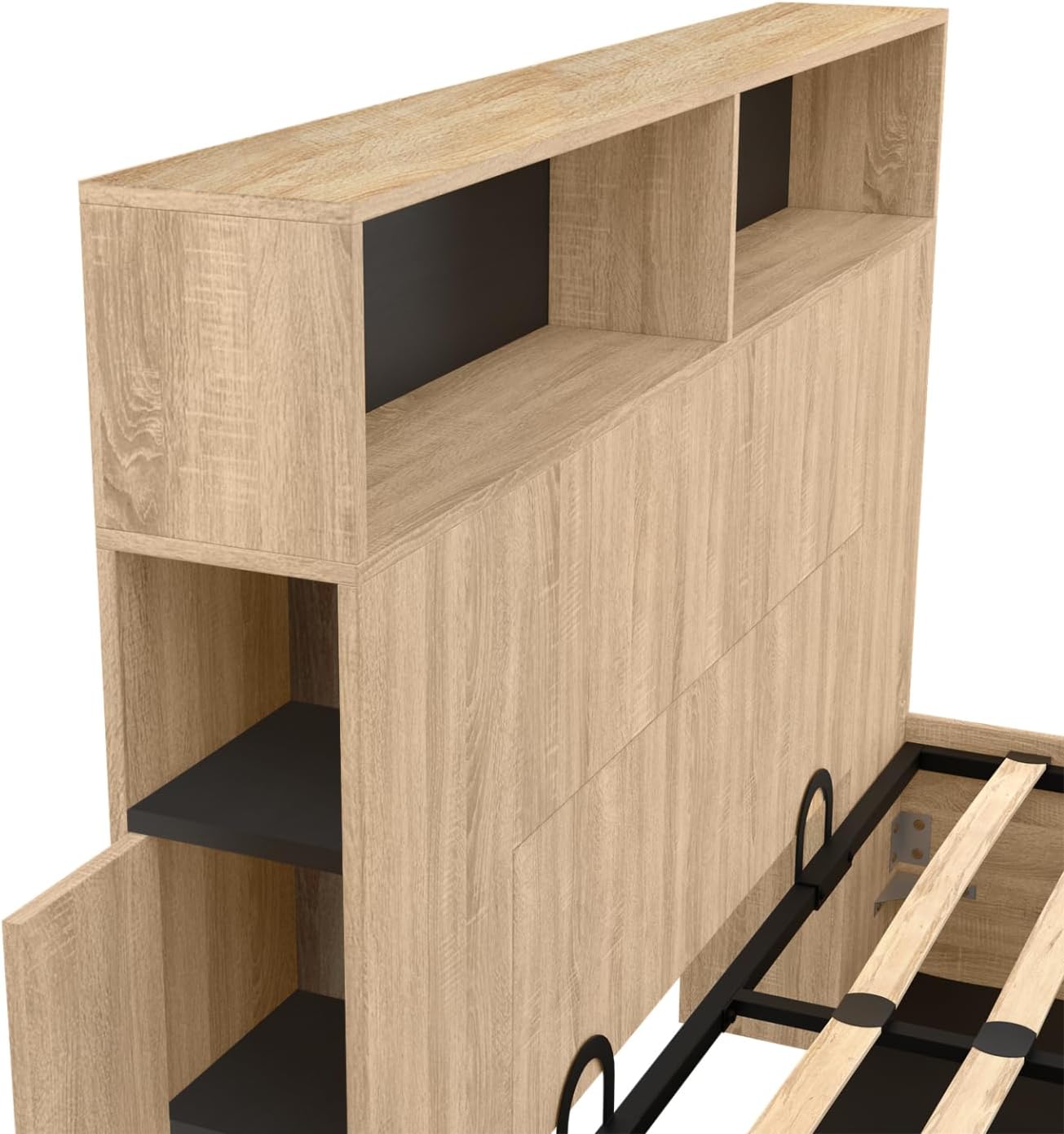

Figure 4: Detail of the headboard storage compartments.

6. Manutenzione

• Pulizia: Pulire le superfici del pannello truciolare con un panno morbido eamp panno. Evitare detergenti abrasivi o prodotti chimici aggressivi che potrebbero danneggiare la finitura. Per le parti metalliche, utilizzare un panno asciutto o leggermenteamp stoffa.
• Hardware: Periodically check all screws, bolts, and connections for tightness. Retighten as needed to maintain stability and prevent squeaking.
• Meccanismo di sollevamento: Ensure the lifting cylinders operate smoothly. Do not apply oil or lubricants unless specifically instructed by the manufacturer.
• Evitare il sovraccarico: Do not place excessive weight on the bed frame, slatted base, or headboard shelves.

7. Risoluzione Dei Problemi

• Scricchiolii del letto: Check all assembly hardware and tighten any loose screws or bolts. Ensure the bed is on a level surface.
• Difficulty Lifting/Lowering Base: Ensure the mattress is removed before attempting to lift. Check that the lifting cylinders are correctly installed and not obstructed. If the issue persists, contact customer support.
• Headboard Storage Doors Not Closing Properly: Check for any obstructions in the niches. Ensure the doors are correctly aligned on their hinges/pressure points.

8. Specifiche

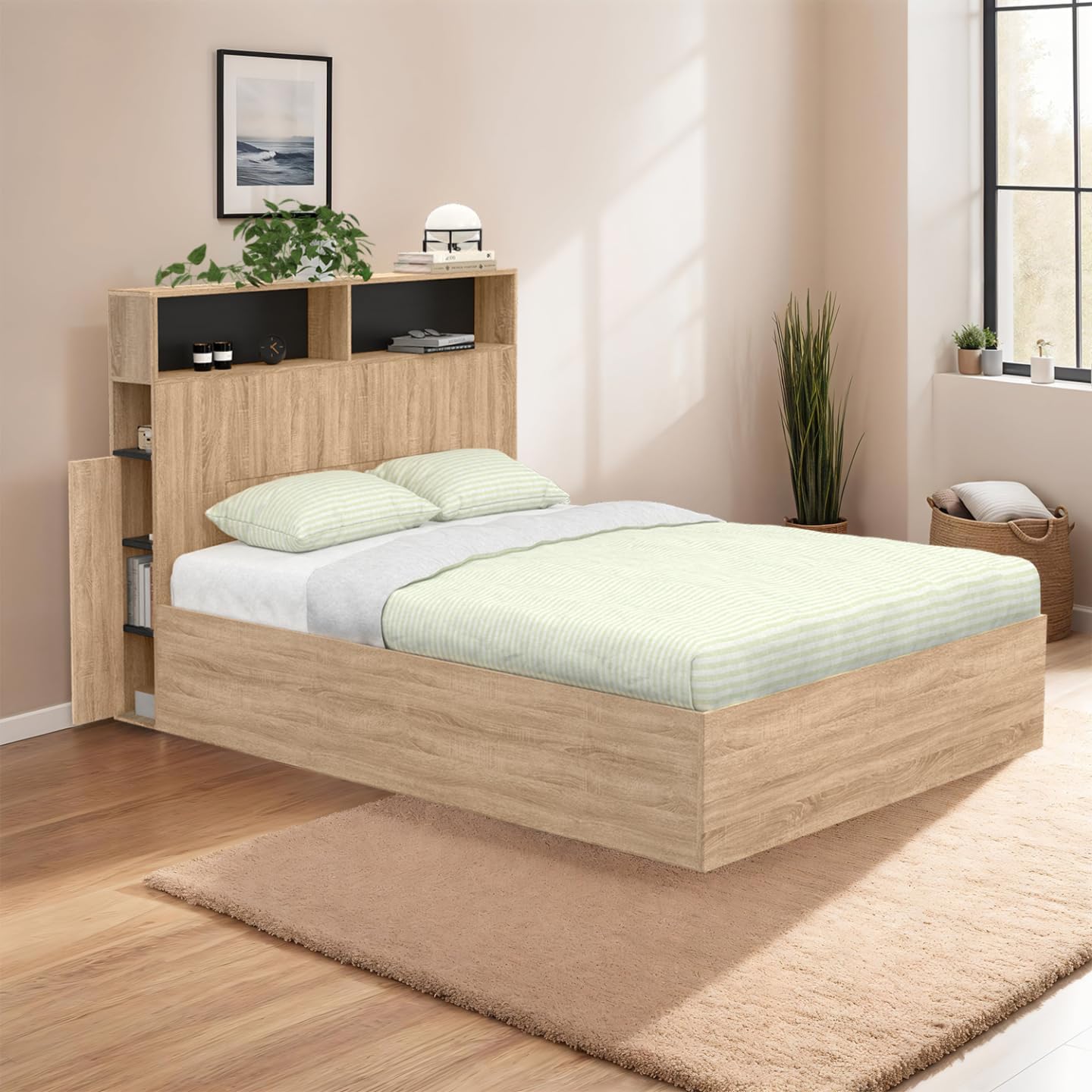

Figure 5: The IDMarket Clyde Double Storage Bed in a bedroom setting.

9. Garanzia e supporto

For warranty information, please refer to the documentation provided at the time of purchase or visit the official IDMarket website. If you encounter any issues with your IDMarket Clyde Double Storage Bed or require assistance with assembly or parts, please contact IDMarket customer support through their official channels. Have your model number (10291) and purchase details ready when contacting support.
