TICYACK Handheld Steam Cleaner

1. Importanti istruzioni di sicurezza

Please read all instructions carefully before using the TICYACK Handheld Steam Cleaner. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the power cord is fully unwound and free from kinks before use.
• Non immergere l'apparecchio, il cavo di alimentazione o la spina in acqua o altri liquidi.
• Keep the steam cleaner out of reach of children and pets.
• Exercise extreme caution when using hot steam. Avoid direct contact with skin or eyes.
• Do not open the water tank cap while the unit is hot or pressurized. Allow the unit to cool down completely before refilling. This is a built-in safety feature.
• Use only clean tap water. Do not add cleaning solutions, perfumes, or other chemicals to the water tank, as this may damage the unit or create hazardous fumes.
• Scollegare l'apparecchio dalla presa di corrente quando non è in uso e prima di pulirlo o eseguirne la manutenzione.

2. Prodotto finitoview

The TICYACK Handheld Steam Cleaner is designed for efficient and chemical-free cleaning using high-temperature steam.

2.1 Componenti

Your steam cleaner comes with a comprehensive 16-piece accessory set to tackle various cleaning tasks:

• Unità principale a vapore
• Tubo flessibile di prolunga
• Ugello piegato
• Glass Cleaning Accessory
• Fabric Cleaning Accessory
• Ugello esteso
• Round Brushes (various types, including brass brush)
• Ugello a cono
• Tazza di misurazione
• Imbuto
• Microfiber Pads/Covers
• Bottiglia spray

Figure 2.1: TICYACK Handheld Steam Cleaner and its 16-piece accessory set.

2.2 Caratteristiche principali

• Impressive 500ML Capacity: Large water tank for extended cleaning sessions. Recommended fill: 350-400ml.
• Riscaldamento rapido: Achieves high-pressure steam (230°F) in just 3-5 minutes.
• Funzionamento continuo: Provides steam for over 10-15 minutes per fill.
• Upgrade Automatic Steam: Offers both manual and automatic steam functions, reducing thumb strain for ergonomic cleaning.
• Chemical-Free Innovation: Harnesses natural steam power for effective cleaning without harsh chemicals, safe for households with children and pets.
• Materiali di prima qualità: Constructed with high-temperature resistant PP material for superior heat insulation and safety.
• Generous Power Cord: Features a 9.8ft power cord for extended reach and convenience.

Figura 2.2: Advantages of the TICYACK Steam Cleaner.

3. Impostazione

1. Preparare l'unità: Place the steam cleaner on a stable, flat surface.
2. Riempire il serbatoio dell'acqua: Ensure the unit is unplugged and cool. Unscrew the safety cap counter-clockwise. Use the provided measuring cup and funnel to fill the water tank with 350-400ml of clean tap water. Do not overfill. Screw the safety cap back on tightly.


   Figura 3.1: Riempimento del serbatoio dell'acqua.

3. Collegare gli accessori: Select the appropriate accessory for your cleaning task and firmly attach it to the nozzle. Ensure it clicks into place securely.


   Figure 3.2: Easy accessory installation.
4. Collegare: Plug the power cord into a standard electrical outlet. The indicator light will illuminate, signaling that the unit is heating up.


   Figure 3.3: Plugging in the steam cleaner.

5. Attendere il riscaldamento: The unit will be ready for use in approximately 3-5 minutes when the indicator light turns off, indicating optimal steam pressure.

4. Istruzioni per l'uso

Once the unit is heated, you can begin cleaning. Always test on an inconspicuous area first, especially on delicate surfaces.

4.1 Manual Steaming

Press and hold the steam button on the handle to release steam. Release the button to stop the steam flow.

4.2 Automatic Steaming (Hands-Free)

For continuous steam without holding the button:

1. Premere il pulsante del vapore.
2. While holding the button, push the lock key forward to engage the continuous steam function.
3. To disengage, push the lock key backward and release the steam button.

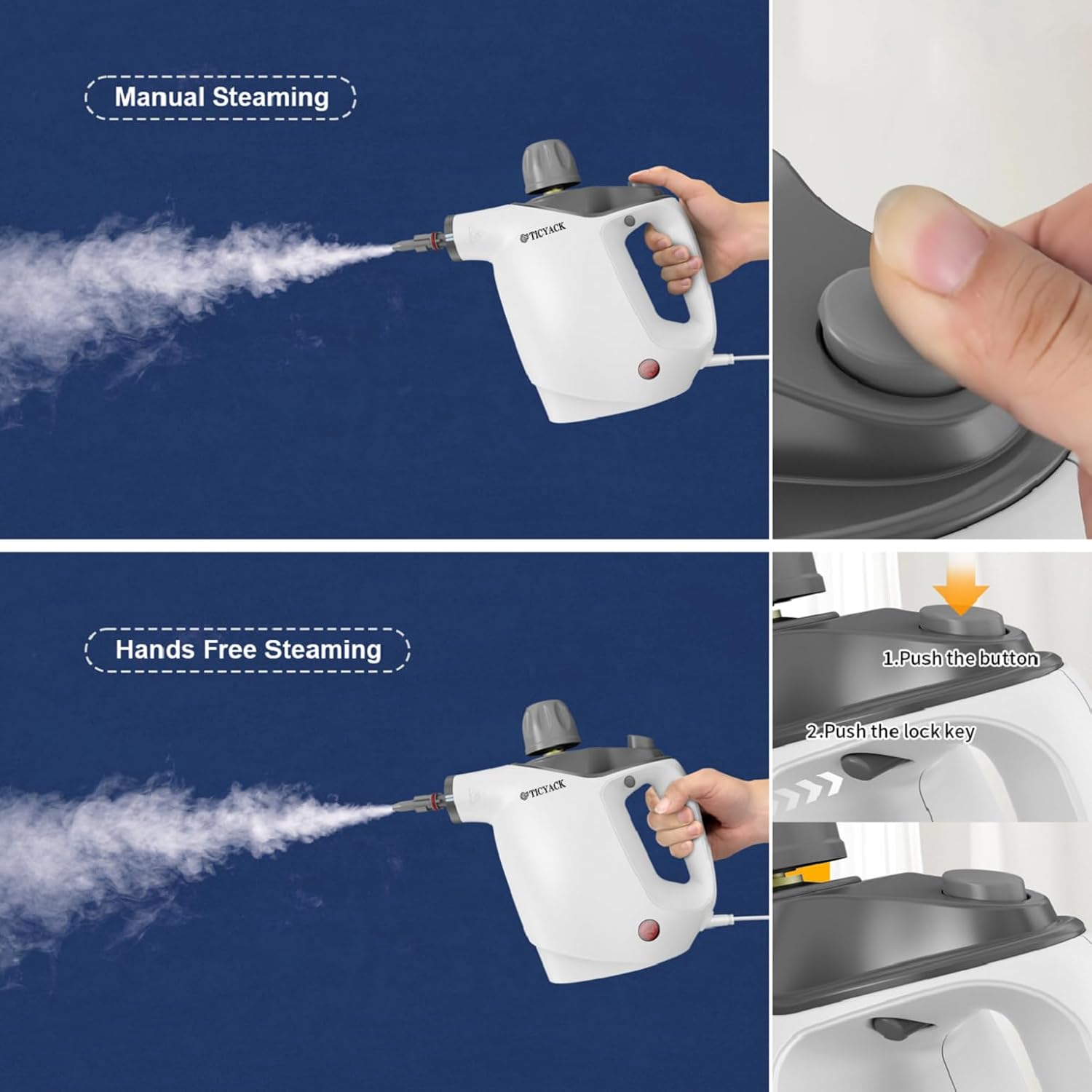

Figure 4.1: Manual vs. Automatic Steam Operation.

4.3 Cleaning Tips for Various Surfaces

• Kitchen Surfaces (Stovetops, Countertops): Use the round brushes or extended nozzle for grease and grime.
• Bathroom (Tiles, Grout, Toilets): The bent nozzle is ideal for hard-to-reach areas. Use a brush for grout lines.
• Finestre e vetri: Attach the glass cleaning accessory for streak-free results.
• Tappezzeria e Tessuti: Use the fabric cleaning accessory with a microfiber pad. Hold the nozzle a few inches away to avoid oversaturation.
• Interni auto: The various nozzles and brushes are effective for cleaning car seats, dashboards, and wheels.

Figure 4.2: Versatile cleaning applications with different accessories.

Figure 4.3: Enjoy chemical-free cleaning for a healthier home.

5. Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali del tuo pulitore a vapore.

5.1 Dopo ogni utilizzo

• Unplug the unit and allow it to cool down completely.
• Svitare con cautela il tappo di sicurezza e svuotare il serbatoio dall'acqua rimasta.
• Pulisci l'esterno dell'unità con l'annuncioamp stoffa.
• Clean accessories with water and mild soap if necessary, and allow them to air dry.

5.2 Decalcificazione (mensile o secondo necessità)

To prevent mineral buildup, especially in hard water areas:

1. Assicurarsi che l'unità sia fredda e vuota.
2. Mescolare una soluzione composta al 50% da aceto bianco e al 50% da acqua.
3. Versare la soluzione nel serbatoio dell'acqua (non superare gli 300 ml).
4. Allow the solution to sit in the tank for 30 minutes to an hour.
5. Svuotare la soluzione e sciacquare accuratamente il serbatoio con acqua pulita più volte.
6. Fill with clean water and operate the steamer for a few minutes to flush out any remaining residue.

5.3 Conservazione

Conservare il pulitore a vapore e i suoi accessori in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.

6. Risoluzione Dei Problemi

If you encounter issues with your TICYACK Handheld Steam Cleaner, refer to the following common problems and solutions:

Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.

7. Specifiche

8. Garanzia e supporto

TICYACK stands behind the quality of its products. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, claims, or technical support, please refer to the warranty card included with your product or contact TICYACK customer service directly.

For further assistance, please visit the official TICYACK websito o contattare i loro canali di assistenza clienti.
