Lazellz Washing Machine Temperature Sensor User Manual

1. Prodotto finitoview

The Lazellz Washing Machine Temperature Sensor (Thermistor) is a critical component designed to accurately monitor and manage the water temperature within compatible Samsung washing machines. This ensures optimal washing conditions and protects the appliance from temperature-related issues.

1.1 Scopo

This thermistor's primary function is to provide precise temperature readings to the washing machine's control board. This data is essential for the machine to regulate heating elements, maintain desired water temperatures for different wash cycles, and ensure efficient operation.

1.2 Compatibilità

This temperature sensor is compatible with the following Samsung washing machine model numbers:

• WD12N64FR2X
• WD12N64FR2X/EY
• WD15F5K5ASG

If your model number is not listed, please contact the seller for assistance in verifying compatibility.

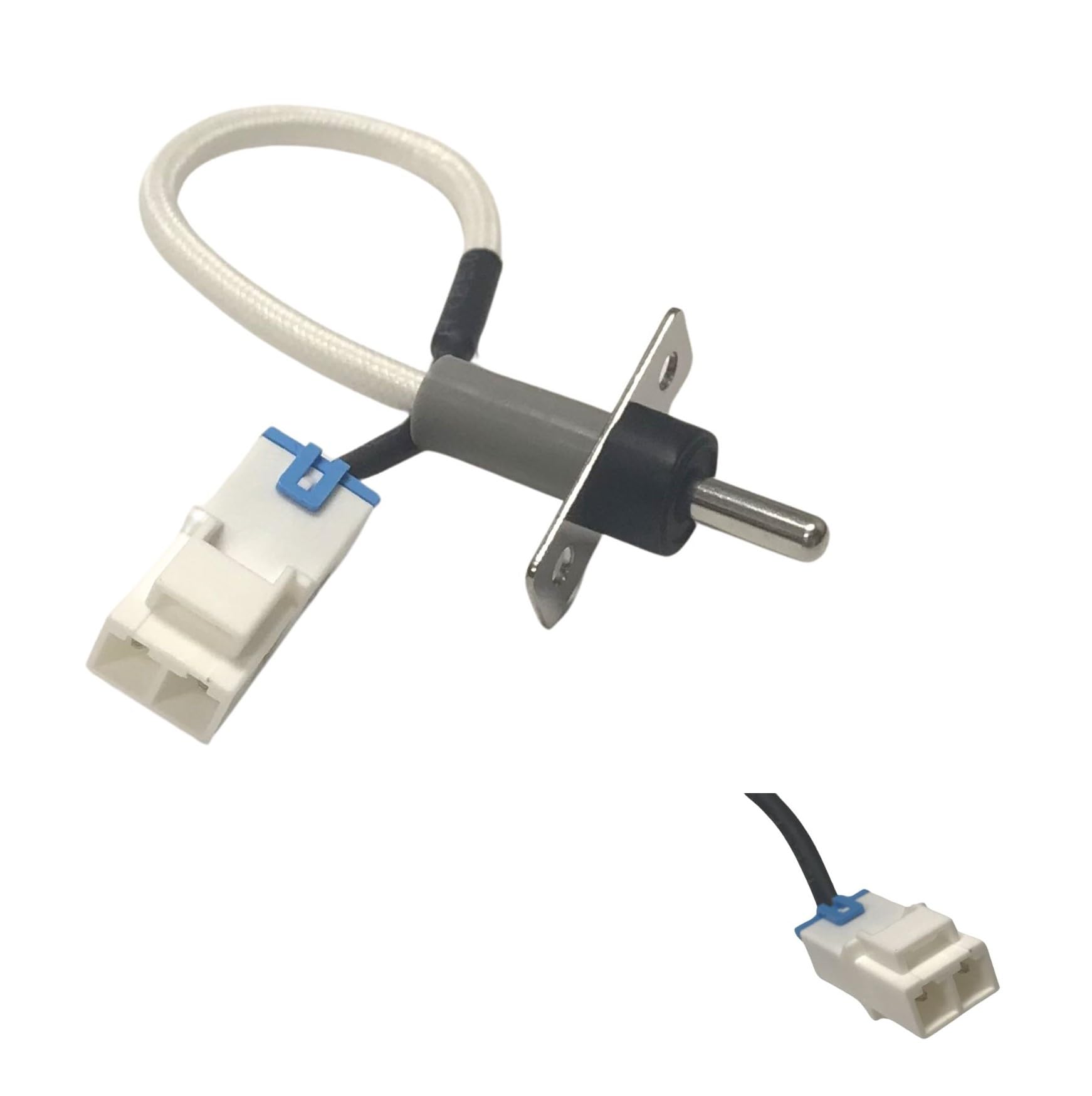

Figure 1: Lazellz Washing Machine Temperature Sensor. A small, cylindrical component with electrical connectors, designed for precise temperature monitoring.

2. Important Notice: Installation

Installation instructions are NOT included with this part. Replacing internal components of a washing machine requires technical knowledge and experience. Improper installation can lead to damage to the appliance, personal injury, or electrical hazards.

It is strongly recommended that installation be performed by a qualified appliance repair technician. Attempting self-installation without proper expertise may void appliance warranties or cause further issues.

3. Funzione del prodotto

The temperature sensor (thermistor) continuously measures the water temperature inside the washing machine tub. It sends resistance-based signals to the electronic control board. The control board interprets these signals to:

• Activate or deactivate the water heating element to reach and maintain the selected wash temperature.
• Ensure water temperatures comply with specific wash cycle requirements (e.g., sanitize, delicate).
• Prevent overheating or underheating, protecting both garments and the appliance components.

The sensor itself does not require user operation; its function is integrated into the washing machine's automated cycles.

4. Identifying a Faulty Sensor

A malfunctioning temperature sensor can lead to various issues with your washing machine. Symptoms that may indicate a faulty thermistor include:

• Temperatura dell'acqua non corretta: Water is consistently too hot or too cold, regardless of the selected setting.
• Codici di errore: The washing machine displays specific error codes related to temperature sensing (refer to your washing machine's main user manual for code interpretation).
• Extended Wash Cycles: The machine may take an unusually long time to complete a cycle, particularly if it's struggling to reach or maintain a set temperature.
• Problemi relativi all'elemento riscaldante: The heating element may not activate or may remain on for too long.

If you suspect your washing machine's temperature sensor is faulty, it is recommended to have a qualified technician diagnose the issue before attempting replacement.

5. Specifiche

Key specifications for the Lazellz Washing Machine Temperature Sensor:

6. Informazioni di supporto

For any questions regarding product compatibility, functionality, or if you require assistance, please contact the seller directly through the platform where the purchase was made. Provide your order details and the specific model number of your washing machine for prompt support.

As this is a replacement part, specific warranty information may be provided by the seller at the time of purchase. Please refer to your purchase documentation or contact the seller for details on warranty coverage.
