1. Introduzione
Welcome to the TMEZON M790 2-Wire Video Intercom System. This manual provides detailed instructions for the installation, operation, and maintenance of your new video intercom system. Please read this manual thoroughly before installation and use to ensure proper functionality and safety. Keep this manual for future reference.
2. Prodotto finitoview
2.1. componenti
The TMEZON M790 system typically includes the following components:
- Unità campanello esterno (con telecamera 1080p)
- Indoor Touch Screen Monitors (7-inch, quantity as per package)
- RFID Cards (8 pieces, 125 kHz)
- Staffe di montaggio e viti
- Connettori di cablaggio
- Adattatori di alimentazione
2.2. Caratteristiche principali
- Tecnologia a 2 fili: Simplified wiring for easier installation.
- Integrazione dell'app TuyaSmart: Dal vivo a distanza view, communication, and unlocking via smartphone (2.4G WiFi required).
- Rilevamento umano intelligente: Mobile notifications upon human activity detection at the door, with customizable detection zones and sensitivity.
- Audio bidirezionale: Built-in microphone for clear communication with visitors from indoor unit or smartphone.
- Funzione messaggio vocale: Outdoor doorbell automatically enters message mode if no answer after 60 seconds.
- Monitor touch screen da 7 pollici: User-friendly interface for operation.
- 1080p Doorbell Camera: High-resolution camera with 140° viewing angle for clear images.
- Visione notturna a infrarossi: LED infrared light provides clear images even at night.
- Resistenza alle intemperie IP65: Durable outdoor unit suitable for various weather conditions.
- Metodi di sblocco multipli: Unlock via indoor unit, smartphone app, or RFID cards.
- Registrazione e riproduzione: Supports TF cards up to 128GB for automatic photo snapshots or video recording upon motion detection or doorbell press. Review recordings on the indoor unit or app.
Figura 2.1: Oltreview of the TMEZON M790 Video Intercom System components.
3. Impostazione
3.1. Linee guida per l'installazione
Before beginning installation, ensure all power is disconnected. It is recommended to consult a qualified electrician for complex wiring or if you are unsure about any steps.
3.2. Schema elettrico
The system utilizes a 2-wire connection for communication between the outdoor doorbell unit and the indoor monitors. Power is supplied to the monitors, which then power the doorbell unit.
Figure 3.1: Simplified 2-wire connection for the TMEZON M790 system.
3.3. Installazione fisica
- Posizionamento dell'unità esterna: Mount the doorbell unit at a suitable height (typically 1.4-1.6 meters from the ground) to ensure optimal camera view. Ensure it is protected from direct harsh weather, although it is IP65 rated.
- Posizionamento del monitor interno: Install indoor monitors in convenient locations within your home, ensuring they are within reach of a power outlet.
- Cablaggio: Connect the outdoor unit to the indoor monitors using the provided 2-wire cable. Ensure all connections are secure and correctly aligned according to the wiring diagram.
- Collegamento elettrico: Connect the power adapters to the indoor monitors and plug them into a power source.
3.4. Configurazione dell'app (TuyaSmart)
To utilize the remote features of your intercom system, download and configure the TuyaSmart application on your smartphone.
- Scarica l'app: Cercare "TuyaSmart" in the App Store (iOS) or Google Play Store (Android) and install it.
- Registrati/Accedi: Apri l'app e crea un nuovo account oppure accedi con uno esistente.
- Aggiungi dispositivo: Follow the in-app instructions to add your TMEZON M790 system. Ensure your smartphone is connected to a 2.4GHz WiFi network during the pairing process.
- Associazione del dispositivo: The app will guide you through connecting the intercom system to your home WiFi network.
- Condividi accesso: You can share device access with family members through the TuyaSmart app.
Figure 3.2: TuyaSmart App interface for live view e sblocco remoto.
4. Istruzioni per l'uso
4.1. Operazioni di base
4.1.1. Rispondere alle chiamate
When a visitor presses the doorbell, the indoor monitor(s) will ring and display the live video feed from the outdoor camera. You can answer the call by tapping the answer button on the monitor or through the TuyaSmart app.
4.1.2. Audio bidirezionale
Once a call is answered, you can engage in two-way communication with the visitor. Speak clearly into the monitor's microphone or your smartphone's microphone, and listen for the visitor's response.
Figura 4.1: Comunicazione audio bidirezionale tramite il monitor interno.
4.1.3. Sbloccare la porta
The TMEZON M790 system offers three methods to unlock your door:
- Via Indoor Unit: Tocca l'icona di sblocco sul touch screen del monitor interno durante una chiamata o una chiamata in diretta view.
- Tramite l'app TuyaSmart: Tap the unlock icon within the app interface when viewing the live feed or during a call.
- Tramite carta RFID: Present a pre-programmed RFID card to the designated reader area on the outdoor doorbell unit.

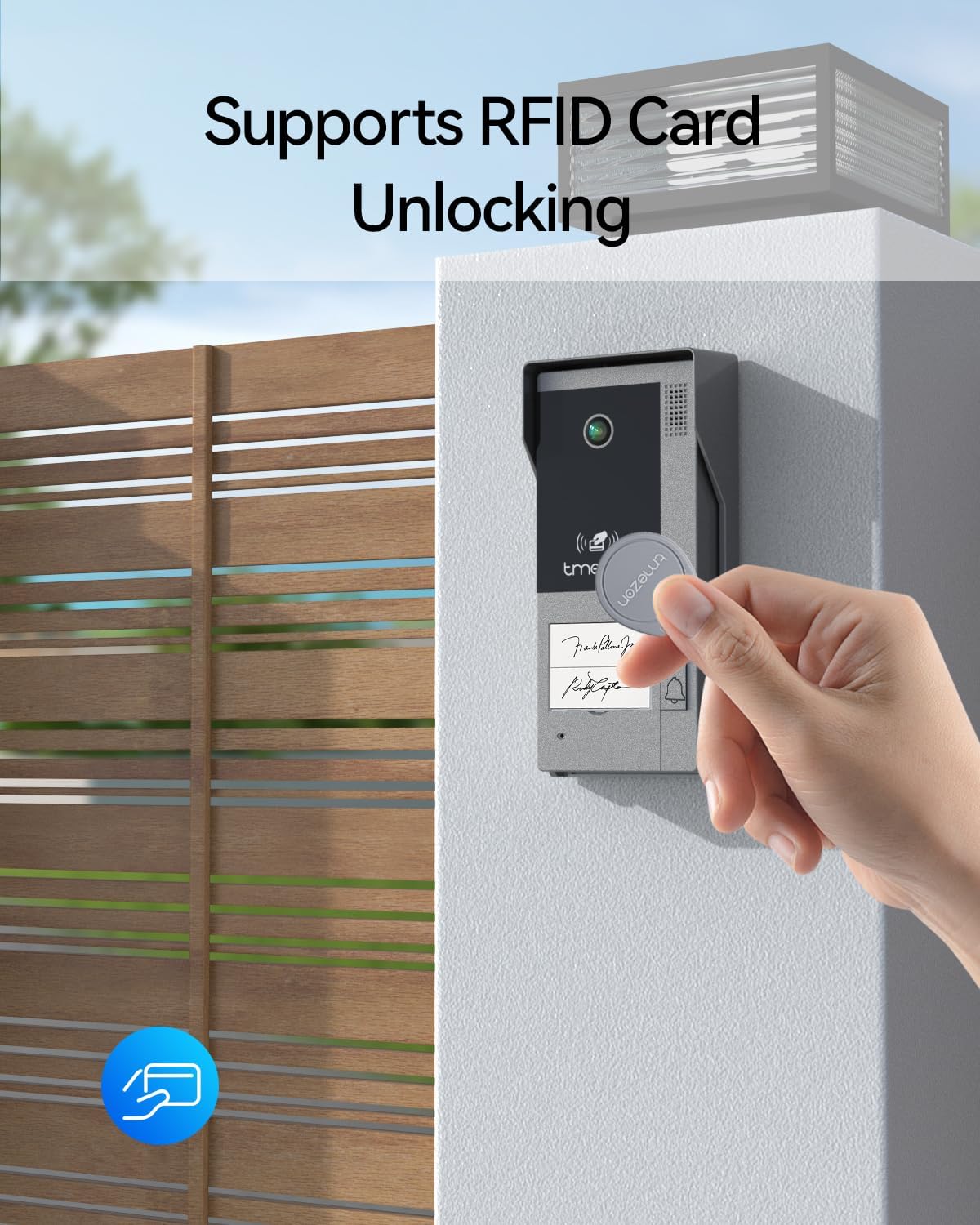

Figure 4.2: Unlocking the door using an RFID card.
4.1.4. Voice Message Function
If a visitor rings the doorbell and no one answers within 60 seconds, the outdoor unit will automatically prompt the visitor to leave a voice message. These messages can be reviewed later on the indoor monitor or via the TuyaSmart app.
Figure 4.3: Voice message feature activation on the doorbell unit.
4.2. Funzionalità avanzate
4.2.1. Human Detection and Recording
The system can detect human activity at your door and automatically capture snapshots or record video. You will receive instant mobile notifications. You can customize the detection sensitivity and define specific detection zones on the indoor monitor to reduce false alarms.
Figure 4.4: Smart human detection and automatic recording.
4.2.2. Visione notturna
The outdoor doorbell unit is equipped with infrared LEDs to provide clear black and white images even in complete darkness, ensuring continuous monitoring day and night.
Figura 4.5: Capacità di visione notturna migliorate.
4.2.3. Dual Lock Control
The system supports controlling two separate electronic locks, such as a pedestrian gate and a vehicle gate, providing comprehensive access management.
Figure 4.6: Control of two separate electronic locks.
5. Manutenzione
To ensure the longevity and optimal performance of your TMEZON M790 system, follow these maintenance guidelines:
- Pulizia: Pulire regolarmente l'unità del campanello esterno e i monitor interni con un panno morbido e asciutto.amp panno. Evitare l'uso di detergenti abrasivi o solventi che potrebbero danneggiare le superfici.
- Protezione dell'unità esterna: While the outdoor unit is IP65 waterproof, ensuring it is not constantly submerged or exposed to extreme conditions will prolong its life.
- Aggiornamenti software: Check the TuyaSmart app periodically for any available firmware updates for your device. Keeping the software updated ensures optimal performance and security.
- Ispezione dei cavi: Periodically inspect all wiring connections for any signs of wear or damage.
Figure 5.1: The IP65 waterproof design of the outdoor unit.
6. Risoluzione Dei Problemi
If you encounter issues with your TMEZON M790 system, refer to the table below for common problems and their solutions.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessuna immagine sul monitor interno. | Problema di alimentazione, cablaggio allentato, malfunzionamento della telecamera. | Check power supply to monitors. Verify all 2-wire connections are secure. Restart the system. |
| Nessun audio durante la comunicazione bidirezionale. | Microphone/speaker issue, app settings. | Ensure volume is not muted. Check app audio settings. Inspect for physical damage to microphone/speaker. |
| Cannot connect to WiFi via TuyaSmart app. | Incorrect WiFi password, 5GHz network, weak signal. | Ensure you are connecting to a 2.4GHz WiFi network. Double-check WiFi password. Move router closer or use a WiFi extender. |
| RFID cards not unlocking door. | Card not programmed, incorrect placement, lock malfunction. | Ensure RFID cards are properly programmed to the system. Present the card directly to the reader area. Check the electronic lock connection. |
| Il rilevamento del movimento non funziona o ci sono troppi falsi allarmi. | Incorrect sensitivity settings, detection zone not configured. | Adjust motion detection sensitivity on the indoor monitor or app. Configure specific detection zones to exclude irrelevant areas. |
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | MZ-M790*2/EU |
| Produttore | TMEZONE |
| Colore | Nero e argento |
| Dimensioni del pacco | Dimensioni: 28.2 x 19.1 x 15.8 cm |
| Peso dell'articolo | 1.98 chilogrammi |
| Connettività | Wi-Fi a 2 fili, 2.4 GHz |
| Schermo monitor interno | Touchscreen da 7 pollici |
| Risoluzione della telecamera esterna | Formato: 1080p |
| Telecamera esterna Viewangolo di ing | 140° |
| Resistenza alle intemperie | Grado di protezione IP65 |
| Supporto di archiviazione | Schede TF fino a 128 GB |
| Frequenza della carta RFID | 125 kHz |
8. Garanzia e supporto
For warranty information and customer support, please refer to the documentation provided with your purchase or contact TMEZON customer service directly. Keep your proof of purchase for warranty claims.
