Tecnolove 25L Car Refrigerator Freezer (Model: CR202DADUS) Instruction Manual

1. Introduzione

Thank you for choosing the Tecnolove 25L Car Refrigerator Freezer. This portable compressor cooler is designed for versatile use, offering both refrigeration and freezing capabilities for your convenience on the go. Please read this manual carefully before operating the appliance to ensure proper use, safety, and optimal performance. Keep this manual for future reference.

Avvertenze di sicurezza

• Non riempire il frigorifero con liquidi corrosivi. Non versare liquidi direttamente nel frigorifero.
• Quando non si utilizza il frigorifero per un lungo periodo, scollegare l'alimentazione e mantenere il frigorifero asciutto.
• Si prega di pulire regolarmente lo scomparto interno per prevenire la formazione di batteri e odori e per garantire la sicurezza degli alimenti.
• Spegnere il frigorifero e la batteria (se utilizzata) prima di tirare il frigorifero per la maniglia.
• The refrigerator may be inverted during delivery. To ensure proper operation of the compressor, please keep the refrigerator standing upright for 12 hours before using it again.

2. Prodotto finitoview

The Tecnolove 25L Car Refrigerator Freezer is a compact and efficient cooling solution, perfect for camping, road trips, and outdoor activities. It features a dual-zone design, allowing for flexible storage of various items.

Caratteristiche principali:

• Ultra-Fast and Efficient Cooling: Equipped with a high-performance compressor and advanced 360-degree direct cooling technology. Drops from 68℉ to 32℉ in 15 minutes and reaches -4℉ in 50 minutes.
• Design compatto e spazioso: 25 liters (27 quarts) capacity, holding up to 46 cans of 355ml drinks. Dimensions: 25.4 x 14.6 x 14.6 inches, weight 27.8 lbs.
• True Dual-Zone Cooling: Left compartment offers independently adjustable temperature from -4℉ to 32℉ (freezer/heavy chilling). Right compartment is for refrigeration (always above 39℉, temperature varies with left side).
• Durable Build for Rough Terrain: Made from high-strength materials, stable on 45-degree slopes. Features a magnetic lid with rubber gasket, all-terrain wheels, telescoping handle, and built-in drain plug.
• Molteplici opzioni di alimentazione: Supports 100–240V AC and 12/24V DC power sources. Compatible with solar power stations.
• Smart LED Touch Control and Quiet Operation: Digital touchscreen panel for easy temperature control and Fahrenheit/Celsius switching. Operates quietly at 45dB.
• Three-level Battery Protection (H / M / L): Prevents vehicle battery drain, overload, and short circuit.

3. Impostazione

Pulizia iniziale

Prima di utilizzare il frigorifero per la prima volta, pulirlo internamente ed esternamente con adamp cloth. Ensure the unit is completely dry before connecting to power.

Collegamento di potenza

The refrigerator supports multiple power sources:

• 100–240V AC: Use the provided AC power adapter for home or standard wall outlets.
• 12V / 24V DC: Use the provided DC power cord to connect to your vehicle's cigarette lighter socket.
• Solar Power Stations: The unit is compatible with external solar power stations (not included) for off-grid use.

Ensure the power plug is securely connected to the unit and the power source. The unit is plug-and-play with no installation required.

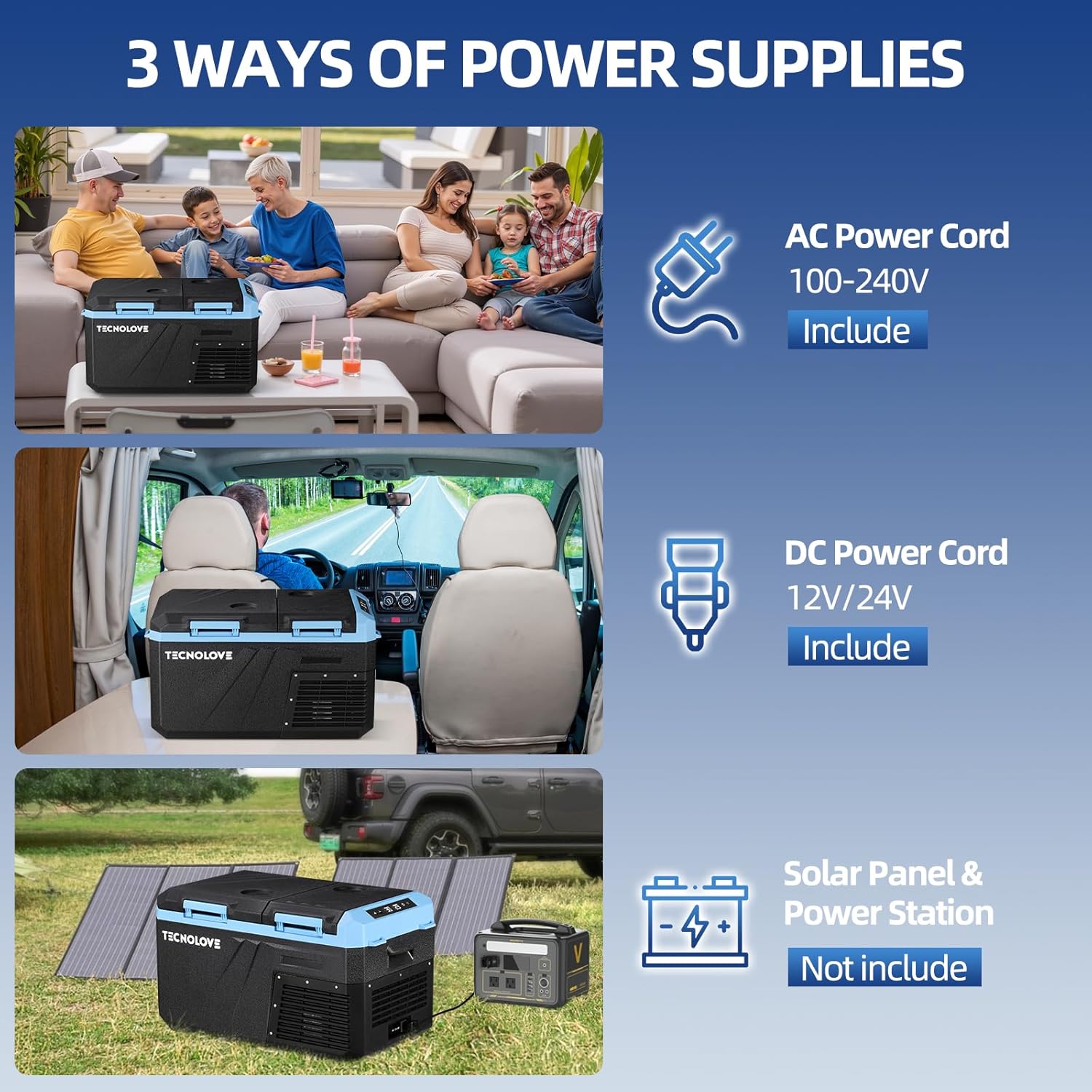

Image: Tecnolove Car Refrigerator showing connections for AC (100-240V), DC (12V/24V), and compatibility with solar panels (not included).

4. Istruzioni per l'uso

Pannello di controllo Fineview

Immagine: dettagliata view of the touchscreen control panel, highlighting Temperature -, Temperature +, Left Compartment, Right Compartment, Set, and ON/OFF buttons.

• Pulsante ON/OFF: Press and hold for 3 seconds to turn the refrigerator on or off.
• Pulsante Impostazioni (icona a forma di ingranaggio): Press to switch between MAX (fast cooling) and ECO (energy saving) modes. Hold for 3 seconds to adjust battery protection levels.
• Temperatura + Pulsante: Premere per aumentare la temperatura impostata.
• Temperatura - Pulsante: Premere per diminuire la temperatura impostata.
• Commutatore Fahrenheit/Celsius: Press and hold the 'Set' and '+' buttons simultaneously for 3 seconds to switch between Fahrenheit (℉) and Celsius (℃).

Temperature Settings and Modes

The refrigerator can achieve temperatures from -4℉ to 68℉. It can cool from 68℉ to 32℉ in 15 minutes and reach -4℉ in 50 minutes.

Image: Visual representation of the refrigerator cooling from 90℉ to 32℉ in 15 minutes and to -4℉ in 45 minutes.

• Modalità MAX: Provides powerful and fast cooling. Ideal for quickly reaching desired temperatures.
• Modalità ecologica: Minimizes power consumption while maintaining temperature. Suitable for extended use or when power saving is desired.

Image: The refrigerator displaying 30W for ECO (Energy Saving) mode and 60W for MAX (Fast Cooling) mode.

Protezione della batteria

The built-in Eco electronic control module automatically monitors your car battery's voltage. Il frigorifero si spegnerà automaticamente quando viene consumata una potenza eccessiva, evitando così di scaricare la batteria o di interferire con l'avvio dell'auto.

To adjust the battery protection level, press and hold the 'Settings' button for 3 seconds. Tap the 'Settings' button to cycle through the levels:

• H (High Level): Higher cut-off voltage, more protection for your vehicle battery. Recommended for vehicle use.
• M (Medium Level): Default setting, balanced protection.
• L (Low Level): Lower cut-off voltage, allows more battery usage before shut-off.

5. Dual Zone Functionality

The Tecnolove 25L Car Refrigerator features a true dual-zone cooling system, allowing for flexible storage options:

• Scomparto sinistro: This is the primary cooling zone with an independently adjustable temperature range from -4℉ to 32℉. It can function as a freezer or for heavy chilling.
• Scomparto destro: This zone is dedicated to refrigeration and its temperature cannot be adjusted separately. Its temperature varies with the left side, always staying above 39℉. For example, if the left side is set to 17℉, the right side averages around 50℉. If the left side is set to -4℉, the right side stays around 39℉.

This design ensures flexible storage for both beverages and fresh foods. Each compartment can be operated independently without affecting the temperature stability of the other side.

Image: The dual-zone interior of the refrigerator, illustrating the left side as a freezer (-4℉ to 32℉) for items like meat and ice cream, and the right side as a refrigerator (32℉ to 50℉) for items like beverages and fruits.

6. Manutenzione

Pulizia

Pulire regolarmente l'interno e l'esterno del frigorifero con un detergenteamp cloth and mild detergent. Ensure the unit is unplugged before cleaning. Do not use abrasive cleaners or harsh chemicals.

Risoluzione dei problemi

If your car refrigerator does not work:

• Check that the power is connected properly (check if the plug is loose or positive and negative poles are reversed).
• Check that the power button on the control panel is turned on.
• Controllare che la ventilazione di raffreddamento sia normale.
• Controllare se il fusibile è bruciato.

If there is poor cooling performance:

• Controllare che il coperchio sia chiuso correttamente.
• Controllare se la guarnizione della porta è danneggiata o deformata.
• Controllare se c'è scarsa ventilazione attorno al frigorifero.
• Controllare che la temperatura sia impostata correttamente.

Se si sente un rumore anomalo:

• Il frigorifero non è posizionato su una superficie piana e livellata.
• Controllare le vibrazioni negli oggetti circostanti.
• Alcune parti all'interno del frigorifero si sono allentate o sono cadute.

If there is refrigerator condensation, it is normal for some condensation to collect on the surface of the refrigerator when humidity is more than 75%.

7. Specifiche

8. Garanzia e supporto

Tecnolove products come with a manufacturer's warranty. For detailed warranty information, product support, or any inquiries, please refer to the contact information provided in your purchase documentation or visit the official Tecnolove websito.

The Tecnolove team is available 24/7 to address your questions, comments, and concerns. Your satisfaction is our ultimate goal. We want to make everything right so you'll share your positive experience with other shoppers.
