1. Introduzione
Thank you for choosing the Wanneton W-F3 Waterproof Rechargeable Walkie Talkies. This comprehensive user manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your new communication devices. Designed for long-range, reliable, and seamless communication, these handheld radios are ideal for various environments including construction sites, hotels, shopping malls, and outdoor activities. Please read this manual thoroughly before use to ensure optimal performance and safety.

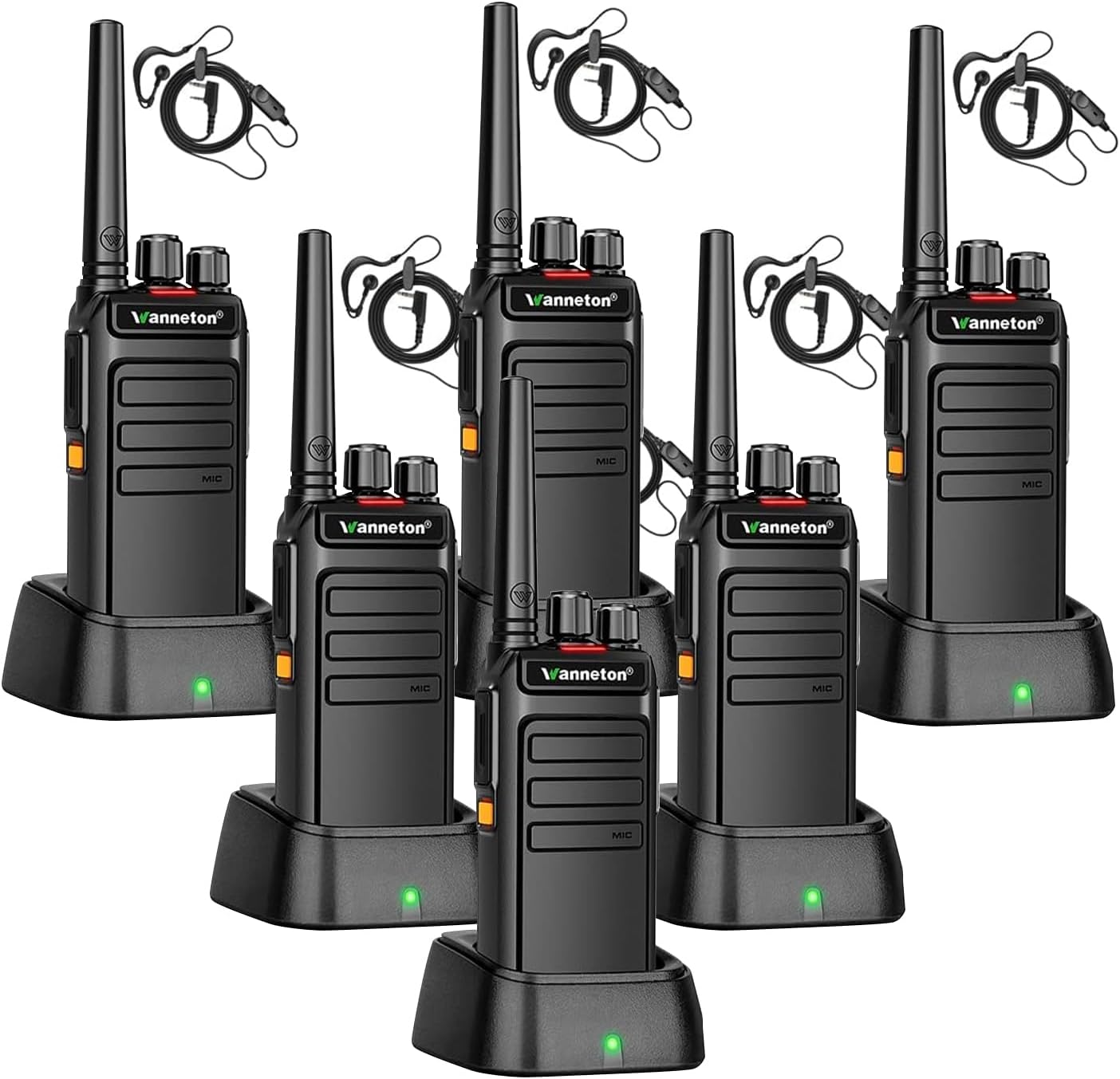

Figure 1.1: Wanneton W-F3 Walkie Talkies with Charging Bases
2. Contenuto della confezione
Dopo aver aperto la confezione, verifica che siano inclusi tutti i seguenti articoli:
- 6 x Wanneton W-F3 Walkie Talkies
- 6 x Antenne
- 6 batterie ricaricabili da 1500 mAh
- 6 x Charging Cradles with Power Adapters
- 6 x cordini
- Clip 6 x cinghie
- 6 cuffie
- 3 x Manuali utente
Figura 2.1: Componenti del pacchetto inclusi
3. Guida all'installazione
3.1 Installazione e ricarica della batteria
- Assicurarsi che il walkie-talkie sia spento.
- Align the 1500mAh battery with the battery compartment on the back of the walkie talkie.
- Spingere delicatamente la batteria in posizione finché non scatta in modo sicuro.
- Place the walkie talkie with the installed battery into the charging cradle.
- Connect the charging cradle to a power outlet using the provided power adapter. The charging indicator light will illuminate.
- Allow approximately 2-3 hours for a full charge. A fully charged battery provides 1-2 days of continuous use or up to 8 days in standby mode.
Figura 3.1: Prestazioni della batteriaview
3.2 Attacco dell'antenna
Avvitare l'antenna in senso orario nel connettore sulla parte superiore del walkie-talkie fino a quando non è saldamente in posizione. Non stringere eccessivamente.
3.3 Clip per cintura e attacco per cordino
Attach the belt clip to the designated slot on the back of the walkie talkie for convenient carrying. The lanyard can be attached to the top loop for added security.
3.4 Collegamento delle cuffie
Insert the headset plug into the audio jack on the side of the walkie talkie. Ensure it is fully inserted for proper audio transmission and reception.
Figure 3.2: Physical Features and Portability
4. Istruzioni per l'uso
4.1 Accensione/spegnimento
Rotate the Power/Volume knob clockwise to turn the walkie talkie on. Rotate it counter-clockwise until you hear a click to turn it off.
4.2 Regolazione del volume
Rotate the Power/Volume knob to adjust the listening volume. Turn clockwise to increase volume, counter-clockwise to decrease.
Figure 4.1: Clear Sound and Volume Control
4.3 Selezione del canale
Rotate the Channel Selector knob to choose one of the 16 available GMRS channels. Ensure all walkie talkies intended for communication are set to the same channel.
4.4 Trasmissione e ricezione
- To transmit, press and hold the Push-to-Talk (PTT) button on the side of the walkie talkie. Speak clearly into the microphone.
- Rilasciare il pulsante PTT per ricevere.
4.5 Funzionamento a mani libere VOX
The walkie talkie supports Voice Operated Exchange (VOX) for hands-free communication. This feature can be enabled or disabled using programming tools. When active, the radio will transmit automatically when it detects your voice, eliminating the need to press the PTT button.
Figura 4.2: Comunicazione a mani libere VOX
4.6 One-Click Frequency Decoding (Wireless Copy)
This feature allows for easy alignment with other UHF walkie talkies. Simply press the designated button (customizable via programming tools) to decode the transmission frequency and privacy code of another device. Your walkie talkie will automatically adjust its settings for cross-brand communication without complex manual programming.
4.7 Customizable Alarm Function
Side keys can be programmed as emergency alarm switches. When activated, all intercoms on the same frequency will emit an alarm sound, crucial for quickly notifying your team in emergency situations. This function can be toggled on or off with a single click.
Figura 4.3: Funzione di allarme di emergenza
4.8 Protection (Encryption) Function
Utilize programming tools to set a side key as an encryption function switch. Activating this feature scrambles your audio transmission. If a receiving device does not have the encryption function activated, the audio will be distorted, ensuring privacy for sensitive communications.
4.9 Relay Connection Function
These GMRS handheld walkie talkies can connect to nearby relays to extend signal range and improve communication over longer distances. This function leverages higher power output compared to standard models for enhanced reach.
4.10 funzioni aggiuntive
- Codici sulla privacy: Utilize 205 privacy codes to minimize interference from other users on the same channel.
- Scansione dei canali: Automatically scan through channels to find active conversations.
- Modalità risparmio batteria: Automatically conserves battery power when no transmission or reception is detected.
- Avvisi di batteria scarica: Ti avvisa quando il livello della batteria è estremamente basso.
- BCL (Blocco canale occupato): Prevents transmission on a channel that is already in use.
- TOT (timer di timeout): Limits the duration of a transmission to prevent accidental continuous transmission and conserve battery.
5. Manutenzione
5.1 Pulizia
Pulisci le superfici del walkie talkie con un panno morbido e asciutto.amp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the charging contacts are clean and dry.
5.2 Cura della batteria
To prolong battery life, avoid overcharging or completely discharging the battery. Store the walkie talkie and batteries in a cool, dry place when not in use for extended periods.
5.3 Conservazione
When storing the walkie talkies for a long time, remove the batteries. Store them in a dry, dust-free environment away from direct sunlight and extreme temperatures.
6. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Walkie talkie does not power on. | La batteria è scarica o non è installata correttamente. | Charge the battery fully. Reinstall the battery ensuring it clicks into place. |
| Nessun suono o audio distorto. | Volume too low; Encryption function active on one device but not another; Incorrect channel or privacy code. | Increase volume. Ensure encryption is consistent across communicating devices. Verify channel and privacy code settings. |
| Raggio di comunicazione ridotto. | Obstacles (buildings, terrain); Low battery; Interference. | Move to an open area. Recharge battery. Avoid sources of strong electromagnetic interference. Utilize relay connection function if available. |
| Cannot communicate with other walkie talkies. | Different channels or privacy codes; Out of range; Battery low. | Ensure all devices are on the same channel and privacy code. Move closer to the other device. Charge batteries. |
| L'indicatore di carica non funziona. | Charger or power adapter faulty; Poor connection. | Check power outlet and connections. Try a different charger/adapter if available. |
7. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | W-F3 |
| Peso dell'articolo | 6.6 pounds (approx. 2.99 kg for 6 units) |
| Marca | Wanneton |
| Colore | Nero |
| Numero di canali | 16 canali GMRS |
| Codici sulla privacy | 205 |
| Gamma di frequenza | GMRS |
| Portata massima di conversazione | 30 Mile (line of sight, actual range varies) |
| Voltage | 3.7 Volt |
| Capacità della batteria | 1500mAh |
| Tempo di ricarica | 2-3 ore |
| Work Time (approx.) | 1-2 giorni (uso continuo) |
| Tempo di standby (circa) | 8 giorni |
| Livello di resistenza all'acqua | Impermeabile |
| Dispositivi compatibili | Most walkie talkies |
| Caratteristiche speciali | Adjustable Receiver Sensitivity, Automatic Squelch, Battery Saver Mode, Battery Strength Indicator, One-key decoding copy frequency, One-touch Alarm, One-touch Scrambling, Voice Activation (VOX), Channel Scanning, Low Battery Alerts, BCL, TOT, Relay Connection Function |
8. Informazioni sulla garanzia
Based on the product specifications, there is NO explicit manufacturer's warranty provided for this product. Please refer to the retailer's return policy for any issues or concerns within the applicable return period.
9. Assistenza clienti
For any questions, technical assistance, or support regarding your Wanneton W-F3 Walkie Talkies, our professional team is available to assist you. Please contact the seller or manufacturer through the platform where you purchased the product for the most efficient support.
