Aheaplus YHCC-10A 8FT Wood Closet Organizer System Instruction Manual

Introduzione

This manual provides detailed instructions for the assembly, operation, and maintenance of your Aheaplus YHCC-10A 8FT Wood Closet Organizer System. Please read this manual thoroughly before beginning installation to ensure proper setup and safe use of the product. Retain this manual for future reference.

Image: The Aheaplus 8FT Wood Closet Organizer System, showcasing its central tower with shelves and drawers, flanked by hanging rods and upper shelves, all in a White Oak finish.

Contenuto della confezione

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact Aheaplus customer support.

• Central Tower Unit (with pre-drilled holes for shelves and drawers)
• 4 Wooden Drawers (including slides and hardware)
• Adjustable Shelves for Tower Unit
• 4 Expandable Hanging Rods (26 to 47 inches)
• Wall Mounting Brackets and Hardware
• Ferramenta di montaggio (viti, tasselli, serrature a camma, ecc.)
• Manuale di istruzioni

Immagine: Primo piano view highlighting key features: expandable depth rods, adjustable height shelves, and four large wooden drawers within the central tower.

Specifiche

Image: Technical diagram illustrating the dimensions and weight capacity of the closet system, including the central tower, hanging rods, and drawers.

Configurazione e installazione

Strumenti necessari (non inclusi):

• Cacciavite con testa Phillips
• Drill with appropriate drill bits (for pilot holes and wall anchors)
• Livello
• Nastro di misurazione
• Matita
• Stud Finder (recommended for secure wall mounting)
• Utility Knife or Scissors (for packaging)
• Occhiali di sicurezza (consigliati)

Lista di controllo pre-installazione:

1. Disimballare tutti i componenti e disporli su una superficie pulita e morbida per evitare graffi.
2. Identify all parts using the provided parts list in your physical manual.
3. Assicuratevi di avere tutti gli strumenti necessari.
4. Liberare l'area di installazione.
5. Determine your desired configuration. The system is designed for spaces 4-9 ft wide and can be customized.

Fasi di assemblaggio:

Follow the numbered steps provided in the physical assembly guide included with your product. The general sequence is:

1. Assemble the Central Tower: Begin by constructing the main tower unit, attaching side panels, top, and bottom.
2. Installare le guide dei cassetti: Attach the drawer slides to the interior of the central tower.
3. Montare i cassetti: Construct the four wooden drawers and install their corresponding slides. Insert drawers into the tower.
4. Fissare le staffe di montaggio a parete: Secure the wall mounting brackets to the top and sides of the central tower.
5. Mount the Central Tower: Position the assembled tower against the wall. Use a stud finder to locate wall studs for secure attachment. Mark and drill pilot holes, then secure the tower to the wall using the provided hardware. Ensure it is level.
6. Installare i ripiani superiori: Attach the upper shelves to the wall above the central tower using the provided brackets. Ensure they are level and securely fastened.
7. Installare le aste di sospensione: Attach the hanging rod brackets to the wall at your desired height. Insert and expand the hanging rods to fit the width of your closet space.
8. Regola i ripiani: Place the adjustable shelves within the central tower at your preferred heights.

Note: For optimal stability and safety, it is highly recommended to mount the system directly into wall studs. If studs are not available, use appropriate heavy-duty wall anchors (not always included, may need to be purchased separately based on wall type).

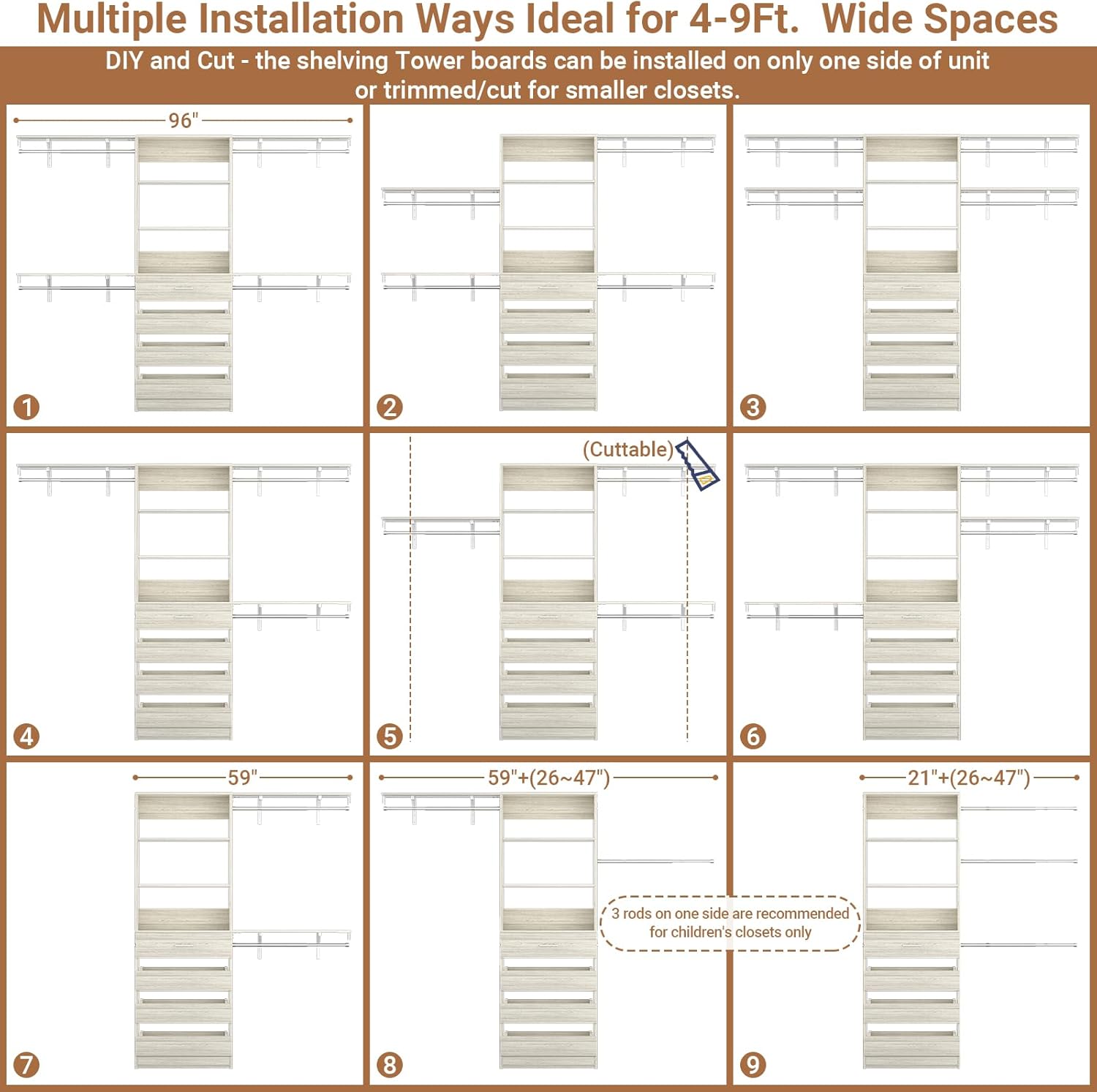

Image: Various installation layouts demonstrating how the Aheaplus closet system can be configured for different closet sizes, including options for cutting shelves to fit.

Funzionamento e utilizzo

Ripiani di regolazione:

The central tower features adjustable shelves. To change the height of a shelf, carefully lift the shelf, remove the support pins from their current holes, reposition them into the desired holes, and then place the shelf back onto the pins. Ensure all four pins are securely seated before placing items on the shelf.

Using Hanging Rods:

The four hanging rods are expandable, allowing them to fit various closet widths. To adjust the length, twist the rod to unlock, extend or retract to the desired length, and then twist in the opposite direction to lock it securely in place. Ensure the rods are firmly seated in their brackets before hanging clothes.

Utilizzo del cassetto:

The four wooden drawers operate on smooth glides. Pull the drawer handle to open and push to close. Avoid overloading drawers to ensure smooth operation and prevent damage to the glides.

Cura e manutenzione

• Pulizia: Pulire le superfici con un panno morbido, damp stoffa. Evitare detergenti abrasivi o prodotti chimici aggressivi che potrebbero danneggiare la finitura.
• Spolverare: Spolverare regolarmente tutte le superfici con un panno asciutto e morbido.
• Controllo hardware: Controllare periodicamente tutte le viti e gli elementi di fissaggio per assicurarsi che siano ben serrati. Serrare nuovamente se necessario per mantenere la stabilità.
• Distribuzione del peso: Distribute weight evenly across shelves and hanging rods to prevent sagging or damage. Do not exceed the maximum weight capacity of 1000 lbs.
• Evitare l'umidità: Keep the closet system away from excessive moisture or humidity to prevent warping or damage to the engineered wood.

Risoluzione dei problemi

Issue: System feels unstable or wobbly.

Soluzione: Ensure all wall mounting brackets are securely fastened to wall studs. Check all assembly screws and cam locks for tightness. Verify the unit is level on the floor.

Problema: i cassetti non scorrono agevolmente.

Soluzione: Check for obstructions in the drawer glides. Ensure drawers are not overloaded. Verify that the drawer slides are correctly installed and aligned. Lubricate glides with a silicone-based lubricant if necessary.

Issue: Hanging rods sag or detach.

Soluzione: Ensure the hanging rods are fully expanded and locked into position. Verify that the rod brackets are securely mounted to the wall and that the weight on the rods does not exceed their capacity.

Problema: parti mancanti durante il montaggio.

Soluzione: Double-check the package contents against the parts list in the manual. If parts are genuinely missing, contact Aheaplus customer support for assistance.

Garanzia e supporto

For warranty information, product support, or to order replacement parts, please contact Aheaplus customer service. Refer to the contact information provided in your product packaging or visit the official Aheaplus websito.

Aheaplus Customer Service: Please refer to the contact details provided with your purchase or on the Aheaplus official websito.

Risorse online: Per ulteriori suggerimenti, FAQ e registrazione del prodotto, visitare il Aheaplus Brand Store on Amazon.
