DEVAISE 48 Inch Electric Standing Desk Instruction Manual

Introduzione

Thank you for choosing the DEVAISE 48 Inch Electric Standing Desk. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new adjustable height desk. Please read these instructions thoroughly before use and retain them for future reference.

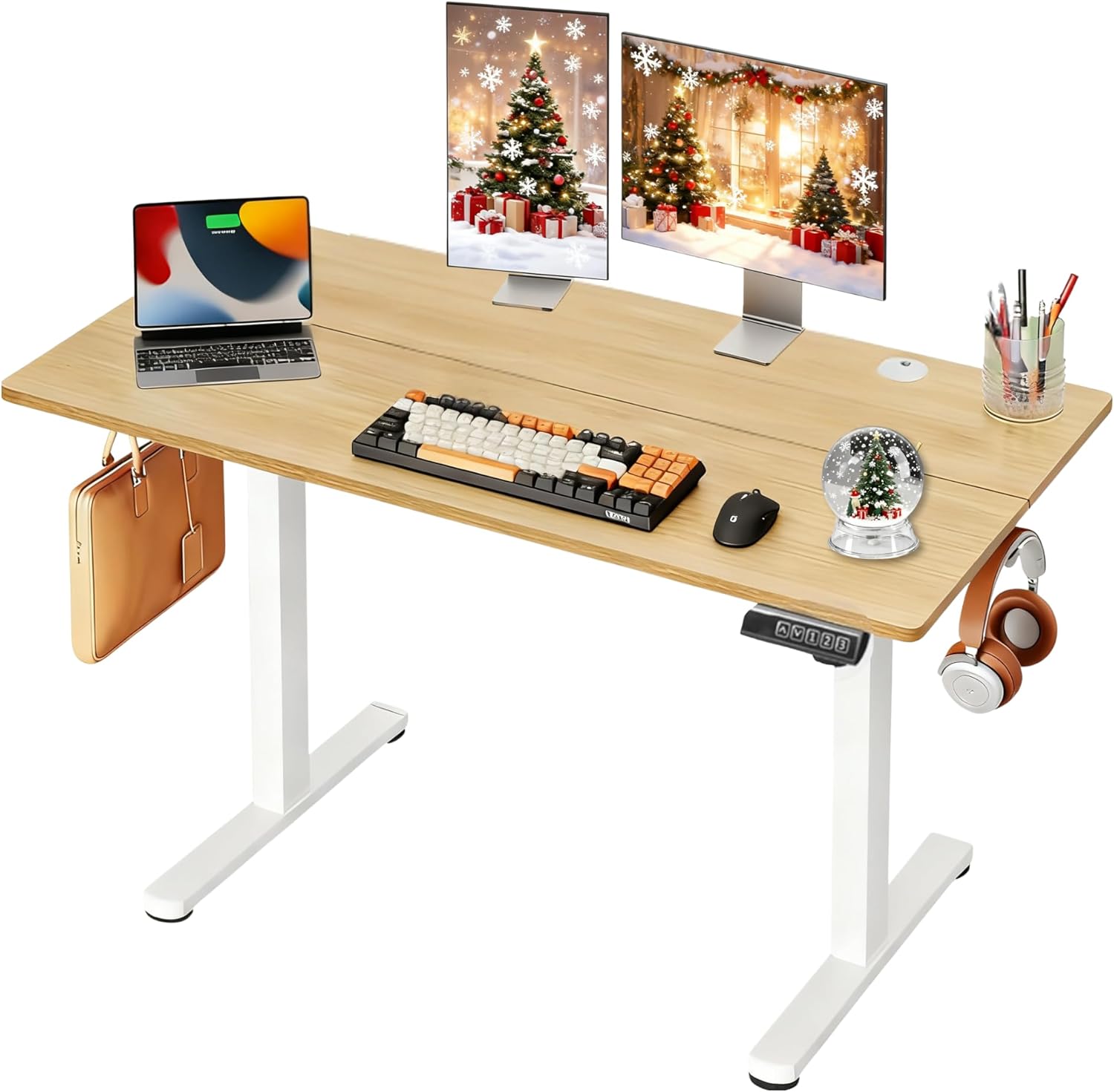

Image: The DEVAISE 48 Inch Electric Standing Desk, showcasing its spacious maple desktop and white frame, equipped for a modern workspace.

Informazioni importanti sulla sicurezza

Per garantire un funzionamento sicuro ed evitare danni, osservare quanto segue:

• The desk has a maximum weight recommendation of 180 libbreNon superare questo limite.
• Assicurarsi che tutti i componenti siano fissati saldamente prima dell'uso.
• Tenere bambini e animali domestici lontani dalla scrivania durante la regolazione dell'altezza.
• Evitare di posizionare liquidi direttamente sul pannello di controllo o in prossimità di componenti elettrici.
• The desk features an anti-collision mechanism. However, always ensure a clear path during movement to prevent injury or damage.

Installazione e assemblaggio

The DEVAISE Electric Standing Desk is designed for straightforward assembly with pre-drilled screw holes and clearly labeled parts. An average assembly time is approximately 15 minutes.

Passaggi di montaggioview

1. Disimballare i componenti: Carefully remove all parts from the packaging. Verify all components are present against the parts list in the included manual.
2. Assemblare il telaio: Attach the crossbar to the lifting columns using the provided screws and tools.
3. Installare i piedi: Fissare i piedini della scrivania alla parte inferiore delle colonne di sollevamento.
4. Collegare la biella: Insert and secure the drive rod between the two lifting columns to synchronize movement.
5. Allega Desktop: Carefully place the desktop onto the assembled frame, aligning the pre-drilled holes. Secure the desktop with the provided screws.
6. Collegare il pannello di controllo e l'alimentazione: Attach the LED touchscreen control panel and connect all necessary power cables to the motor and power adapter.
7. Ultimi ritocchi: Install the headphone hook and cable management grommets.

Image: Visual guide illustrating the streamlined assembly process with pre-labeled parts.

Guide video di montaggio

For a detailed visual walkthrough of the assembly process, please refer to the official installation videos:

Istruzioni per l'uso

Your DEVAISE Electric Standing Desk features an intuitive LED touchscreen control panel for effortless height adjustments.

Funzioni del pannello di controllo

Image: The multi-function control panel with LED display, up/down arrows, and memory preset buttons.

• Frecce su/giù: Premere e tenere premuto il tasto Up or Giù arrow buttons to manually adjust the desk height. The LED display will show the current height in real-time.
• Preimpostazioni di memoria (1, 2, 3): The desk allows you to store three personalized height settings. To save a height: adjust the desk to your desired position, then press the S button (Set) followed by the desired number button (1, 2, or 3). To recall a saved height: simply press the corresponding number button.
• Funzionamento silenzioso e regolare: The tri-motor system ensures whisper-quiet height transitions (below 50dB), minimizing disruption in your workspace.
• Funzione anticollisione: La scrivania è dotata di un sistema anticollisione che arresta automaticamente il movimento se viene rilevato un ostacolo.

Image: The desk operates with a quiet and smooth lift, ensuring a peaceful environment.

Manutenzione

Regular maintenance helps prolong the life and performance of your DEVAISE Electric Standing Desk:

• Pulizia: Pulisci il desktop e la cornice con un panno morbido eamp panno. Evitare prodotti chimici aggressivi o detergenti abrasivi.
• Gestione dei cavi: Periodically check and organize cables to prevent tangles and damage. Utilize the included headphone hook and cable grommets for a tidy setup.
• Serraggio delle viti: Controllare di tanto in tanto tutte le viti e i bulloni per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario.
• Ispezione del motore: Ensure the motor and drive rod are free from obstructions and debris.

Risoluzione dei problemi

Se riscontri problemi con la tua scrivania, fai riferimento alle seguenti soluzioni comuni:

• La scrivania non si muove: Check if the power cable is securely plugged into both the desk and the wall outlet. Ensure the control panel cable is properly connected.
• Movimento irregolare: Verify that the drive rod is correctly installed and fully extended. Ensure the desk is placed on a level surface.
• Codice di errore sul display: Refer to the detailed troubleshooting section in your printed manual for specific error code interpretations and solutions.
• Anti-Collision Activated: If the desk stops unexpectedly, check for any obstructions in its path. Remove the obstruction and try adjusting the height again.

Specifiche

Garanzia e supporto

Your DEVAISE Electric Standing Desk comes with a Garanzia limitata. For specific terms and conditions, please refer to the warranty card included with your product.

Should you have any questions regarding assembly, operation, or product selection, please do not hesitate to contact our U.S.-based product support team. Contact information can be found in your product packaging or on the official DEVAISE websito.
