1. Introduzione
Thank you for choosing the CITYSPORTS CS-WP6 Electric Incline Treadmill. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your new fitness equipment. Please read it thoroughly before first use and keep it for future reference.
Caratteristiche principali:
- 4-in-1 Design for Home and Office: This electric treadmill allows you to walk, run, jog, or train on an incline without leaving your home. Its silent operation is ideal for daily activity, improving fitness, and saving time in any setting.
- Adjustable Incline (8% to 10%): Manually adjust the incline to 8% or 10% to increase exercise difficulty and burn more calories compared to flat walking. This feature helps strengthen legs, improve endurance, and diversify workouts.
- Compatto e facile da riporre: Designed for small spaces, this treadmill can be easily stored under a sofa, bed, or in an office corner. Its lightweight and practical design makes it perfect for apartments or home offices.
- Clear LED Display and Remote Control: The integrated LED screen displays real-time data including speed, duration, distance covered, and calories burned. The included remote control allows for easy and safe speed adjustments between 1 and 6 km/h.
- Walking Comfort and Optimal Safety: Features a non-slip running surface and shock-absorbing pads to protect your joints. This solid and stable treadmill supports up to 120 kg, providing comfort, safety, and performance for various fitness goals.
2. Informazioni sulla sicurezza
Prima di utilizzare il tapis roulant, osservare le seguenti precauzioni di sicurezza:
- Consultare sempre un medico prima di iniziare qualsiasi nuovo programma di esercizi.
- Posizionare il tapis roulant su una superficie piana e stabile, con spazio sufficiente attorno.
- Ensure the safety key is properly attached to your clothing before starting the treadmill. In case of emergency, the safety key will stop the machine.
- Non permettere ai bambini o agli animali domestici di avvicinarsi al tapis roulant mentre è in funzione.
- Indossare calzature e abbigliamento sportivo adeguati.
- Non utilizzare il tapis roulant se si avvertono vertigini, svenimenti o dolori di qualsiasi tipo.
- Peso massimo utilizzatore: 120 kg.
3. Impostazione
Follow these steps to set up your CITYSPORTS CS-WP6 treadmill:
- Disimballaggio: Rimuovere con cautela tutti i componenti dall'imballaggio. Conservare l'imballaggio per un eventuale stoccaggio o trasporto futuro.
- Posizionamento: Choose a suitable location with a stable, level floor. Ensure there is at least 0.6 meters (2 feet) of clear space on each side and 2 meters (6.5 feet) behind the treadmill for safety.
- Handlebar Assembly (if applicable): If your model includes handlebars, follow the specific instructions in the quick start guide to secure them.
- Collegamento elettrico: Collegare il cavo di alimentazione a una presa elettrica dotata di messa a terra.
- Chiave di sicurezza: Inserire la chiave di sicurezza nell'apposito slot sulla console. Il tapis roulant non funzionerà senza la chiave di sicurezza.
- Controllo iniziale: Before stepping on, turn on the treadmill at a low speed to ensure the belt runs smoothly and is centered.
Immagine 3.1: Passoview of the CITYSPORTS CS-WP6 treadmill in a home environment.

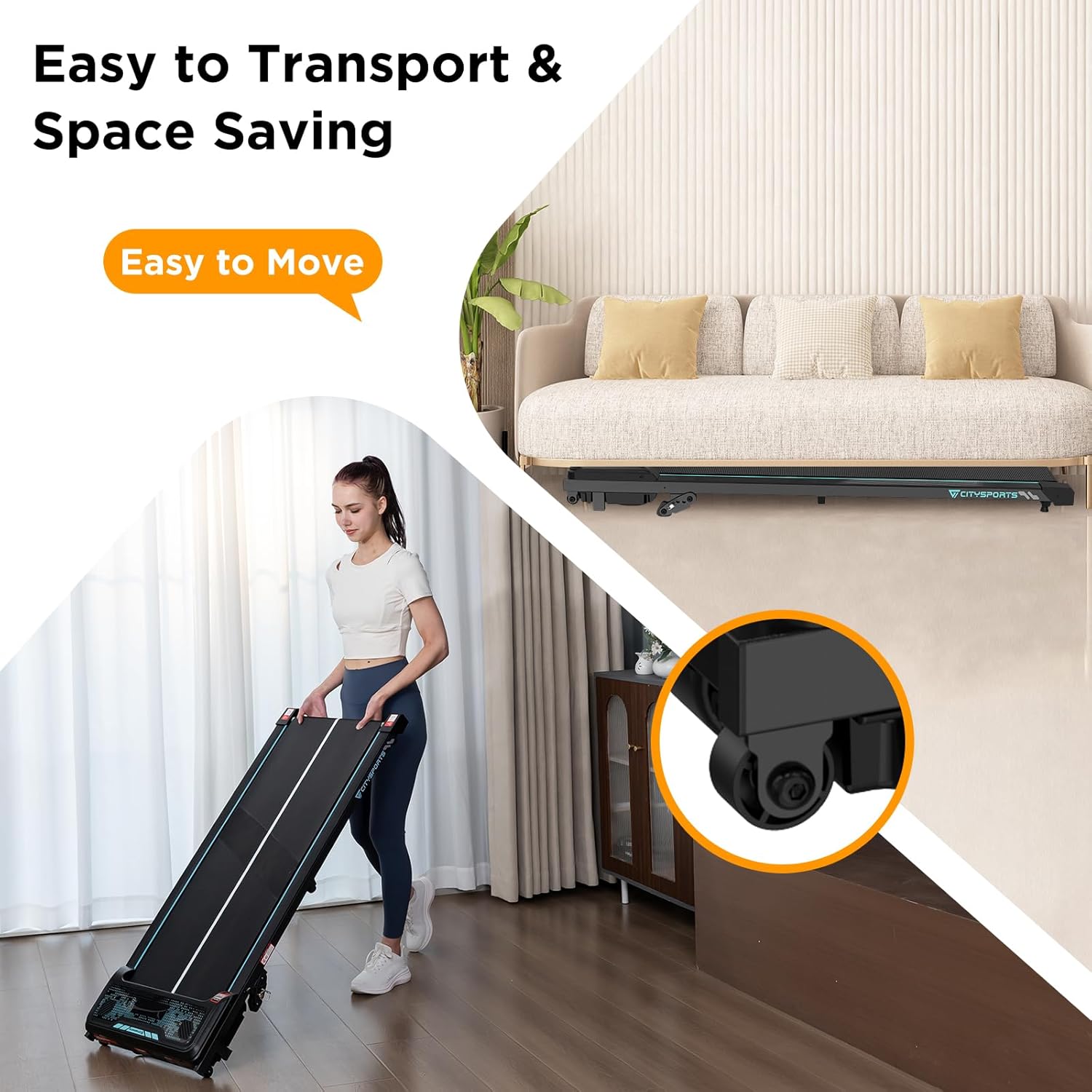

Image 3.2: Demonstrating the treadmill's portability and ease of storage.
4. Istruzioni per l'uso
4.1 Accensione/Spegnimento
- Per accendere: Ensure the safety key is in place. Press the 'START' button on the console or the remote control. The display will light up, and the belt will begin to move at a low speed.
- Per spegnere: Press the 'STOP' button on the console or remote control. The belt will gradually slow down and stop. Remove the safety key to completely power off the machine.
4.2 Regolazione della velocità
Il tapis roulant offre una gamma di velocità da 1 a 6 km/h.
- Use the '+' and '-' buttons on the remote control or console to increase or decrease the speed.
- Il display LED mostrerà la velocità attuale.
- Different speed modes are suitable for various activities:
- Modalità ufficio: 1-2 km/h (for light activity while working)
- Modalità di camminata: 2-4 km/h (for brisk walking)
- Modalità jogging: 4-6 km/h (for light jogging)
Image 4.1: Illustration of various speed settings for different exercise intensities.
4.3 Regolazione dell'inclinazione
The CITYSPORTS CS-WP6 features a manual incline adjustment with settings at 8% and 10%.
- To adjust the incline, first ensure the treadmill is stopped and unplugged.
- Locate the manual incline adjustment points at the rear of the treadmill.
- Lift the rear of the treadmill and secure the support legs into the desired incline position (8% or 10%).
- Ensure both support legs are securely locked in place before resuming use.
Image 4.2: Visual representation of the treadmill's incline capability.
4.4 Display a LED
Il display LED integrato fornisce un feedback in tempo reale sul tuo allenamento:
- Tempo: Durata del tuo allenamento.
- Velocità: Velocità attuale in km/h.
- Distanza: Distanza totale percorsa durante la sessione.
- Calorie: Calorie bruciate stimate.
Immagine 4.3: Dettagliata view of the LED display and its functions.
4.5 Arresto di sicurezza
The safety key is a critical safety feature. If the safety key is pulled from its slot, the treadmill will immediately stop. Always ensure the safety key is attached to your clothing during use.
5. Manutenzione
Una manutenzione regolare garantisce la longevità e le prestazioni ottimali del tuo tapis roulant.
5.1 Pulizia
- Dopo ogni utilizzo: Pulisci la console e le altre superfici con un pannoamp panno per rimuovere sudore e polvere.
- Settimanale: Passare l'aspirapolvere sotto il tapis roulant per evitare che polvere e detriti si accumulino nella zona del motore.
- Non utilizzare detergenti abrasivi o solventi.
5.2 Lubrificazione
The running belt requires periodic lubrication to reduce friction and extend its lifespan. A small bottle of lubricant is included with your purchase.
- Frequenza: Lubricate the belt every 30-50 hours of use, or every 1-2 months, depending on usage.
- Procedura:
- Spegnere e scollegare il tapis roulant.
- Loosen the belt tension bolts slightly to lift the belt.
- Apply a thin line of silicone lubricant evenly under the center of the running belt.
- Tighten the belt tension bolts.
- Far funzionare il tapis roulant a bassa velocità per 5 minuti per distribuire il lubrificante.
5.3 Regolazione della cinghia
If the running belt is off-center or slipping, it may need adjustment.
- Centraggio della cinghia: If the belt drifts to one side, use the provided Allen wrench to turn the corresponding rear roller bolt a quarter turn clockwise. If it drifts to the other side, turn the opposite bolt a quarter turn clockwise. Run the treadmill for a few minutes and re-adjust if necessary until the belt is centered.
- Stringere la cinghia: If the belt slips during use, turn both rear roller bolts a quarter turn clockwise simultaneously. Do not overtighten.
5.4 Conservazione
When not in use, the treadmill can be folded and stored to save space.
- Assicurarsi che il tapis roulant sia spento e scollegato.
- Follow the folding mechanism instructions (refer to quick start guide if available) to fold the handlebars down.
- Utilize the built-in transport wheels to move the treadmill to a suitable storage location, such as under a bed or sofa.
6. Risoluzione Dei Problemi
Ecco le soluzioni ai problemi più comuni che potresti riscontrare:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il tapis roulant non si avvia | Safety key not in place; Power cord unplugged; Power switch off. | Ensure safety key is correctly inserted; Check power cord connection; Turn on power switch. |
| La cintura da corsa scivola | Cinghia troppo lenta; la cinghia necessita di lubrificazione. | Adjust belt tension (see Maintenance section); Lubricate the belt (see Maintenance section). |
| Rumore insolito durante il funzionamento | Parti allentate; attrito della cinghia; problema al motore. | Check and tighten all visible bolts and screws; Lubricate the belt; If noise persists, contact customer support. |
| Il display non funziona correttamente | Loose connection; Electronic fault. | Check all cable connections; Power cycle the treadmill; If issue continues, contact customer support. |
7. Specifiche
Detailed specifications for the CITYSPORTS CS-WP6 Electric Incline Treadmill:
- Marca: SPORTIVI
- Numero modello: CS-WP6
- Dimensioni del prodotto (L x P x A): Dimensioni: 123 x 49 x 12.1 cm
- Peso dell'articolo: 19 chilogrammi
- Materiale: Metal, Aluminum Frame
- Colore: Verde
- Energia: 440 Watt
- Velocità massima: 6 chilometri all'ora
- Inclinazione: Manual, 8% to 10%
- Tipo di visualizzazione: LED (shows Time, Speed, Distance, Calories)
- Fonte di energia: Elettrico con cavo
- Caratteristiche speciali: Bluetooth, portatile
- Componenti inclusi: Telecomando
- Utilizzi consigliati: Running, Walking, Jogging, Personal Use, Light Commercial Use, Small Spaces
- Pubblico di destinazione: Adulto
Immagine 7.1: Interno view of the 440W brushless motor, emphasizing its quiet and efficient design.
Image 7.2: Explanation of the multi-layer shock absorption system for joint protection.
8. Garanzia e supporto
For warranty information or technical support, please refer to the warranty card included with your product or contact CITYSPORTS customer service through the retailer where you purchased the treadmill. Please have your model number (CS-WP6) and purchase date ready when contacting support.
